    How To: Install a M570TU GPU into a D901C (please help!)

    Discussion in 'Sager and Clevo' started by Beersentes, Jun 22, 2009.

  1. theriko

    theriko Ronin

    Reputations:
    1,303
    Messages:
    2,923
    Likes Received:
    4
    Trophy Points:
    56
    Unfortunately neither of those things are going to happen :(

    I would still like to know if a GTX 280M will work in an M570RU...

    theriko, Jul 20, 2009
    #51
  2. mmarchid

    mmarchid Notebook Evangelist

    Reputations:
    133
    Messages:
    496
    Likes Received:
    0
    Trophy Points:
    30
    If that guy from eBay that is selling the RU with 9800M GTX is not lying, which may be true because he's having a 100% eBay rating, you could potentially run a 260M GTX flashed with the 9800M GTX bios (both having the same cores and design) in your RU. I don't know if you can do the same trick with the 280M GTX though since it has more cores.

    As for running a non-SLI pair of 260M GTX's (or future ones) in the D901C, it may still be a chance since with the OpenCL standard SDK GPUs and CPUs will all be considered generic Processing Units.

    Its like programming multithreaded applications in a multi-CPU environment, as in Sparc Sun servers, versus programmming multithreaded applications on a Intel Dual Core or Quad system. The processing units (Nvidia GPUs or Sparc CPUs) do not necessarily have to be on the same die (as the Intel cores) or on a tight GPU setup like SLI.

    However, for that to happen the games/applications need to be implemented in OpenCL (which may be less efficient) rather than in DirectX for which the current cards and the future 300 series are being designed and optimized.
    We will have to see if Snow Leopard will be able to push things in that direction since it seems to support OpenCL natively.
    For example, 250/260M GTS cards are officially supporting OpenCL, but they too have a MXM 3.0b slot.

    mmarchid, Jul 21, 2009
    #52
  3. mmarchid

    mmarchid Notebook Evangelist

    Reputations:
    133
    Messages:
    496
    Likes Received:
    0
    Trophy Points:
    30
    @dondadah88

    Did you try it and it didn't work? I see that you are selling the laptop...

    mmarchid, Jul 25, 2009
    #53
  4. dondadah88

    dondadah88 Notebook Nobel Laureate

    Reputations:
    2,024
    Messages:
    7,755
    Likes Received:
    0
    Trophy Points:
    205
    the gpu is in the mail just waiting for it. but yes I am selling my notebook. but when the card come in I will switch card to see if they work but I don't know about sli.

    dondadah88, Jul 25, 2009
    #54
  5. mmarchid

    mmarchid Notebook Evangelist

    Reputations:
    133
    Messages:
    496
    Likes Received:
    0
    Trophy Points:
    30
    Okey, I got a surprise today when I finally installed pretty much all the drivers and I was getting ready to test my system for stability.

    When I started GPU-Z, instead of finding the 9800M GTX card I found the Quadro FX 3700M card!

    I know that this card is a better one, and also more expensive, but it also makes a possible upgrade to the 9800M GTX SLI configuration more problematic.

    Anyone has any thoughts if I should be happy or unhappy about it?

    mmarchid, Jul 26, 2009
    #55
  6. dondadah88

    dondadah88 Notebook Nobel Laureate

    Reputations:
    2,024
    Messages:
    7,755
    Likes Received:
    0
    Trophy Points:
    205
    does it have a sli connector on it? can we see a screen shot of it.

    dondadah88, Jul 26, 2009
    #56
  7. mmarchid

    mmarchid Notebook Evangelist

    Reputations:
    133
    Messages:
    496
    Likes Received:
    0
    Trophy Points:
    30

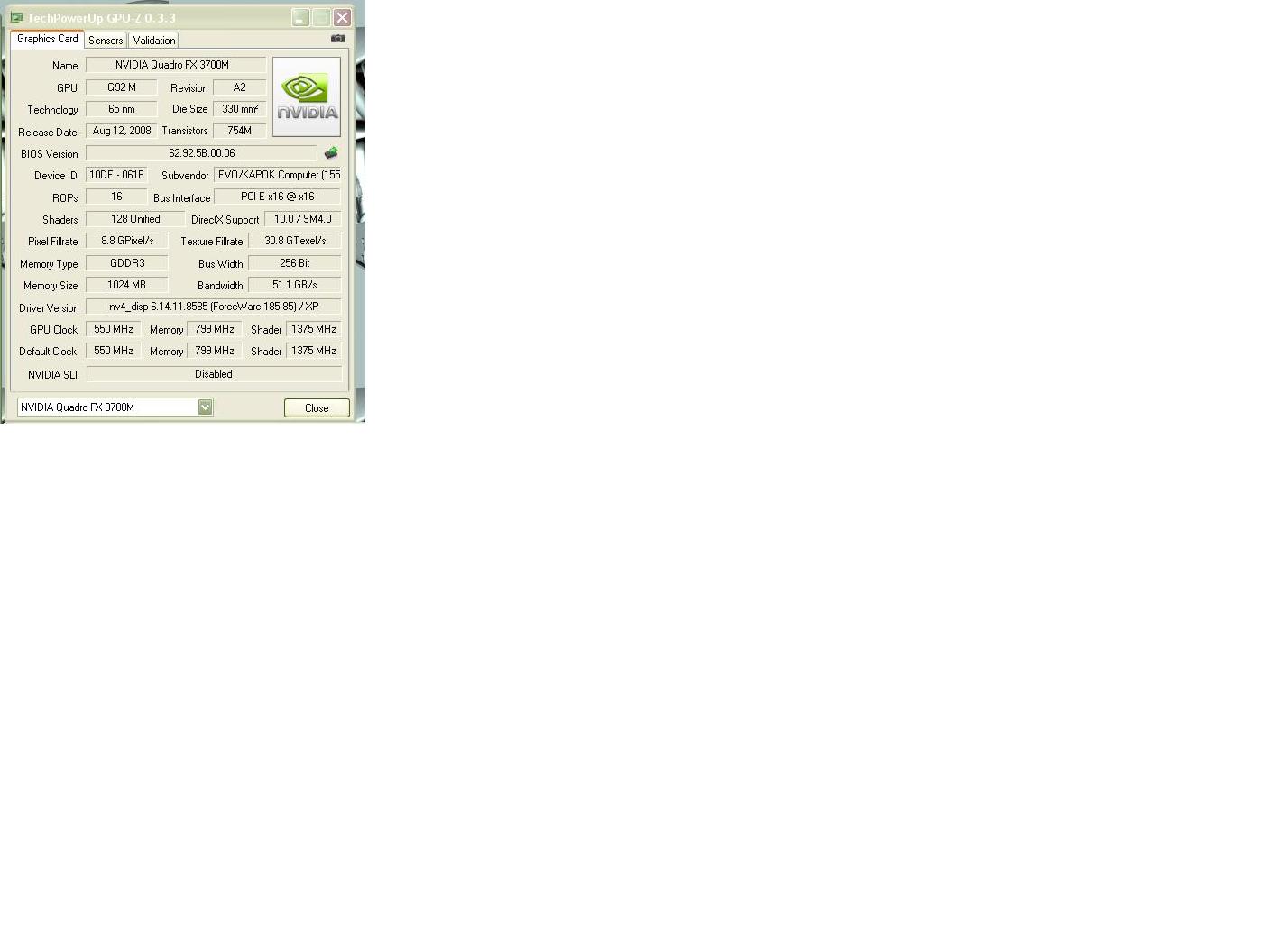

    Here is a screenshot of GPU-Z with it. HWMonitor and Everest also detect it as Quadro even though I have installed the Forceware drivers.

    I thought that the Quadro FX 3700M does not have SLI capabilities, but I will double check. GPU-Z shows that SLI is disabled, although I do not know it it is BIOS or hardware disabled.
    In the Quadro presentation sheet, 3700 does have SLI checked in the features matrix, but it may be just for the desktop (512MB) version.
    There are also some threads related to the 3700M in D901C but not very lengthy:
    http://forum.notebookreview.com/showthread.php?t=304908
    http://forum.notebookreview.com/showthread.php?t=318323


    Attached Files:

    mmarchid, Jul 27, 2009
    #57
  8. dondadah88

    dondadah88 Notebook Nobel Laureate

    Reputations:
    2,024
    Messages:
    7,755
    Likes Received:
    0
    Trophy Points:
    205
    well i heard the 280m is a 3700. so you maybe able to flash it to a 280m if you found another one and sli it but i'm thinking farfetched.

    but take out the card and look at the bottom and see if you see a little plug. this is where you can add sli.

    dondadah88, Jul 27, 2009
    #58
  9. kaltmond

    kaltmond Clepple

    Reputations:
    699
    Messages:
    1,454
    Likes Received:
    1
    Trophy Points:
    56
    Well, you are lucky :D Where did you get that card?

    kaltmond, Jul 27, 2009
    #59
  10. mmarchid

    mmarchid Notebook Evangelist

    Reputations:
    133
    Messages:
    496
    Likes Received:
    0
    Trophy Points:
    30
    It came with the laptop as a sellout from a German reseller just before being retired. Maybe the 3700 was a leftover that was fitting only the D901C anyway.
    You can find some 3700's on eBay, but they are usually MXM 2.1 type III (Dell M6400) instead of type IV that works with Clevo.

    I will look at the card for the SLI connector, but I need to buy a electrostatic band first before I work with the internal parts.

    mmarchid, Jul 27, 2009
    #60
  11. theriko

    theriko Ronin

    Reputations:
    1,303
    Messages:
    2,923
    Likes Received:
    4
    Trophy Points:
    56
    The MXM standard is backwards compatible, so an MXM III card will work in a type IV slot, as long as it is truly MXM

    theriko, Jul 27, 2009
    #61
  12. mmarchid

    mmarchid Notebook Evangelist

    Reputations:
    133
    Messages:
    496
    Likes Received:
    0
    Trophy Points:
    30
    How can I find out if it is a MXM 2.1-IV or III? I need to disassemble it and measure it to see if it's (82mm)x(115mm) accoding to mxm-upgrade.com?

    If the card is type III and it doesn't have a SLI connector I might not be happy, since they trade at eBay for about 400$.

    mmarchid, Jul 27, 2009
    #62
  13. kaltmond

    kaltmond Clepple

    Reputations:
    699
    Messages:
    1,454
    Likes Received:
    1
    Trophy Points:
    56
    FX 37 doesn't have sli connector.

    kaltmond, Jul 27, 2009
    #63
  14. mmarchid

    mmarchid Notebook Evangelist

    Reputations:
    133
    Messages:
    496
    Likes Received:
    0
    Trophy Points:
    30
    Everest says that my D901C has 2MB BIOS. I thought that it would be 4MB or am I confusing it with the D900F BIOS?
    It also says that the BIOS is from 24 Sept. 2008, the motherboard is D900C Rev D (not D901C) and at boot time I get the following information:
    - D900C 1.00.20
    - KBC/EC Firmware Rev. 1.00.12N

    Are these readings normal for a fully fledged D901C, e.g. supporting 9800M GTX in SLI?
    Thanks.

    mmarchid, Jul 28, 2009
    #64
  15. theriko

    theriko Ronin

    Reputations:
    1,303
    Messages:
    2,923
    Likes Received:
    4
    Trophy Points:
    56
    That is normal, the d900 and 901c's are only different in the chassis colour (the d900's were blue). You do not have the very latest bios/kbc, but the only thing that does is fix some bluetooth detection issues.

    theriko, Jul 28, 2009
    #65
  16. dondadah88

    dondadah88 Notebook Nobel Laureate

    Reputations:
    2,024
    Messages:
    7,755
    Likes Received:
    0
    Trophy Points:
    205
    i have it but i decided not to go threw with the project because i put my notebook up for sale which is sold.

    now i am selling my 9800m gtx. :( sorry guys.

    dondadah88, Jul 29, 2009
    #66
  17. Soviet Sunrise

    Soviet Sunrise Notebook Prophet

    Reputations:
    2,140
    Messages:
    6,547
    Likes Received:
    0
    Trophy Points:
    205
    I guess it's all up to Beersentes then. I miss my old 9800M GTX.

    Soviet Sunrise, Jul 29, 2009
    #67
  18. dondadah88

    dondadah88 Notebook Nobel Laureate

    Reputations:
    2,024
    Messages:
    7,755
    Likes Received:
    0
    Trophy Points:
    205
    he said it fits and works. and he made a guide i think on page 3.

    dondadah88, Jul 29, 2009
    #68
  19. Soviet Sunrise

    Soviet Sunrise Notebook Prophet

    Reputations:
    2,140
    Messages:
    6,547
    Likes Received:
    0
    Trophy Points:
    205
    We haven't heard back from him in a while though. In his post, he still has his 8800M GTX in his machine.

    Soviet Sunrise, Jul 29, 2009
    #69
  20. dondadah88

    dondadah88 Notebook Nobel Laureate

    Reputations:
    2,024
    Messages:
    7,755
    Likes Received:
    0
    Trophy Points:
    205
    yeah i just read it. i think he said he needed a bios revision. i wish i knew which one since i have the 9800m gtx and the sager bios. but he's gone

    dondadah88, Jul 29, 2009
    #70
  21. Soviet Sunrise

    Soviet Sunrise Notebook Prophet

    Reputations:
    2,140
    Messages:
    6,547
    Likes Received:
    0
    Trophy Points:
    205
    Soviet Sunrise, Jul 29, 2009
    #71
  22. dondadah88

    dondadah88 Notebook Nobel Laureate

    Reputations:
    2,024
    Messages:
    7,755
    Likes Received:
    0
    Trophy Points:
    205
    oh ok i see. well we have to wait on him then.

    dondadah88, Jul 29, 2009
    #72
  23. mmarchid

    mmarchid Notebook Evangelist

    Reputations:
    133
    Messages:
    496
    Likes Received:
    0
    Trophy Points:
    30
    dondadah88,

    I was about to ask you your 3DMark06 score but I just stumbled on it in the M17x thread. Weirdest thing, I got exactly the same score with the 3700M: 12649 :)
    I still have to install Win 7 in order to get the Vantage results. What is your asking price for the card?

    mmarchid, Jul 30, 2009
    #73
  24. Soviet Sunrise

    Soviet Sunrise Notebook Prophet

    Reputations:
    2,140
    Messages:
    6,547
    Likes Received:
    0
    Trophy Points:
    205
    His 9800M GTX is in the Marketplace right now. He is selling it for $400 as of this post.

    Soviet Sunrise, Jul 30, 2009
    #74
  25. mmarchid

    mmarchid Notebook Evangelist

    Reputations:
    133
    Messages:
    496
    Likes Received:
    0
    Trophy Points:
    30
    I need to sleep on it if I return back the 3700M for the original 9800M GTX and start thinking about SLI again.

    mmarchid, Jul 30, 2009
    #75
  26. mmarchid

    mmarchid Notebook Evangelist

    Reputations:
    133
    Messages:
    496
    Likes Received:
    0
    Trophy Points:
    30
    Has anybody tried a multi-GPU setup without SLI? Is the OS able to recognize both cards? I am wondering if you could potentially bind some tasks to the extra card, such as Physx compuations but not only. I think that before Nvidia acquired Ageia, you could use a GPU and the Physx card in the same system.

    mmarchid, Jul 30, 2009
    #76
  27. dondadah88

    dondadah88 Notebook Nobel Laureate

    Reputations:
    2,024
    Messages:
    7,755
    Likes Received:
    0
    Trophy Points:
    205
    you can do that with 190.38 driver. one gpu for graphics and the other for physx but i'm not sure if you need a sli cable for it.

    and yes i'm selling it for 400 but where are you located????

    dondadah88, Jul 30, 2009
    #77
  28. mmarchid

    mmarchid Notebook Evangelist

    Reputations:
    133
    Messages:
    496
    Likes Received:
    0
    Trophy Points:
    30
    I've sent you a pm.

    mmarchid, Jul 30, 2009
    #78
  29. mmarchid

    mmarchid Notebook Evangelist

    Reputations:
    133
    Messages:
    496
    Likes Received:
    0
    Trophy Points:
    30
    If anyone was still wondering about this, the M570TU 9800M GTX from dondadah88 works well in my D901C.
    It needed the heatsink mounting frame though which I took it from a 8800M GTX.

    mmarchid, Oct 8, 2009
    #79
  30. dondadah88

    dondadah88 Notebook Nobel Laureate

    Reputations:
    2,024
    Messages:
    7,755
    Likes Received:
    0
    Trophy Points:
    205
    great. How do you like it?

    :)

    dondadah88, Oct 8, 2009
    #80
  31. mmarchid

    mmarchid Notebook Evangelist

    Reputations:
    133
    Messages:
    496
    Likes Received:
    0
    Trophy Points:
    30
    Scores on Windows 7 (stock):
    3DMark06: 11117 (SM 2.0, SM 3.0: 4627,4400, CPU:4103)
    3DMark V: P5631 (GPU: 4462, CPU: 26250).

    They are lower than the 3700M, but not much. I tried to use them both in a non-SLI configuration (with modded 190.62 drivers) but the display flickered after login and the display blacked out. I may have to wait for 190.38+ mobile drivers to try again.

    Also, I could try a 8800M GTX SLI if I flash the 9800M GTX to 8800 vbios.
    However, I will have to test more the 8800 because as a parent card cannot login in Windows.

    mmarchid, Oct 8, 2009
    #81
  32. dondadah88

    dondadah88 Notebook Nobel Laureate

    Reputations:
    2,024
    Messages:
    7,755
    Likes Received:
    0
    Trophy Points:
    205
    not bad. Higher then mines cause of the quad you have but my gpu'ss are little higher. I don't want to turn this into a benchmarking thread. Pm or email with those. If you want.

    dondadah88, Oct 8, 2009
    #82
  33. guitar23801

    guitar23801 Notebook Enthusiast

    Reputations:
    0
    Messages:
    10
    Likes Received:
    0
    Trophy Points:
    5
    hey all, forgive me, i am a newb (i was in afghanistan for 7 months, i just got back so bear with me..). alright, i currently have a sager 9262 with q9650 3.0 ghz/1333 mhz fsb, 4 gb of 800 mhz ram, 1 9800m gtx...i'm buying a second 9800m gtx from someone who has the sager 5796. i've been reading and i've seen about the heatsink issue etc..now my question is, when i buy this card..i have really no idea what i'm doing, but is it going to be difficult to convert my sager to SLI? also..about the drivers issue side of things, laptopvideo2go.com didn't seem to work at all. so with that being said, if i installed the second card, would sager force itself to recognize the card and run in SLI mode or am i going to have to try to figure something out? i would definately prefer if a computer guru person were able to talk to me on the phone or something and try to help me walk through to installing it...i seriously have no idea what i'm doing, i just want SLI and i don't wanna ruin my 3000 dollar laptop is all. thanks.

    chris

    guitar23801, Oct 15, 2009
    #83
  34. mmarchid

    mmarchid Notebook Evangelist

    Reputations:
    133
    Messages:
    496
    Likes Received:
    0
    Trophy Points:
    30
    You will need the D901C GPU-2-heatsink mounting frame and a D901C heatsink with fan. The M570TU heatsink will not work. Also a SLI band.
    I do not know where you can find such frame, maybe from a used broken card. Look at the broken (AS IS or FAULTY) cards on eBay that have it.

    mmarchid, Oct 16, 2009
    #84
  35. eastx

    eastx Notebook Geek

    Reputations:
    0
    Messages:
    98
    Likes Received:
    1
    Trophy Points:
    16
    eastx, Oct 17, 2009
