    Inf mod

    Discussion in 'Sager and Clevo' started by oljo01, May 4, 2019.

  1. oljo01

    oljo01 Notebook Enthusiast

    Reputations:
    0
    Messages:
    36
    Likes Received:
    3
    Trophy Points:
    16
    Can someone please make a inf mod for me?

    Its hardware id
    PCI\VEN_10DE&DEV_1C20&SUBSYS_51061558&REV_A1


    i have tried to make it myself but for some reason it doesnt work!

    oljo01, May 4, 2019
    #1
  2. Prema

    Prema Your Freedom, Your Choice

    Reputations:
    9,368
    Messages:
    6,297
    Likes Received:
    16,485
    Trophy Points:
    681
    Prema, May 4, 2019
    #2
    Papusan, Vasudev and Arrrrbol like this.
  3. oljo01

    oljo01 Notebook Enthusiast

    Reputations:
    0
    Messages:
    36
    Likes Received:
    3
    Trophy Points:
    16
    I tried it, but i got bsod 2 different errors, i can try reinstall it maybe

    I see there are 430.53 i am on 39, so i am going to upgrade

    oljo01, May 4, 2019
    #3
  4. Prema

    Prema Your Freedom, Your Choice

    Reputations:
    9,368
    Messages:
    6,297
    Likes Received:
    16,485
    Trophy Points:
    681
    You have to use the Optimus version for an iGPU system.

    Prema, May 4, 2019
    #4
  5. oljo01

    oljo01 Notebook Enthusiast

    Reputations:
    0
    Messages:
    36
    Likes Received:
    3
    Trophy Points:
    16
    I get the video tdr failure, i am not sure but i think it has something to do with the nvidia driver?

    oljo01, May 4, 2019
    #5
  6. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    Laptopvideo2go try a set from there. If different sets are getting the error there may be an issue with the hardware.

    Meaker@Sager, May 4, 2019
    #6
    Prema and Vasudev like this.
  7. oljo01

    oljo01 Notebook Enthusiast

    Reputations:
    0
    Messages:
    36
    Likes Received:
    3
    Trophy Points:
    16

    Can you tell me what driver from prema site i need? i have tried a few different drivers from laptopvideo2go and prema site, still get the video tdr error some times, it has to be a driver problem because i got different reactions from different drivers, one driver i tried just bsod everytime i tried to run Witcher 3 ect

    oljo01, May 6, 2019
    #7
  8. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    What machine do you have?

    Meaker@Sager, May 7, 2019
    #8
  9. oljo01

    oljo01 Notebook Enthusiast

    Reputations:
    0
    Messages:
    36
    Likes Received:
    3
    Trophy Points:
    16
    Clevo p150sm, i am also going to order new thermal pads for the card, i might have done a bad job covering all spots on the card.

    oljo01, May 7, 2019
    #9
  10. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    Take pictures if you are unsure on how good the contact looks.

    Meaker@Sager, May 7, 2019
    #10
  11. oljo01

    oljo01 Notebook Enthusiast

    Reputations:
    0
    Messages:
    36
    Likes Received:
    3
    Trophy Points:
    16

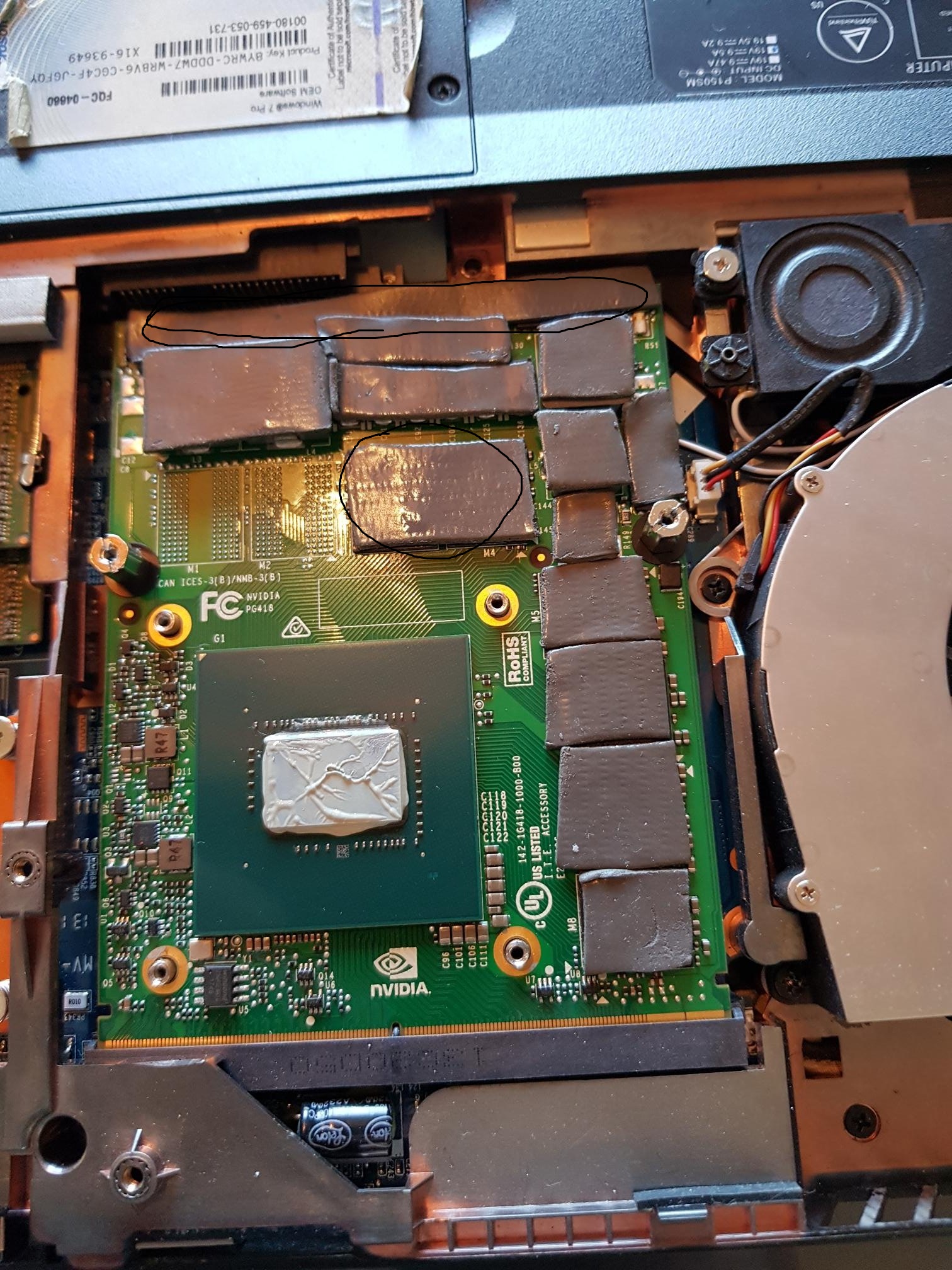

    See picture, i guess this is ok?

    I had only one BSOD after i changed the thermal pads to this, and no BSOD all night trough, so i am guessing its working now


    Attached Files:

    oljo01, May 9, 2019
    #11
  12. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    The very top pad and the one above the right screw are the most important pads and I think they are not making contact. These are the ones covering the VRMs and MUST make good contact.

    Meaker@Sager, May 9, 2019
    #12
  13. oljo01

    oljo01 Notebook Enthusiast

    Reputations:
    0
    Messages:
    36
    Likes Received:
    3
    Trophy Points:
    16

    Ok, so these to (see picture) i need to put a new pad on top of them so i can "close the gap"?


    Attached Files:

    oljo01, May 9, 2019
    #13
  14. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    Take the card out, lay it flat upside down on the heatsink and check that the top pad (and the one to the far right of the one you circled covering the memory) make contact. It's on the edges so should be easy to see.

    It's the VRM chips that are super important.

    Meaker@Sager, May 9, 2019
    #14
