    Installing XP on a M570RU

    Discussion in 'Sager and Clevo' started by Wintersdark, Sep 16, 2008.

  1. Wintersdark

    Wintersdark Notebook Consultant

    Reputations:
    84
    Messages:
    162
    Likes Received:
    0
    Trophy Points:
    30
    Ok, wierd question.

    I need to install XP on my m570ru. It's a normal, legit cd w/ key, etc. However, when I try to install it, it says it cannot find a hard drive.

    Now, I have a hard drive, and am running XP on the lappy now. My current installation is gimped, and I want to wipe and fully reinstall everything. So, the hard drive is working fine as is.

    I assume that the basic xp pro cd does not come with the correct SATA drivers needed. I've tried hitting F6 during startup when it asks if I wish to install SATA/RAID drivers, however, it fails saying it cannot find a floppy drive (which is to be expected, as I don't own a floppy drive) and won't let me browse a CD.

    I've got the M570RU drivers CD from clevo, as well as more updated ones downloaded. I'm assuming it's the "Chipset" drivers I need, as there are no controller-specific drivers.

    Any thoughts on how to get it to "see" my HD/load those drivers or work around this?

    Wintersdark, Sep 16, 2008
    #1
  2. theriko

    theriko Ronin

    Reputations:
    1,303
    Messages:
    2,923
    Likes Received:
    4
    Trophy Points:
    56
    you need to use nlite to slipstream the sata/ahci drivers into an xp installation disc. Or you could try loading them off a usb stick using the f6 method.

    theriko, Sep 16, 2008
    #2
  3. kobe_24

    kobe_24 Notebook Deity

    Reputations:
    292
    Messages:
    1,088
    Likes Received:
    5
    Trophy Points:
    56
    There should be an option in the BIOS to set the hard drive for IDE.

    kobe_24, Sep 16, 2008
    #3
  4. Gophn

    Gophn NBR Resident Assistant

    Reputations:
    4,843
    Messages:
    15,707
    Likes Received:
    3
    Trophy Points:
    456
    switch to IDE mode (in BIOS)... which might be on AHCI mode.

    if that does not work yet, then I would definitely do the slipstreaming of the SATA drivers with nLite.. its very simple and useful.

    Gophn, Sep 16, 2008
    #4
  5. Wintersdark

    Wintersdark Notebook Consultant

    Reputations:
    84
    Messages:
    162
    Likes Received:
    0
    Trophy Points:
    30
    Ok, given the slipstreaming plan (which is preferable to the IDE thing, given that the lappy runs wonderfully in SATA), which drivers would I need on a USB key? You can use USB keys with that? I had no idea, but that'll save a lot of trouble.

    I'm somewhat unsure - I'm assuming the chipset drivers, but there's a *lot* of drivers in there. Anyone know which in particular?

    Edit: I'm assuming that if I set everything up in IDE mode, I'm stuck in IDE mode and cannot switch it back to SATA once everything is installed, right?

    Wintersdark, Sep 16, 2008
    #5
  6. Gophn

    Gophn NBR Resident Assistant

    Reputations:
    4,843
    Messages:
    15,707
    Likes Received:
    3
    Trophy Points:
    456
    IDE mode is good, no significant benefit using SATA mode.

    Gophn, Sep 16, 2008
    #6
  7. Audigy

    Audigy Notebook Evangelist

    Reputations:
    734
    Messages:
    650
    Likes Received:
    0
    Trophy Points:
    30
    Audigy, Sep 16, 2008
    #7
  8. Audigy

    Audigy Notebook Evangelist

    Reputations:
    734
    Messages:
    650
    Likes Received:
    0
    Trophy Points:
    30
    Even if in the real world the performance difference isn't huge, it´s always best to enable AHCI.

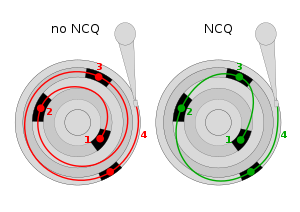

    One main advantage of AHCI, is the support of NCQ (Native Command Queuing), allowing SATA drives to accept more than one command at a time and dynamically reorder the commands for maximum efficiency.

    More about the Native Command Queuing (NCQ):

    ;)

    Audigy, Sep 16, 2008
    #8
  9. Wintersdark

    Wintersdark Notebook Consultant

    Reputations:
    84
    Messages:
    162
    Likes Received:
    0
    Trophy Points:
    30
    Audigy, you're made of 100% pure win.

    Thanks guys!

    Wintersdark, Sep 16, 2008
    #9
  10. kobe_24

    kobe_24 Notebook Deity

    Reputations:
    292
    Messages:
    1,088
    Likes Received:
    5
    Trophy Points:
    56
    kobe_24, Sep 17, 2008
    #10
