    Issue with laptop screen. It flashes and has a lot of static - Sager NP8640-S (Clevo P640RE)

    Discussion in 'Sager and Clevo' started by dvillabon, Oct 18, 2017.

  1. dvillabon

    dvillabon Newbie

    Reputations:
    0
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    5
    Laptop Model: Sager NP8640-S (Clevo P640RE) Processor: Intel(R) Core(TM) i7-6700HQ CPU @ 2.60Hz 2.60Hz OS: Windows 10 Home

    When I turn on my laptop, I have an issue with my laptop screen. The screen flashes and has little white pixel dots appearing in the screen and also something that looks like static on old televisions.

    Link to screen problem: https://streamable.com/u7i46 (this was last night, it seems to be much much worse today)

    I researched a bit online and read that it could be that the LCD connector either needs replacing or is not connected properly to the motherboard. I took the case off my laptop to see if I could spot this cable but I’m not tech savvy enough to know where it is.

    Here is a picture of my laptop without the case: https://imgur.com/a/bJPkP

    Can anyone tell me where the LCD connector is so that I can check if it’s plugged in properly or not?

    If you have any other advice or ideas what may be causing this problem, I would really appreciate any help I can get!

    Thank you!

    dvillabon, Oct 18, 2017
    #1
  2. dvillabon

    dvillabon Newbie

    Reputations:
    0
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    5
    Anyone?

    dvillabon, Oct 19, 2017
    #2
  3. t456

    t456 1977-09-05, 12:56:00 UTC

    Reputations:
    1,959
    Messages:
    2,588
    Likes Received:
    2,048
    Trophy Points:
    181

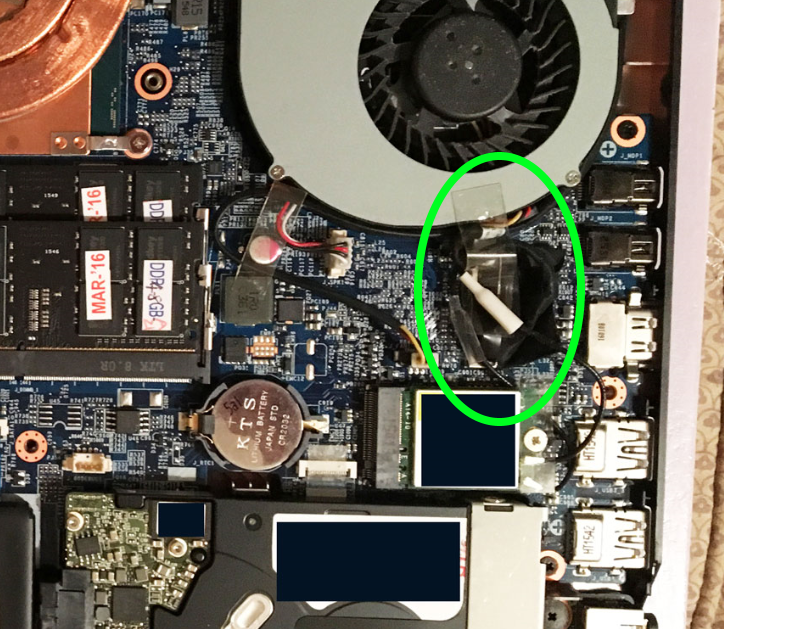

    The motherboard-end of the cable is right underneath that mess at the right:

    [​IMG]

    Looks indeed a bit crammed. The cable should be threaded though a small outcutting in the mb, between the mb and fan casing. Best is to unplug all cables there and thread+plug them one by one, a little cleaner this time. There's the lcd cable, one or two fan cables and the two wifi cables to take care of. Doesn't matter which wifi antenna you hook up to which of the card's connectors, so no need to keep them apart. Remember to remove the laptop battery first, of course.

    Mind that the cable issue can also be at the lcd end, where it uses a much thinner connector. To reach that you have to remove the bezel; two screws near each hinge, underneath a rubber pad. After unscrewing these the bezel can simply be clicked free from the lid using your nails. Take care not to bend the bezel too much as the plastic is quite flimsy.

    t456, Oct 19, 2017
    #3
  4. Prostar Computer

    Prostar Computer Company Representative

    Reputations:
    1,257
    Messages:
    7,426
    Likes Received:
    1,016
    Trophy Points:
    331
    Cross posted on Reddit? :vbsmile:

    How are you faring with this so far? Did reseating the cable at either end help?

    Prostar Computer, Oct 19, 2017
    #4
