    M860TU + QX9200 ES (Test coming soon...)

    Discussion in 'Sager and Clevo' started by kaltmond, Mar 21, 2009.

  1. kaltmond

    kaltmond Clepple

    Reputations:
    699
    Messages:
    1,454
    Likes Received:
    1
    Trophy Points:
    56
    Finally got the new Machine with QC support. :D

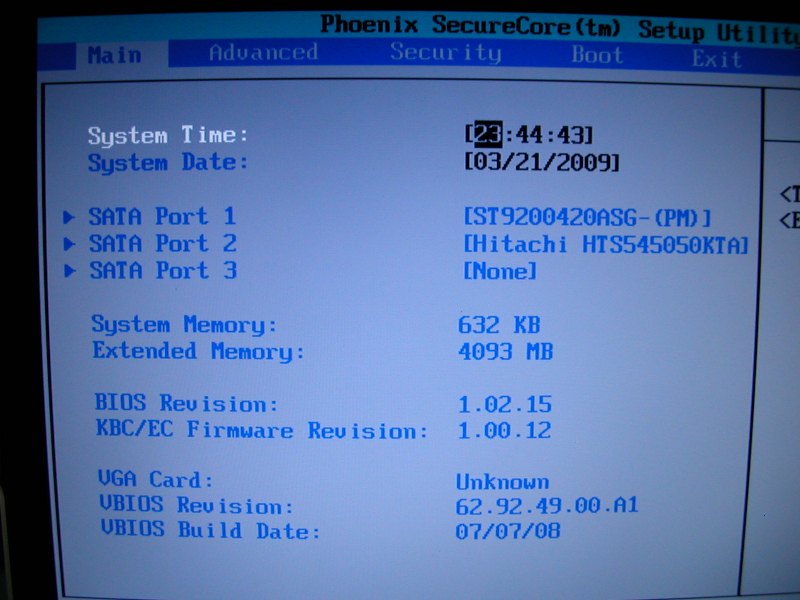

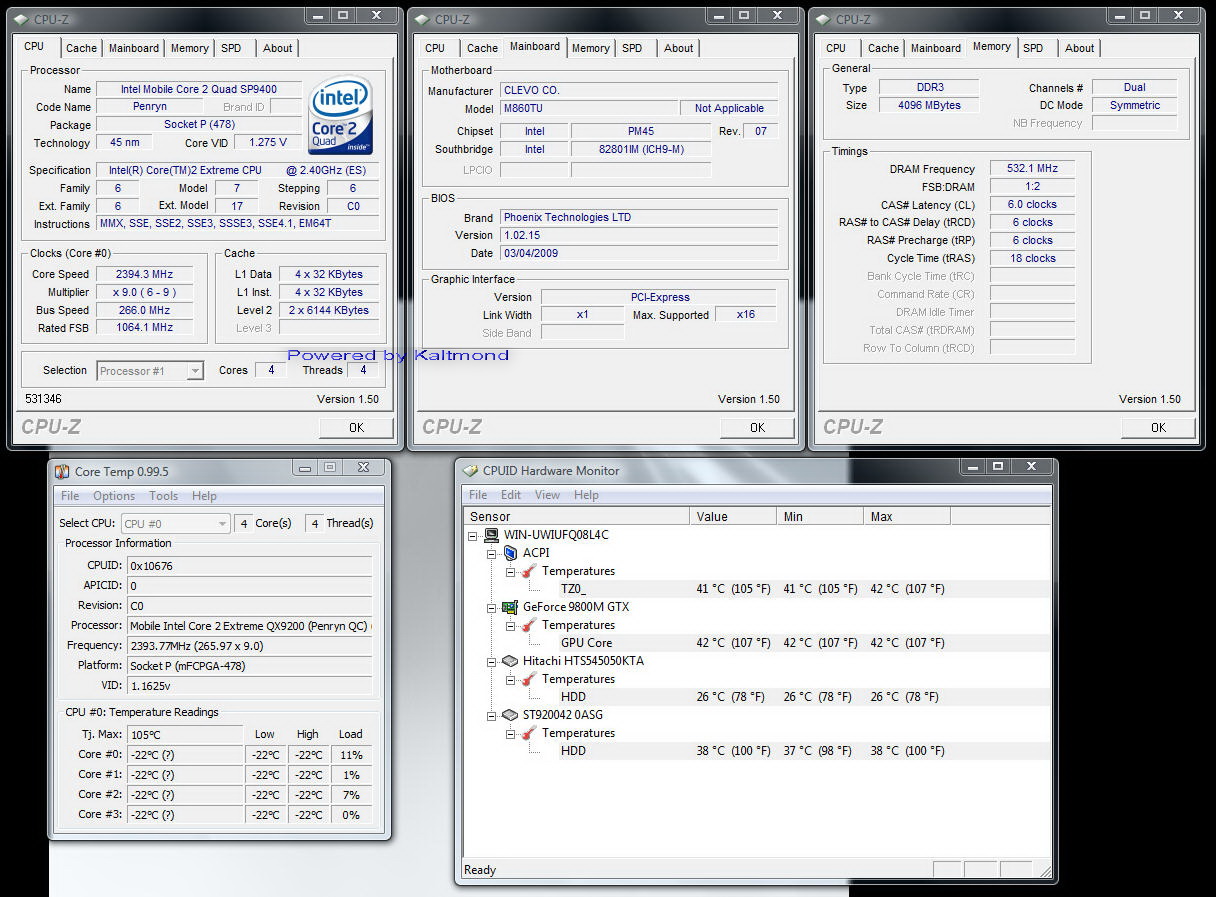

    Basic Settings


    [​IMG]

    [​IMG]

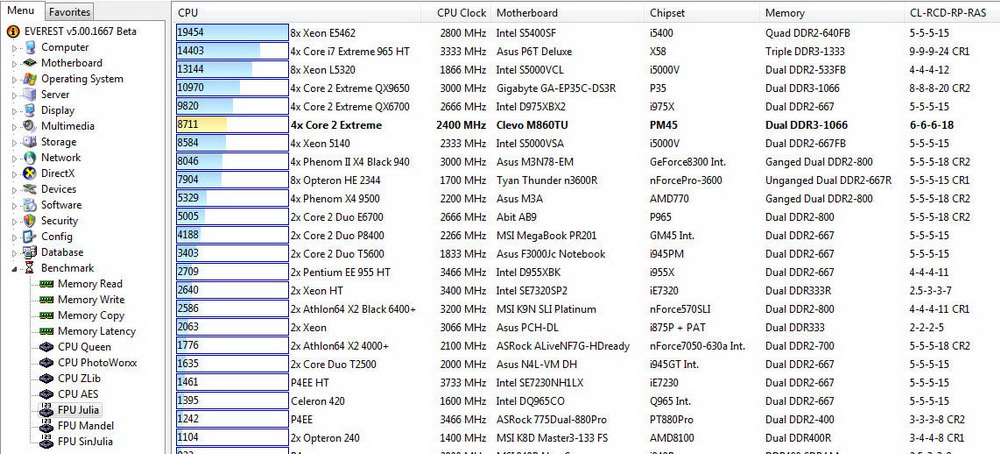

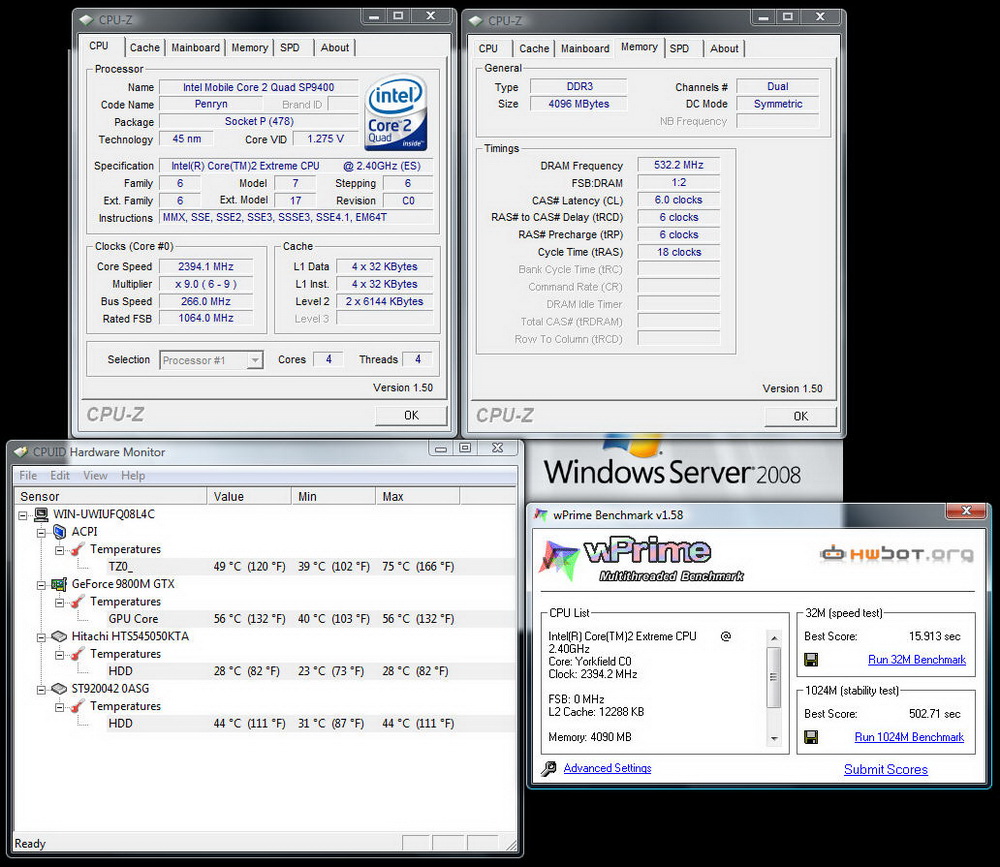

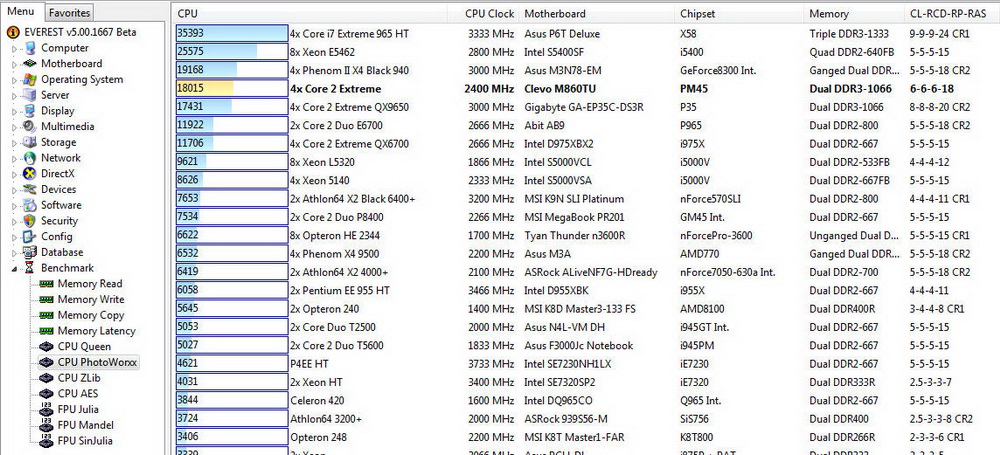

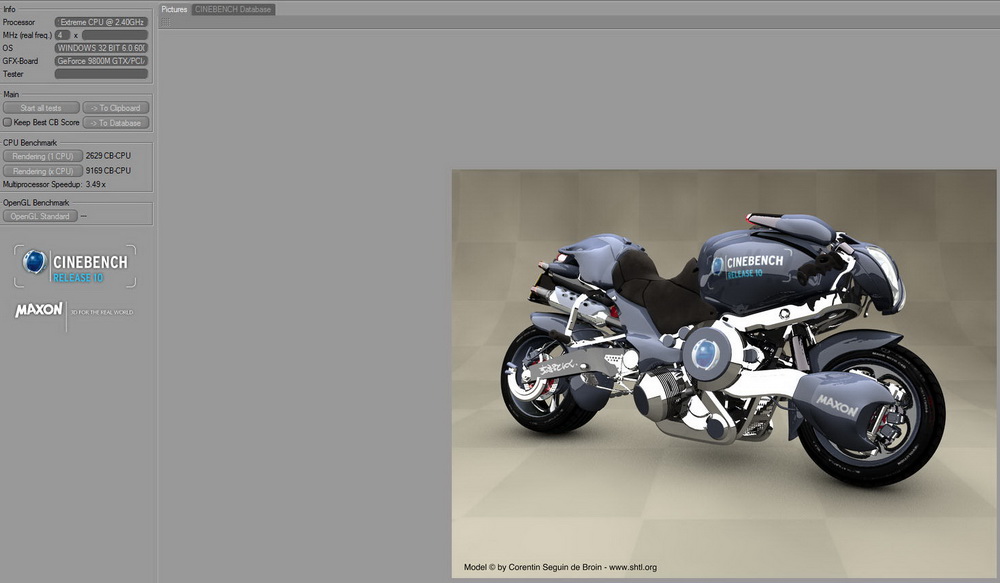

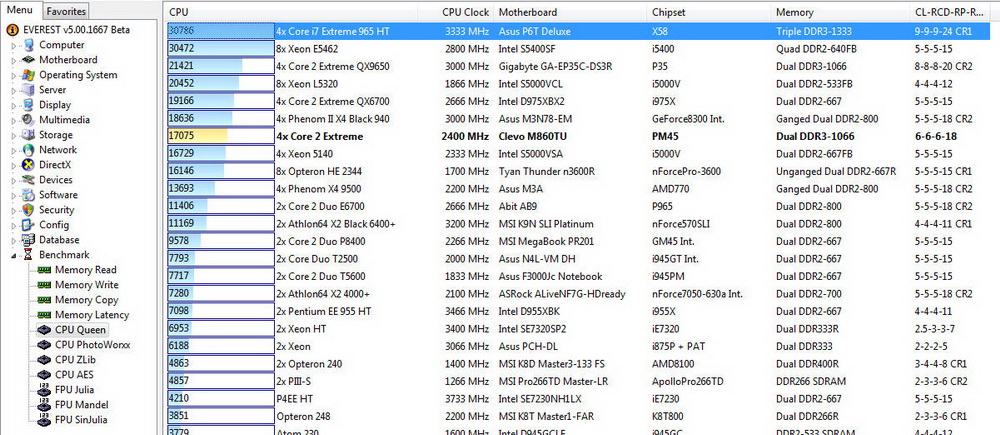

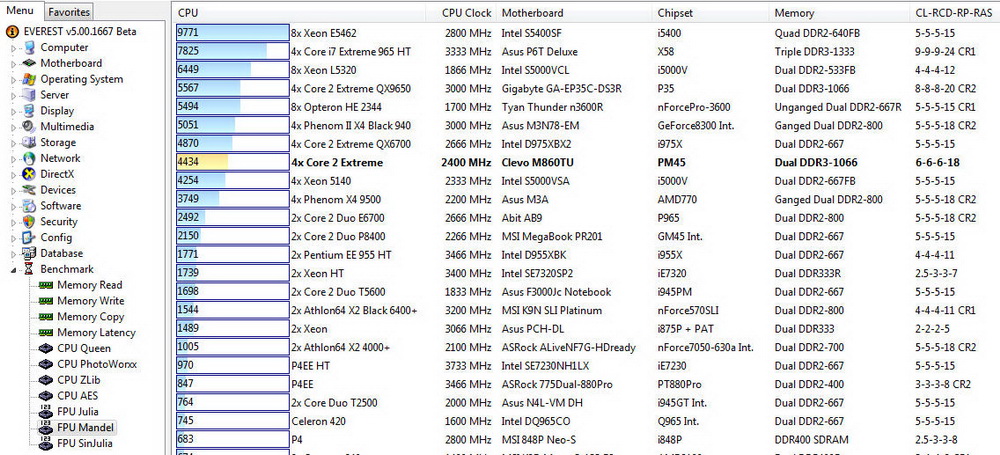

    CPU Tests


    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

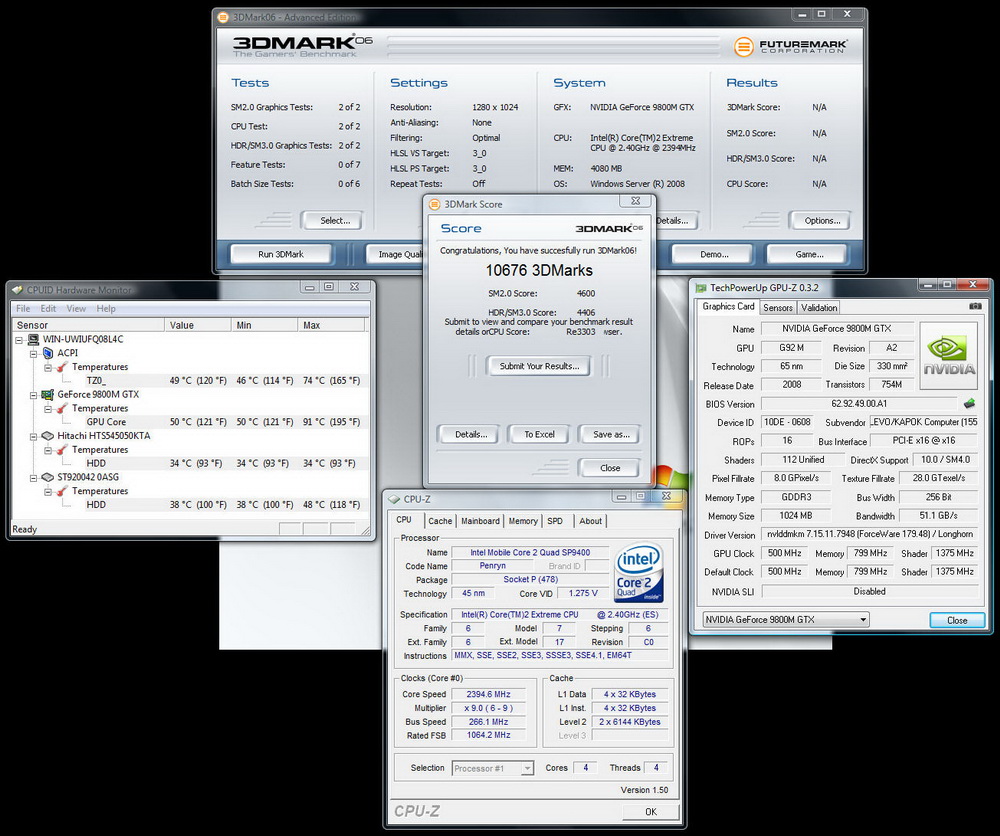

    3DMark06


    [​IMG]

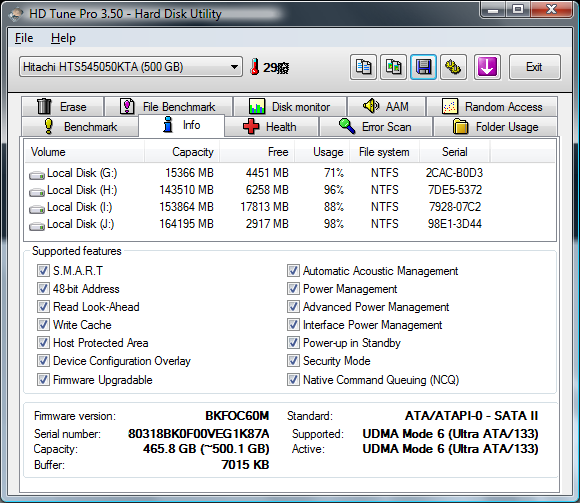

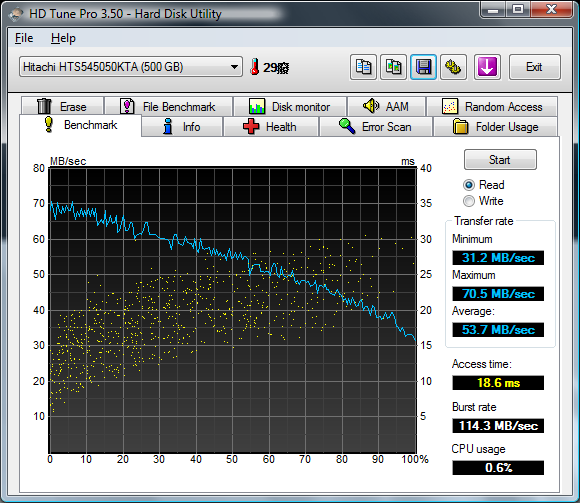

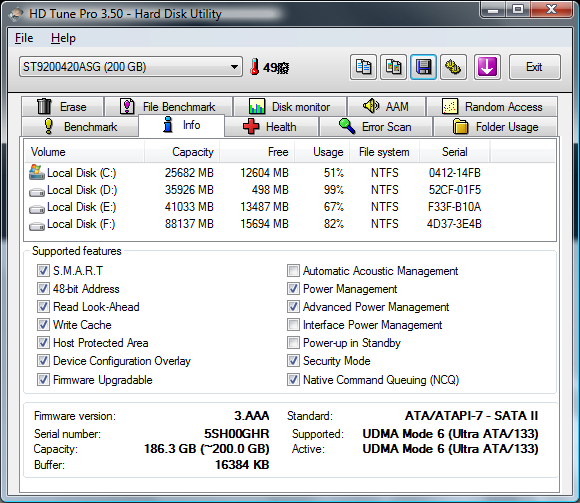

    HDD Benchnark incl. smartbay


    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

  2. Nirvana

    Nirvana Notebook Prophet

    Reputations:
    2,200
    Messages:
    5,426
    Likes Received:
    0
    Trophy Points:
    0
    Oh my :eek: ..........It would be the smallest QC lappy ever!

  3. IKAS V

    IKAS V Notebook Prophet

    Reputations:
    1,073
    Messages:
    6,171
    Likes Received:
    535
    Trophy Points:
    281
    Conratulations! :D
    Personaly I have never even heard of this Quad CPU, you have to post some benchmarks, comparing the old with the new.
    Are you running it on a laptop cooler? Those temps look great!
    Can you OC it?

  4. Robeeto

    Robeeto Notebook Enthusiast

    Reputations:
    0
    Messages:
    35
    Likes Received:
    0
    Trophy Points:
    15
    How much did you get it? Nothing showed up when I googled the processor

  5. xor01

    xor01 Notebook Deity

    Reputations:
    178
    Messages:
    752
    Likes Received:
    62
    Trophy Points:
    41
    @kaltmond
    dude, where did you get smartbay for the DVD slot?

  6. oile

    oile Notebook Evangelist

    Reputations:
    43
    Messages:
    609
    Likes Received:
    32
    Trophy Points:
    41
    Where did you find that?? It seems the Q9200 but with multi unlocked..

  7. 000022

    000022 Notebook Consultant

    Reputations:
    20
    Messages:
    243
    Likes Received:
    0
    Trophy Points:
    30
    New machine? As in the NP8662's mobo which is revised for QC support?

    BTW, I've seen the pictures and noticed that your BIOS version is 1.02.15, any chance of a download? I'm currently on 1.02.14

  8. theriko

    theriko Ronin

    Reputations:
    1,303
    Messages:
    2,923
    Likes Received:
    4
    Trophy Points:
    56
    I'm pretty sure that's an esata drive, not a smartbay

    It's an ES Q9200, hence the unlocked multi

    here is the 1.02.15 bios along with the 1.00.12 KBC/EC

    server 1
    server 2

    Run step1.bat then step2.bat in that order

  9. xor01

    xor01 Notebook Deity

    Reputations:
    178
    Messages:
    752
    Likes Received:
    62
    Trophy Points:
    41
    Actually, it is a custom-made smartbay. I found his thread about the smartbay, he bought it in China.

    Btw, what is Intel ES Q9200?
    Never heard of that one before. The "ES" i mean.

  10. Deathwinger

    Deathwinger Notebook Virtuoso

    Reputations:
    385
    Messages:
    2,423
    Likes Received:
    2
    Trophy Points:
    56
    What does bios .15 and KBC .12 improve?

  11. theriko

    theriko Ronin

    Reputations:
    1,303
    Messages:
    2,923
    Likes Received:
    4
    Trophy Points:
    56
    Engineering Sample, means it's prerelease and has unlocked multipliers

    1. System BIOS 1.02.15 and EC 1.00.12.
    2. Solve T6400 CPU incompatibility issue.
    3. Please update firmware in pure DOS mode.
    4. Run step1.bat to update EC firmware, run step2.bat to update system BIOS.

  12. kaltmond

    kaltmond Clepple

    Reputations:
    699
    Messages:
    1,454
    Likes Received:
    1
    Trophy Points:
    56
    It´s a custom made Smartbay. :D Ill post pics when come back.

    CPU ist still ES version, can´t find a QS...... :( But Price is much better than QX9300QS, with only 133MHz slower, maybe also unlocked multi.

  13. oile

    oile Notebook Evangelist

    Reputations:
    43
    Messages:
    609
    Likes Received:
    32
    Trophy Points:
    41
    but where did you find it??
    I remember that I met one on ebay but now there isn't anymore..
    Is it recognized as an unlocked multi one from the bios??
    wich freq does it reach?

  14. 000022

    000022 Notebook Consultant

    Reputations:
    20
    Messages:
    243
    Likes Received:
    0
    Trophy Points:
    30
    Thanks theriko, flashed my laptop and it's working Flawlessly. Since it's 15, I assume it'll inherit 14's compatibility with gtx 260m, yes?

  15. theriko

    theriko Ronin

    Reputations:
    1,303
    Messages:
    2,923
    Likes Received:
    4
    Trophy Points:
    56
    Unfortunately, I'm pretty sure that the M860TU does not have multiplier control in the bios, so you cannot overclock that way :(

    Yes

  16. Quicklite

    Quicklite Notebook Deity

    Reputations:
    158
    Messages:
    1,576
    Likes Received:
    16
    Trophy Points:
    56
    3D mark 06 please... :D

  17. Bluemercury

    Bluemercury Notebook Evangelist

    Reputations:
    4
    Messages:
    305
    Likes Received:
    0
    Trophy Points:
    30
    Does anyone have usb hub issues?i was using the kcb .10 and bios .12 and i had problems, so i reverted back to the .08 bios. Strange thing is that its not anymore at the oficial site of clevo.

  18. kaltmond

    kaltmond Clepple

    Reputations:
    699
    Messages:
    1,454
    Likes Received:
    1
    Trophy Points:
    56

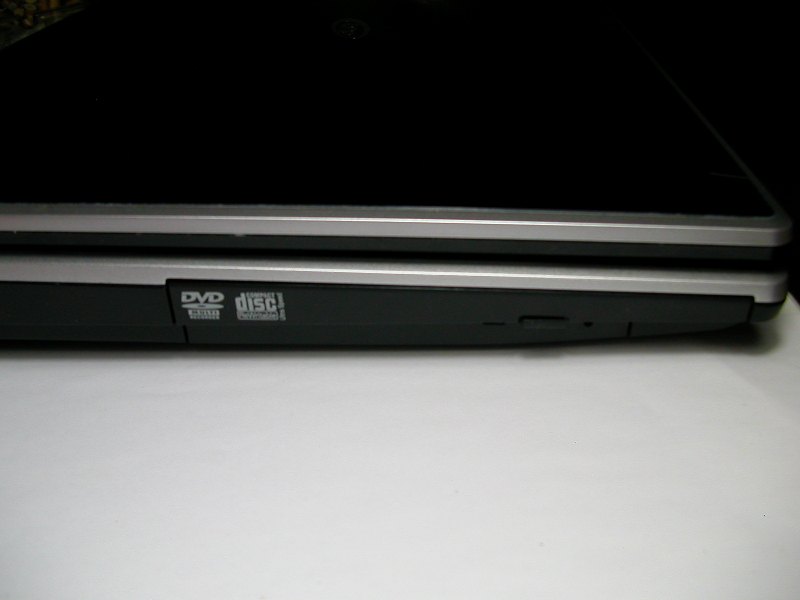

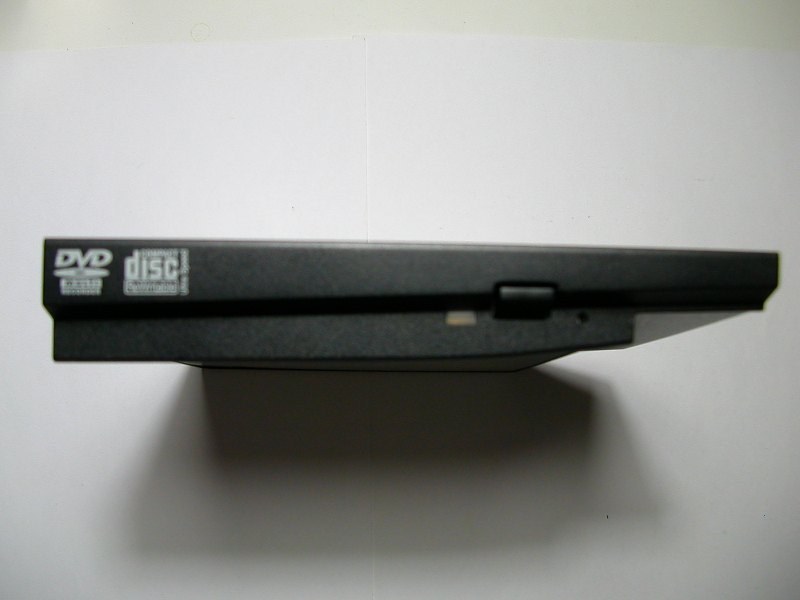

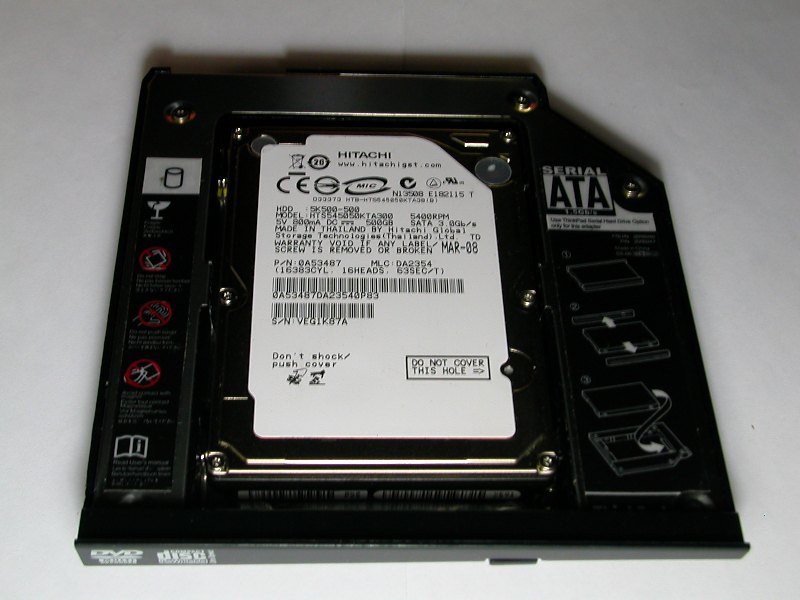

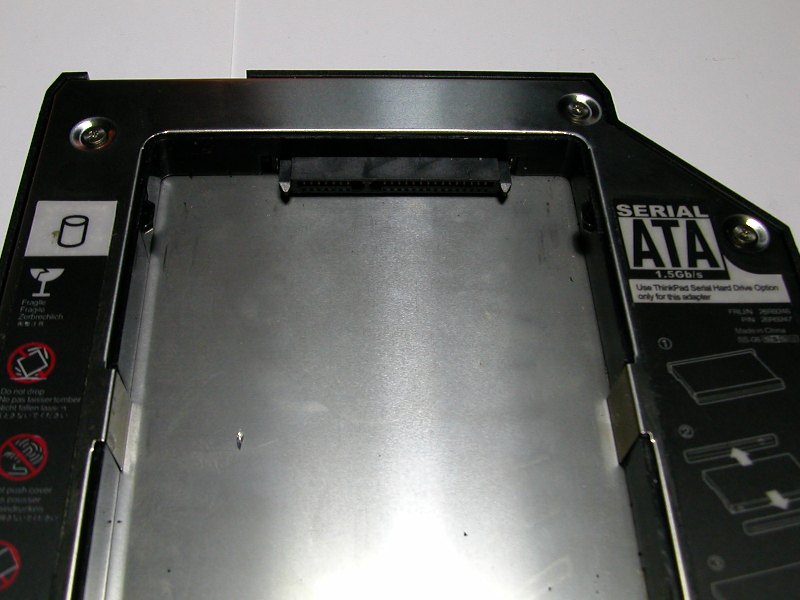

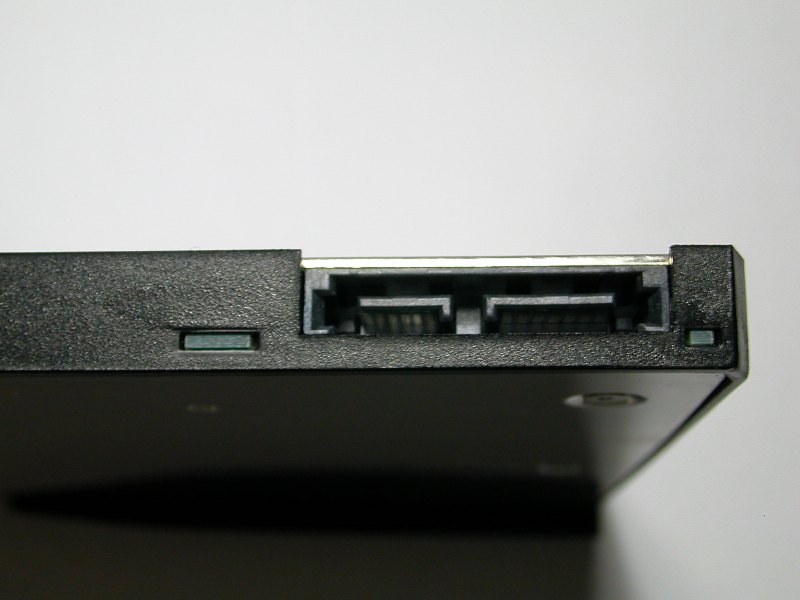

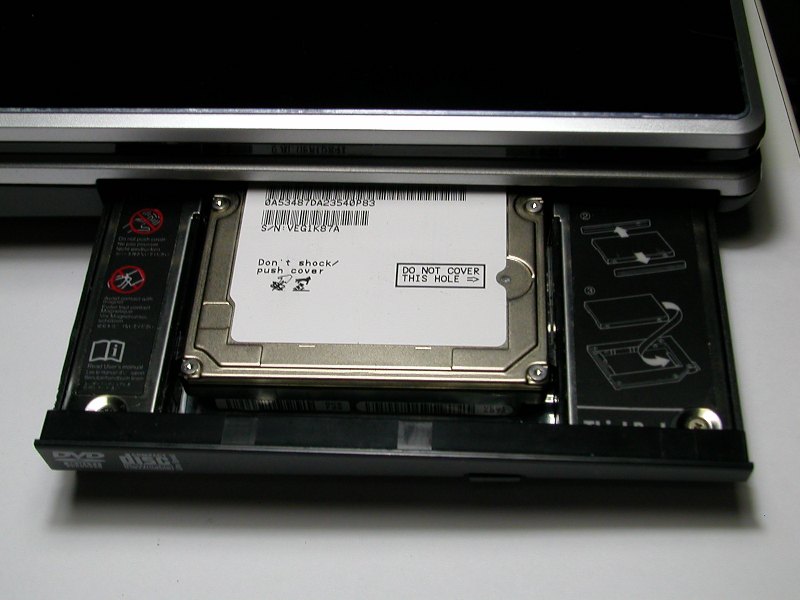

    Actually it´s a fake SATA smartbay for Lenovo T400/W500 series. I modded the Benzel and replaced it with the M86 one. Even for Hitachi 5K500 with 12.5mm height is no problem.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

  19. theriko

    theriko Ronin

    Reputations:
    1,303
    Messages:
    2,923
    Likes Received:
    4
    Trophy Points:
    56
    Nice

    10char

  20. Seranis

    Seranis Notebook Consultant

    Reputations:
    22
    Messages:
    128
    Likes Received:
    1
    Trophy Points:
    31
    Wow. Very nice, I had never even thought to ask if that was possible!

    Any chance you can do a mini-writeup on it? With part numbers/links and how much custom work you needed to do on the bezel?

    Also any heat issues with the drive in that bay?

  21. Kevin

    Kevin Egregious

    Reputations:
    3,289
    Messages:
    10,780
    Likes Received:
    1,782
    Trophy Points:
    581
    Wow kaltmond, I'm actually a bit jealous.

    So how are your temps? Does the new chassis cool your 9800M GTX any better?

  22. kaltmond

    kaltmond Clepple

    Reputations:
    699
    Messages:
    1,454
    Likes Received:
    1
    Trophy Points:
    56
    Still no cooler, but planning to get one. Anyone tried Enermax Aeolus CP001G-B ?


    The bay comes with a normal benzel, must saw a lot and bore 2 holes to fix the original one. No heat problem in the bay, there is still much room left and havn´t seen temp over 40°C.


    Tests under room temp 21°C. All except 3dmark are done without a cooler. Bacause 98MGTX is too hot for M86 and always downclock when running 3dMark, must remove the backplate and put a 12CM fan under it......Chassis is the original one, only changed the new MB and a WUXGA matt LCD.

  23. xor01

    xor01 Notebook Deity

    Reputations:
    178
    Messages:
    752
    Likes Received:
    62
    Trophy Points:
    41
    where did you get the mobo and LCD parts?

  24. Kevin

    Kevin Egregious

    Reputations:
    3,289
    Messages:
    10,780
    Likes Received:
    1,782
    Trophy Points:
    581
    Good question. How much did the mobo cost you?

  25. oile

    oile Notebook Evangelist

    Reputations:
    43
    Messages:
    609
    Likes Received:
    32
    Trophy Points:
    41
    you didn't tell us where have you found this Q9200!!
    temp sensors are broken or simply not recognized yet??

    Wich voltages RMClock reports as lowest??

  26. Bluemercury

    Bluemercury Notebook Evangelist

    Reputations:
    4
    Messages:
    305
    Likes Received:
    0
    Trophy Points:
    30
    The cooler i suppose is the same right?

  27. link1313

    link1313 Notebook Virtuoso

    Reputations:
    596
    Messages:
    3,470
    Likes Received:
    0
    Trophy Points:
    105
    Ouch that sucks. I thought for sure the M860TU could handle the 9800M GTX. Yea I have that Enermax cooler it works really good with this laptop, should help those temperatures.

  28. kaltmond

    kaltmond Clepple

    Reputations:
    699
    Messages:
    1,454
    Likes Received:
    1
    Trophy Points:
    56
    Well i found it in asia, price is really good compare to QX9300. :D I think the temp sensors are still not recognized, it´s still ES not QS.

    The lowest VID from Rmclock is 1.1625V.

  29. IKAS V

    IKAS V Notebook Prophet

    Reputations:
    1,073
    Messages:
    6,171
    Likes Received:
    535
    Trophy Points:
    281
    Still running smooth kaltmond?

  30. oile

    oile Notebook Evangelist

    Reputations:
    43
    Messages:
    609
    Likes Received:
    32
    Trophy Points:
    41
    LOWEST voltage 1.1625v ???!!!
    Maybe RMClock is broken then!! and the maximum voltage??

    Where I could find one of these QX9200 ??

  31. kaltmond

    kaltmond Clepple

    Reputations:
    699
    Messages:
    1,454
    Likes Received:
    1
    Trophy Points:
    56
    Finally got a Notebook cooler and it runs much cooler than before. Now i can OC the 98MGTX to 260M level with 550/1375/950 and Max temp i got is 87°C.

    The CPU is hardware undervolted to 1.0625V and GPU to 0.95V. With 0.95V it can get 550/1375/950 stable, not bad i think. :D

    [​IMG]

  32. kaltmond

    kaltmond Clepple

    Reputations:
    699
    Messages:
    1,454
    Likes Received:
    1
    Trophy Points:
    56
    It´s still a ES, so every VID is the same. And Rmclock reads the same temp like CPUZ, which i think is not correct. Try Core temp and Everest, that´s should be the real VID.

  33. H-Emmanuel

    H-Emmanuel Notebook Evangelist

    Reputations:
    83
    Messages:
    350
    Likes Received:
    0
    Trophy Points:
    30
    I'm kind of surpised though, you should be having higher scores or I'm the one with incredibly high scores because I score more than 11 800 3DMark06 on mine with a 9800m GT and T9900.

  34. Sp3ctrum

    Sp3ctrum Notebook Consultant

    Reputations:
    30
    Messages:
    249
    Likes Received:
    0
    Trophy Points:
    30
    I think your Vertex give you at least a 500 point boost over his HD

  35. kaltmond

    kaltmond Clepple

    Reputations:
    699
    Messages:
    1,454
    Likes Received:
    1
    Trophy Points:
    56
    Because you have a high OCed 98MGT and i have to undervolt my GTX.....

  36. GamingACU

    GamingACU Notebook Deity

    Reputations:
    388
    Messages:
    1,456
    Likes Received:
    6
    Trophy Points:
    56
    So if his is more powerful with stock hardware, why would you spend a great deal of time / $$$ on something inferior (or at least score wise)? Unless the point is just to prove you can do it.

  37. kaltmond

    kaltmond Clepple

    Reputations:
    699
    Messages:
    1,454
    Likes Received:
    1
    Trophy Points:
    56
    Ja, maybe that. :D 98GTX has 112sp and already hot, ill receive my 3700M with 128sp today...Let´s see how it willl be...... :D

  38. Kevin

    Kevin Egregious

    Reputations:
    3,289
    Messages:
    10,780
    Likes Received:
    1,782
    Trophy Points:
    581
    You have my early sympathies. I predict a fire in your future.

  39. GamingACU

    GamingACU Notebook Deity

    Reputations:
    388
    Messages:
    1,456
    Likes Received:
    6
    Trophy Points:
    56
    Interesting, well good luck :cool:

  40. eqmiami

    eqmiami Notebook Consultant

    Reputations:
    56
    Messages:
    241
    Likes Received:
    0
    Trophy Points:
    30
    All I can say is... "Nukka you CRAZY!"

  41. H-Emmanuel

    H-Emmanuel Notebook Evangelist

    Reputations:
    83
    Messages:
    350
    Likes Received:
    0
    Trophy Points:
    30
    I totally respect what you do, it's awesome; but outside of proving that the 9800m GTX could in theory run in that laptop, there would be no point of having such card in that laptop if you had to undervolt it and underclock it to the point that it performed slower than a well overclocked 9800m GT. What you would need in that case is a 9800m GTX on a smaller architecture, which is the 55nm GTX260m which should run cooler. I was tempted of trying a GTX280m in my M860TU but seeing your thread confirmed to me what I always thought, it's best to overclock a 9800m GT or GTX260m like crazy and still be able to play without a cooling reactor under the laptop than having to purchase a card that won't run at it's full potential and potentially slower.

  42. eqmiami

    eqmiami Notebook Consultant

    Reputations:
    56
    Messages:
    241
    Likes Received:
    0
    Trophy Points:
    30
    Lets trade GPUs, your 9800m GTX for my 9800m GT!

  43. Soviet Sunrise

    Soviet Sunrise Notebook Prophet

    Reputations:
    2,140
    Messages:
    6,547
    Likes Received:
    0
    Trophy Points:
    205
    Or my 9800M GTX for your $350!

  44. CuriousN

    CuriousN Notebook Evangelist

    Reputations:
    0
    Messages:
    359
    Likes Received:
    2
    Trophy Points:
    31
    where can I get a smartbay like this one? np8662 could really use some more battery life.

  45. theriko

    theriko Ronin

    Reputations:
    1,303
    Messages:
    2,923
    Likes Received:
    4
    Trophy Points:
    56
    This 'smartbay' is for hard drive only. You can not and will never be able to use the np8662 optical drive bay for a battery.

  46. eqmiami

    eqmiami Notebook Consultant

    Reputations:
    56
    Messages:
    241
    Likes Received:
    0
    Trophy Points:
    30
    Never say never. You might be able to do it with your NP8662 like 50 years in the future, you just NEVER know man!

    It could happen! (my dad says stuff like that when I shoot down one of his crazy opinions)

  47. Oiad

    Oiad Notebook Evangelist

    Reputations:
    56
    Messages:
    598
    Likes Received:
    0
    Trophy Points:
    30
    Never say never?.. First of all, someone's been watching way too much Disney. Perhaps you'd prefer the phrase 'inplausible.' Besides, who's going to want to use an M860ETU in 50 years time? Let alone to extend its' battery life...

  48. Heathkidd

    Heathkidd M860TU

    Reputations:
    53
    Messages:
    825
    Likes Received:
    0
    Trophy Points:
    30
    lol... u guys forgot my tests to put more battery cells in my opitical drive bay... mabye it worked...

    mabye im keeping it to my self..

    moahahah


    you can do any thing with everything its the beauty of this world!!.. u just got to try and beleave in your self!

  49. H-Emmanuel

    H-Emmanuel Notebook Evangelist

    Reputations:
    83
    Messages:
    350
    Likes Received:
    0
    Trophy Points:
    30
    Lol and what, power your laptop through SATA rofl?

  50. Kevin

    Kevin Egregious

    Reputations:
    3,289
    Messages:
    10,780
    Likes Received:
    1,782
    Trophy Points:
    581
    A couple questions for you kaltmond:

    Does the Q9200 support Virtualization? The Q9100 doesn't, and it's required to use XP mode once the retail Windows 7 comes out.

    Is it, QX, or just Q?

 Next page →
