    M860TU LCD problem

    Discussion in 'Sager and Clevo' started by Anthuzad, May 20, 2010.

  1. Anthuzad

    Anthuzad Notebook Consultant

    Reputations:
    34
    Messages:
    114
    Likes Received:
    1
    Trophy Points:
    30
    Hi guys,

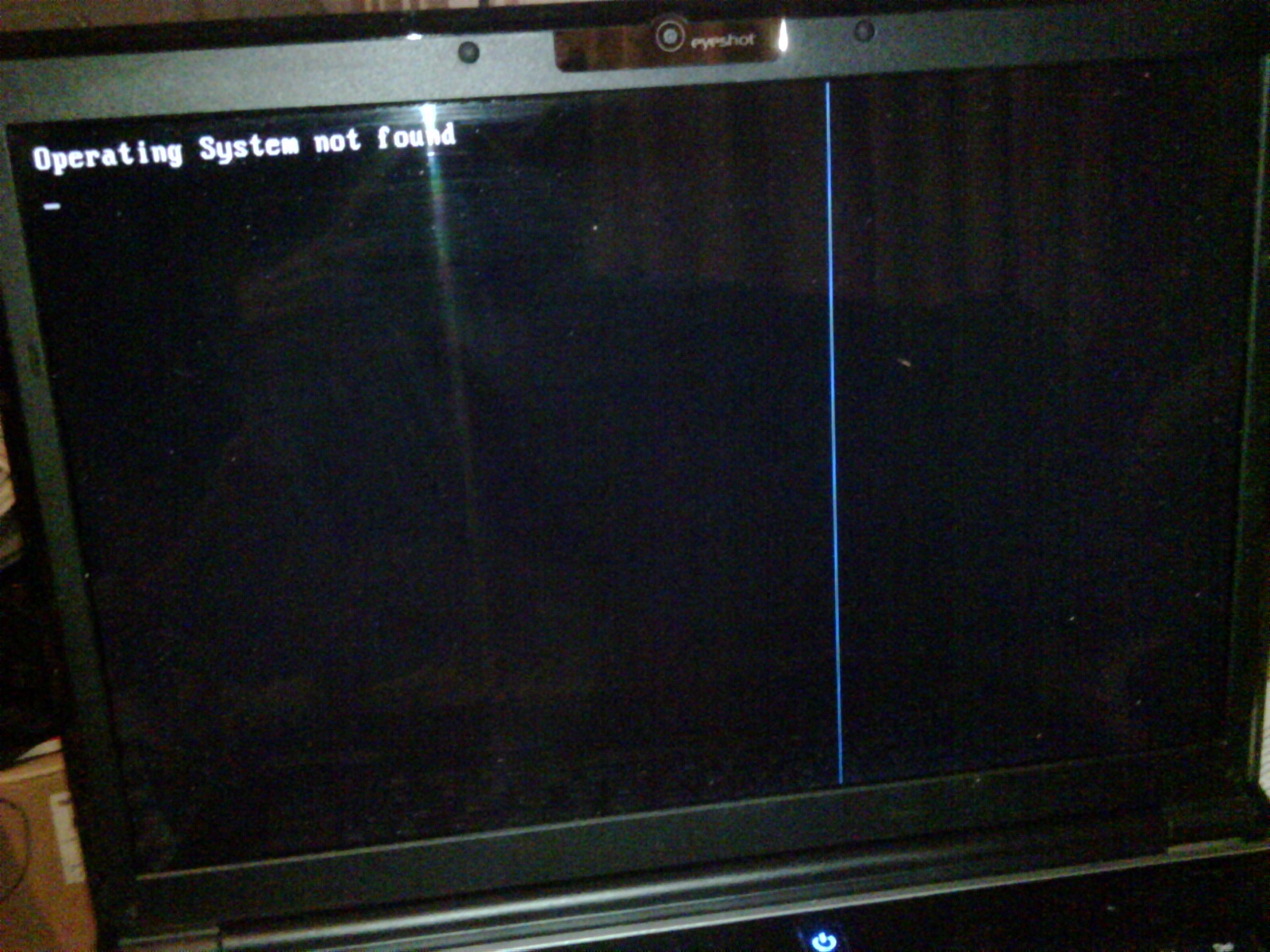

    some time ago I helped my girlfriend shop for a new laptop and we decided that a Clevo M860TU would be best for her (I'm biased with Clevo because I own a 9262 myself and I love it :p ). We ordered the laptop from Prostar - she lives in Canada and with Eurocom having such a bad reputation we decided for Prostar because they offer a Canada program for warranty and shipping. After she got the unit she had to send it in once because of a faulty hdd (clicking noises and hangups). The laptop was returned to her and it was all good except for one annoying problem. Depending on the angle of the LCD screen a blue line appears all the way through the screen. Changing the angle of the screen makes it disappear and reappear. I suspect shoddy workmanship resulting in a loose LCD connector cable, however I want to make sure before I open the laptop.

    Ive upgraded the hell out of my own Clevo and I've been built computers and modified laptops for a long time, but I'd like your opinion on this.

    I've got the maintenance manual and know the makeup of the unit, so do you think I should re-seat the cable or the inverter?

    Best Regards,

    Anthu


    Attached Files:

    Anthuzad, May 20, 2010
    #1
  2. Kevin

    Kevin Egregious

    Reputations:
    3,289
    Messages:
    10,780
    Likes Received:
    1,782
    Trophy Points:
    581
    If you're up to it, it wouldn't hurt to try.

    Otherwise, just utilize the warranty privileges.

    Kevin, May 20, 2010
    #2
  3. Anthuzad

    Anthuzad Notebook Consultant

    Reputations:
    34
    Messages:
    114
    Likes Received:
    1
    Trophy Points:
    30
    I'm up to it, but I think I worded my question wrong.

    Do you think its the inverter or the lcd connector (mobo to screen)?

    I dont wanna work on the inverter unless I have to.

    Thanks for the post btw.

    Anthuzad, May 21, 2010
    #3
  4. Anthuzad

    Anthuzad Notebook Consultant

    Reputations:
    34
    Messages:
    114
    Likes Received:
    1
    Trophy Points:
    30
    *bump*

    I'm still hoping to get some answers on this, cmon people - help me out :)

    Anthuzad, May 24, 2010
    #4
  5. moral hazard

    moral hazard Notebook Nobel Laureate

    Reputations:
    2,779
    Messages:
    7,957
    Likes Received:
    87
    Trophy Points:
    216
    I would also think that is a problem with the cable (mobo to screen).

    I don't think any problem with the inverter could cause a single line up the screen like that.

    moral hazard, May 24, 2010
    #5
