    MSI GTX680M 4GB tested on P170HM.

    Discussion in 'Sager and Clevo' started by Saltius, Jul 8, 2012.

  1. Saltius

    Saltius Notebook Evangelist

    Reputations:
    626
    Messages:
    321
    Likes Received:
    3
    Trophy Points:
    31
    Tested by luoxia and the original thread.

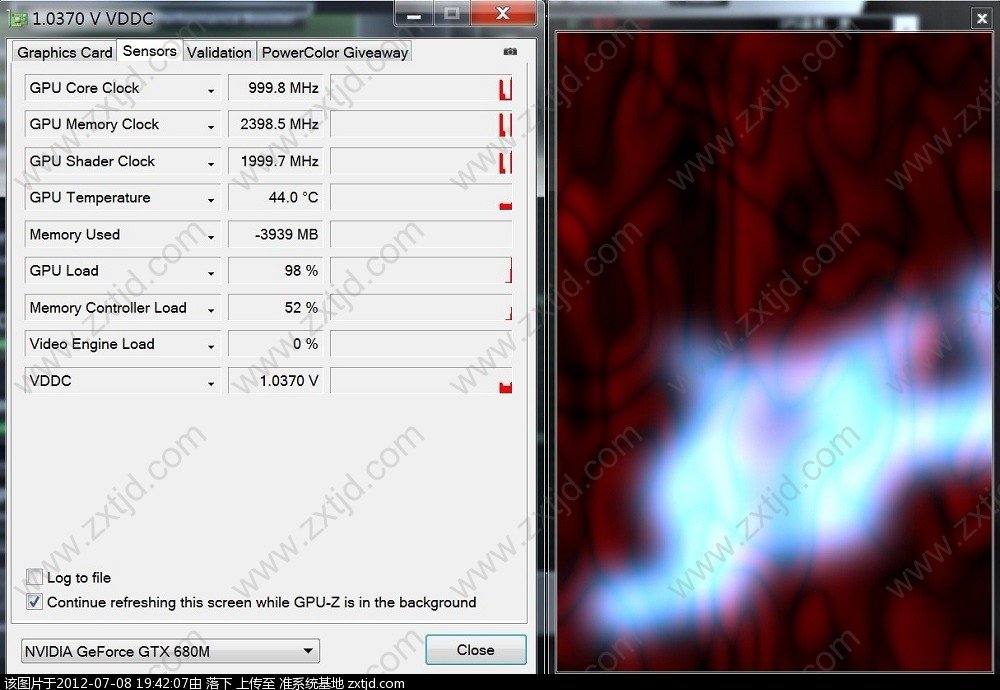

    GeForce GTX 680M overclock

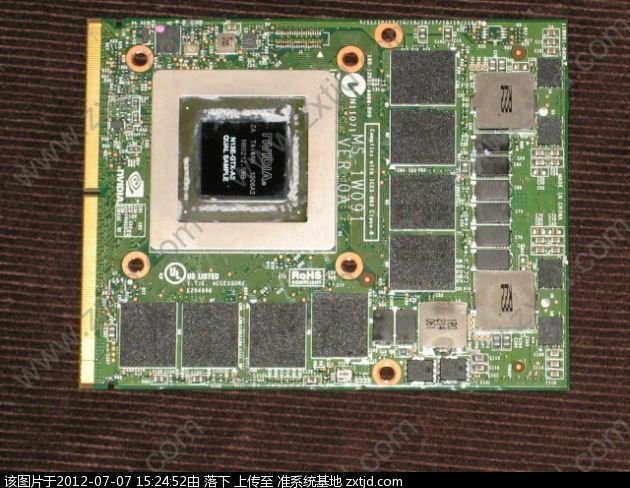

    Actual picture of the MSI GTX680M 4GB
    [​IMG]
    It is a qualification sample.

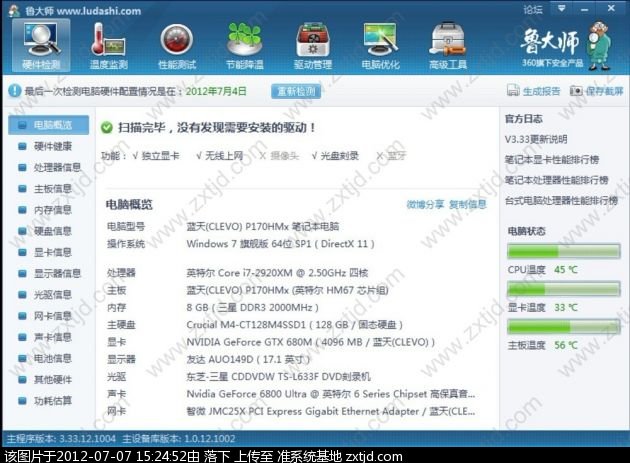

    Spec
    [​IMG]
    That 2920XM is Oced to 4GHz with prema's mod bios unlocking the power limit to 80W/90W.

    I made the overvolting and overclocking vbios for him.
    The default clock in vbios is tweaked from 732MHz/900MHz to 902MHz/1100MHz, while a volt offset of 0.05v is added.

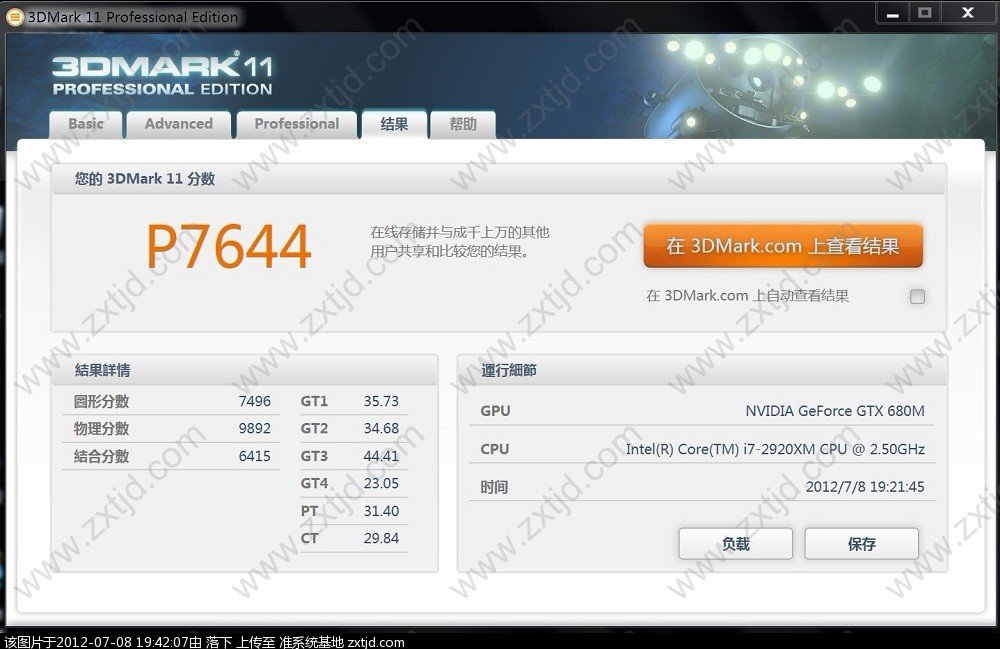

    And this is the 3dmark11 benchmark @ 1000MHz/1200MHz after overvolted.
    [​IMG]

    [​IMG]


    Attached Files:

    Saltius, Jul 8, 2012
    #1
  2. luoxia

    luoxia Notebook Enthusiast

    Reputations:
    80
    Messages:
    43
    Likes Received:
    0
    Trophy Points:
    15
    luoxia, Jul 8, 2012
    #2
  3. Prema

    Prema Your Freedom, Your Choice

    Reputations:
    9,368
    Messages:
    6,297
    Likes Received:
    16,485
    Trophy Points:
    681
    Is the MSI card cheaper?

    Prema, Jul 8, 2012
    #3
  4. Saltius

    Saltius Notebook Evangelist

    Reputations:
    626
    Messages:
    321
    Likes Received:
    3
    Trophy Points:
    31
    Yes, but you should take a note that it is a QS.

    Saltius, Jul 8, 2012
    #4
  5. luoxia

    luoxia Notebook Enthusiast

    Reputations:
    80
    Messages:
    43
    Likes Received:
    0
    Trophy Points:
    15
    Expensive 628.4$

    luoxia, Jul 8, 2012
    #5
  6. Saltius

    Saltius Notebook Evangelist

    Reputations:
    626
    Messages:
    321
    Likes Received:
    3
    Trophy Points:
    31
    He asked cheaper other than cheap. As clevo one is priced at ￥6000（$940）.So MSI one is expensive but cheaper.
    他问的是是不是相对便宜，
    我说是，因为蓝天的要卖6000块。

    Saltius, Jul 8, 2012
    #6
  7. luoxia

    luoxia Notebook Enthusiast

    Reputations:
    80
    Messages:
    43
    Likes Received:
    0
    Trophy Points:
    15
    告诉他4000人民币买的

    luoxia, Jul 8, 2012
    #7
  8. xMAR99

    xMAR99 Notebook Evangelist

    Reputations:
    956
    Messages:
    634
    Likes Received:
    9
    Trophy Points:
    31
    Can you share the modded vbios?
    Will it work on the Clevo 680Ms?

    xMAR99, Jul 8, 2012
    #8
  9. Saltius

    Saltius Notebook Evangelist

    Reputations:
    626
    Messages:
    321
    Likes Received:
    3
    Trophy Points:
    31
    Better not flash it to clevo card.

    Instead, I can make another mod bios for clevo GTX680M(though it will take a lot of time).

    Saltius, Jul 8, 2012
    #9
  10. xMAR99

    xMAR99 Notebook Evangelist

    Reputations:
    956
    Messages:
    634
    Likes Received:
    9
    Trophy Points:
    31
    xMAR99, Jul 8, 2012
    #10
  11. long2905

    long2905 Notebook Virtuoso

    Reputations:
    2,443
    Messages:
    2,314
    Likes Received:
    114
    Trophy Points:
    81
    I would jump on it if we can get that price here in the U.S.

    long2905, Jul 8, 2012
    #11
  12. 5482741

    5482741 5482741

    Reputations:
    712
    Messages:
    1,530
    Likes Received:
    17
    Trophy Points:
    56
    Agreed.

    I'd prefer an MSI card anyway.

    5482741, Jul 8, 2012
    #12
  13. Blauwhelmpje

    Blauwhelmpje Notebook Guru

    Reputations:
    71
    Messages:
    56
    Likes Received:
    0
    Trophy Points:
    15
    I'm only getting P6076 with my 680m i7 3610qm with all at stockspeeds and 3dmark 11 ncp enabled.

    ?!

    Blauwhelmpje, Jul 8, 2012
    #13
  14. long2905

    long2905 Notebook Virtuoso

    Reputations:
    2,443
    Messages:
    2,314
    Likes Received:
    114
    Trophy Points:
    81
    Thats normal. You have nothing to worry about. The scores you saw above are either overvolted or overclocked.

    long2905, Jul 8, 2012
    #14
  15. luoxia

    luoxia Notebook Enthusiast

    Reputations:
    80
    Messages:
    43
    Likes Received:
    0
    Trophy Points:
    15
    signature testing ! Click it for more information !

    luoxia, Jul 9, 2012
    #15
  16. kolias

    kolias Notebook Evangelist

    Reputations:
    251
    Messages:
    629
    Likes Received:
    88
    Trophy Points:
    41
    where can somebody order the gtx680m msi version?
    is it true that is mo cheaper than clevo?

    kolias, Jul 9, 2012
    #16
  17. aduy

    aduy Keeping it cool since 93'

    Reputations:
    317
    Messages:
    1,474
    Likes Received:
    0
    Trophy Points:
    55
    and more importantly is it going to be the real deal or a quality sample? because if its the real deal and it can be clocked higher than the gtx 670 desktop, i may have to save some money and buy one haha.

    aduy, Jul 9, 2012
    #17
  18. hackness

    hackness Notebook Virtuoso

    Reputations:
    1,237
    Messages:
    2,367
    Likes Received:
    430
    Trophy Points:
    101
    The GPU score in 3DMark11 needs to reach 8000 to get to a GTX670's level tho :confused:

    hackness, Jul 9, 2012
    #18
  19. aduy

    aduy Keeping it cool since 93'

    Reputations:
    317
    Messages:
    1,474
    Likes Received:
    0
    Trophy Points:
    55
    what desktop processor would be similar in 3d mark performance to my 2630qm?

    aduy, Jul 9, 2012
    #19
  20. hackness

    hackness Notebook Virtuoso

    Reputations:
    1,237
    Messages:
    2,367
    Likes Received:
    430
    Trophy Points:
    101
    I haven't tried a 2630QM before but does it turbo boost all 4 cores when the TDP and the temp are allowed like on the 3610QM?

    hackness, Jul 9, 2012
    #20
  21. aduy

    aduy Keeping it cool since 93'

    Reputations:
    317
    Messages:
    1,474
    Likes Received:
    0
    Trophy Points:
    55
    yes i believe the max turbo on all four is 2.6, 2.8 for 2 cores and 2.9 for single core. and i have excellent cooling so there should be no throttling. 2.0ghz normal clocks btw.

    aduy, Jul 9, 2012
    #21
  22. hackness

    hackness Notebook Virtuoso

    Reputations:
    1,237
    Messages:
    2,367
    Likes Received:
    430
    Trophy Points:
    101
    2630QM's turbo mode is probably about a desktop 1st gen i7-920 at non-turbo.

    hackness, Jul 9, 2012
    #22
  23. jaug1337

    jaug1337 de_dust2

    Reputations:
    2,135
    Messages:
    4,862
    Likes Received:
    1,031
    Trophy Points:
    231
    Hmm this is very interesting :p

    jaug1337, Jul 22, 2012
    #23
  24. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,200
    Likes Received:
    17,911
    Trophy Points:
    931
    What about 9000? I reached that.

    Meaker@Sager, Jul 22, 2012
    #24
  25. hackness

    hackness Notebook Virtuoso

    Reputations:
    1,237
    Messages:
    2,367
    Likes Received:
    430
    Trophy Points:
    101
    Zotac GTX680 at stock GPU score is 9449 in performance mode 720P.

    hackness, Jul 22, 2012
    #25
  26. Cloudfire

    Cloudfire (Really odd person)

    Reputations:
    7,279
    Messages:
    10,304
    Likes Received:
    2,878
    Trophy Points:
    581
    Yo hackness, what happend to you and your bricked 680M? :)

    Cloudfire, Jul 22, 2012
    #26
  27. hackness

    hackness Notebook Virtuoso

    Reputations:
    1,237
    Messages:
    2,367
    Likes Received:
    430
    Trophy Points:
    101
    Well it wasn't bricked, seems like some parts were burnt due to bad solder job or something, it's at Clevo right now, should be with me like a week after.

    hackness, Jul 22, 2012
    #27
  28. Killerinstinct

    Killerinstinct Notebook Evangelist

    Reputations:
    633
    Messages:
    539
    Likes Received:
    119
    Trophy Points:
    56
    So you basically just got a bad GTX 680M and it still overclocked like a champ :D

    Killerinstinct, Jul 22, 2012
    #28
  29. hackness

    hackness Notebook Virtuoso

    Reputations:
    1,237
    Messages:
    2,367
    Likes Received:
    430
    Trophy Points:
    101
    That's right :D Those GTX680M you see out there all have great OC potential.

    hackness, Jul 22, 2012
    #29
  30. Killerinstinct

    Killerinstinct Notebook Evangelist

    Reputations:
    633
    Messages:
    539
    Likes Received:
    119
    Trophy Points:
    56
    Yep I bet those Nvidia Engineers are proud that we are making their beast roar. lol Nvidia Marketing group must have made them down-clock it :p

    Killerinstinct, Jul 22, 2012
