    Make two 330 Watt to 1 one 660 power supply,with Display...for Volt, Ampere, Watt..

    Discussion in 'Sager and Clevo' started by rainer124, Dec 28, 2018.

  1. rainer124

    rainer124 Notebook Guru

    Reputations:
    55
    Messages:
    59
    Likes Received:
    159
    Trophy Points:
    41

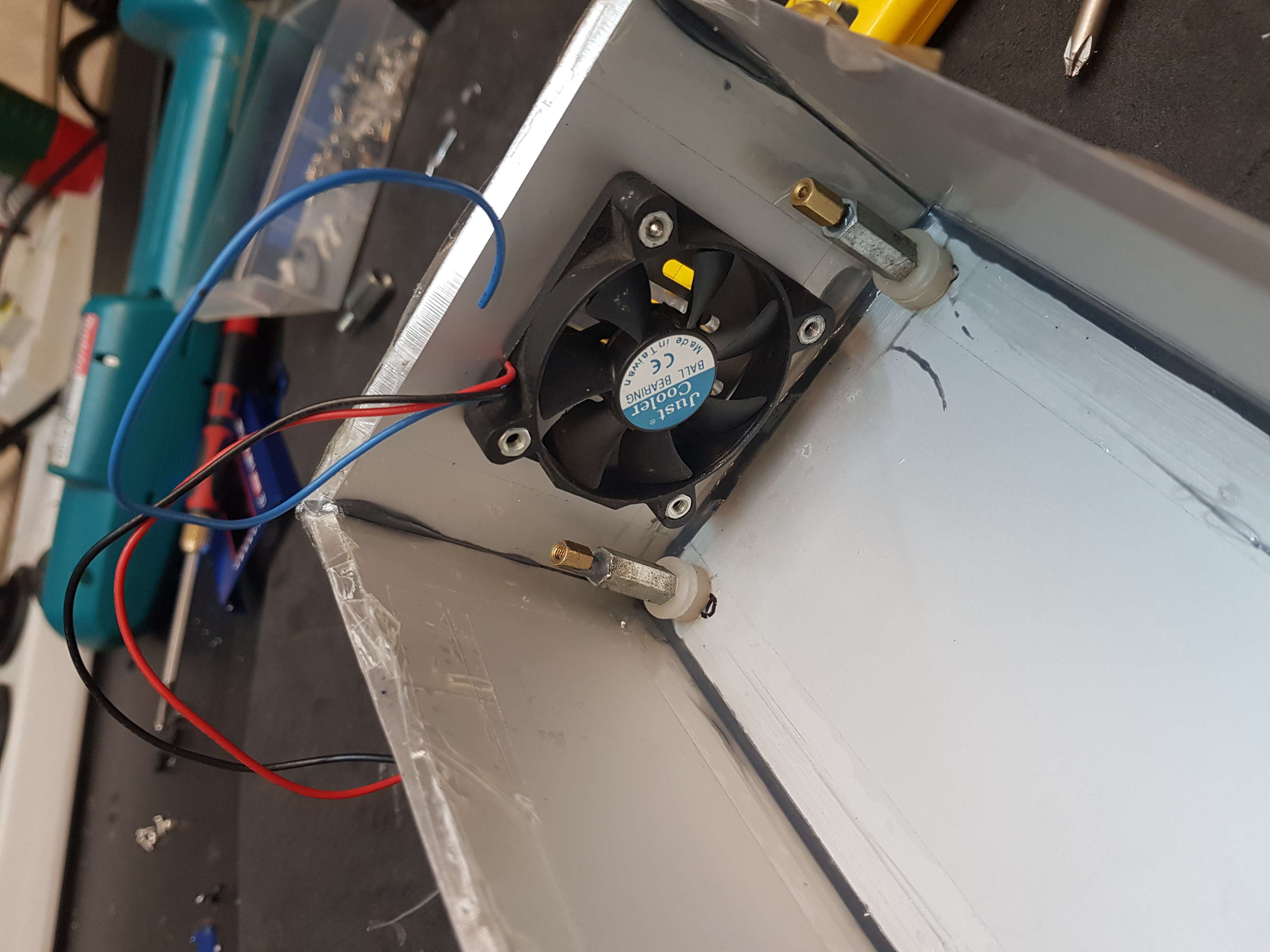

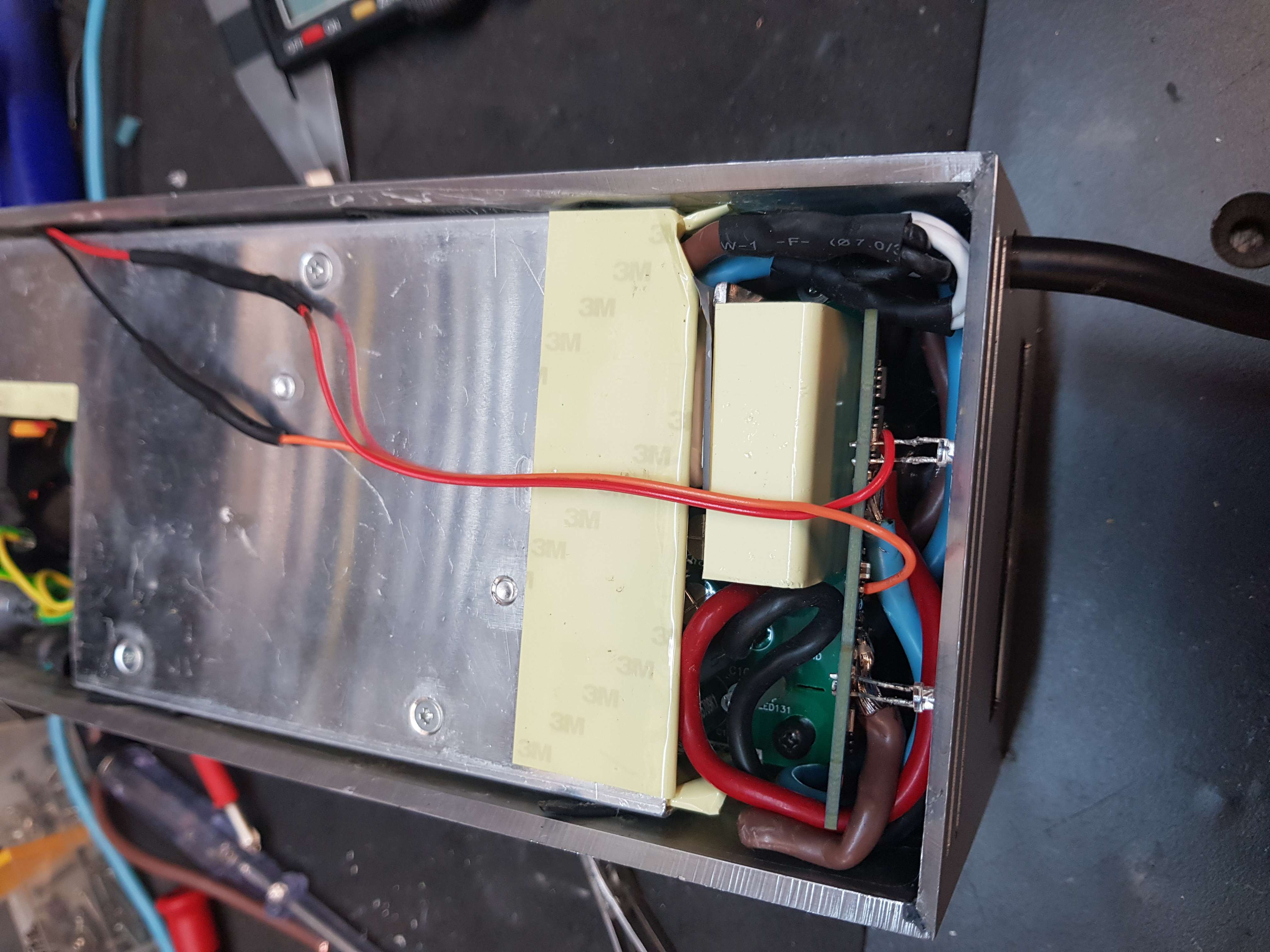

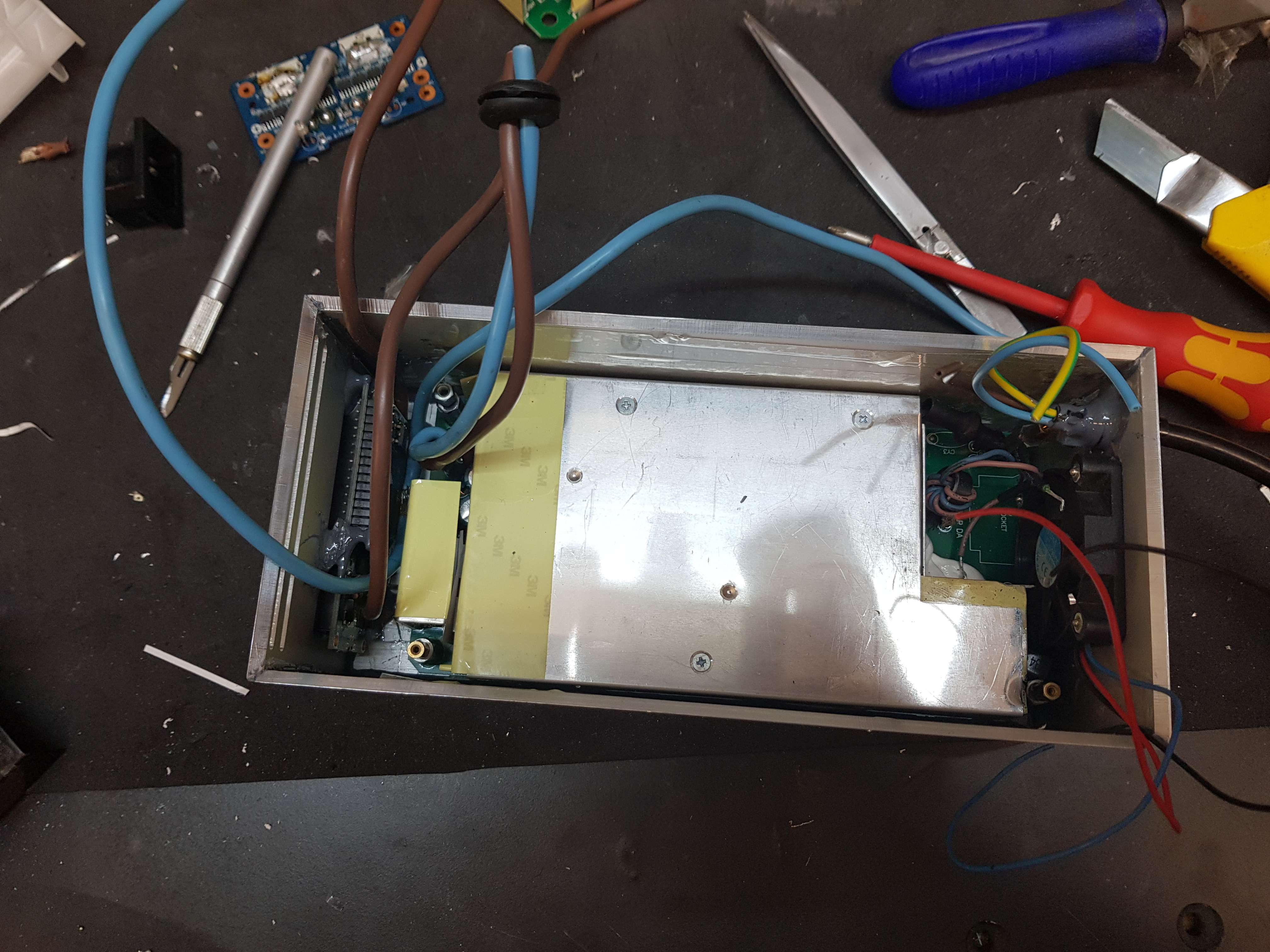

    Hello everyone .

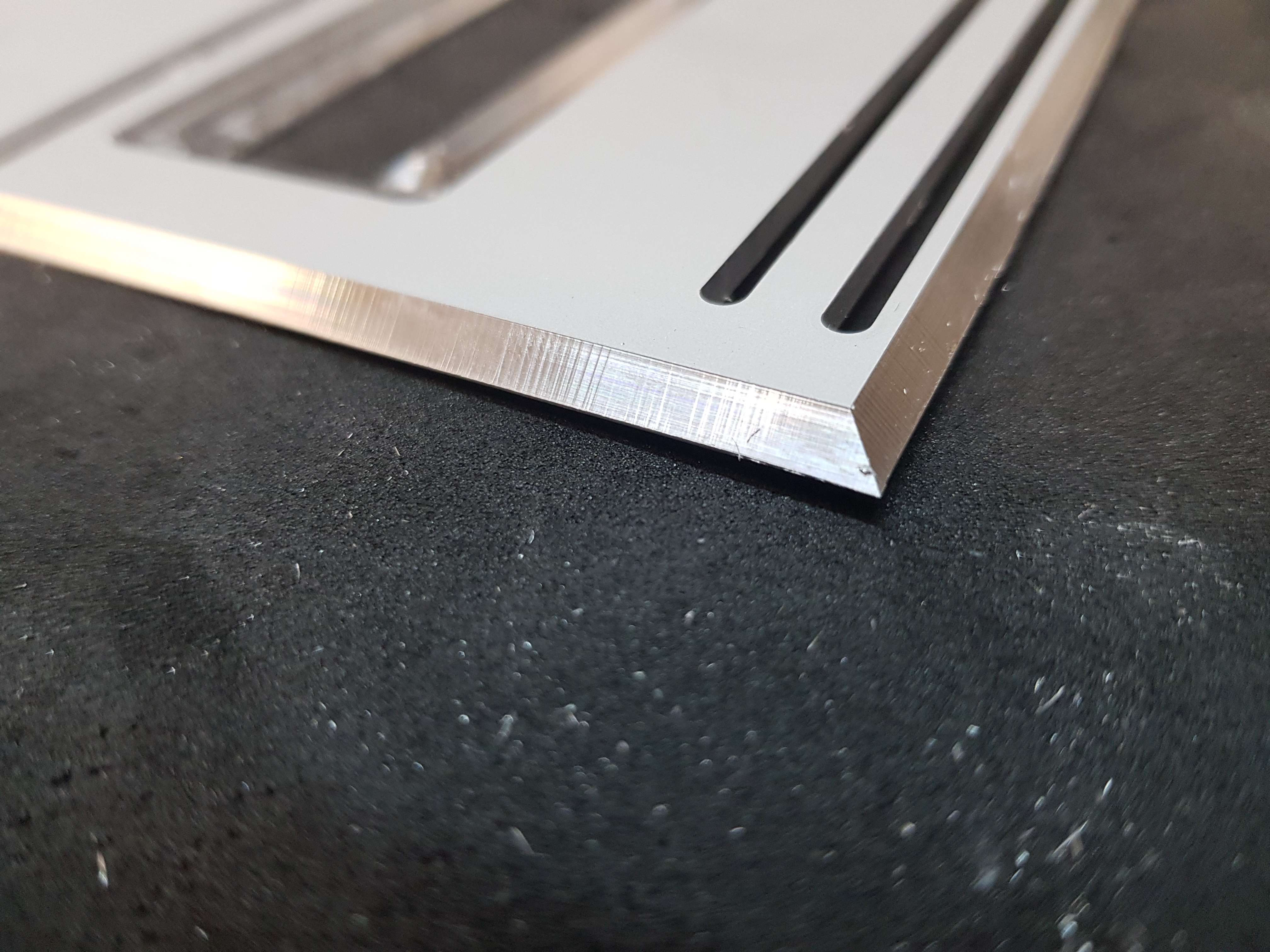

    Made with 3mm Alu and CNC Machine
    Is a folding box :D
    Since it was too annoying for me to always carry 2 power supply around, I mad 20181227_161405.jpg 20181227_154228.jpg 20181227_154235.jpg 20181227_155738.jpg e 2 out of one.


    Attached Files:

    Last edited: Dec 28, 2018
    rainer124, Dec 28, 2018
    #1
    Vasudev, FTW_260 and Dr. AMK like this.
  2. rainer124

    rainer124 Notebook Guru

    Reputations:
    55
    Messages:
    59
    Likes Received:
    159
    Trophy Points:
    41
    next


    Attached Files:

    rainer124, Dec 28, 2018
    #2
    Papusan, FTW_260, Mr. Fox and 1 other person like this.
  3. rainer124

    rainer124 Notebook Guru

    Reputations:
    55
    Messages:
    59
    Likes Received:
    159
    Trophy Points:
    41
    next


    Attached Files:

    rainer124, Dec 28, 2018
    #3
    hmscott, Papusan, FTW_260 and 2 others like this.
  4. rainer124

    rainer124 Notebook Guru

    Reputations:
    55
    Messages:
    59
    Likes Received:
    159
    Trophy Points:
    41

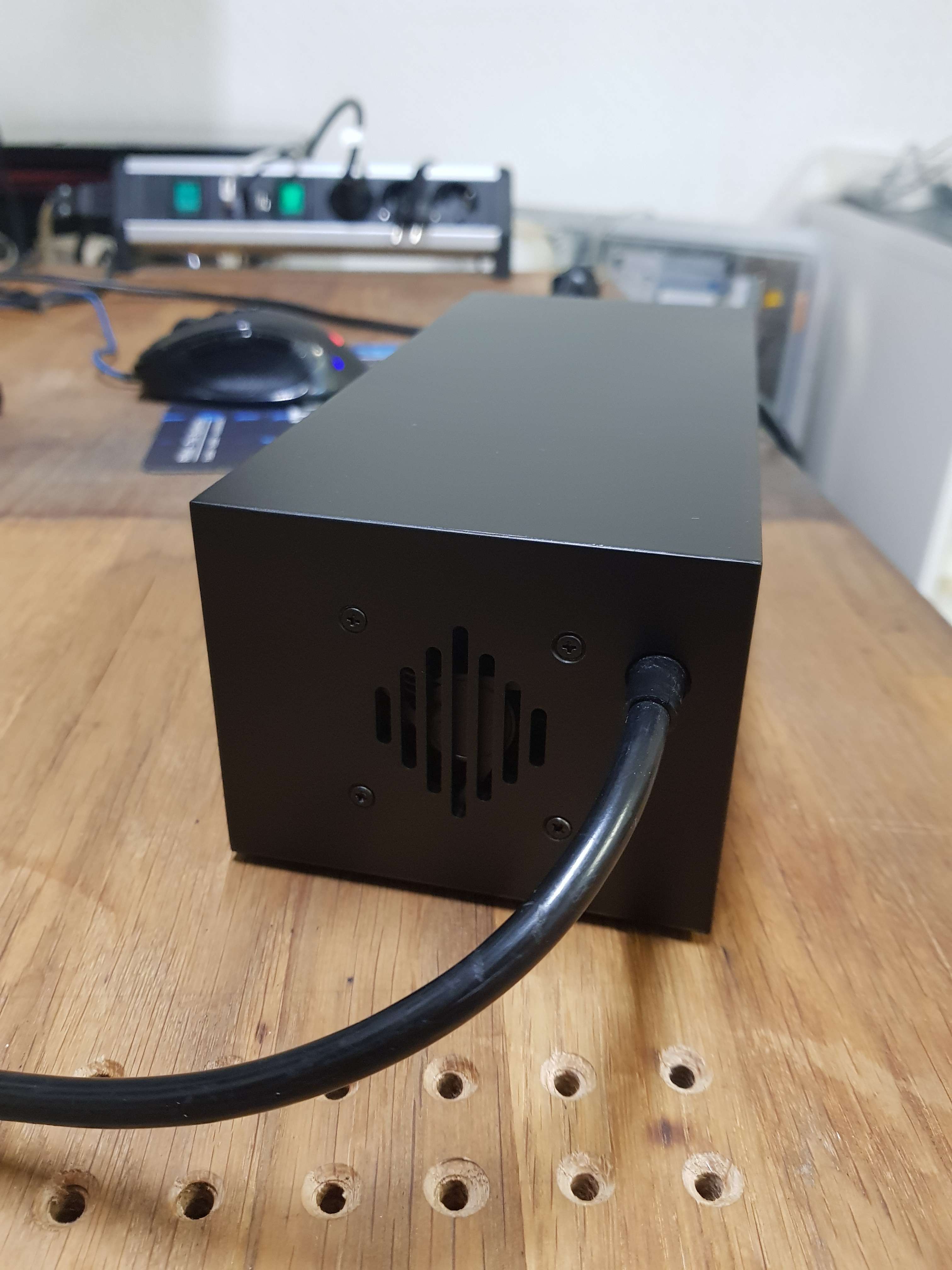

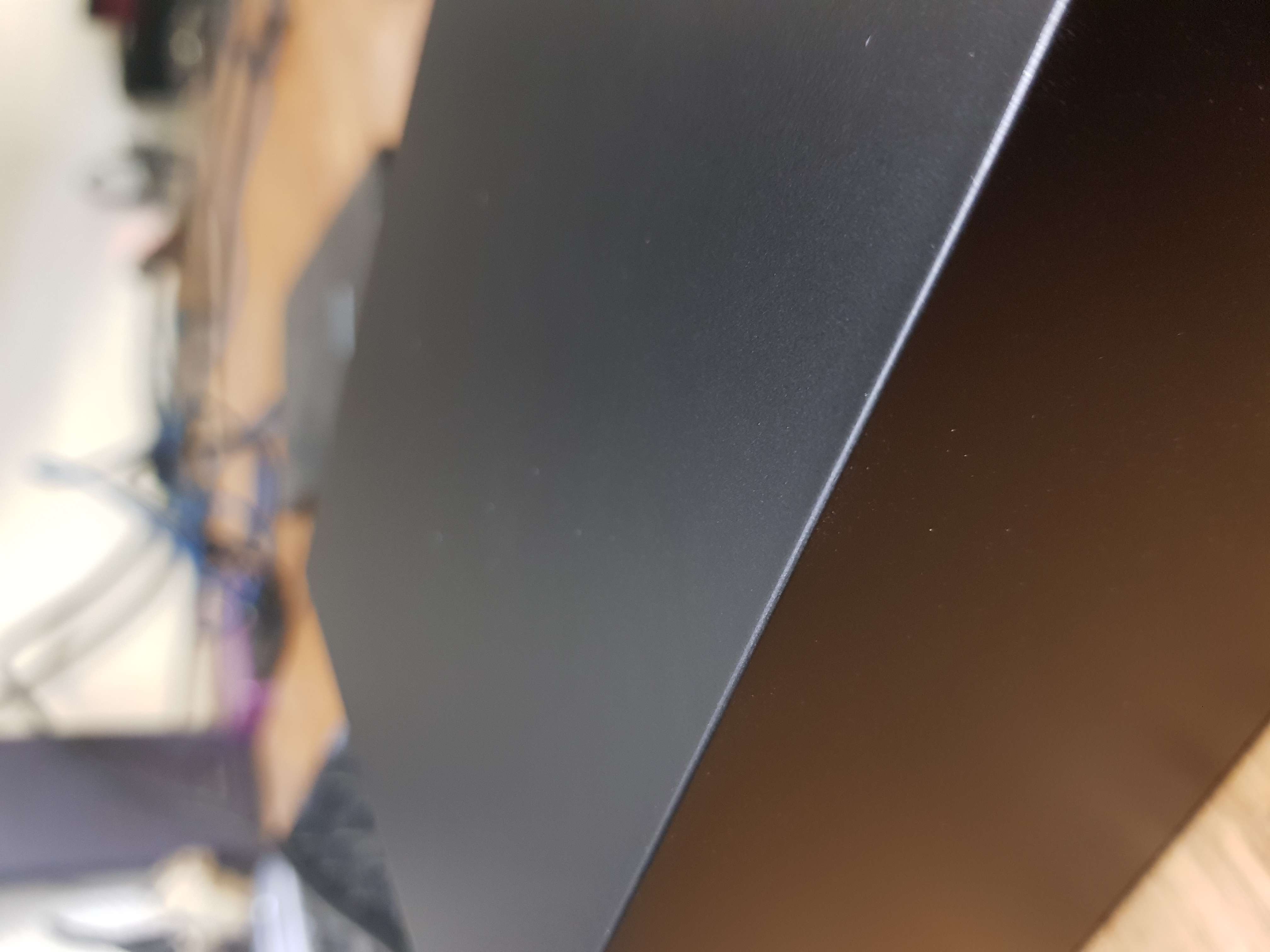

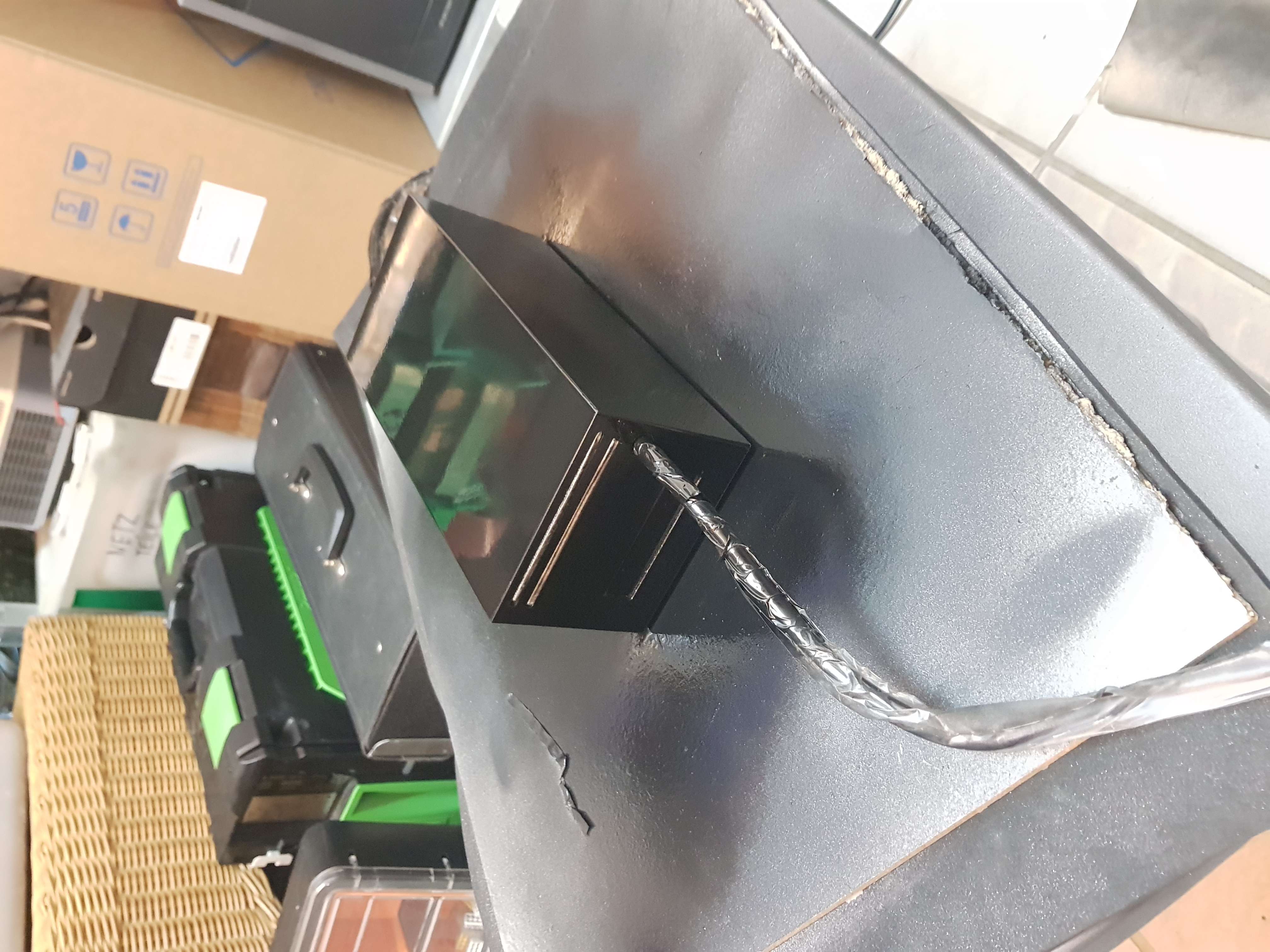

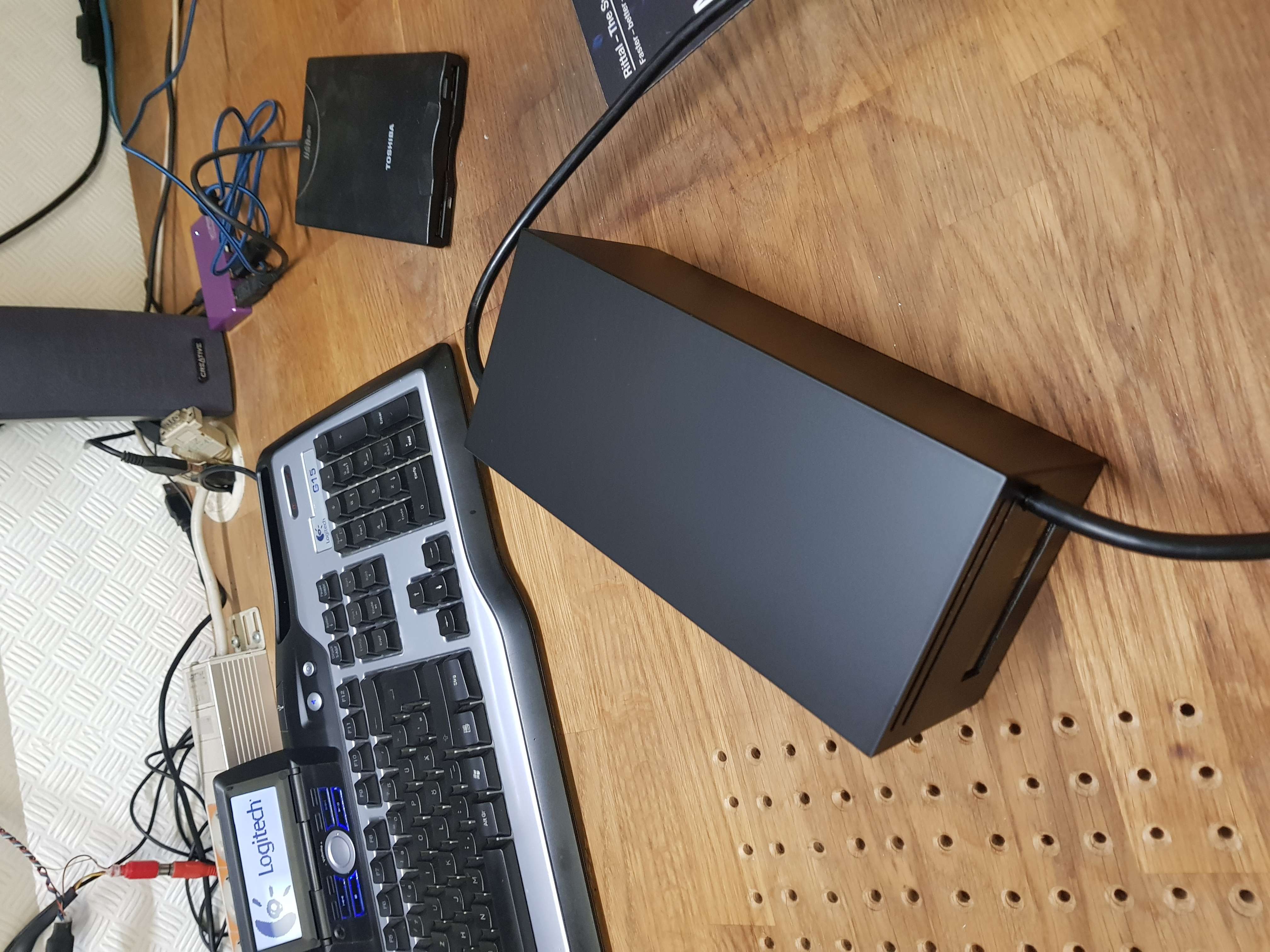

    Paint finish

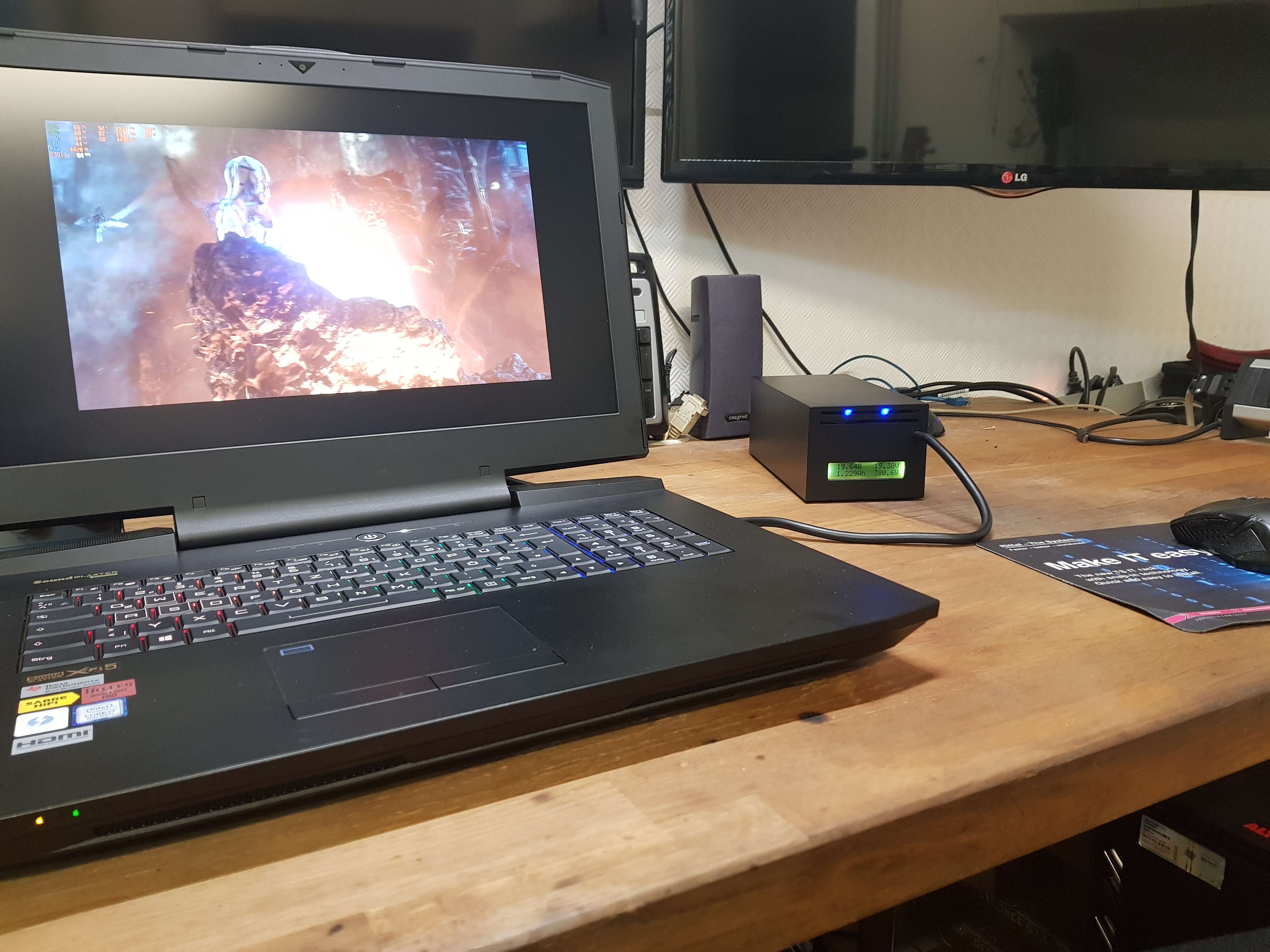

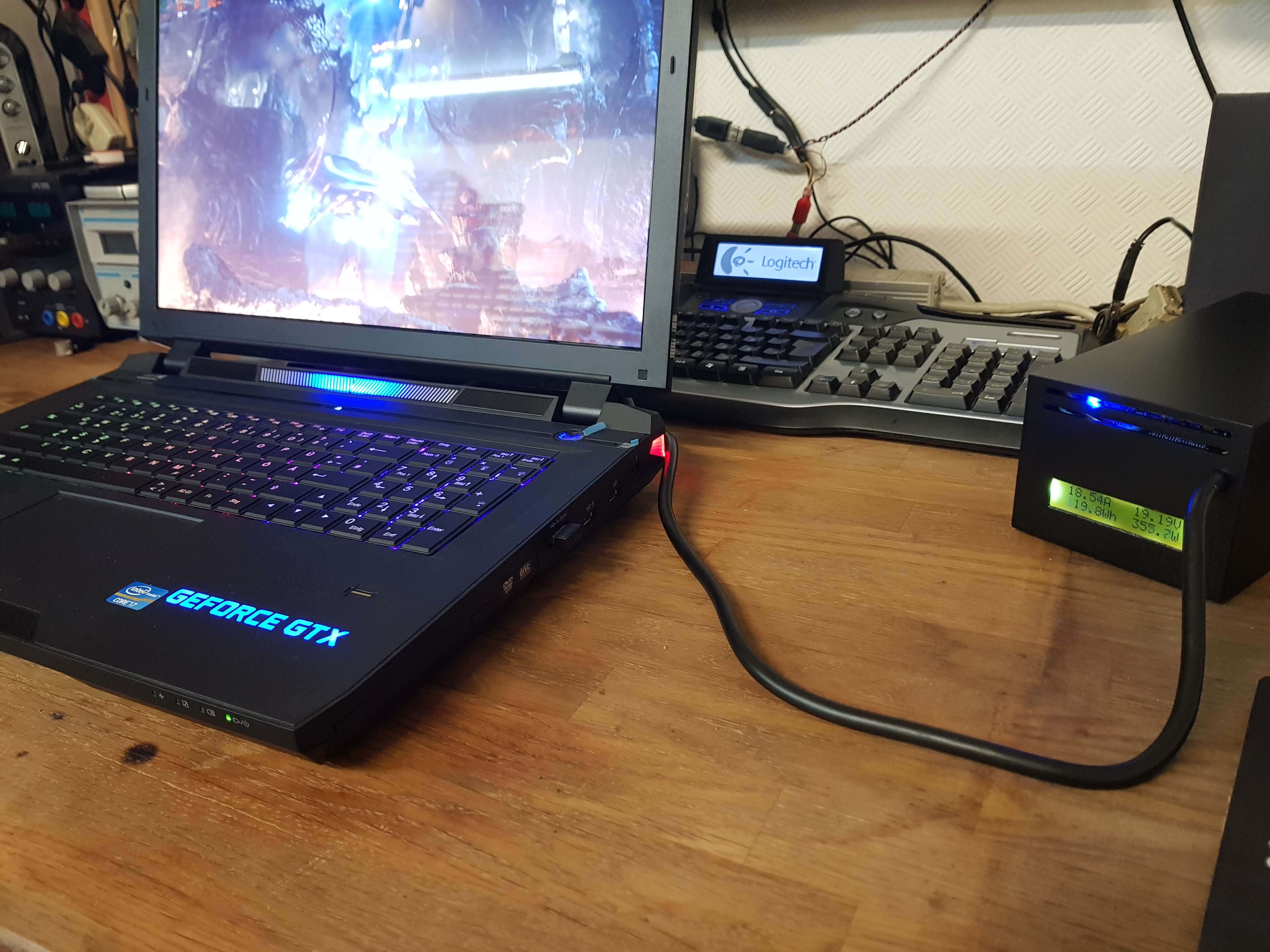

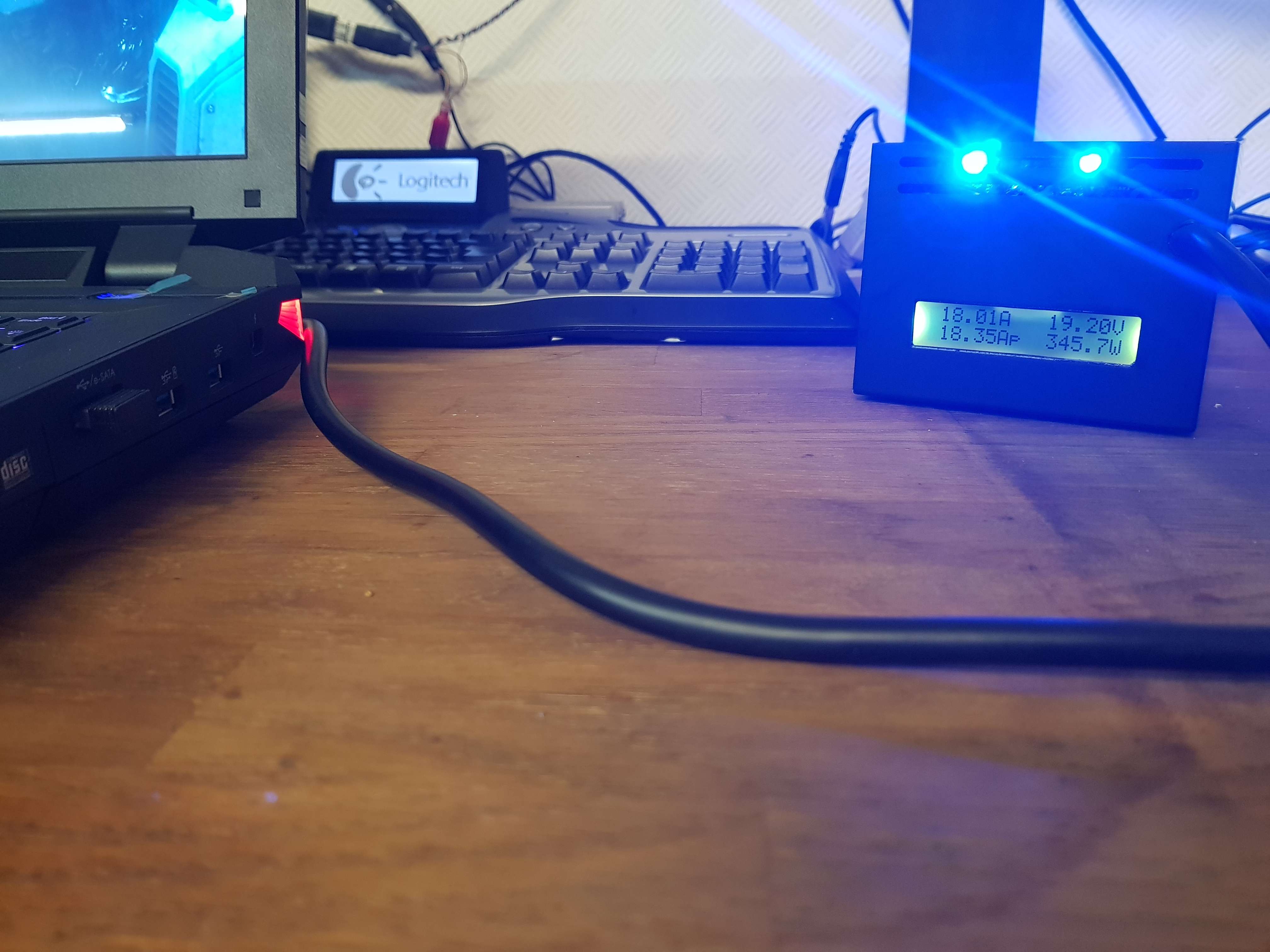

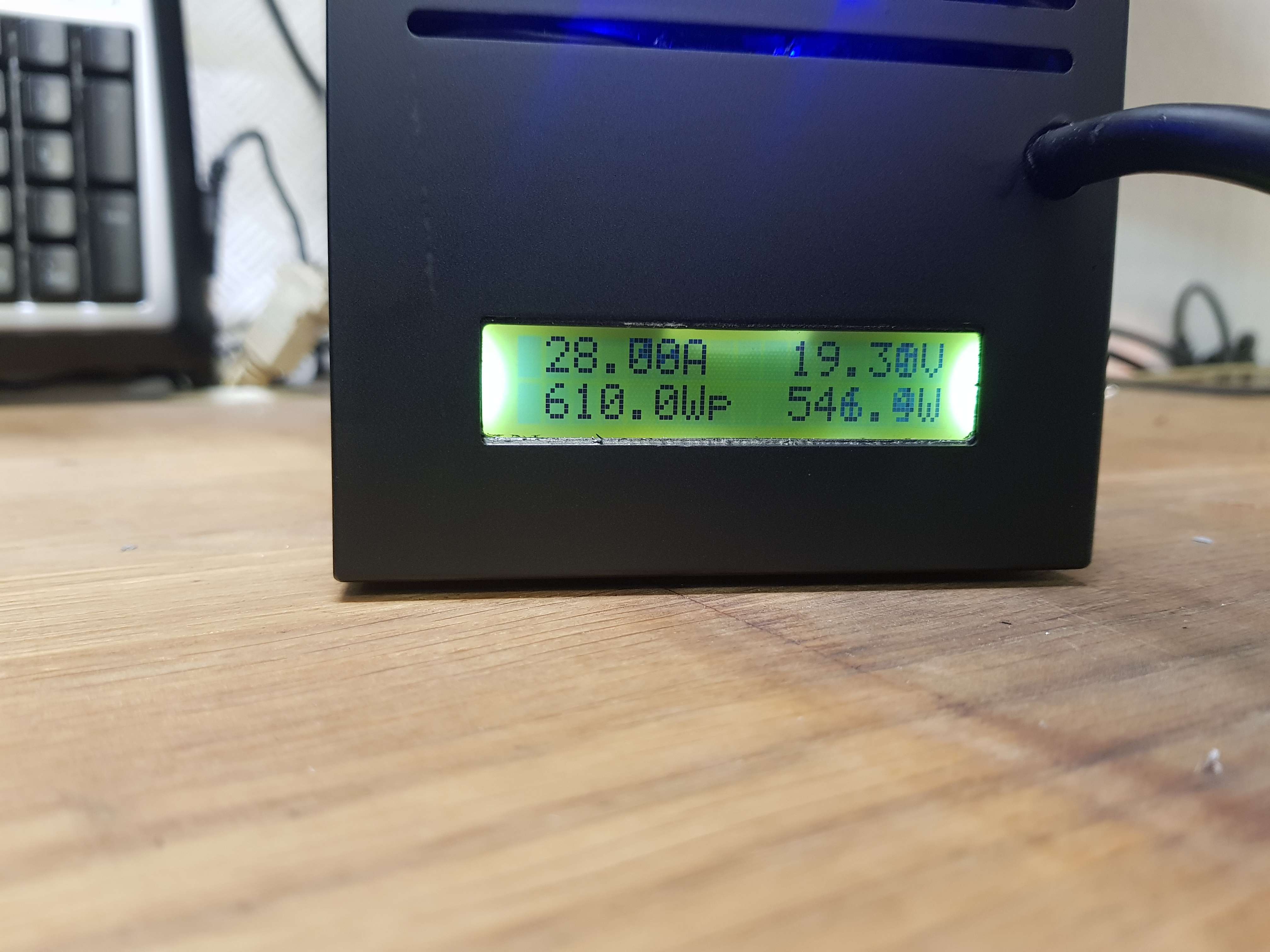

    P870km Testing Max 610 Watt with 2xGTX1080 oc in Gaming Mode. (250 Watt per Card )
    Benchmark mode (282 Watt per Card ) Max Power 680 Watt ;-)

    And Clevo P375SM-A W with 2x GTX980m Extrem OC (182 watt per Card ) 531 Watt :eek:


    Attached Files:

    rainer124, Dec 28, 2018
    #4
    hmscott, Papusan, FTW_260 and 2 others like this.
  5. rainer124

    rainer124 Notebook Guru

    Reputations:
    55
    Messages:
    59
    Likes Received:
    159
    Trophy Points:
    41

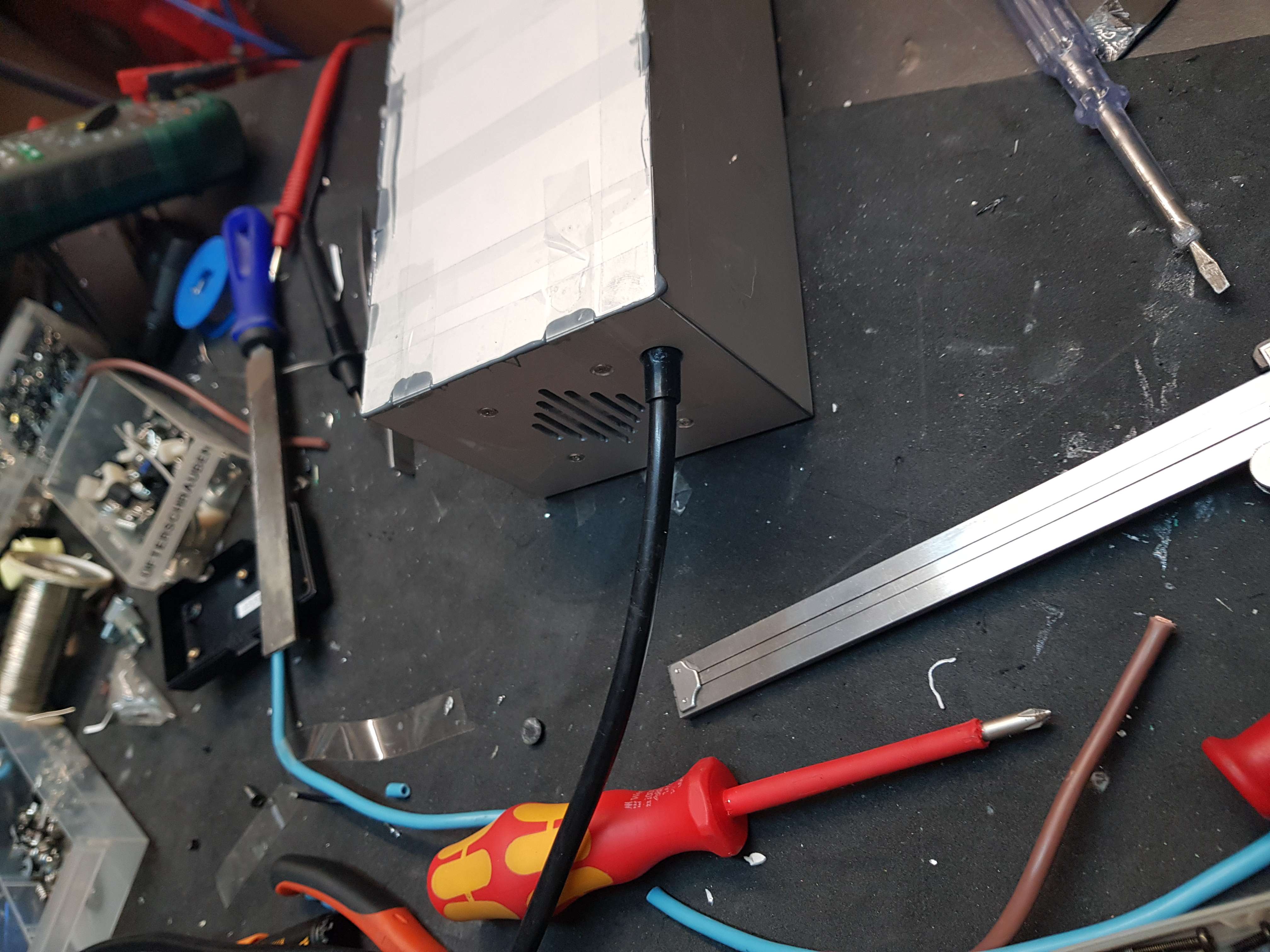

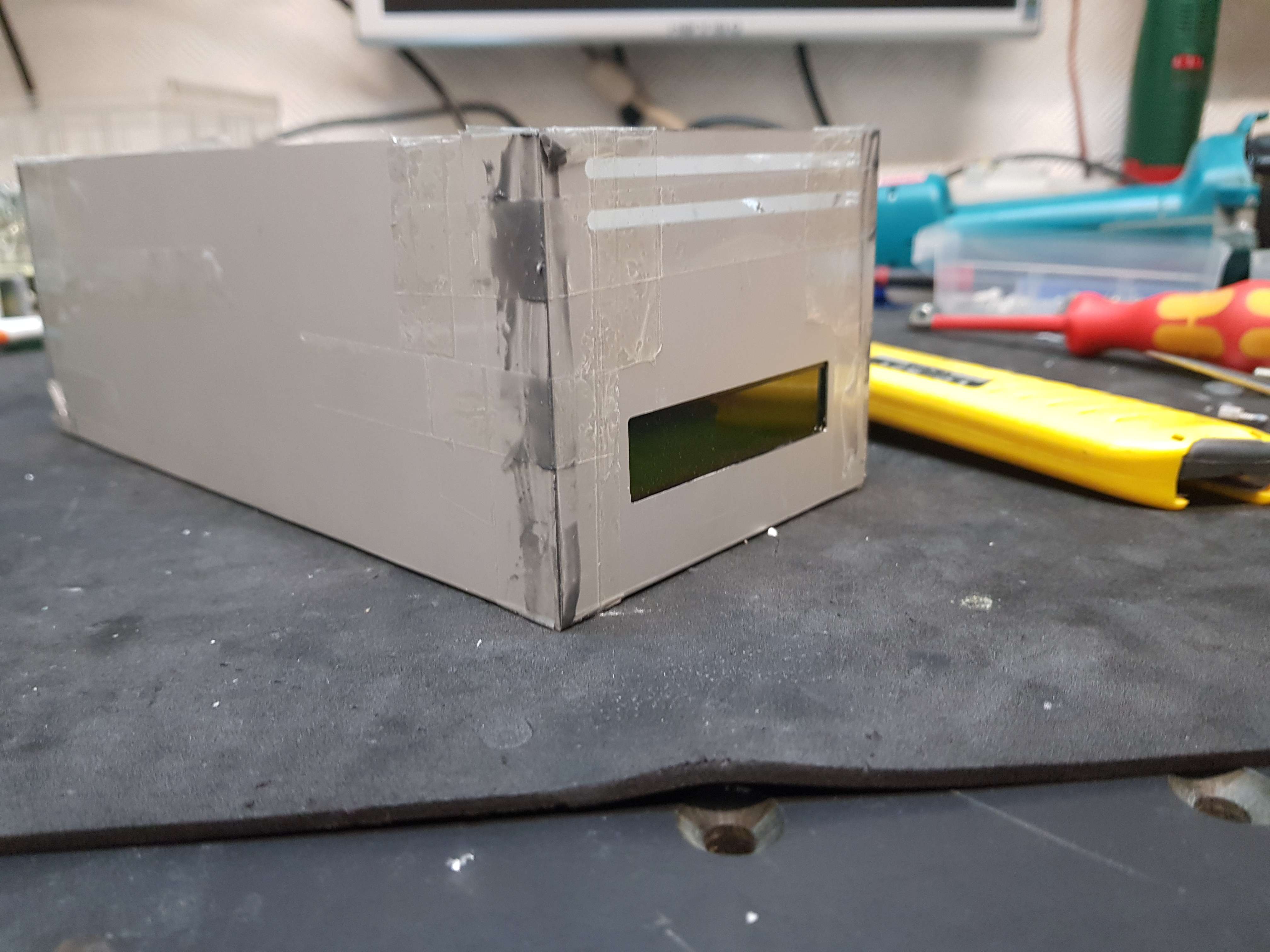

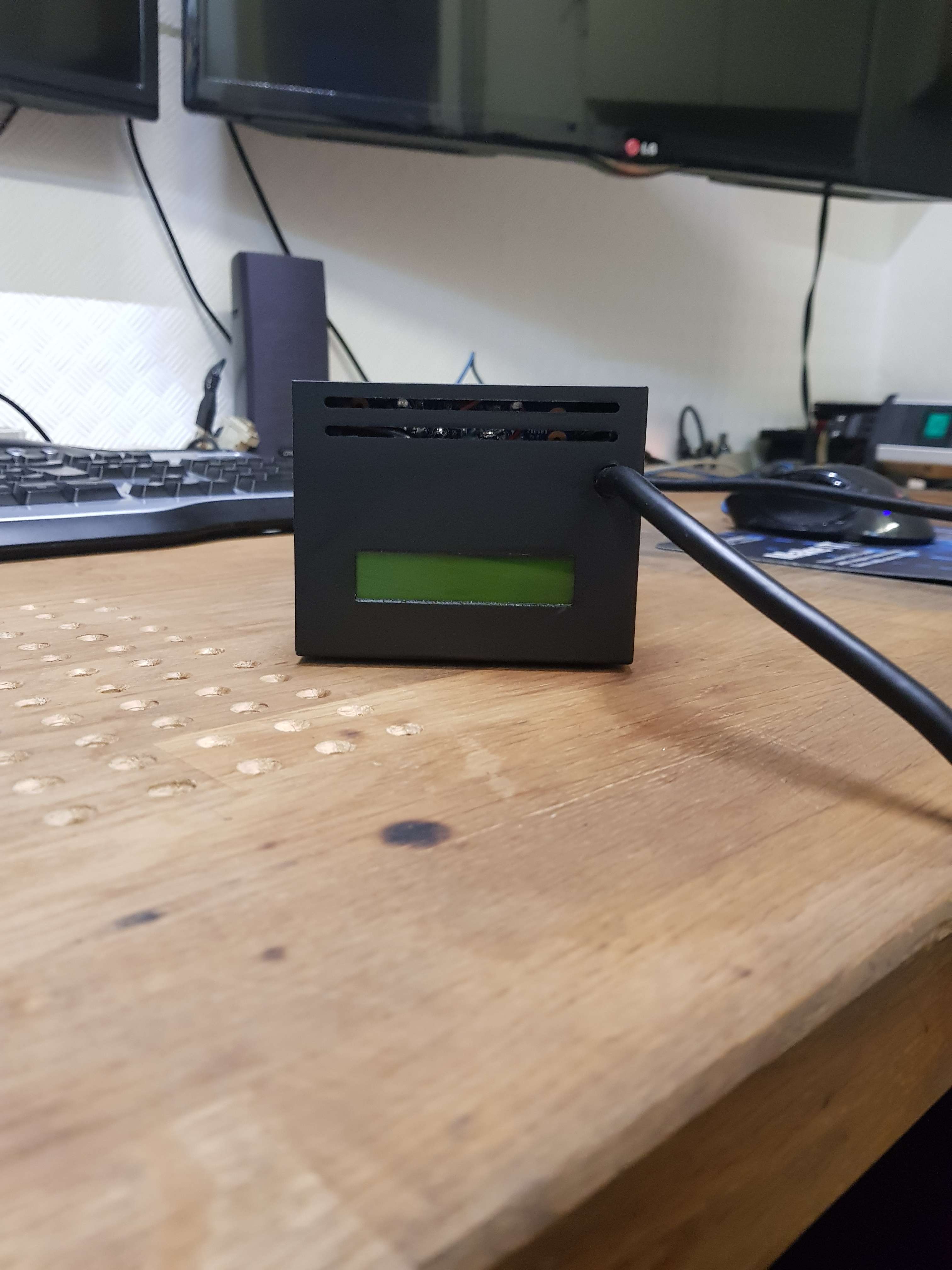

    folded and glued , Size is 220x100x80 mm


    Attached Files:

    rainer124, Dec 28, 2018
    #5
    hmscott, Papusan, FTW_260 and 2 others like this.
  6. Dr. AMK

    Dr. AMK Living with Hope

    Reputations:
    3,961
    Messages:
    2,182
    Likes Received:
    4,654
    Trophy Points:
    281
    Dr. AMK, Dec 28, 2018
    #6
  7. Prostar Computer

    Prostar Computer Company Representative

    Reputations:
    1,257
    Messages:
    7,426
    Likes Received:
    1,016
    Trophy Points:
    331
    Prostar Computer, Dec 28, 2018
    #7
    Mr. Fox and Dr. AMK like this.
  8. Dr. AMK

    Dr. AMK Living with Hope

    Reputations:
    3,961
    Messages:
    2,182
    Likes Received:
    4,654
    Trophy Points:
    281
    Huge effort, you have skills for sure. Nice work.

    Dr. AMK, Dec 28, 2018
    #8
    FTW_260 and Mr. Fox like this.
  9. rainer124

    rainer124 Notebook Guru

    Reputations:
    55
    Messages:
    59
    Likes Received:
    159
    Trophy Points:
    41
    Thanks Dr.AMK and Prostar :) i made in 8 hours


    Can anyone buy it but self made? :eek:

    rainer124, Dec 28, 2018
    #9
    Papusan, Dr. AMK and Mr. Fox like this.
  10. Mr. Fox

    Mr. Fox BGA Filth-Hating Elitist®

    Reputations:
    37,255
    Messages:
    39,352
    Likes Received:
    70,747
    Trophy Points:
    931
    It looks really excellent, bro. Nice job.

    What type of glue did you use? It looks like JB Weld. Will you be able to easily disassemble it if you should need to?

    Mr. Fox, Dec 28, 2018
    #10
    Dr. AMK likes this.
  11. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,200
    Likes Received:
    17,912
    Trophy Points:
    931
    Meaker@Sager, Dec 29, 2018
    #11
    jclausius and Dr. AMK like this.
  12. Dr. AMK

    Dr. AMK Living with Hope

    Reputations:
    3,961
    Messages:
    2,182
    Likes Received:
    4,654
    Trophy Points:
    281
    Yes, but remember that not everyone has your/his skills to build his own PSU :).

    Dr. AMK, Dec 30, 2018
    #12
    jclausius likes this.
  13. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,200
    Likes Received:
    17,912
    Trophy Points:
    931
    Well there is always the duct tape mod which anyone can do :p

    Meaker@Sager, Dec 30, 2018
    #13
    jclausius and Dr. AMK like this.
  14. rainer124

    rainer124 Notebook Guru

    Reputations:
    55
    Messages:
    59
    Likes Received:
    159
    Trophy Points:
    41
    Thanks Mr. Fox

    Liquid metal glue. (2 components glue) yes make the lid warm or hot dan he goes up

    rainer124, Dec 31, 2018
    #14
  15. poprostujakub

    poprostujakub Notebook Consultant

    Reputations:
    42
    Messages:
    191
    Likes Received:
    95
    Trophy Points:
    41
    This casing is grounded? If not, I strongly recommend not touching it when it is connected to mains....

    poprostujakub, Jan 2, 2019
    #15
  16. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,200
    Likes Received:
    17,912
    Trophy Points:
    931
    Hopefully it does have a nice big strap going to the casing otherwise yes, it could get fun.

    Meaker@Sager, Jan 2, 2019
