Meaker's next project ;)

Why hello there:



First part of it is here



A man of culture with a Gamers Nexus mouse mat.

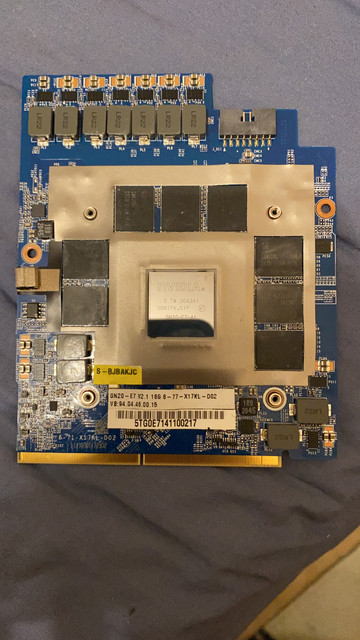

Nice RTX 3070 wonder what your going to be messing around with maybe an SPI programmer and some vbios dumps?????

Sent from my SNE-LX1 using Tapatalk



Good point, I do have a 1.8v reader, I should dump the vbios.



I thought that was a given bud.

Mine hit 200w by the way running stock clocks but it was a peak.

Sent from my SNE-LX1 using Tapatalk



Is that just out of the box?



Yep, shows in HWinfo as maximum, I also have Nvidia's stupid dynamic boost off.

Its only done it a few times however its more common to see peaks of 160-180w. Not sure what is causing it but hey ho.

Sent from my SNE-LX1 using Tapatalk



Nice! Hopefully you can figure out a way to mod the vaporchamber to fit it, or are you planning trying out the t-shape heatsink?



Oh which laptop is this going in now I am peaked. T-Shape tells me either P870 or P751 but this is a guess.

Sent from my SNE-LX1 using Tapatalk



I believe Meaker is on a P870TM1, t-shape offers easier modding compared to the vaporchamber since the 3xxx mounting is wider. He could also have ordered that aliexpress kit that fits 3xxx cards and p870

Something akin to this:
http://forum.notebookreview.com/thr...s-now-supported.825558/page-242#post-11103190

It's impressive to have sourced a 3xxx mxm card in the first place.

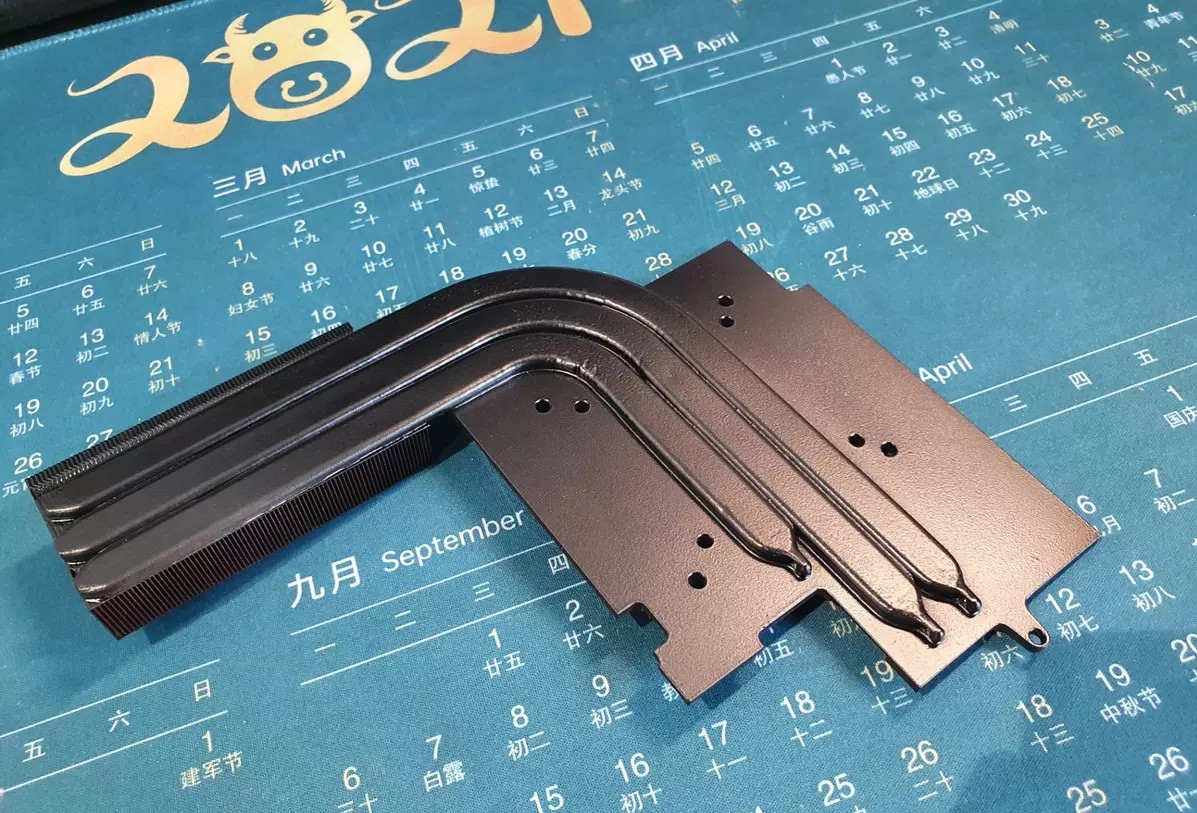

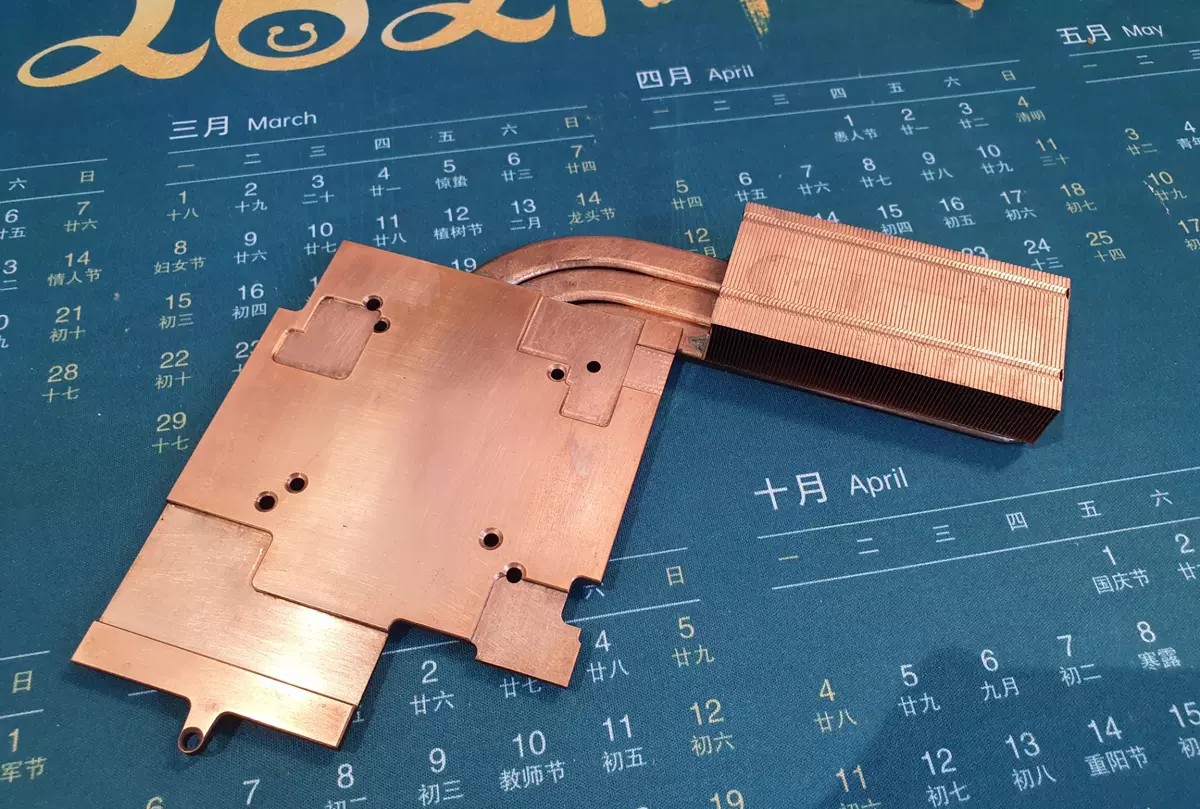

It helps to have contacts for the card that's for sure. It's a custom heatsink I am getting might be using some extra features of my control unit on the smart dock I built..



Nice one bud.

Sent from my SNE-LX1 using Tapatalk



Yeah @ViktorV is helping me out source the heatsinks and Sager managed to source me a card as a favour (it's not like there are a bunch out there) and it should hopefully come together into something interesting.

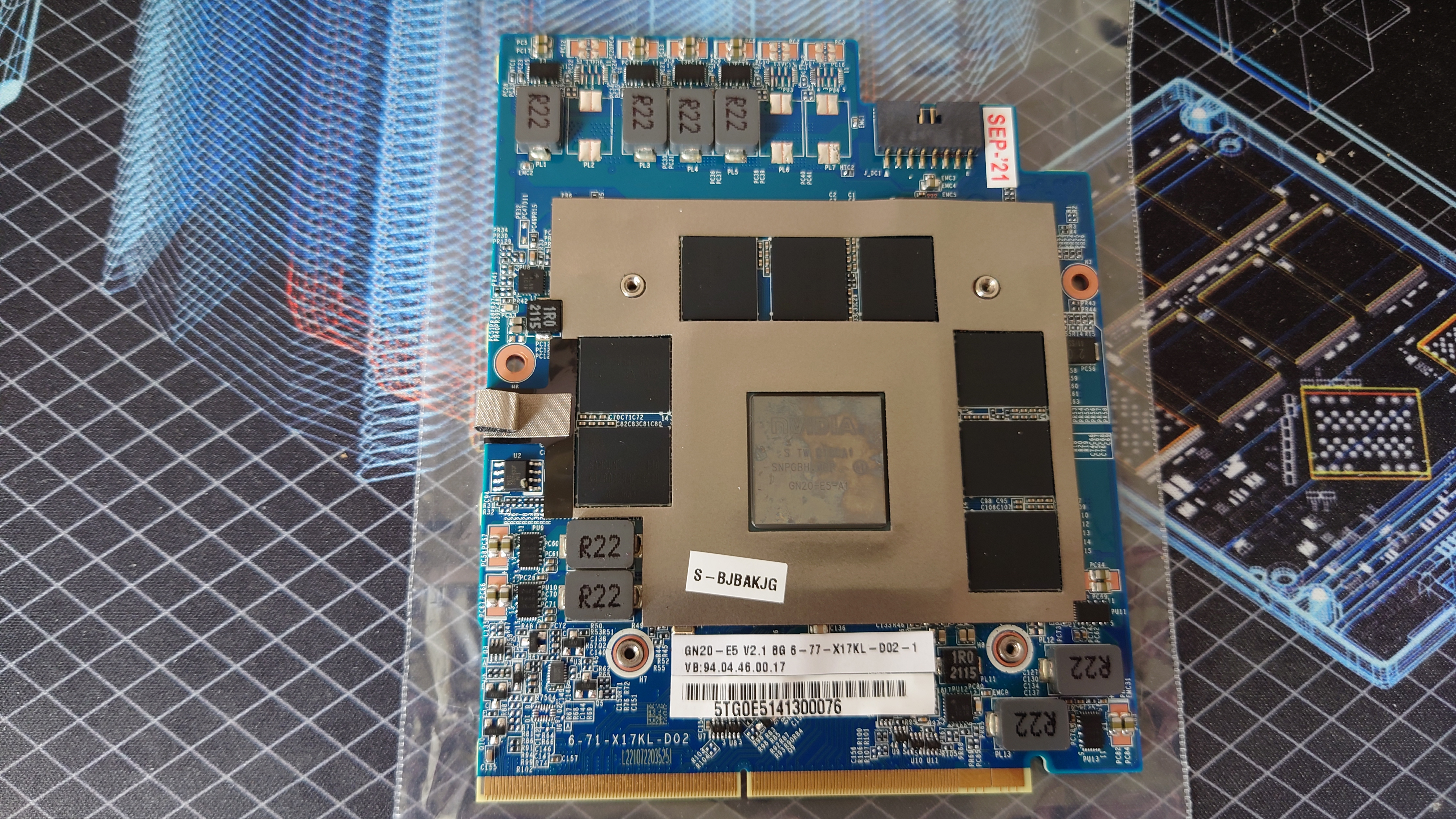

I don’t know why your resellers say that this is a problem, but we have no problems purchasing Clevo 30 series cards, we can purchase any 3060-3070-3080 for you separately from the laptop



What's the asking price on 3080 MXMs?



2000$

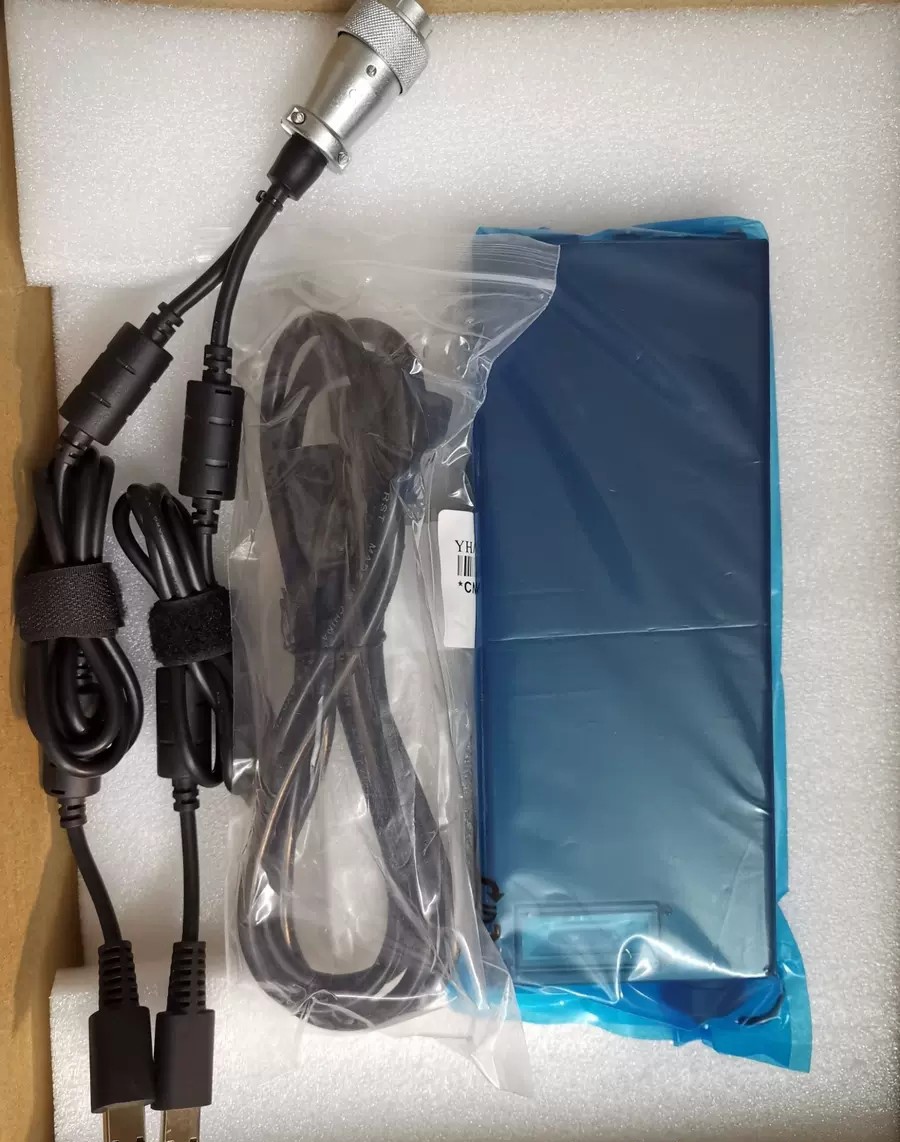

Also, at our request, the manufacturer of custom power supplies made a 660 watt power supply for x170sm / km



Nice how much and where to get one??

Sent from my SNE-LX1 using Tapatalk



It will be interesting to see if I even go over the single brick limit much.



400$ The contact of the person through whom you can order all the products for Clevo laptops I posted earlier or ask Meaker @ Sager he has a contact. I think he will be supportive and share with you.))))



Thanks will do, just need to sort out RAm first 16GB is so not enough for me right now I need 32GB minimum. But defo will get the PSU as that would make if easy to carry the laptop about.

Sent from my SNE-LX1 using Tapatalk



You unlocked the BIOS?

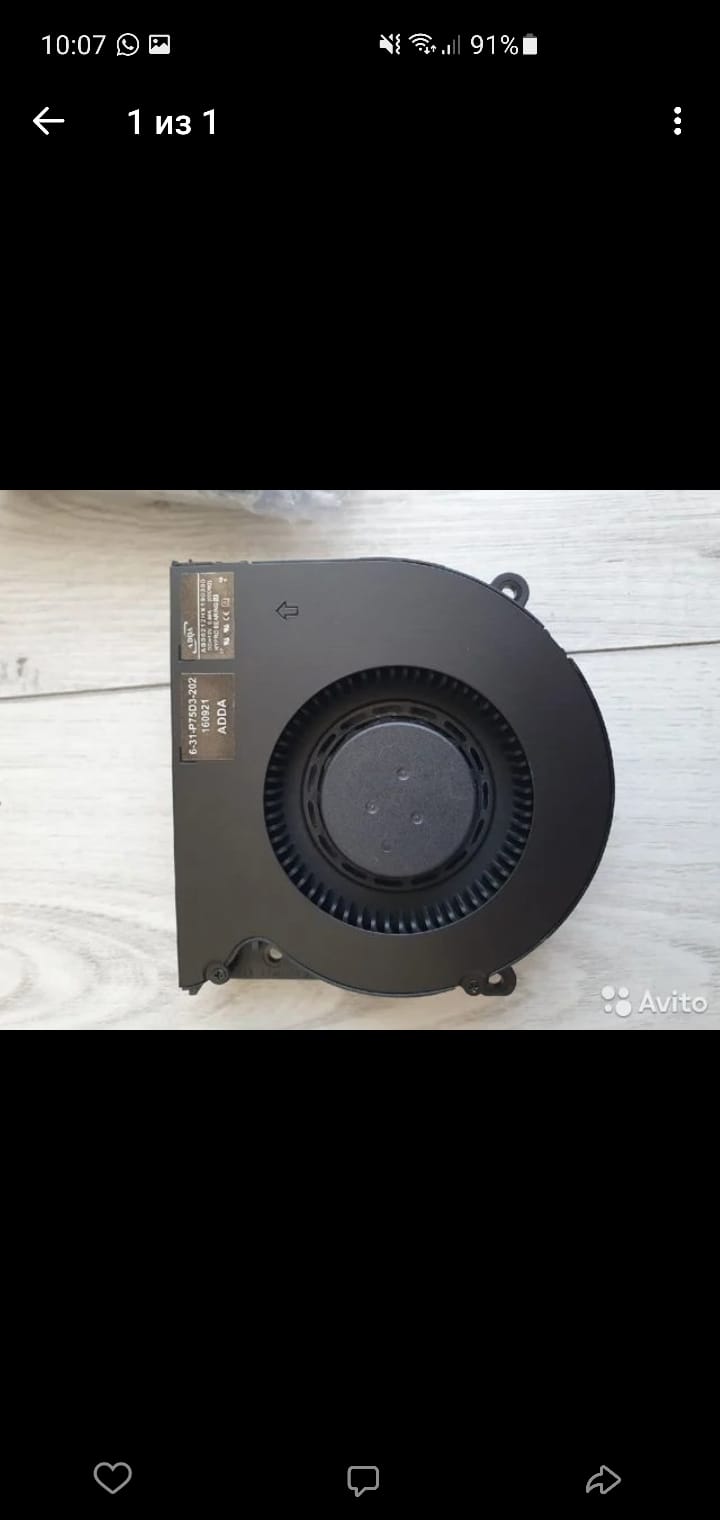

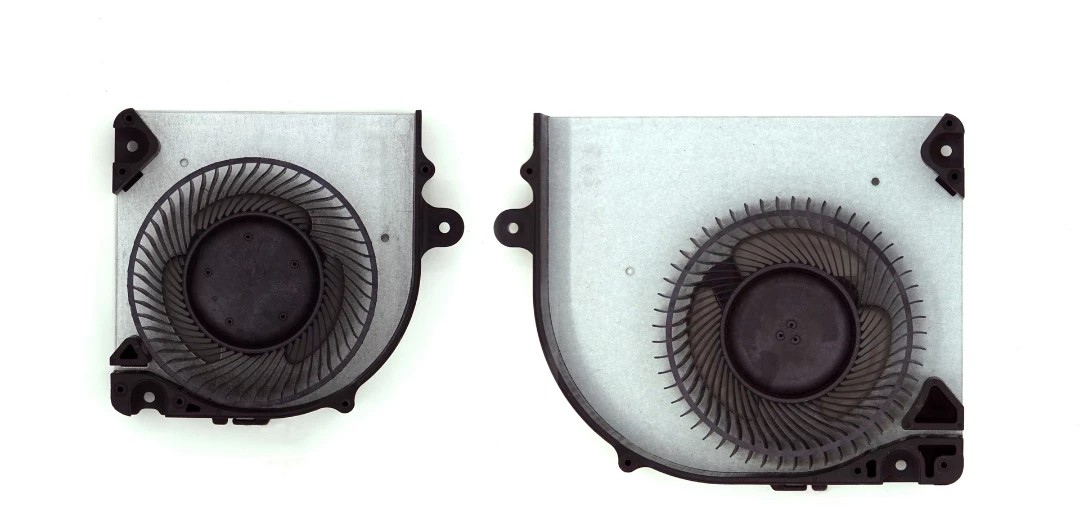

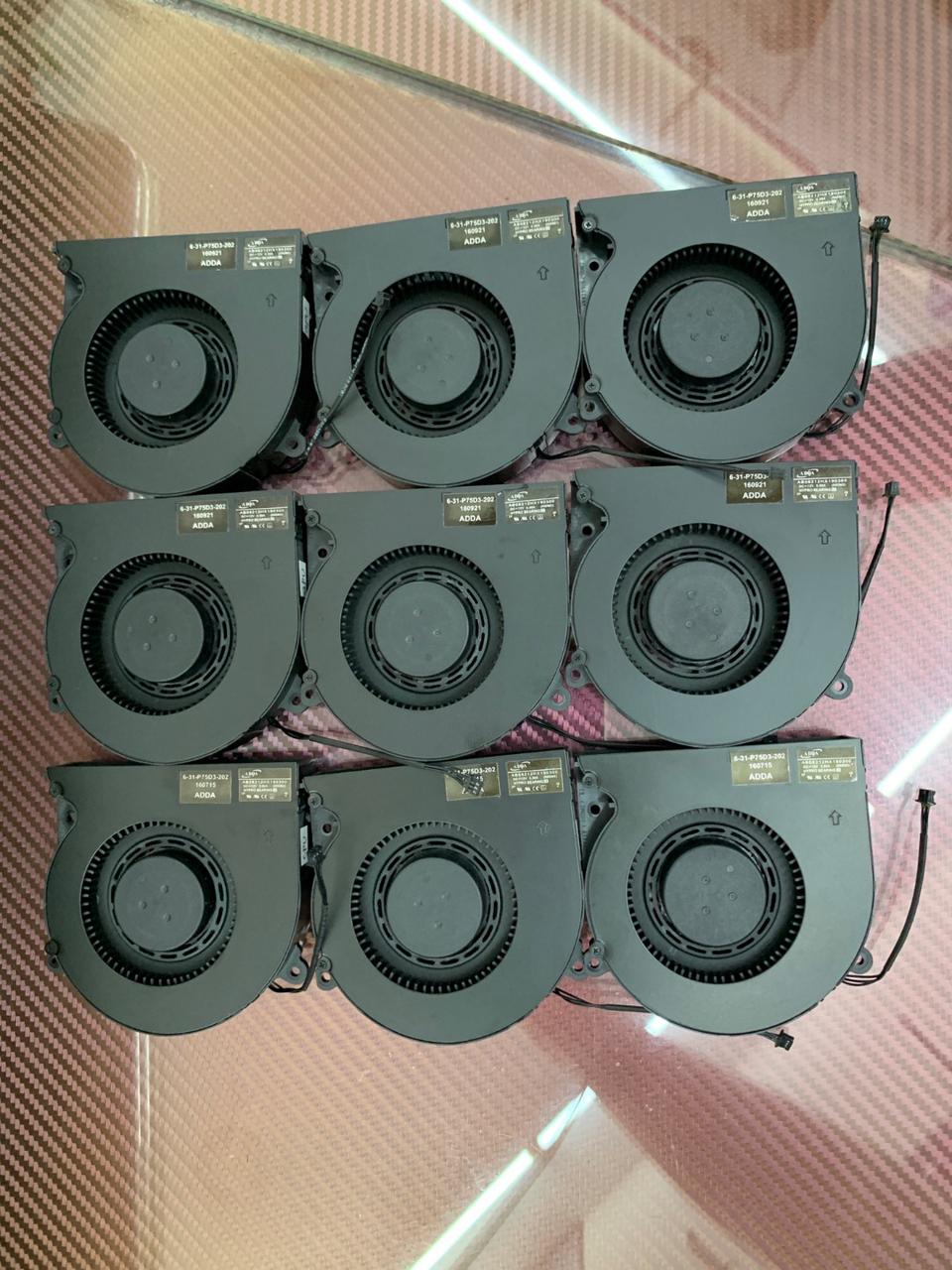

Custom fans for x170smg / kmg are now available, they are 30% more efficient than stock fans and are much quieter.



any of that similar fan for 870tm?



I mean over the 330w brick with just a single card and CPU.



These are for 775/750/751/870 models



for the CPU fans? or work for CPU and GPU. havent been around lately missing out lots of info

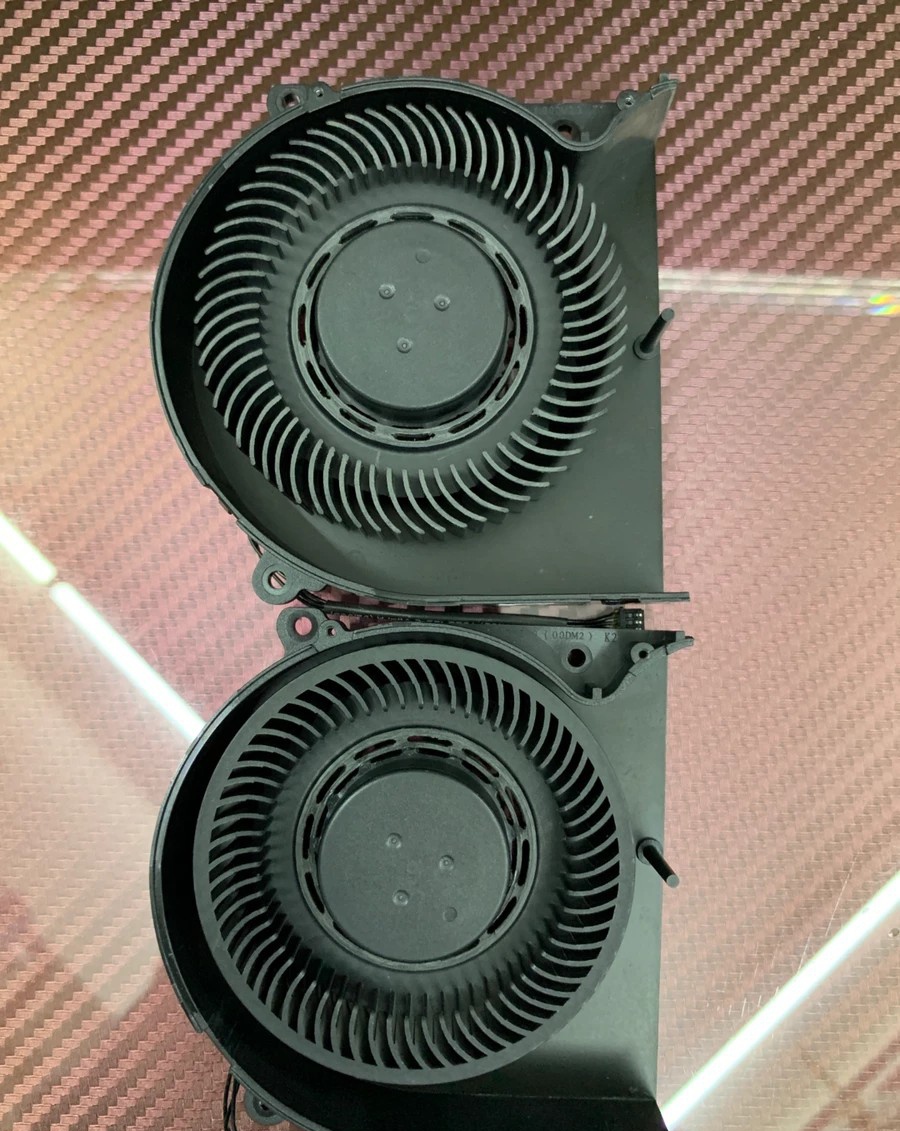

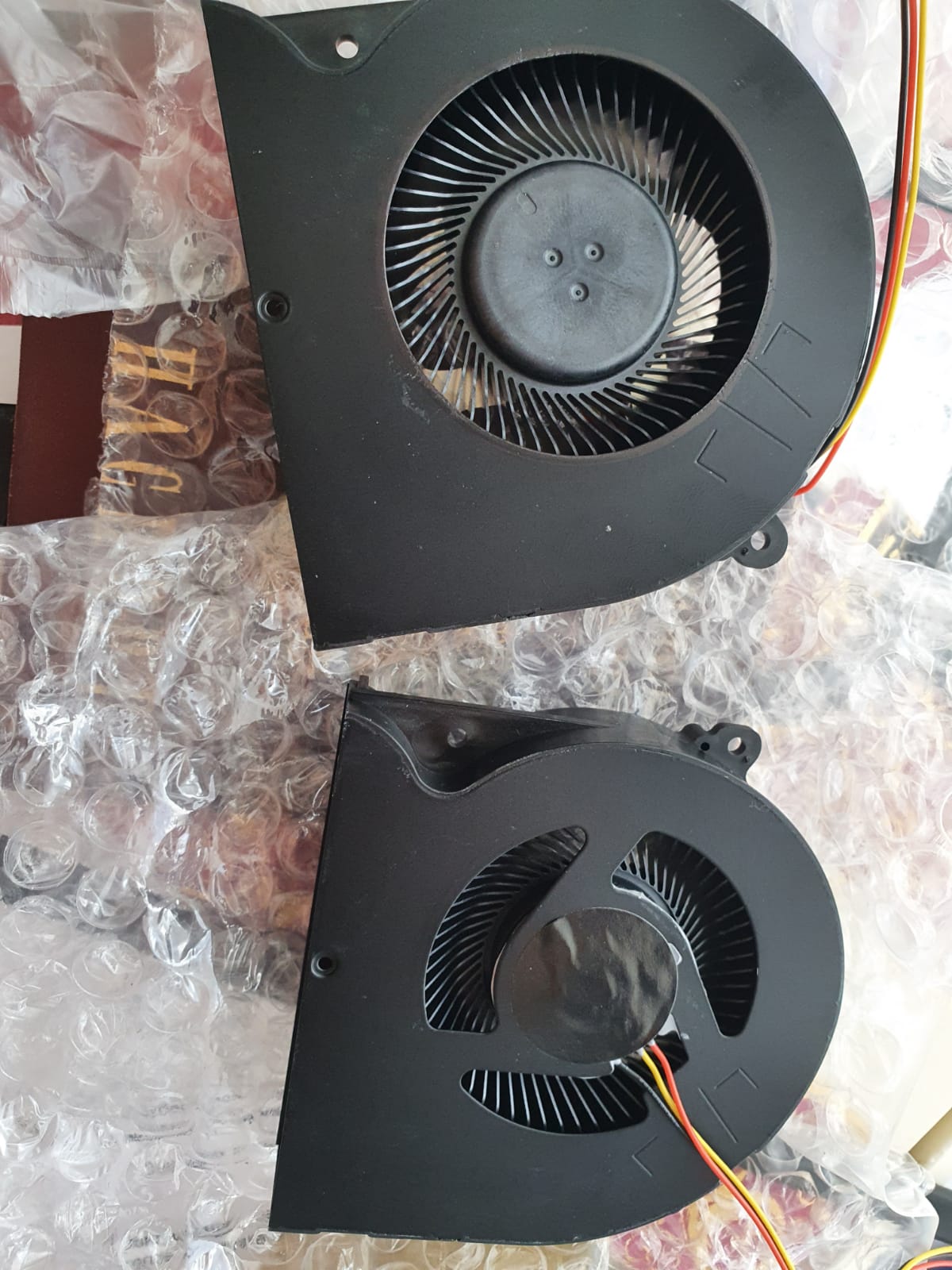

they are different, there is for the processor and there is for the video card, in the photo with open impellers you can see the difference in the design of the impellers



These fans provide up to 35% more air density and are noticeably quieter than standard fans.These fans keep the temperature at 68-70 degrees at 55% of fan rotation, standard fans need to rotate at 100% to maintain the same temperatures.



where do we get them? taobao?



No, not on Taobao, we place a manufacturing order with the manufacturer



Nice! How can i get some for P775??

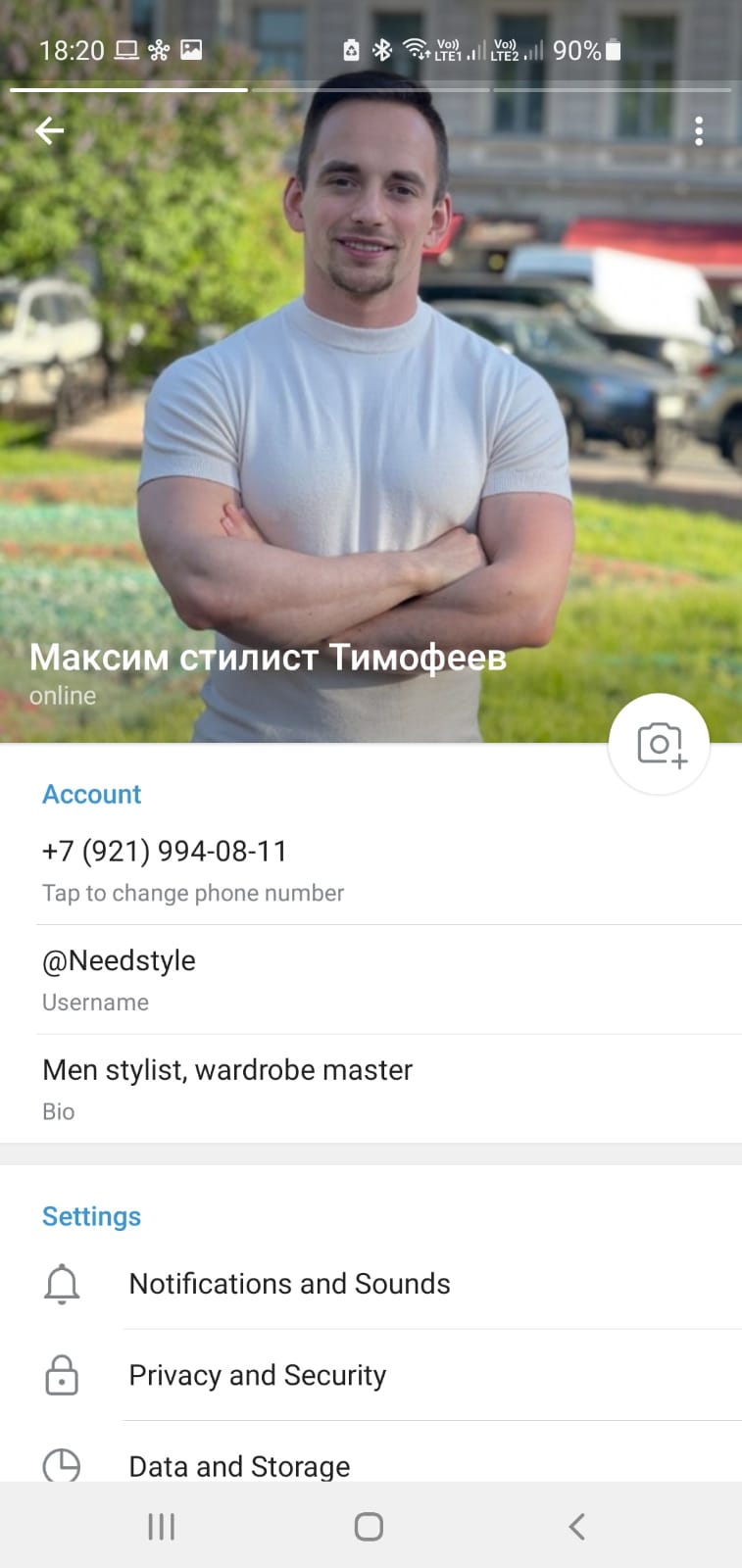

Here is the Telegram contact of our man from St. Petersburg, with him it will be possible to discuss issues related to the acquisition of all goods. @Needstyle

Attached Files:



Thanks ill contact him asap!



I was glad to help, contact!)))



It seems like we both have similar projects in mind @Meaker@Sager




Hopefully I can get this rtx 3080 working in a P775TM

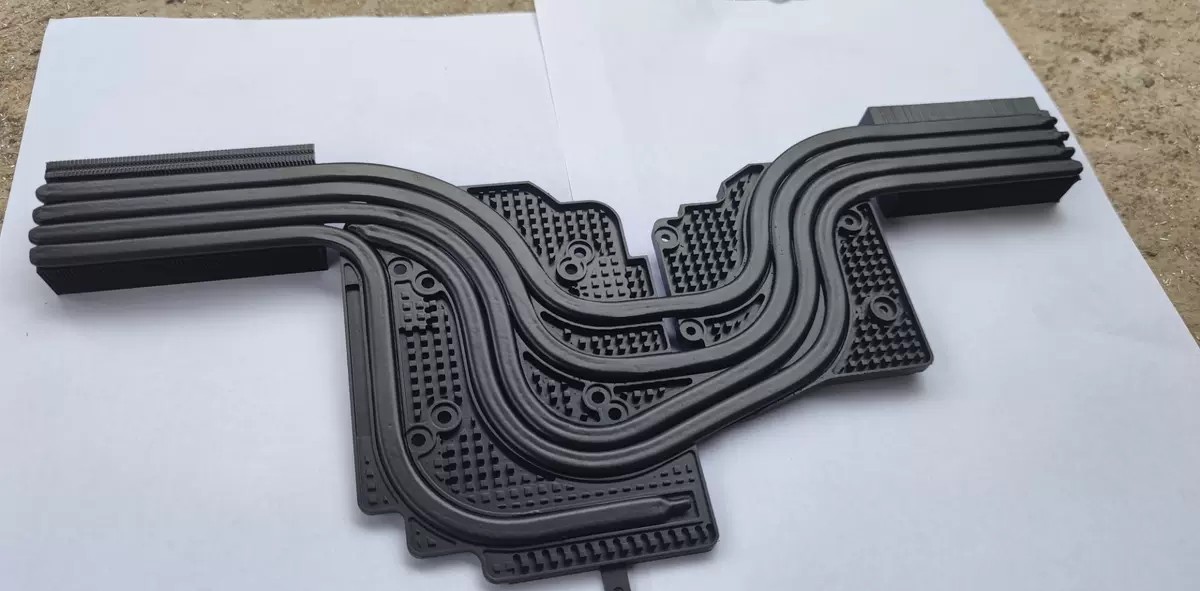

Of course it will work, it has already been tested) only you need a modified radiator.



Very nice



Time for a shunt mod, this 3080 performs weaker than the one in my strix scar 15 and it’s meant to be 165w!!!



Post pics with the shunt mod please.



3080 Clevo cannot be weaker than on Asus)))



ASUS uncapped yes it can

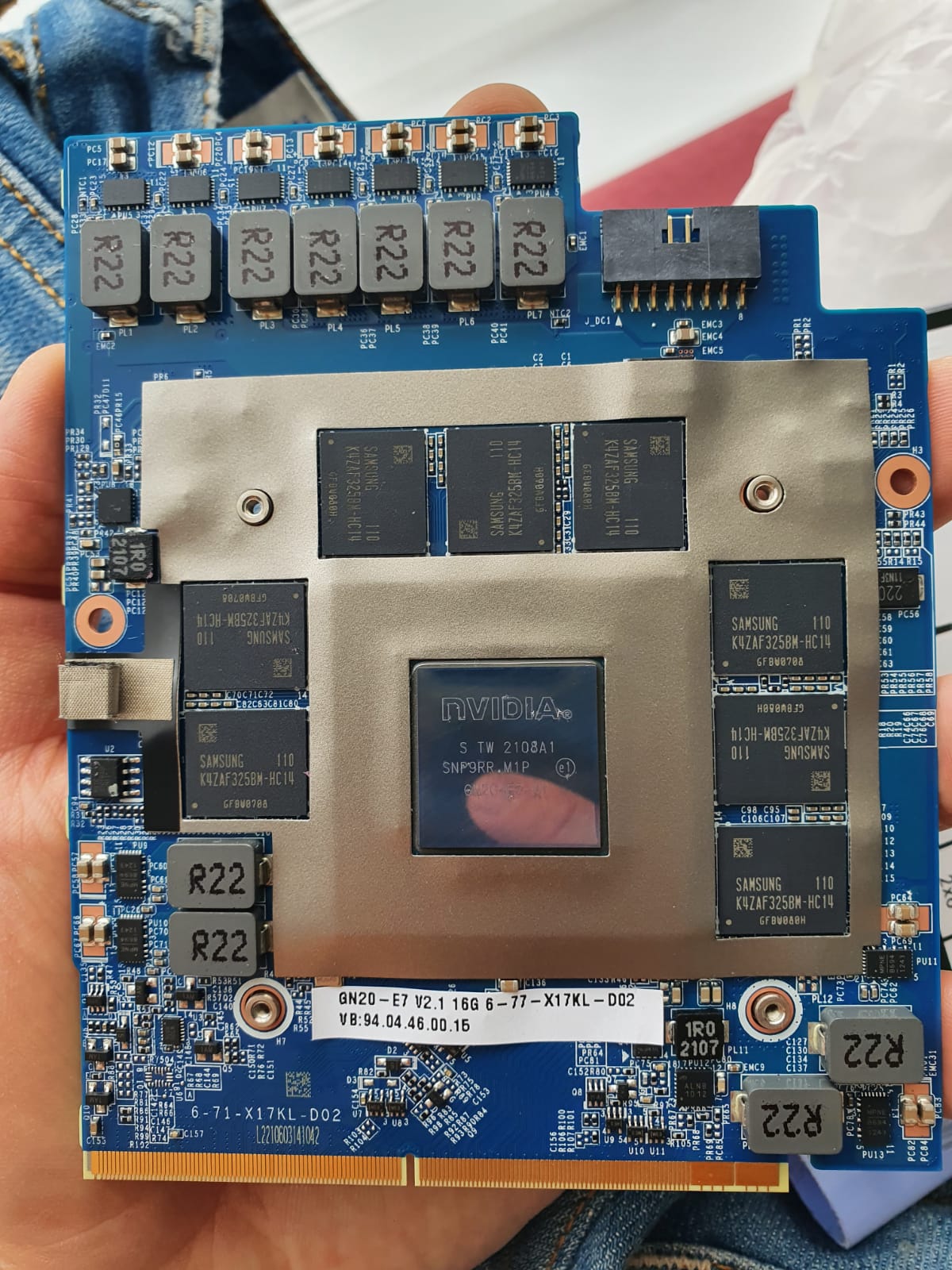

There is one new Clevo rtx3080 16gb card available,for those interested in PM.



That sounds like fun, looking forward to seeing the results

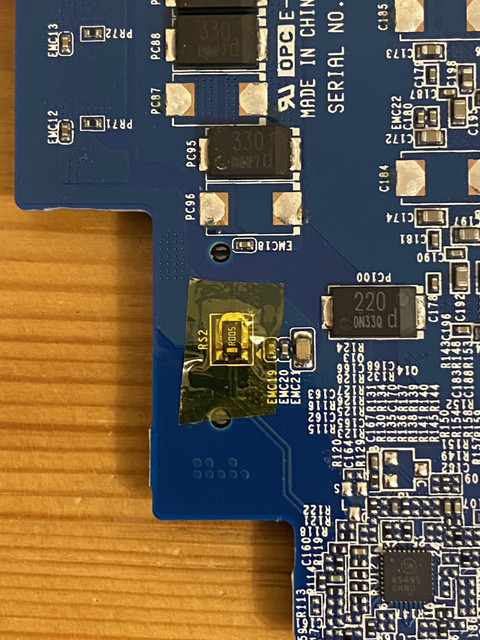

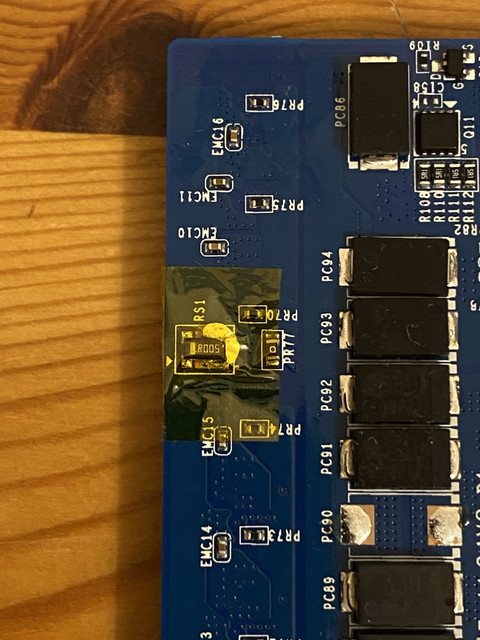

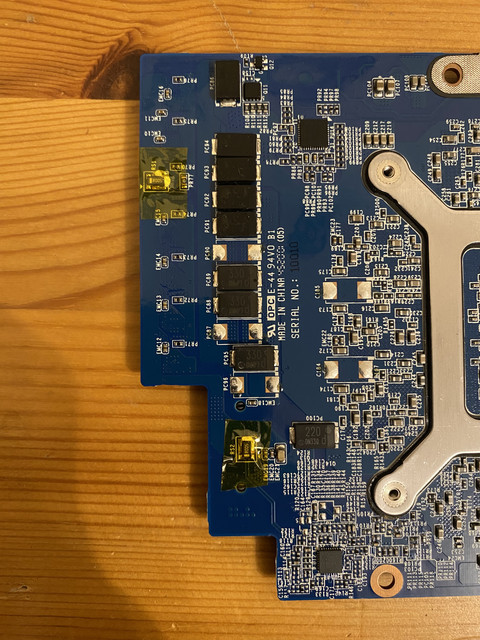

So I did the shunt mod, I got about a 10% increase in performance, gpu shows 100w total power draw lol which means it’s definitely working correctly. I’m glad there is some resistance if there wasn’t the gpu core would go into 2d clock mode and be stuck at 210mhz…

Anyway here are some images:






It’s not the neatest application but it will do for now. Furmark FPS have gone from 185fps stock FHD option to 200fps!!!
Which is inline with the roughly 10% improvement I’ve seen across the board. I will do some meter readings of the card to see how many watts it’s pulling… but for now it’s a success



That's nuts man, but what you using hopefully not liquid metal as that will eat at the solder.

Sent from my SNE-LX1 using Tapatalk



you can always use thick jumper wire. Desolder when not need it, as you can redo the original aspect like that.



Isn't that a 3070?



I just uploaded the wrong photo by mistake)))Fixed



What would be the price of that 3070 that you posted the pic before? PM?
