    NP5793 repair issue

    Discussion in 'Sager and Clevo' started by fusioncon, Jan 15, 2009.

  1. fusioncon

    fusioncon Notebook Consultant

    Reputations:
    125
    Messages:
    201
    Likes Received:
    0
    Trophy Points:
    30
    howdy folks, would like to run some crazy problem by y'all

    ive had this np5793 for months, been running great.. GPU temps never getting much over 70C under heavy load. Maybe I saw 75C once. I was fat and happy.

    then one day, in the middle of gaming, it just shuts right off. and won't come back on. Ok fine, these things happens, get an RMA from Sager (bought it direct) and ship it off.

    got it back a week later, and all looks well, boots up and everything seems to work. documentation says "REPLACE VGA-M, UPDATE BIOS". so it sounds like the video card got replaced. ok.. start playing a game, and within 3 minutes, the GPU temp gets up to 96C. !!!!

    so what do you think. my theories are that either the new GPU needs to settle in (TIM needs to cure, etc.), but i'm not really buying that one, I think its more likely that the GPU was installed badly, too much TIM maybe, or heck maybe none.

    I've emailed them referencing my original RMA, waiting to hear back. I'd hate to have to ship it again but i don't feel like scorching my lap either.

    fusioncon, Jan 15, 2009
    #1
  2. Shyster1

    Shyster1 Notebook Nobel Laureate

    Reputations:
    6,926
    Messages:
    8,178
    Likes Received:
    0
    Trophy Points:
    205
    Sounds like they didn't apply the thermal solution properly. If you've got the skills to open it up and check, you might check to see if the thermal paste was properly applied to the GPU, and that they didn't leave anything else in there by accident, like plastic wrapping; otherwise, don't run it until that issue gets taken care of.

    Shyster1, Jan 15, 2009
    #2
  3. fusioncon

    fusioncon Notebook Consultant

    Reputations:
    125
    Messages:
    201
    Likes Received:
    0
    Trophy Points:
    30
    hey, thanks for the comments. they've responded to my email so we're having a conversation about it now, but if they don't come through, i'll definately be pulling the heat spreader and taking a picture of whatever i find.

    fusioncon, Jan 16, 2009
    #3
  4. fusioncon

    fusioncon Notebook Consultant

    Reputations:
    125
    Messages:
    201
    Likes Received:
    0
    Trophy Points:
    30

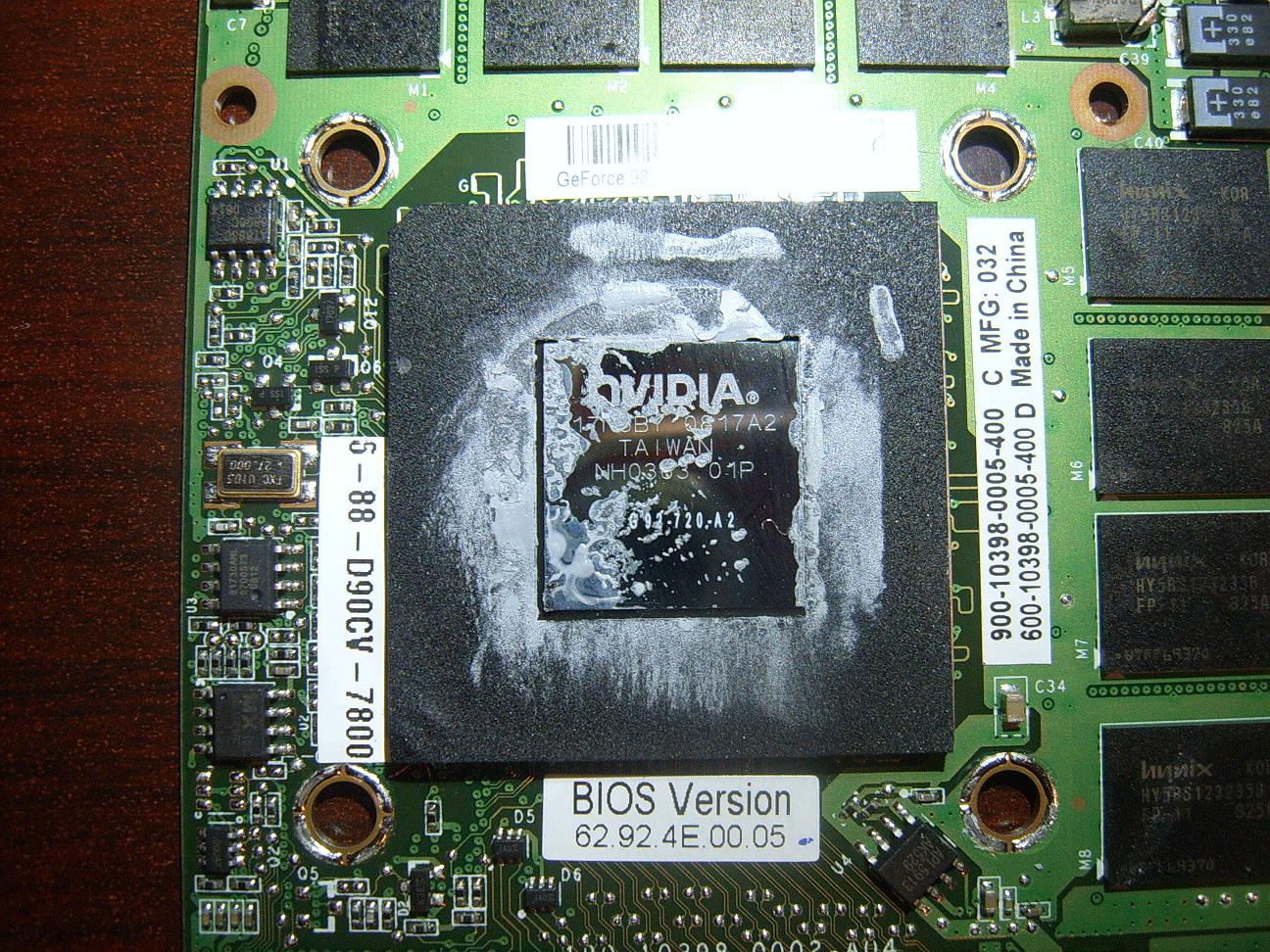

    welp, here's what i found when i finally got time to crack 'er open. Looks a little sparse to me.

    reapplied, and checking it out.. already running cooler at idle, we'll see how it goes under load..


    ps - Justin at Xotic PC, thanks for the awesome tutorial on this M570RU gpu removal, that took away the "I haven't messed with this type of HSF setup ever before" apprehension. Thanks!


    Attached Files:

    fusioncon, Jan 19, 2009
    #4
  5. Bungalo Bill

    Bungalo Bill Notebook Deity

    Reputations:
    97
    Messages:
    806
    Likes Received:
    0
    Trophy Points:
    0
    There's like nothing even on that. That would at least be problem #1

    Bungalo Bill, Jan 19, 2009
    #5
  6. fusioncon

    fusioncon Notebook Consultant

    Reputations:
    125
    Messages:
    201
    Likes Received:
    0
    Trophy Points:
    30
    yeah, so far, after reapplication, its peaked at 67C.. thats a pretty big difference from 96C :eek2:

    fusioncon, Jan 19, 2009
    #6
  7. Shyster1

    Shyster1 Notebook Nobel Laureate

    Reputations:
    6,926
    Messages:
    8,178
    Likes Received:
    0
    Trophy Points:
    205
    Fantastic; nothing like that feeling when it turns out right, eh?

    Shyster1, Jan 19, 2009
    #7
  8. fusioncon

    fusioncon Notebook Consultant

    Reputations:
    125
    Messages:
    201
    Likes Received:
    0
    Trophy Points:
    30
    much better than that sinking feeling, yeah ;)

    ps thanks for your sig links, i learned something new

    fusioncon, Jan 20, 2009
    #8
