    NP8651S Problem

    Discussion in 'Sager and Clevo' started by Jabe696969, Sep 27, 2015.

  1. Jabe696969

    Jabe696969 Newbie

    Reputations:
    0
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    5

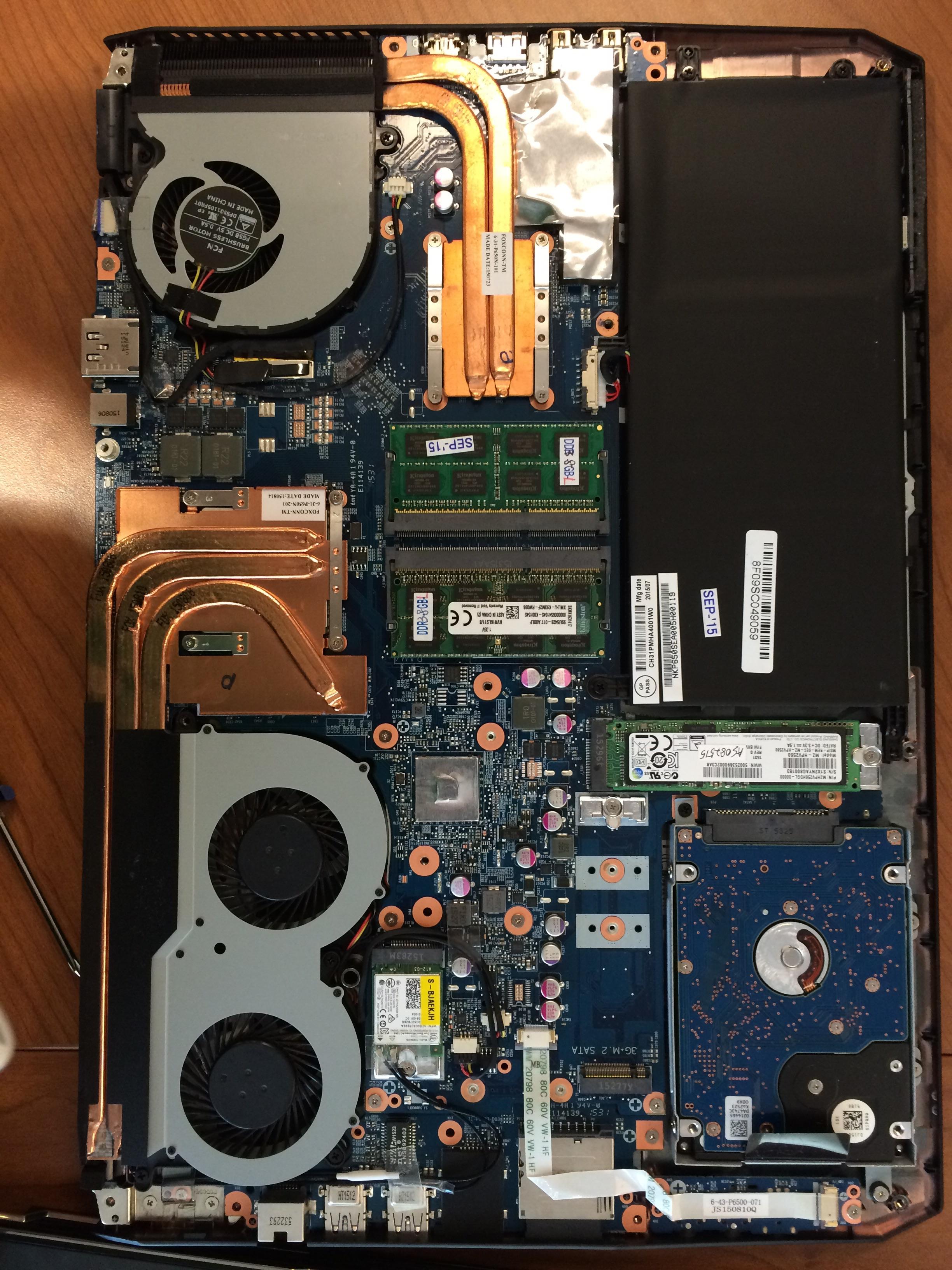

    I have a backlighting issue with my laptop, wherein the backlight tends either not to turn on or turn off spontaneously. Here's the insides: [​IMG]
    What do I do?

    Jabe696969, Sep 27, 2015
    #1
  2. Galm

    Galm "Stand By, We're Analyzing The Situation!"

    Reputations:
    1,228
    Messages:
    5,696
    Likes Received:
    2,949
    Trophy Points:
    331
    Lol your gonna need to check the power connector for the backlight, I have no idea where it is on that laptop though, see if you can find it elsewhere online or from another owner.

    Galm, Sep 27, 2015
    #2
  3. Jabe696969

    Jabe696969 Newbie

    Reputations:
    0
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    5
    Thanks, I'll look for it. Anyone else out here happen to know where it's at?
    Thanks,
    Jabe696969

    Jabe696969, Sep 27, 2015
    #3
  4. t456

    t456 1977-09-05, 12:56:00 UTC

    Reputations:
    1,959
    Messages:
    2,588
    Likes Received:
    2,048
    Trophy Points:
    181
    It's part of the lcd cable;

    [​IMG]

    That has some ~30 tiny wires inside the black wrapping, about 3-5 are used for backlight power. Try reseating that cable, with ample luck that may solve it. More likely, it's on the other end of the cable (lcd side) or there's a small break in one the wires, usually near the hinge. With the last scenario you need a new lcd cable (~$25-30).

    Remember to remove battery (and DC) before un-/replugging the cable.

    t456, Sep 27, 2015
    #4
  5. Jabe696969

    Jabe696969 Newbie

    Reputations:
    0
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    5
    Awesome, I'll look for it. thank you.

    Jabe696969, Sep 27, 2015
    #5
