    NP9370 wondrance

    Discussion in 'Sager and Clevo' started by ganzonomy, Apr 4, 2013.

  1. ganzonomy

    ganzonomy Notebook Deity

    Reputations:
    1,169
    Messages:
    919
    Likes Received:
    50
    Trophy Points:
    41
    On the 9370, how does one access the ram under the keyboard? Is there a little "hole" like on the 8130 that you pop a small pin through to push out the speaker grill?

    Just curious, since the manual i downloaded said "that RAM is *NOT* accessible".

    Jason

    ganzonomy, Apr 4, 2013
    #1
  2. jaybee83

    jaybee83 Biotech-Doc

    Reputations:
    4,125
    Messages:
    11,571
    Likes Received:
    9,151
    Trophy Points:
    931
    u can always try and pop the grill open with a small flathead screwdriver from the top, thats how i do it on my machine :)
    just insert it gently in between the grill and the chassis and pull the screwdriver up to urself. much easier and faster than using that ominous hole in my case, for example :p

    Sent from my Galaxy Nexus using Tapatalk 2

    jaybee83, Apr 5, 2013
    #2
  3. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    I'd recommend the hole since it is less likely for case scratching to occur :p

    Meaker@Sager, Apr 5, 2013
    #3
  4. jaybee83

    jaybee83 Biotech-Doc

    Reputations:
    4,125
    Messages:
    11,571
    Likes Received:
    9,151
    Trophy Points:
    931
    good point, altho i always take the utmost care of my baby :thumbsup:

    jaybee83, Apr 5, 2013
    #4
  5. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    Where as I take a dremel to mine :S

    Meaker@Sager, Apr 5, 2013
    #5
  6. ganzonomy

    ganzonomy Notebook Deity

    Reputations:
    1,169
    Messages:
    919
    Likes Received:
    50
    Trophy Points:
    41
    Where is the hole? I'm considering this laptop.

    ganzonomy, Apr 5, 2013
    #6
  7. ganzonomy

    ganzonomy Notebook Deity

    Reputations:
    1,169
    Messages:
    919
    Likes Received:
    50
    Trophy Points:
    41
    Double post

    ganzonomy, Apr 5, 2013
    #7
  8. jaybee83

    jaybee83 Biotech-Doc

    Reputations:
    4,125
    Messages:
    11,571
    Likes Received:
    9,151
    Trophy Points:
    931

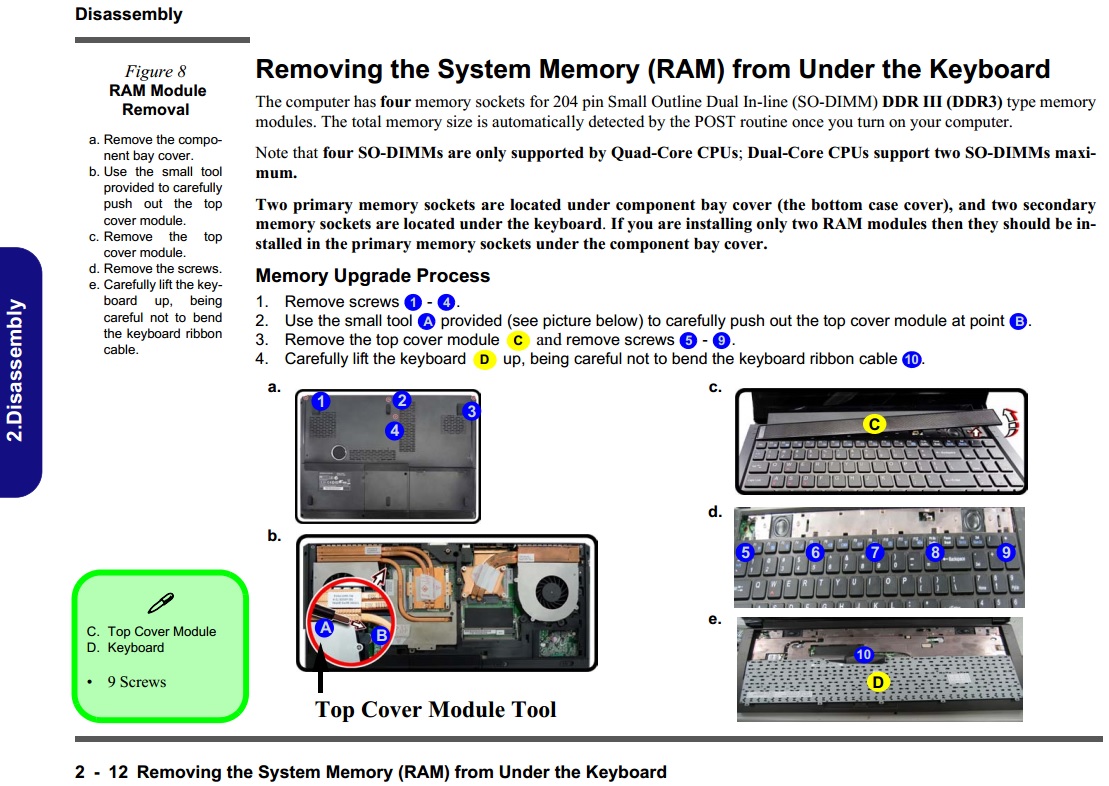

    Attached Files:

    jaybee83, Apr 5, 2013
    #8
  9. ganzonomy

    ganzonomy Notebook Deity

    Reputations:
    1,169
    Messages:
    919
    Likes Received:
    50
    Trophy Points:
    41
    ganzonomy, Apr 5, 2013
    #9
  10. jaybee83

    jaybee83 Biotech-Doc

    Reputations:
    4,125
    Messages:
    11,571
    Likes Received:
    9,151
    Trophy Points:
    931
    ah, i thought u were talking about the P150HM/EM. but yeah, makes sense :p

    try this one then: http://www.pcw.fr/pdf/P370EM.pdf

    pages 36 and 37 of the pdf document :)

    jaybee83, Apr 5, 2013
    #10
  11. ganzonomy

    ganzonomy Notebook Deity

    Reputations:
    1,169
    Messages:
    919
    Likes Received:
    50
    Trophy Points:
    41
    SWEET!

    Thanks! :D

    ganzonomy, Apr 5, 2013
    #11
  12. mattcheau

    mattcheau Notebook Deity

    Reputations:
    1,041
    Messages:
    1,246
    Likes Received:
    74
    Trophy Points:
    66
    certain places/manuals/guides say those DIMMs are inaccessible for warranty purposes. strange but FYI.

    mattcheau, Apr 5, 2013
    #12
  13. HTWingNut

    HTWingNut Potato

    Reputations:
    21,580
    Messages:
    35,370
    Likes Received:
    9,878
    Trophy Points:
    931
    Sager isn't, but some Clevo builders say it is probably because they don't want you removing keyboard, cables, etc.

    HTWingNut, Apr 5, 2013
    #13
  14. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    Yes becaus3 it involves removing case panels. So long as you are careful you should be good.

    Meaker@Sager, Apr 6, 2013
    #14
  15. D2 Ultima

    D2 Ultima Livestreaming Master

    Reputations:
    4,335
    Messages:
    11,803
    Likes Received:
    9,751
    Trophy Points:
    931
    All these guides say don't bend keyboard ribbon cable. My god I've bent and straightened and re-bent and all kinds of stuff my keyboard for over 3 years and it always worked fine. O_O. NEW KEYBOARDS SUCK. OLD KEYBOARDS OP. DO NOT TAKE THESE CAPS LOCKED LETTERS SERIOUSLY =D.

    D2 Ultima, Apr 6, 2013
    #15
  16. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    If you intend to work on the same machine over and over it always pays to take care as they can deteriorate.

    Meaker@Sager, Apr 6, 2013
    #16
  17. HTWingNut

    HTWingNut Potato

    Reputations:
    21,580
    Messages:
    35,370
    Likes Received:
    9,878
    Trophy Points:
    931
    Yeah bending those tiny wires can fail them quickly.

    HTWingNut, Apr 7, 2013
    #17
  18. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    That along with plastic clips and even screwholes/plastic support rings.

    Meaker@Sager, Apr 7, 2013
    #18
  19. jaybee83

    jaybee83 Biotech-Doc

    Reputations:
    4,125
    Messages:
    11,571
    Likes Received:
    9,151
    Trophy Points:
    931
    cant even count the number of those damn lil plastic clips ive already destroyed :p luckily those are easily replaceable by a piece of folded paper with the right thickness to keep the cable contact ends securely in place :p

    jaybee83, Apr 7, 2013
    #19
  20. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    I've not broken any clips on motherboards but I have had the metal plated ends shred.

    Meaker@Sager, Apr 8, 2013
    #20
