    New hard drive wont fit: M860tu

    Discussion in 'Sager and Clevo' started by RockyBalboa-UK, Aug 21, 2011.

  1. RockyBalboa-UK

    RockyBalboa-UK Notebook Enthusiast

    Reputations:
    0
    Messages:
    23
    Likes Received:
    0
    Trophy Points:
    5
    Hi All,

    I am replacing the original hard drive (WD Scorpio 320GB with a WD Scorpio 500GB) but have run into a problem.

    Basically, the new drive connector doesn't appear to fit.

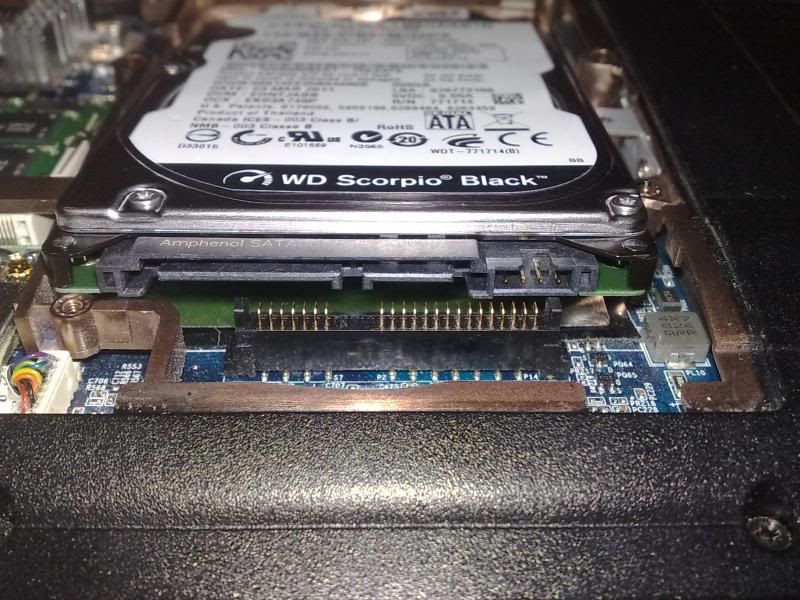

    This is the original drive and you can see how the connector on the drive falls into place with the connector on the motherboard:

    [​IMG]

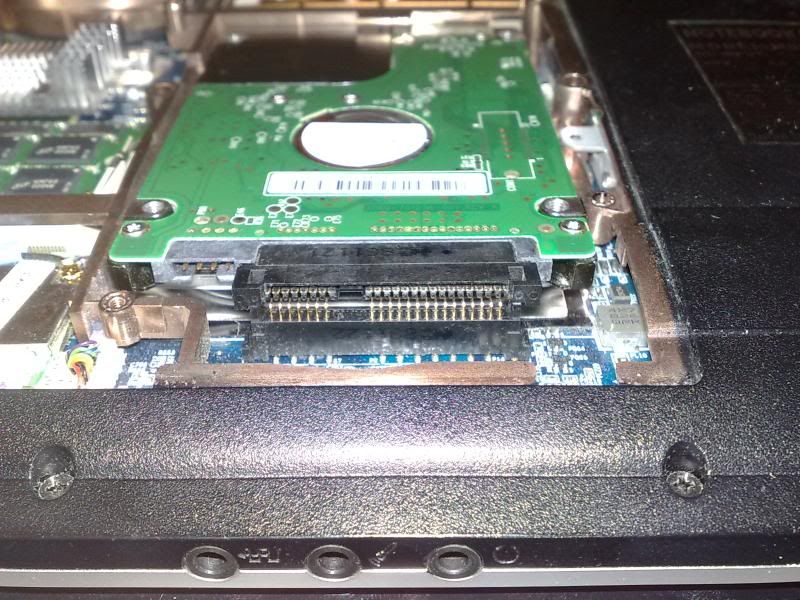

    This is the new drive placed the same way round as the old one and you can see the pins from the drive cannot 'connect' with the motherboard connector due to being 'blocked' by the plastic in the way.

    [​IMG]

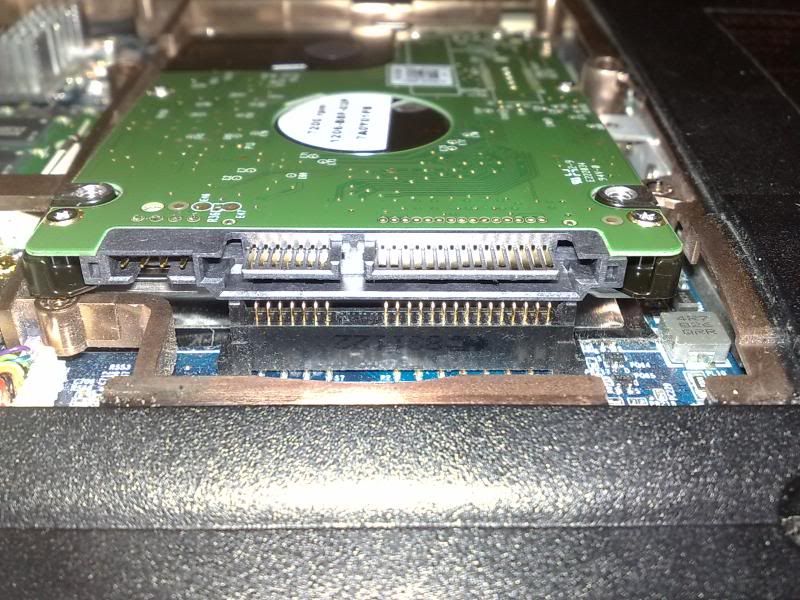

    Flipping the drive around results in the drive connector not fitting the motherboard connector due to the lack of horizontal space:

    [​IMG]

    Am I doing something wrong? :confused: :confused:

    Thanks.

    RockyBalboa-UK, Aug 21, 2011
    #1
  2. Eivind

    Eivind Notebook Evangelist

    Reputations:
    87
    Messages:
    668
    Likes Received:
    0
    Trophy Points:
    30
    You must take off the connector from the other HDD and put it on your new HDD.

    Eivind, Aug 21, 2011
    #2
  3. RockyBalboa-UK

    RockyBalboa-UK Notebook Enthusiast

    Reputations:
    0
    Messages:
    23
    Likes Received:
    0
    Trophy Points:
    5
    How does it come off?

    Thanks.

    RockyBalboa-UK, Aug 21, 2011
    #3
  4. Eivind

    Eivind Notebook Evangelist

    Reputations:
    87
    Messages:
    668
    Likes Received:
    0
    Trophy Points:
    30
    Pull it off. It can be a little tricky.

    Eivind, Aug 21, 2011
    #4
  5. theriko

    theriko Ronin

    Reputations:
    1,303
    Messages:
    2,923
    Likes Received:
    4
    Trophy Points:
    56
    Eivind is correct, the connector on the old HDD is an adapter for the clevo motherboard, it just pulls off.

    theriko, Aug 22, 2011
    #5
  6. RockyBalboa-UK

    RockyBalboa-UK Notebook Enthusiast

    Reputations:
    0
    Messages:
    23
    Likes Received:
    0
    Trophy Points:
    5
    Thanks all - sorted now.

    RockyBalboa-UK, Aug 22, 2011
    #6
