    Non-bridged SLI runs successfully on D901C rev5.2

    Discussion in 'Sager and Clevo' started by Saltius, Oct 6, 2011.

  1. Saltius

    Saltius Notebook Evangelist

    Reputations:
    626
    Messages:
    321
    Likes Received:
    3
    Trophy Points:
    31
    This thread is totally inspired by usmc1488's success on his Area51 M17x.
    http://forum.notebookreview.com/gam...area-51-m17x-dual-gtx280m-project-thread.html

    Right now,I just have two MXM2.1 cards at hand. One is 9800mgtx(112sp/1GB vram) pulled from a D901C rev6.x. The other is a non-branded FX3600M(64sp/512MB vram)

    Both of them are G92 chips and p398 boards.

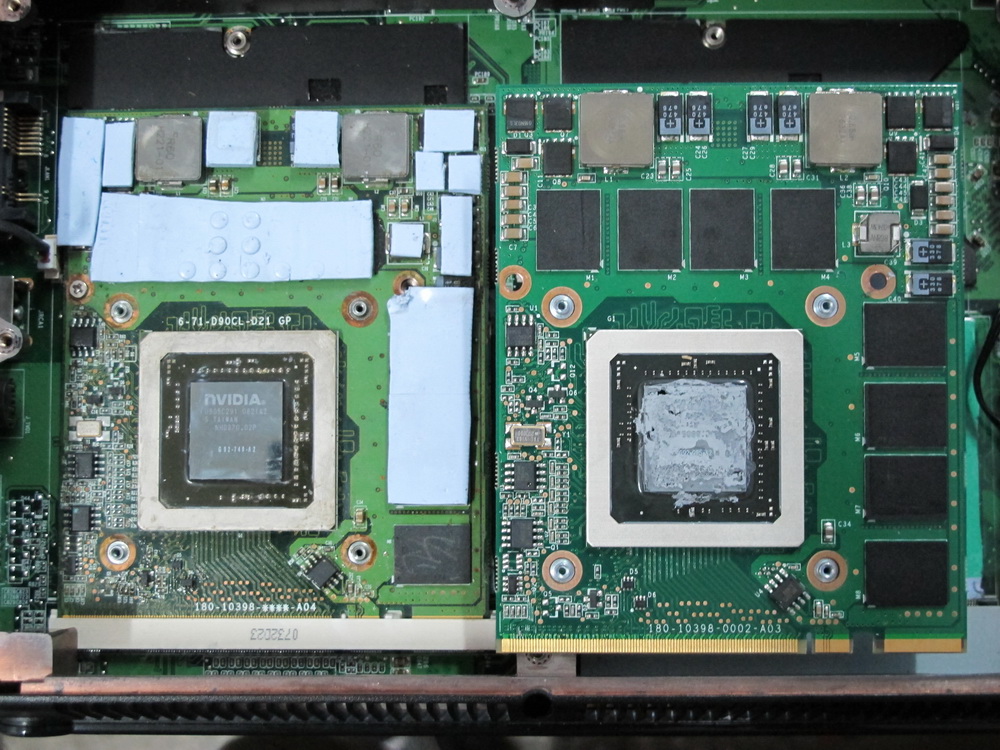

    I put 9800MGTX,the more powerful one in the daughter(Master) bay,FX3600M the weaker one in the parant(Slave) bay.
    [​IMG]
    [​IMG]

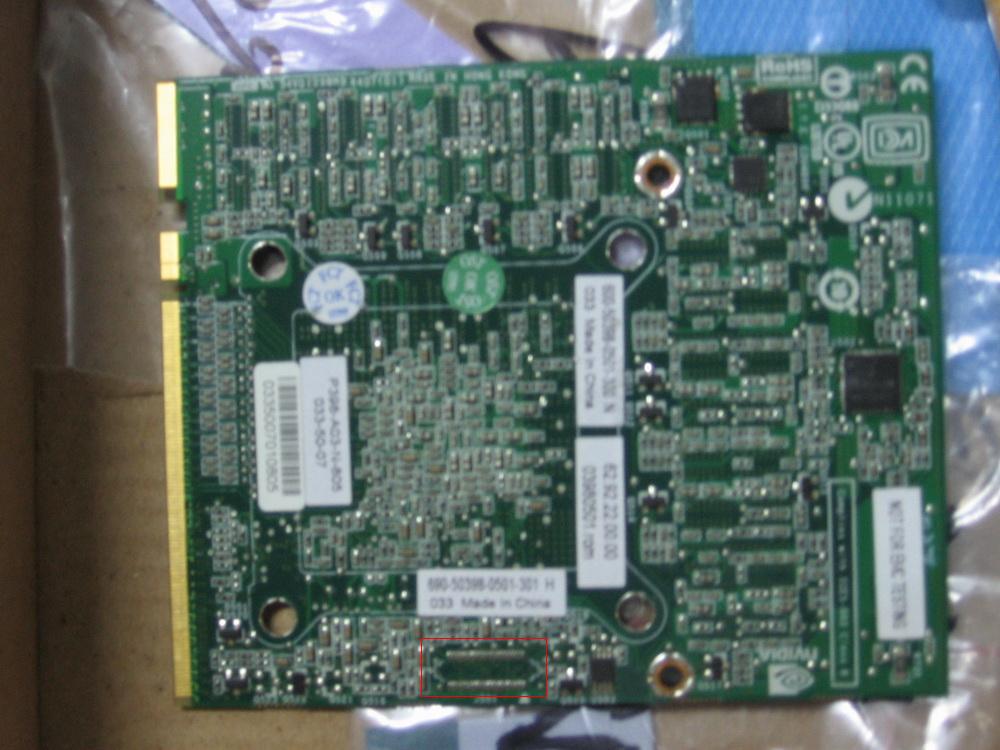

    Note1:FX3600M has no SLI foot.That's why I had to run non-bridged SLI.
    [​IMG]

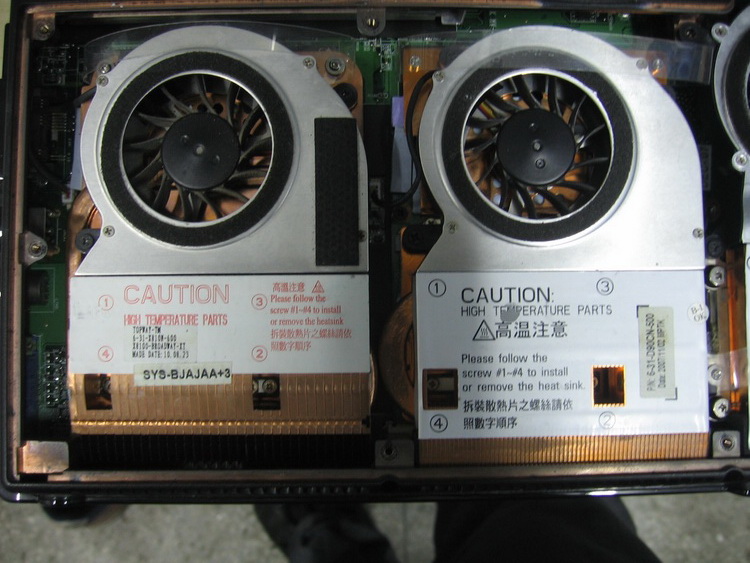

    Note2:My D901C came as a sager NP9261 with one single 8700mgt and the second VGA heatsink and fan is lost.So I had to buy a X8100 VGA heatsink which is used for MHD5870. It was slightly modified to fit my machine.

    Then I downloaded the vbios from usmc1488's post.
    http://forum.notebookreview.com/gam...al-gtx280m-project-thread-13.html#post7592838
    One named 9800m.rom in that zip file which is the stock vbios of 9800mgt on Area51 M17x.

    I flashed both my cards after changing its clocks and voltage setting.

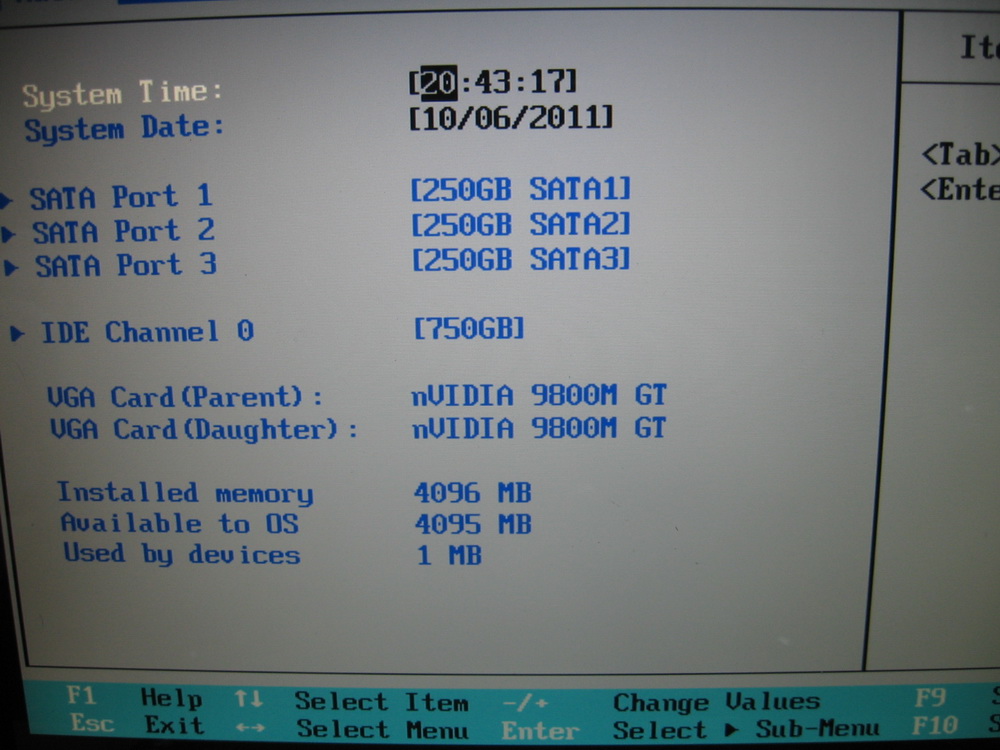

    Both cards are recognized as 9800MGT.
    [​IMG]

    Then the video driver was uninstalled by using driver sweeper under safe mode before reinstalling it.

    After that I could see Set SLI and PhysX configuaration in Nvidia control panel.But SLI could not be turned on at this point.

    As FX3600M and 9800MGTX have different amount of vram, a varm match should be performed first:
    How to Enable Coolbits

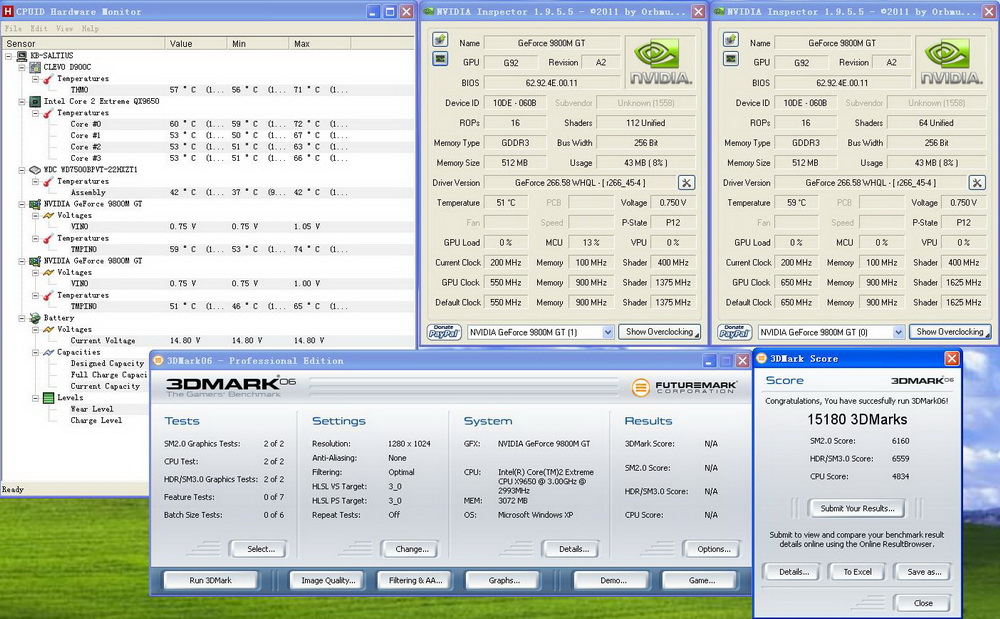

    Finally, SLI was turned on. I ran 3dmark06 and got 15000 points. That is a reasonable score.
    [​IMG]

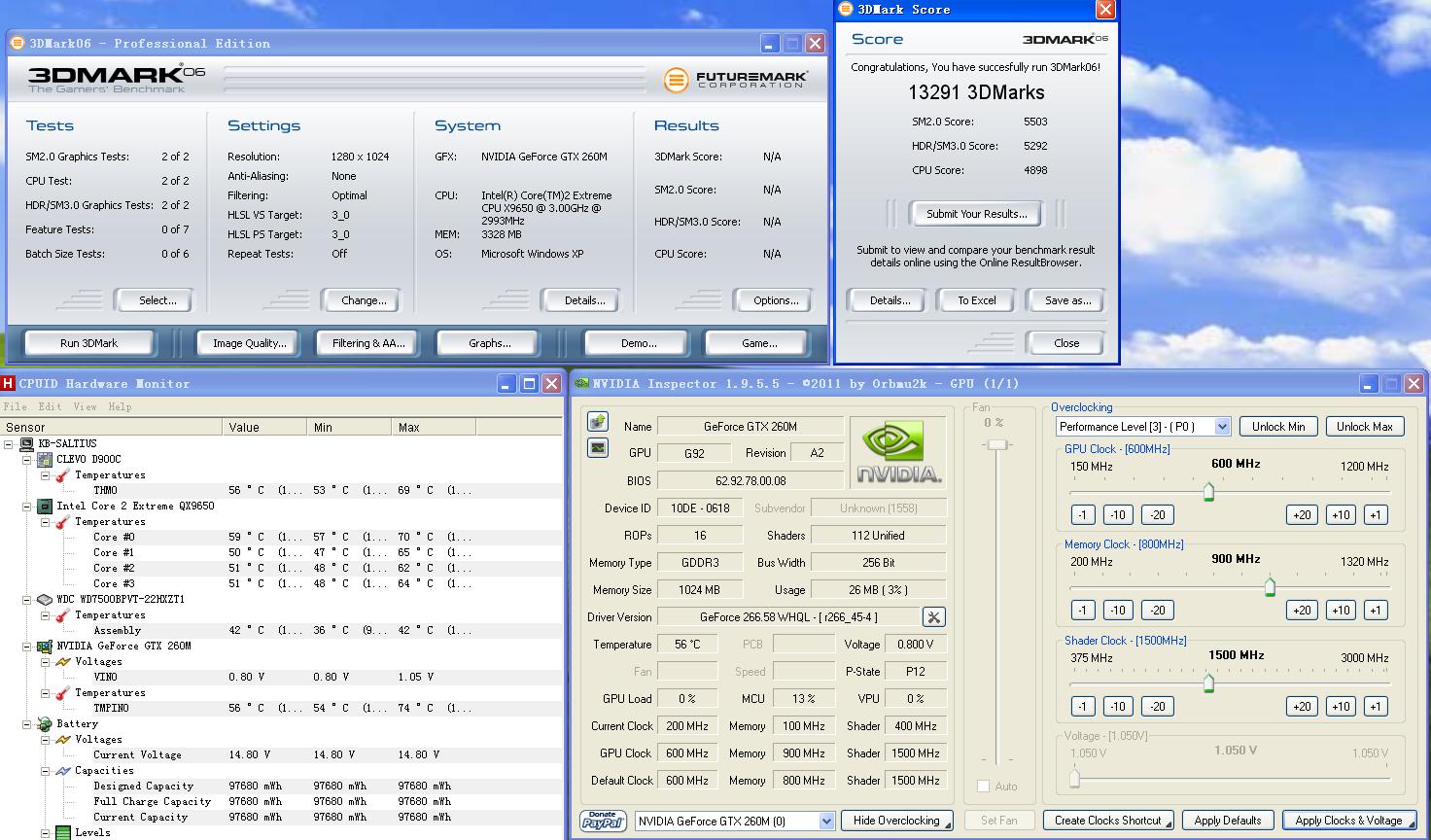

    For comparison:A single OCed 9800mgtx(flashed as GTX260M) with the same driver.
    [​IMG]


    Attached Files:

    Saltius, Oct 6, 2011
    #1
  2. DGDXGDG

    DGDXGDG Notebook Deity

    Reputations:
    737
    Messages:
    787
    Likes Received:
    6
    Trophy Points:
    31
    good! try vantage...
    看來沒到PCIE內部頻寬瓶頸,不過FX3600M是64SP耶,難道開核了!?還是9800MGTX關到64SP跑SLI

    DGDXGDG, Oct 6, 2011
    #2
  3. Saltius

    Saltius Notebook Evangelist

    Reputations:
    626
    Messages:
    321
    Likes Received:
    3
    Trophy Points:
    31
    Both cards seem to run at its own profile.

    That is why I set FX3600M at 650MHz while 9800MGTX at just 550MHz

    现在没法跑vantage，因为我没装vista或者win7....

    PS: 上次问你那事，其实是想知道570MSLI有无可能在x7200上面达成。

    Saltius, Oct 6, 2011
    #3
  4. DGDXGDG

    DGDXGDG Notebook Deity

    Reputations:
    737
    Messages:
    787
    Likes Received:
    6
    Trophy Points:
    31
    omg...just like hybrid sli :eek:
    想起我沒接排線那次驅動是用275.50本來就無SLI,X7200可能能跑570M SLI但必效率低落
    把580M核心拆換成570M的後nvflash -9刷570M BIOS,或在MSI 570M上補焊橋接器(不過不知MSI有沒連內部橋接電路都省掉 ;),驅動有沒支持570M架SLI也是個問題

    DGDXGDG, Oct 6, 2011
    #4
  5. Saltius

    Saltius Notebook Evangelist

    Reputations:
    626
    Messages:
    321
    Likes Received:
    3
    Trophy Points:
    31
    What I thought was flashing MSI 570m to clevo 580m as both are P1314 boards.

    SLI needs vbios support while 570M vbios seems no such support.

    你应该记得蛛蛛上次想搞Q4000MSLI没搞成的事吧，我觉得不是SLI脚空焊的问题，而是Q4000M的vbios就是不支持SLI罢了。想SLI的话必须都刷成vbios支持SLI的485M（都是P1044板子）

    -------------------------------edit----------------------------------
    I was wrong. Q4000M SLI just needs particular SLI cable.

    Saltius, Oct 6, 2011
    #5
  6. Saltius

    Saltius Notebook Evangelist

    Reputations:
    626
    Messages:
    321
    Likes Received:
    3
    Trophy Points:
    31
    Add vantage benchmark.

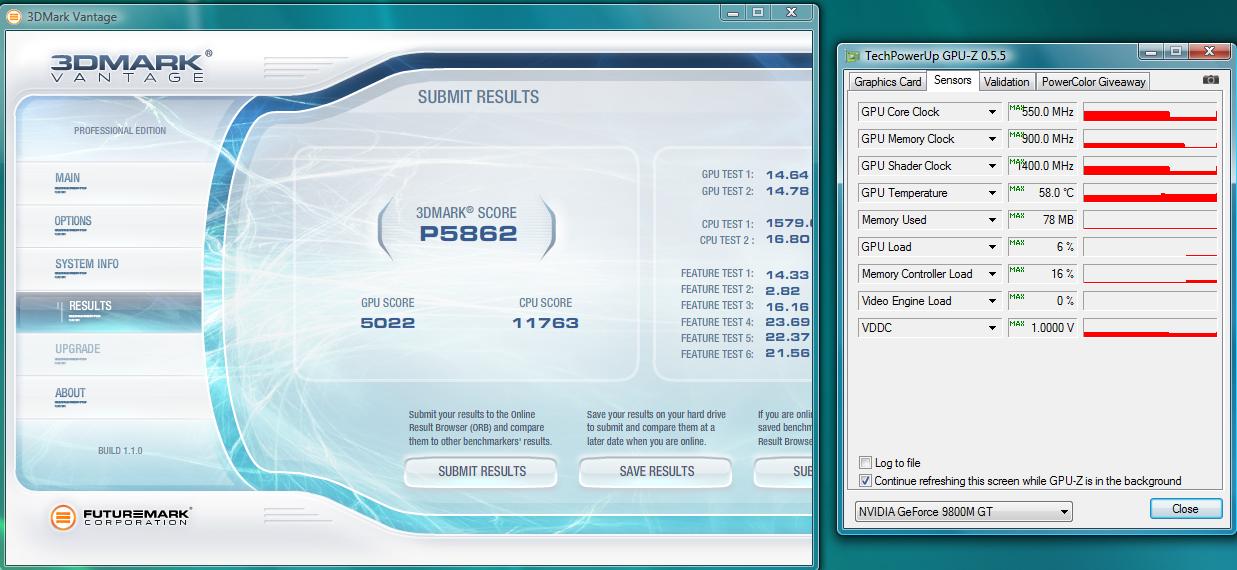

    One 9800MGTX OCed to 260M clock.
    [​IMG]

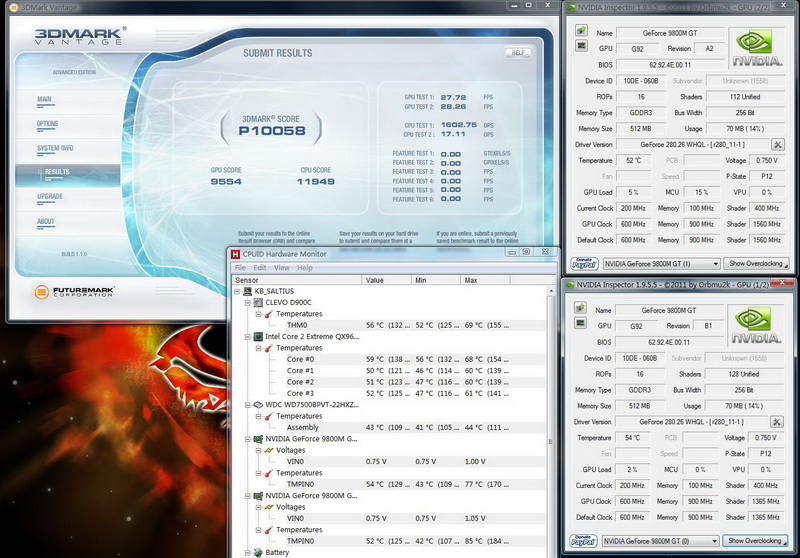

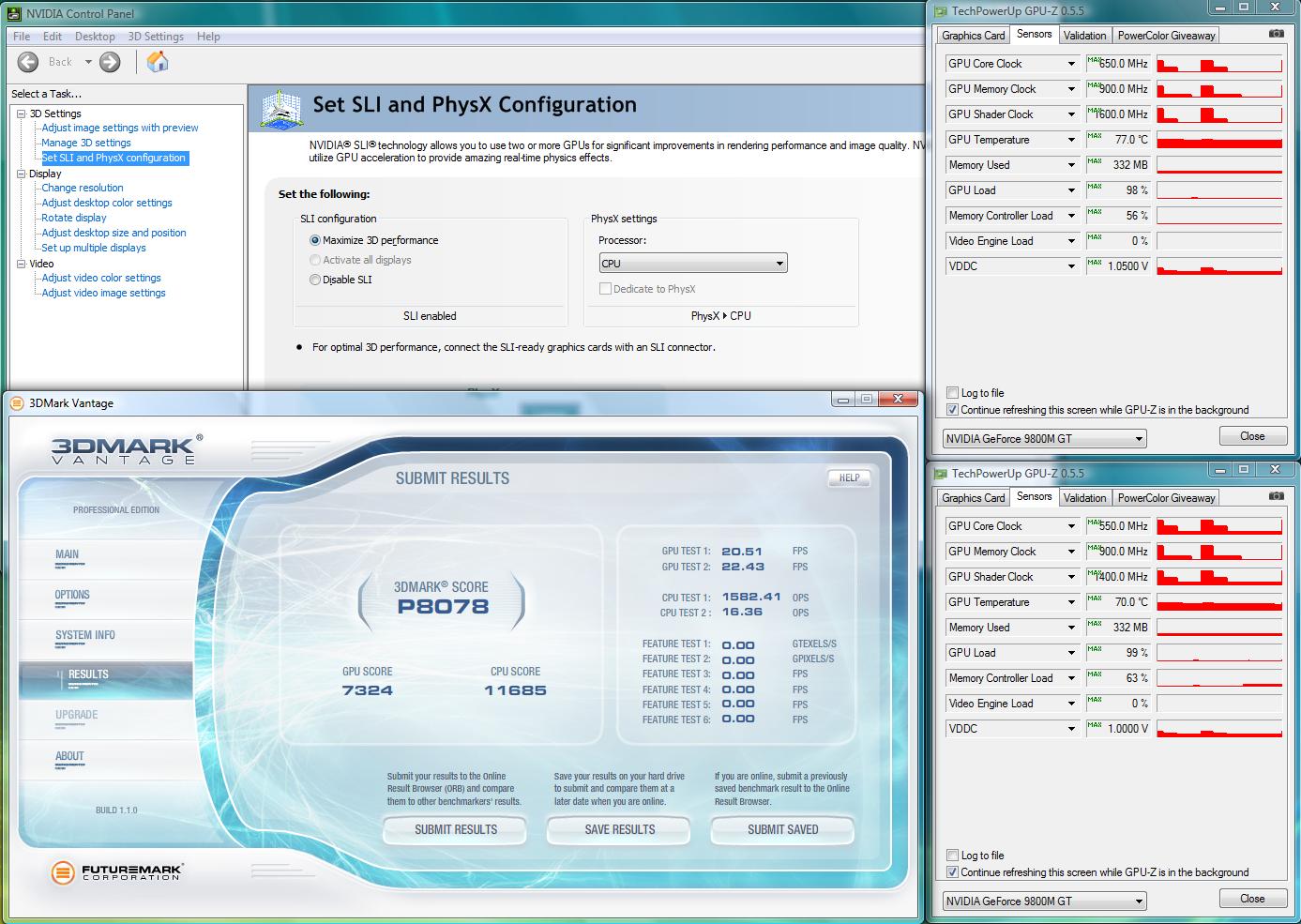

    OCed FX3600M and 9800MGTX SLI
    (Should be of the same performance of dual FX3600MSLI@650MHz/900MHz/1625MHz)
    [​IMG]


    Attached Files:

    Saltius, Oct 8, 2011
    #6
  7. DGDXGDG

    DGDXGDG Notebook Deity

    Reputations:
    737
    Messages:
    787
    Likes Received:
    6
    Trophy Points:
    31
    so 9800m gtx close to 64sp......
    4000M無SLI 100%是驅動問題,因有史以來根本沒筆電專業卡SLI,nvidia也沒發佈過
    VBIOS裡真有管SLI的參數在??

    DGDXGDG, Oct 8, 2011
    #7
  8. Saltius

    Saltius Notebook Evangelist

    Reputations:
    626
    Messages:
    321
    Likes Received:
    3
    Trophy Points:
    31
    From usmc1488's post, we know that stock MXM2.1 280M vbios dosn't support SLI.

    But M980NU MXM3.0 280M do support SLI.

    I checked these two vbios. Both have the same device id 060A which is checked by driver when installing.

    So I think SLI is under both driver and vbios control.

    Saltius, Oct 8, 2011
    #8
  9. Saltius

    Saltius Notebook Evangelist

    Reputations:
    626
    Messages:
    321
    Likes Received:
    3
    Trophy Points:
    31

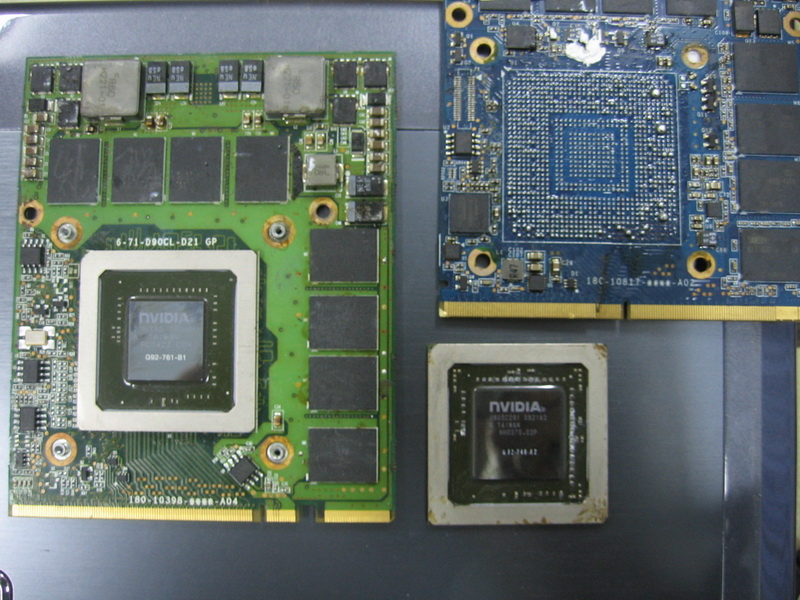

    Bought a broken GTX280m MXM v3.0 then took it and FX3600M to a laptop repairing workshop.

    After BGA reballing and resoldering for a whole afternoon, there came a GTX280M MXM v2.1.

    [​IMG]

    Genuine GTX280M MXM2.1 has 1GB samsung vRAM and 180-10398-XXXX- A04 board while this one only has 512MB hynix vRAM and 180-10398-XXXX- A03 board.

    Vantage benchmark.
    [​IMG]


    Attached Files:

    Saltius, Nov 6, 2011
    #9
  10. DGDXGDG

    DGDXGDG Notebook Deity

    Reputations:
    737
    Messages:
    787
    Likes Received:
    6
    Trophy Points:
    31
    good job, so next step is upgrade vram to 1gb?
    use those vrams on 280m... :D

    DGDXGDG, Nov 6, 2011
    #10
  11. Saltius

    Saltius Notebook Evangelist

    Reputations:
    626
    Messages:
    321
    Likes Received:
    3
    Trophy Points:
    31
    I bought two broken 280m MXM3.0 actually.
    Only one survived the BGA procedure.

    My next step is to find another G92B chip to replace my 9800mgtx's A2 chip.

    Saltius, Nov 6, 2011
    #11
  12. Saltius

    Saltius Notebook Evangelist

    Reputations:
    626
    Messages:
    321
    Likes Received:
    3
    Trophy Points:
    31

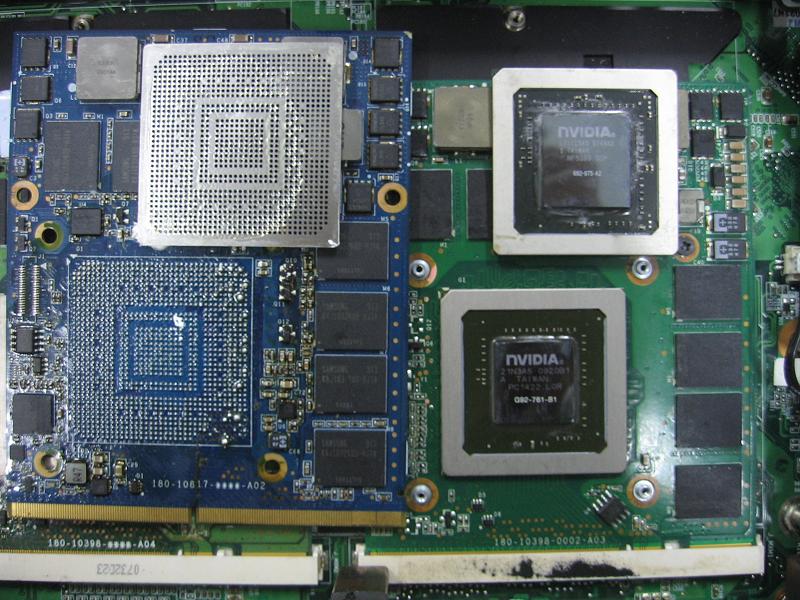

    Finally got my 9800MGTX BGA resoldered to a GTX280M MXM 2.1.
    [​IMG]
    When entering Vista, as soon as the login GUI appeared, the laptop screen turned black.
    I plugged in an external monitor to check, both screens post at the same time, which was quite weird.

    I assume that issue is caused the incompatibility between 9800mgt driver and new 280M GPU.
    So I flashed both cards back to GTX280M vbios.
    After reinstalling driver, that issue is fixed, no black screen anymore.
    However, SLI is disabled as well. It is impossible to form SLI using GTX280M MXM2.1 vbios.

    After a long time searching and testing, I figured out one solution.
    1.Flash both cards to 9800MGT.
    2.Install 9800MGT driver and plug in an external monitor to enable SLI .
    3.Turn off NVIDIA Display Driver Service in service manager.

    And it works.
    However, one flaw remains -- any time I start the Nvidia control panel, built-in screen turns black until I plug in an external monitor.

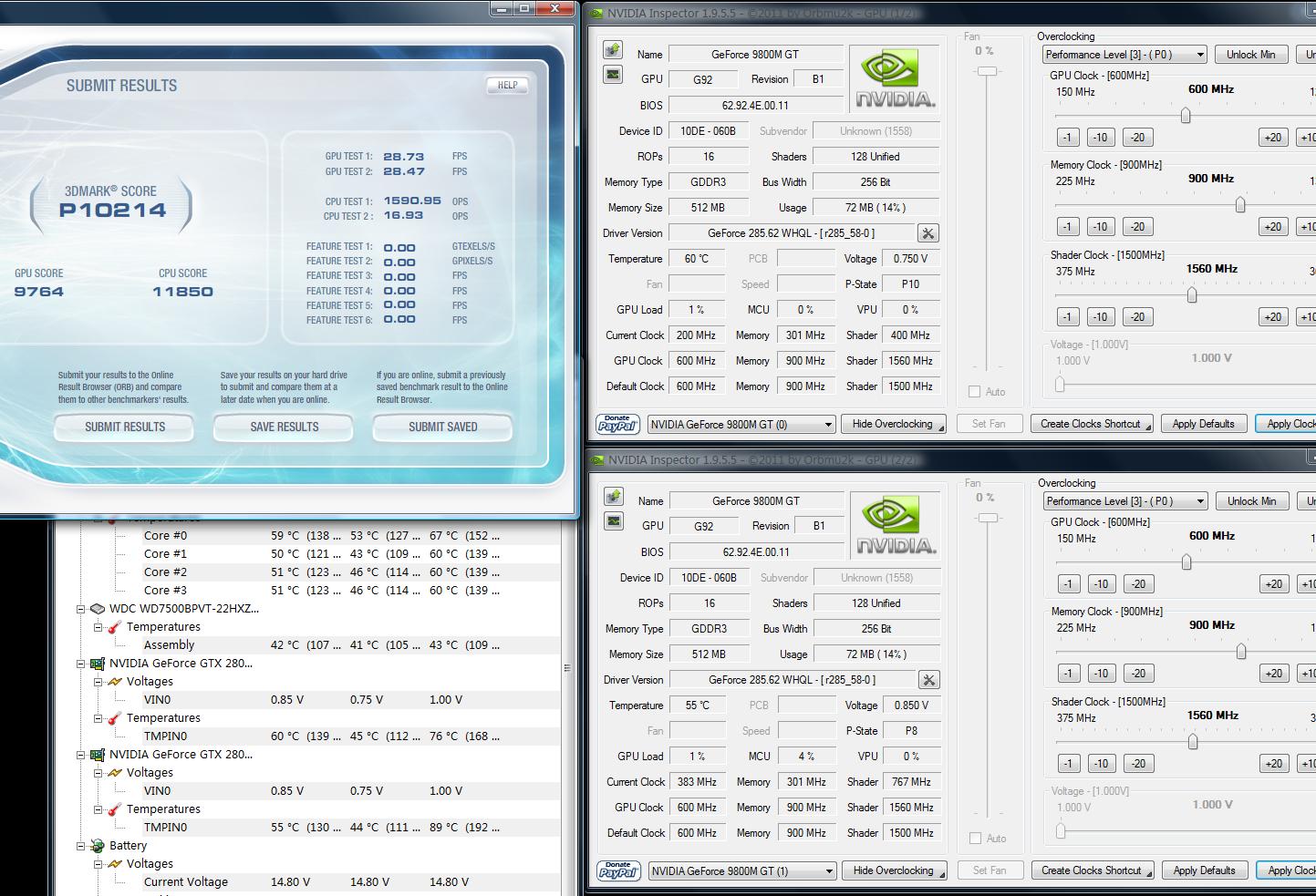

    Here is the vantage benchmark.
    [​IMG]
    Seems little improvement comparing with 9800MGTX and GTX280M SLI.
    Anyway, I got rid of those defective G92 A2 chips in the end.


    Attached Files:

    Saltius, Nov 13, 2011
    #12
  13. zeera

    zeera Notebook Consultant

    Reputations:
    50
    Messages:
    141
    Likes Received:
    20
    Trophy Points:
    31
    so, as i understand, the best chip with which the 9800m gtx can be resoldered and stay fully functional is gtx 280m chip?
    and one more question, where to buy those chips?

    zeera, Jan 5, 2012
    #13
  14. DGDXGDG

    DGDXGDG Notebook Deity

    Reputations:
    737
    Messages:
    787
    Likes Received:
    6
    Trophy Points:
    31
    gtx285m/fx3800m

    g92-761-b1
    http://search.taobao.com/search?q=g92+761

    n11e-gtx1-b1
    NVÏÔ¿¨ N11E-GTX1-B1 È«ÐÂÔ×°Éý¼¶°æһƬ357 ²âÊÔÁ¼Æ·Ò»Æ¬235-ÌÔ±¦Íø
    n11e gtx_?

    n10e-glm3-b2
    n10e glm3_?
    N10e Glm3-N10e Glm3 Manufacturers, Suppliers and Exporters on Alibaba.com

    DGDXGDG, Jan 6, 2012
    #14
  15. zeera

    zeera Notebook Consultant

    Reputations:
    50
    Messages:
    141
    Likes Received:
    20
    Trophy Points:
    31
    zeera, Jan 8, 2012
    #15
  16. hyrule4927

    hyrule4927 Notebook Consultant

    Reputations:
    57
    Messages:
    167
    Likes Received:
    0
    Trophy Points:
    30
    So if I understand this correctly, you transplanted the core of one GPU onto the card for another? So could that technically be a solution (a complicated, expensive, and risky one of course) for the incompatibility of the G73SW with all traditional MXM cards? For instance, could you throw a 485m core onto the G73's 460m card? Probably just a pipe dream, but I had to ask. :p

    hyrule4927, Jan 9, 2012
    #16
  17. DGDXGDG

    DGDXGDG Notebook Deity

    Reputations:
    737
    Messages:
    787
    Likes Received:
    6
    Trophy Points:
    31
    only for pin to pin compatiable one
    gf100-gf110/gf104-gf114/gf106-gf116..............
    460m is gf106, so 485m gf104 core ofcourse impossible....560m's gf116 maybe, or 660m?'s 28nm die shrink core(not sure)

    DGDXGDG, Jan 9, 2012
    #17
  18. niffcreature

    niffcreature ex computer dyke

    Reputations:
    1,748
    Messages:
    4,094
    Likes Received:
    28
    Trophy Points:
    116
    niffcreature, May 31, 2012
    #18
  19. remijenkins

    remijenkins Newbie

    Reputations:
    0
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    5
    I have a D90xC rev6 with 2 9800gtx's. Which 260gtx bios did you flash to your 9800gtx? Also, what is the difference between the 9800 and the fx3700 and where can I find it's bios file?

    remijenkins, Oct 18, 2012
    #19
  20. Blacky

    Blacky Notebook Prophet

    Reputations:
    2,049
    Messages:
    5,356
    Likes Received:
    1,040
    Trophy Points:
    331
    I wish I had a resoldering shop around here :)).

    Blacky, Oct 19, 2012
    #20
