Official Coffee Lake Refresh Thread/BIOS for ALL Clevo Laptops - RTX CARDS NOW SUPPORTED

Any one try rtx gpu in dm3 ? I buy a rtx 2080 in march



Got a 1080. The TM1 bios should support GTX and RTX without driver modding



no one has tried



Wish I had 1300 euros and i buy the 2080 kit with heatsink



Me too !!!



Prime95 on 540 ok - but game - power off =(



Try occt smal packet with avx. Occt is more powerfull



The gpu is far more power consuming than the CPU even lightly loaded.



What is you cpu and gpu ?



Hey all
i want to flash the bios actually iam using the one from @dsanke
(Official Coffee Lake Thread/BIOS For ALL SkyLake/KabyLake Clevo LGA1151) for my p870km1-g i have a 7600k now iam asking me myself i have buyed and using the p870tm-g 144hz g-sync display and at this bios g-sync doesnt work so my question is can i use this coffelake refresh bios here with my 7600k?
next month i will buy a 8700k or a 9600k not sure right now any suggestions?



9700k 1070 nvidia



test ok - game off =(



hey hey
can confirm 7600k work on that bios
but no g-sync .... u all have no g-sync at all?



Which model do ya have?



I have The p870km1-g with 144hz 1080p g-sync screen from the TM model
the same screen like u AUO B173HAN03.1



Nice



any idea why it wont work? latest nvidia driver is installed



Must me a BIOS problem where the LCD isnt certified. In DM3 stock BIOS I didn't had g-sync either. Only got g-sync back on the TM1 modified BIOS for the DM3 and with the 8700k cpu



ok but i have flashed the modified tm bios with 9th gen support so its maybe the cpu ?
couse i have a 7600k



No idea. Maybe someone else can help



If your LCD is AUO B173HAN03.1 indeed, then upgrade CPU to 9900K/9700K and you will have g-sync back.

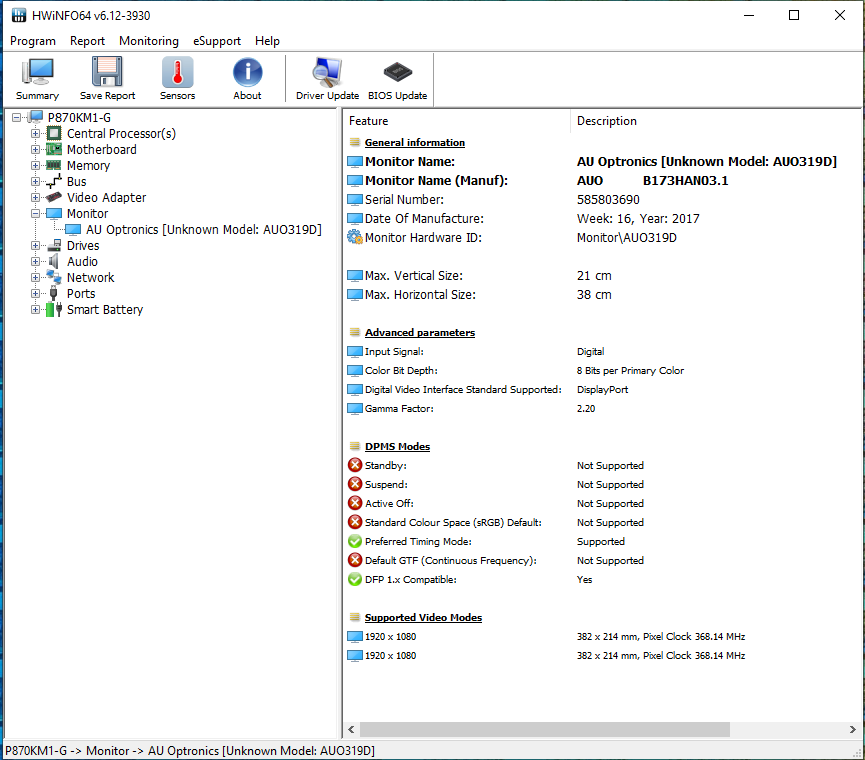

the hardware id from my screen is aou309d maybe thats why it doesnt work?
aou319d should it be ?



Here is AUO B173HAN03.1 proper, not "like" AUO B173HAN03.1:



It's the same as mine



I believe you need at least an 8th gen i5 CPU for G-Sync to be accessible.



How del message?



Correct, i3/pentium will not enable g-Sync.



My mainboard died so whilst I'm waiting for the replacement board (P750DM3) from eBay, I was curious - is the 8700K usable in this 15" model, assuming firmware updates apply successfully?



You need a bios and CPU pin mod to work in the older models.



Do anyone is experiencing sound board/ place where it sits to be extremely hot?(near jack placement). Especially when listening to music or playing games with sound on.

I've been struggling with it couple of months already. Things like stock Bios/ different drivers/ sound board swap doesn't work. My last project was to get CoolerMaster U3 Plus coiling pad. I arranged 3 fans to cool area where sound board sits - but it's still hot enough to be uncomfortable for user (i guess it comes from fact that soundboad is on the top and it's hard to reach it from beneath).



What are you plugging into the line-out? Maybe the headphones are too heavy Ohm-wise and the sound card is struggling, and producing heat.



Nothing is plugged to soundboard whatsoever



If the sound chips are getting too hot running the the laptop's internal speakers, then either something is wrong, or the model has horrible case cooling. More likely there's an issue, and would have the laptop looked at.



Actually this happens not only for clevo models, but as well for alienware.
Alienware has it because when the soundcard is turned on and enabled then it always outputs some low freq sound to speakers, around 10 Hz. This happens when any app with sound is running. When sound is disabled that area stays cool.
In clevo I think same thing might happen.

Anyway it's not supposed to be so.



Doesn't happen in my Clevo.



Not on any of the Clevos I've mounted or owned so far. Only saw the same behaviour on short circuits or faulty hardware



I'll check this again, last time I felt it was this summer.



Im out of ideas. I left it in professional service for month. They couldn't tell what is causing it. They told me what i already knew - that i can try to get new soundboard and see if it change anything.

True. When sound is disabled completely (device manager/turn off device) it doesn't heat up. Seems like u are familiar with it. Do u have any idea how i could fix it?

Service told me that there is "no short circuits" there. S omehow i don't believe em coz at end they told me to swap soundboard and see what happens.

Anyway. Only idea that comes in my mind is that could be somehow connected to right drivers or some setting in windows. Problem was seen on various laptops as @IllusiveMan said.

https://rog.asus.com/forum/showthread.php?82619-G752-Audio-jack-area-too-hot

I found loooong topic about it in Asus ROG G752. Unfortunately they didn't find solution or what is causing it also.



Also it could be related to the firmware. I have no idea how to fix these in the firmware...
On some moments I was hearing this background noise when the machine is for example in BIOS, only when both fans are off this can be heard. It came from speakers and the subwoofer, but I didn't pay attention after BIOS update from this thread.
Driver related stuff is already a constant problem with this windows OS, every new version has more and more bugs.

Maybe people can report their case of how hot it gets when they're playing some audio via speakers and/or headphones.



Using a Clevo and I must say that I never experienced something like that.



Overheating circuit is just poorly designed engineering. If there are revisions of that soundboard, I would try another.



does anybody have a 2080rtx tdp boosted vbios? eg 190W?
thx



@matyee

https://drive.google.com/file/d/1hvwT1MOj_qkt3Pnfdby6EB8SbbmcU6no/view?usp=sharing

See 190w.rom

Taken from a Alienware Area 51M being used in a HP Omen 2019 atm...



Does it work in clevo 2080rtx? beside that no nvidia inf mod thingy is needed, right?



No inf mod is needed, it should work fine with the nvflash I have provided (which overrides hardwareid error)

remember to set cmd location to nvflash then type this:

nvflash64 -6 190w.rom

Click ‘y’ to everything until flashing process completes, then restart the computer



Thx a lot!

would be interesting.

870km1 - with stock 870tm1 bios
2080RTX - with AW 51M 190W vbios
AUO 144hz 3.1 gsync panel.

Cannot wait seeing if it works...



No problem +rep?

Thanks bro.



I cannot need to spread to more ppl then I can give



Fair enough bro, good luck with the RTX flash 40w makes at least a 8-12% difference in fps. I’m glad I did the mod



Hello, please excuse me for my bad English.
I just installed the DSANK bios in my p870dm3 g. For the moment I have a 6700K (pending an I9900K) and I see that it is bridle. Is this normal? What must be done to exploit it properly?
something else my g-sync has disappeared.
Thank you to those who can help me
