    P150hm mobo help needed

    Discussion in 'Sager and Clevo' started by prydero, Dec 29, 2020.

  1. prydero

    prydero Newbie

    Reputations:
    0
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    5
    So I was replacing my dc in jack connector and whilst heating with the hot air gun un soldered and accidently sucked up the resistor that's beside one of the securing legs. It's now somewhere in my carpet :mad: tried to find a diagram to find the resistor so I can replace it but no luck so wondering if one of you wizards might know? It is denoted pc17.

    prydero, Dec 29, 2020
    #1
  2. darnok44

    darnok44 Notebook Consultant

    Reputations:
    177
    Messages:
    285
    Likes Received:
    87
    Trophy Points:
    41

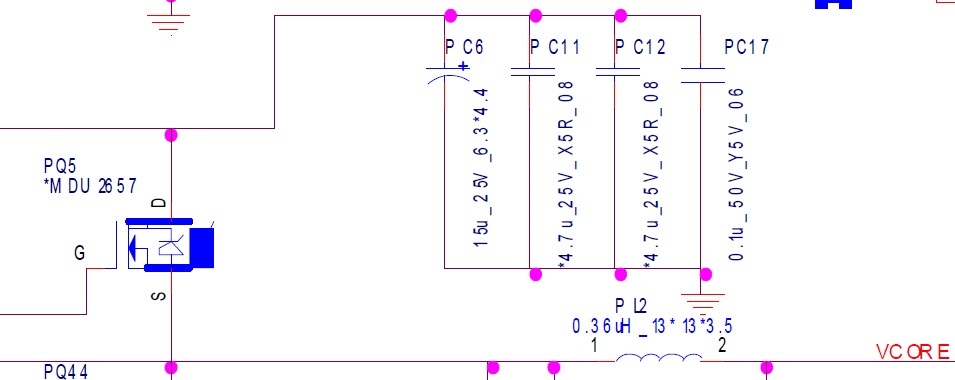

    It's ceramic capacitor actually. 0.1uF 50V.


    Attached Files:

    darnok44, Dec 30, 2020
    #2
  3. prydero

    prydero Newbie

    Reputations:
    0
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    5
    Thanks darnok44. I found that one out after posting but can't work out the size of the capacitor. You wouldn't be able to shed any light on that at all? I'm assuming it's either an 0403 or 0603 due to the size of it but since I no longer have the part I can't measure it up.

    prydero, Dec 30, 2020
    #3
  4. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    Should he able to tell from the pad spacing.

    Meaker@Sager, Dec 30, 2020
    #4
