    P151hm1 and HDD Caddy

    Discussion in 'Sager and Clevo' started by Cainman, Nov 16, 2011.

  1. Cainman

    Cainman Notebook Enthusiast

    Reputations:
    0
    Messages:
    38
    Likes Received:
    0
    Trophy Points:
    15

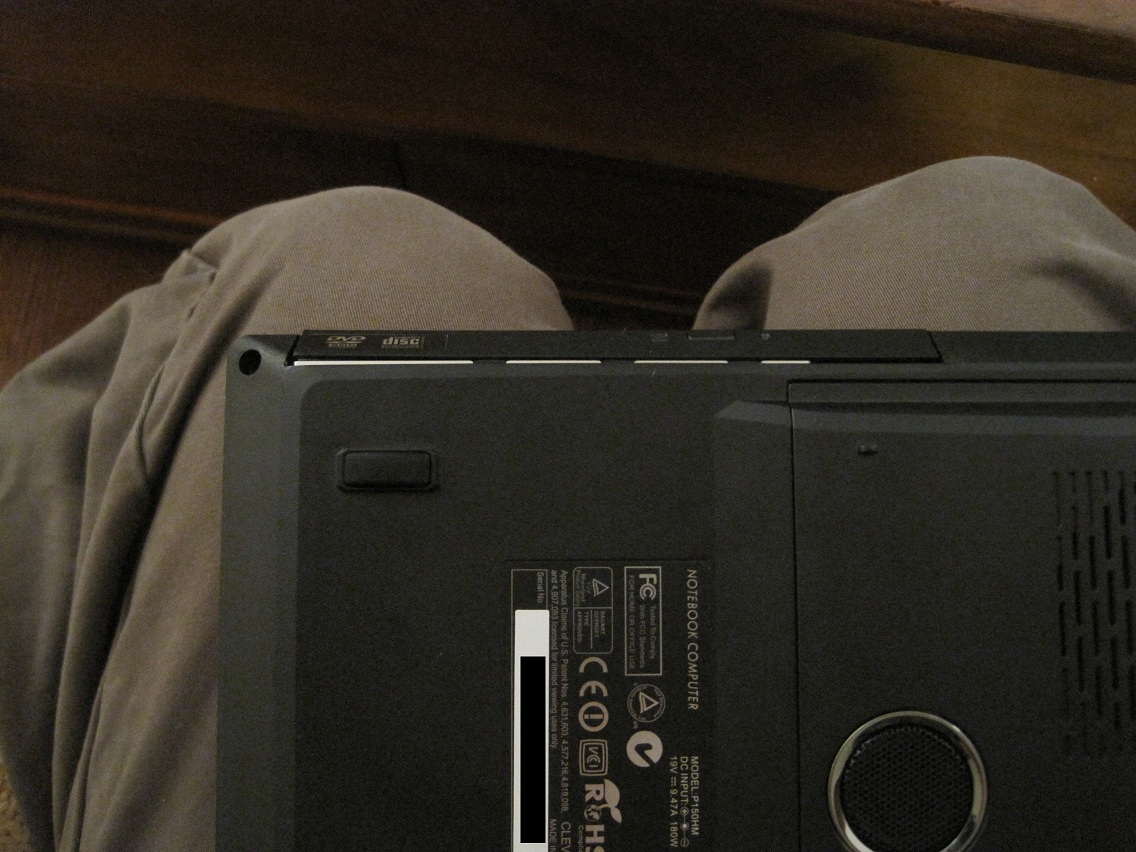

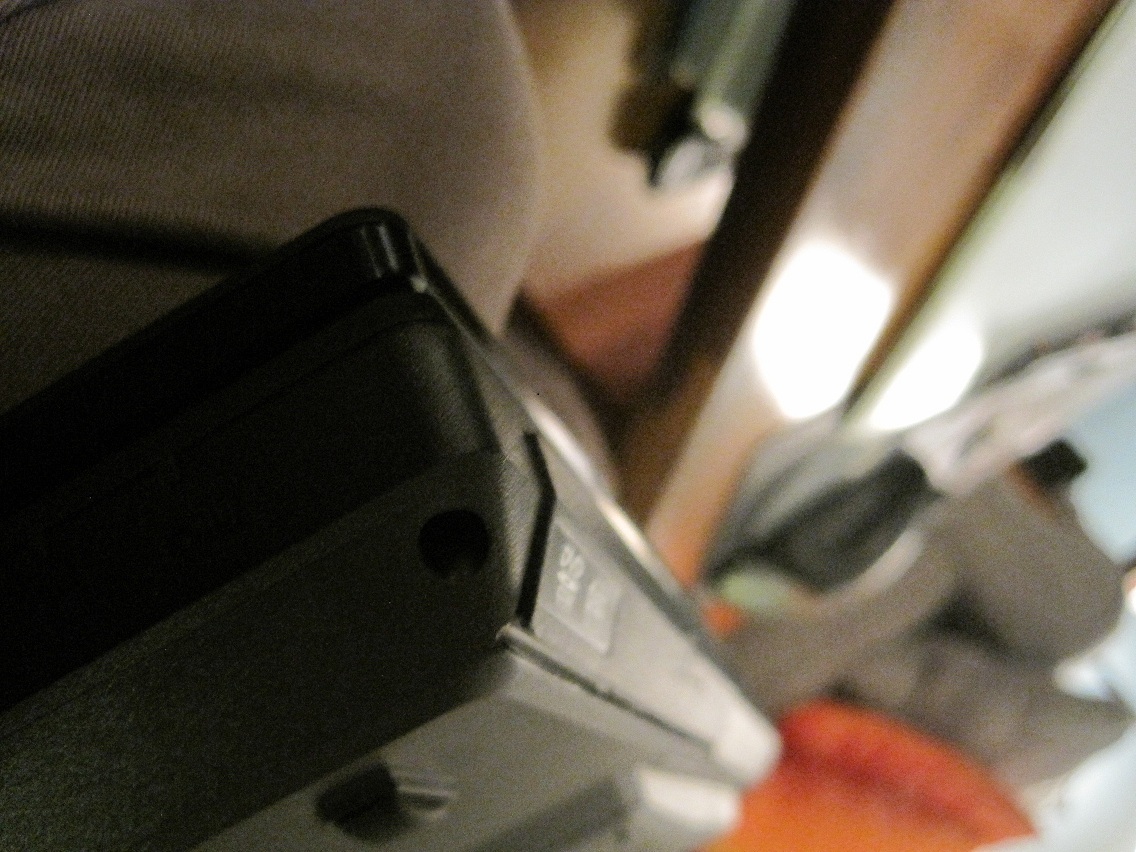

    Anyone out there that has the p151hm1 with the hdd caddy installed in the optical bay could you look at it and see if it sits flush with the side and if there is a gap between the bottom of the notebook and the bezel. Attached are two pictures to show what mine looks like.


    Attached Files:

    Cainman, Nov 16, 2011
    #1
  2. AndrewRiot

    AndrewRiot Notebook Enthusiast

    Reputations:
    0
    Messages:
    17
    Likes Received:
    0
    Trophy Points:
    5
    Mhhh nay... Mine doesn't look like that...

    There is no gap in mine... But, out of curiosity, isn't that the closer lid of the optical drive?

    AndrewRiot, Nov 16, 2011
    #2
  3. SoulMisaki

    SoulMisaki Notebook Deity

    Reputations:
    39
    Messages:
    709
    Likes Received:
    40
    Trophy Points:
    41
    I can see a bit of the metal for mine, but it's not sticking out as much as that one.

    SoulMisaki, Nov 16, 2011
    #3
  4. Cainman

    Cainman Notebook Enthusiast

    Reputations:
    0
    Messages:
    38
    Likes Received:
    0
    Trophy Points:
    15
    Yes, mine came with the bezel from the optical drive installed on the hdd caddy.

    Cainman, Nov 17, 2011
    #4
  5. kevindd992002

    kevindd992002 Notebook Virtuoso

    Reputations:
    233
    Messages:
    2,299
    Likes Received:
    5
    Trophy Points:
    56
    Is that even normal? I thought it should be flushed.

    kevindd992002, Nov 18, 2011
    #5
  6. b0b1man

    b0b1man Notebook Deity

    Reputations:
    597
    Messages:
    1,092
    Likes Received:
    29
    Trophy Points:
    66
    You need to push it in just a little more. First, before pushing anything, open the HDD plate and check if the Caddy is screwed on. If the screw is missing, then you can push the Caddy in, so it fits. If its screwed, remove the screw first (its only 1 screw) and try pushing it in after that.

    I've installed my Caddy myself and it fits perfectly. Your situation is not normal, it needs to absolutely fit. Try fiddling around to see if you can manage to get it to fit right.

    b0b1man, Nov 18, 2011
    #6
  7. kevindd992002

    kevindd992002 Notebook Virtuoso

    Reputations:
    233
    Messages:
    2,299
    Likes Received:
    5
    Trophy Points:
    56
    Do all resellers use the same kind of HDD caddy if I opt to buy it?

    kevindd992002, Nov 18, 2011
    #7
  8. b0b1man

    b0b1man Notebook Deity

    Reputations:
    597
    Messages:
    1,092
    Likes Received:
    29
    Trophy Points:
    66
    Probably. They should use the original Clevo one that is meant for these machines. Mine is original (i think) and fits perfectly.

    b0b1man, Nov 18, 2011
    #8
  9. kevindd992002

    kevindd992002 Notebook Virtuoso

    Reputations:
    233
    Messages:
    2,299
    Likes Received:
    5
    Trophy Points:
    56
    Oh. I didn't know that there is an OEM Clevo HDD caddy, or is there?

    kevindd992002, Nov 18, 2011
    #9
  10. Cainman

    Cainman Notebook Enthusiast

    Reputations:
    0
    Messages:
    38
    Likes Received:
    0
    Trophy Points:
    15
    b0b1man I've taken it completely apart multiple times. It's pushed in all the way. The bezel is snapped into place. Everything is screwed into place. The thing just doesn't fit right.

    Cainman, Nov 18, 2011
    #10
  11. b0b1man

    b0b1man Notebook Deity

    Reputations:
    597
    Messages:
    1,092
    Likes Received:
    29
    Trophy Points:
    66
    Thats unacceptable. You may want to return it and get a replacement...maybe its not the original Caddy. Mine really fits, I think yours should too.

    b0b1man, Nov 18, 2011
    #11
