    P170EM Prema V2 bios unlock

    Discussion in 'Sager and Clevo' started by Gamos, Jun 14, 2017.

  1. Gamos

    Gamos Notebook Enthusiast

    Reputations:
    0
    Messages:
    12
    Likes Received:
    3
    Trophy Points:
    6
    Hello, help me please.

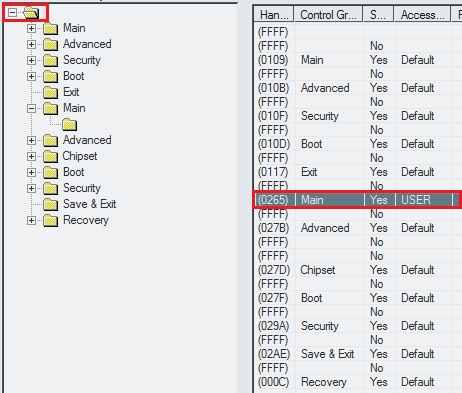

    I tried to unlock v2 bios for P170EM ( P170EM_17_12_PM_v2) by AMIBCP. I made this:
    [​IMG]

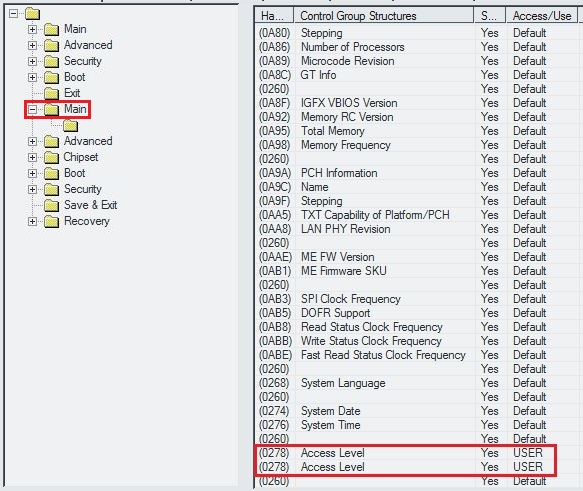

    then
    [​IMG]

    and after flashing, I didn't find second paragraph "Main".
    How to unlock Access Level? I really need to get access to memory frequency & timings, cpu cores ratio and tdp limits.

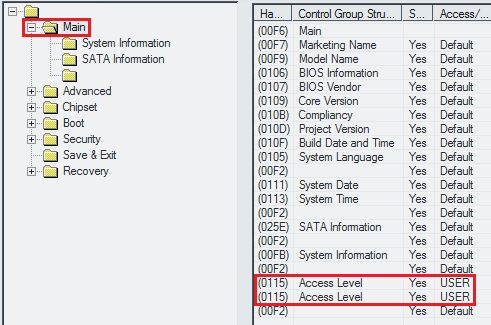

    With MSI GT60 i only made this:
    [​IMG]
    and I've got access to everything

    Last edited: Jun 14, 2017
    Gamos, Jun 14, 2017
    #1
  2. CaerCadarn

    CaerCadarn Notebook Deity

    Reputations:
    320
    Messages:
    1,171
    Likes Received:
    1,126
    Trophy Points:
    181
    @Prema

    Gesendet von meinem ONEPLUS A3003 mit Tapatalk

    CaerCadarn, Jun 15, 2017
    #2
  3. Prema

    Prema Your Freedom, Your Choice

    Reputations:
    9,368
    Messages:
    6,297
    Likes Received:
    16,485
    Trophy Points:
    681
    Doesn't work that way buddy, no tool will help you with that by simply changing some access levels...needs either to be re-build from source or manual internal rewiring.
    Something I don't feel like doing anymore as my experience is that people just take my code, write a tutorial on it, then publish mods which brick systems and Clevo comes knocking at my door because RMA cases sky rock...over time they lock down each gen one step further in the process.

    Prema, Jun 15, 2017
    #3
    jaug1337, Ashtrix and Papusan like this.
  4. Gamos

    Gamos Notebook Enthusiast

    Reputations:
    0
    Messages:
    12
    Likes Received:
    3
    Trophy Points:
    6
    Prema
    Anyway thank you for all your great job!

    Gamos, Jun 15, 2017
    #4
    Ashtrix and Prema like this.
  5. Gamos

    Gamos Notebook Enthusiast

    Reputations:
    0
    Messages:
    12
    Likes Received:
    3
    Trophy Points:
    6
    But tell me pls, this settings works on my GT60 with unlocked bios:
    pos_mod.JPG pos_mod1.JPG pos_mod2.JPG
    I think it should works, will it?
    And one more question, Failsafe means - after bios reset, right? and Optimal means - F9 preset ? Maybe it better set values only in Optimal column?

    Gamos, Jun 15, 2017
    #5
  6. Prema

    Prema Your Freedom, Your Choice

    Reputations:
    9,368
    Messages:
    6,297
    Likes Received:
    16,485
    Trophy Points:
    681
    Recovery doesn't work on PxxEM models, so I wouldn't try changing too much...

    Prema, Jun 15, 2017
    #6
  7. Gamos

    Gamos Notebook Enthusiast

    Reputations:
    0
    Messages:
    12
    Likes Received:
    3
    Trophy Points:
    6
    Ok, i get it, but what about Failsafe and Optimal, can you explain please

    Gamos, Jun 15, 2017
    #7
  8. Prema

    Prema Your Freedom, Your Choice

    Reputations:
    9,368
    Messages:
    6,297
    Likes Received:
    16,485
    Trophy Points:
    681
    It's supposed to jump back to failsave if optimal fails, but in reality it often doesn't do that if it isn't an actual BIOS option.
    Also please read the README (TOS) of my mods to NOT edit them any further as they will blame me for bricked boards that they receive. Please ONLY use clean Clevo BIOS for your personal adventures!

    Last edited: Jun 15, 2017
    Prema, Jun 15, 2017
    #8
  9. Gamos

    Gamos Notebook Enthusiast

    Reputations:
    0
    Messages:
    12
    Likes Received:
    3
    Trophy Points:
    6
    What if i would only change Configurable TDP to TDP UP and Turbo core ratio's (i don't like xtu, and i know right frequencies for my cpu), it wont' make some hurt to bios from you, and i won't blame you anyway, because i understand - its only my own risk, i just trying to take best advice from Guru

    Gamos, Jun 15, 2017
    #9
  10. Prema

    Prema Your Freedom, Your Choice

    Reputations:
    9,368
    Messages:
    6,297
    Likes Received:
    16,485
    Trophy Points:
    681

    Prema, Jun 15, 2017
    #10
  11. Gamos

    Gamos Notebook Enthusiast

    Reputations:
    0
    Messages:
    12
    Likes Received:
    3
    Trophy Points:
    6
    After testing on GT60 with unlocked bios, I made tdp and clocks changes with v2 bios from you, everything fine!

    Gamos, Jun 16, 2017
    #11
  12. CaerCadarn

    CaerCadarn Notebook Deity

    Reputations:
    320
    Messages:
    1,171
    Likes Received:
    1,126
    Trophy Points:
    181
    Did you ever consider buying him a beer or two!? Should be the least....

    Gesendet von meinem ONEPLUS A3003 mit Tapatalk

    CaerCadarn, Jun 16, 2017
    #12
  13. Gamos

    Gamos Notebook Enthusiast

    Reputations:
    0
    Messages:
    12
    Likes Received:
    3
    Trophy Points:
    6
    You're damn right, he is deserve it!

    Gamos, Jun 16, 2017
    #13
  14. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    Yep, even just chucking a couple of coins will always show support and help make people see their work is truly appreciated.

    Meaker@Sager, Jun 16, 2017
    #14
    Papusan and CaerCadarn like this.
