    P170HM - Blank Screen During POST

    Discussion in 'Sager and Clevo' started by zacpack, Sep 7, 2018.

  1. zacpack

    zacpack Newbie

    Reputations:
    0
    Messages:
    9
    Likes Received:
    0
    Trophy Points:
    5
    Hi

    I have a Clevo P375SM-A and the laptop screen does not work during the POST/BIOS screen unless an external monitor is connected, once the laptop is booted into Windows it works perfectly fine and both Laptop and external monitors work.

    Has anyone got any clues on how to make the Laptop screen work during POST/BIOS?

    Many Thanks,

    Last edited: Sep 12, 2018
    zacpack, Sep 7, 2018
    #1
  2. Prostar Computer

    Prostar Computer Company Representative

    Reputations:
    1,257
    Messages:
    7,426
    Likes Received:
    1,016
    Trophy Points:
    331
    Do you happen to know which BIOS version you're on? And which version of Windows?

    Prostar Computer, Sep 7, 2018
    #2
  3. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    Have you replaced the GPU?

    Meaker@Sager, Sep 8, 2018
    #3
  4. zacpack

    zacpack Newbie

    Reputations:
    0
    Messages:
    9
    Likes Received:
    0
    Trophy Points:
    5
    zacpack, Sep 9, 2018
    #4
  5. Danishblunt

    Danishblunt Guest

    Reputations:
    0
    remove BIOS battery and reset EC, then try again. It's certainly a weird issue you're having.

    Danishblunt, Sep 10, 2018
    #5
  6. zacpack

    zacpack Newbie

    Reputations:
    0
    Messages:
    9
    Likes Received:
    0
    Trophy Points:
    5
    Thanks - how do I reset the EC?

    zacpack, Sep 10, 2018
    #6
  7. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    By removing ac and main system battery. The bios battery would reset the CMOS (bios) as well and you would have done a bios + EC reset.

    Meaker@Sager, Sep 11, 2018
    #7
  8. zacpack

    zacpack Newbie

    Reputations:
    0
    Messages:
    9
    Likes Received:
    0
    Trophy Points:
    5
    Thanks, first things first, I mentioned the wrong Clevo machine, I have a P375SM-A. I've corrected the main message but unable to correct the title.

    Secondly, I've removed the battery and CMOS battery for at least 2 hours and reconnected them both, still no change. The laptop display does not work in POST only when it gets to Windows does it work.

    So in order for me to access any BIOS settings I have to connect an external monitor.

    I think it probably needs a new graphics card, any recommendations for where to get it one?

    Last edited: Sep 15, 2018
    zacpack, Sep 15, 2018
    #8
  9. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    It's more likely a vbios issue. However with a bit of modding of the cooler the GTX 1060 performs pretty well.

    Meaker@Sager, Sep 15, 2018
    #9
  10. zacpack

    zacpack Newbie

    Reputations:
    0
    Messages:
    9
    Likes Received:
    0
    Trophy Points:
    5

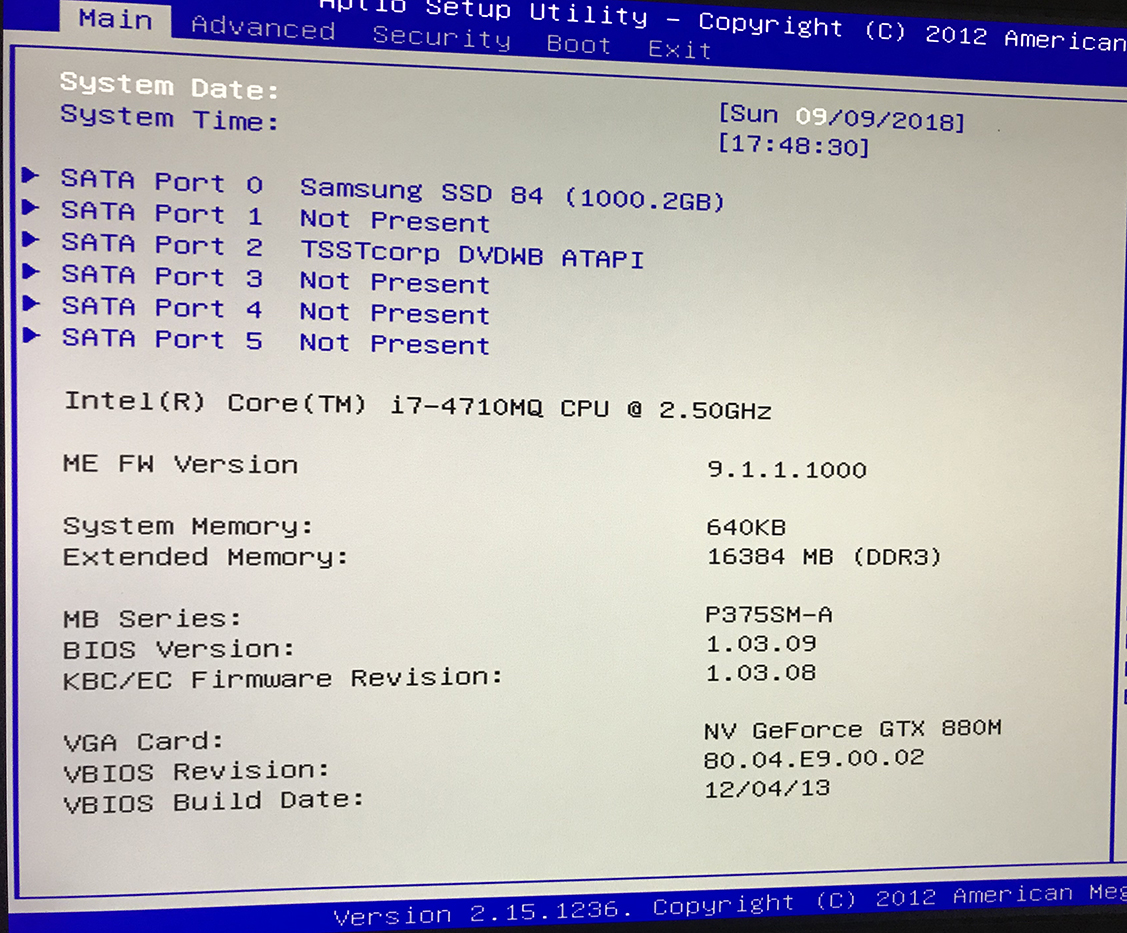

    Thanks - the current vbios is as attached. Know how to re-flash / update it?


    Attached Files:

    zacpack, Sep 15, 2018
    #10
  11. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    When did the issue start exactly? Some piece of firmware must have been updated as the stock should not do that.

    Meaker@Sager, Sep 15, 2018
    #11
  12. zacpack

    zacpack Newbie

    Reputations:
    0
    Messages:
    9
    Likes Received:
    0
    Trophy Points:
    5
    I have to admit, it's been a long time, so I don't recall what exactly happened and when it did.

    I haven't been using it until recently, so it's become more noticeable. I have formatted and reinstalled Windows from scratch, hence the BIOS issue as had to enable settings there for UEFI and Secure Boot.

    zacpack, Sep 16, 2018
    #12
