P1xxEM User Manuals Posted!

These manuals can't be accessed from the Clevo site, but the direct download links I've posted below still work.

Direct Downloads of the Manual:
English
5 Language Concise Manual

Specs From The User Manual

Spoiler

Processors

Spoiler

For Models A & B Only:
Intel® Core i7-3920XM (2.9GHz)
Extreme Edition Processor
8M L3 Cache, 22nm (22 Nanometer),
DDR3-1600MHz, TDP 55W

Intel® Core i7-2960XM (2.7GHz)
Exterme Edition Processor
8M L3 Cache, 32nm (32 Nanometer),
DDR3-1600MHz, TDP 55W

For All Models:
Intel® Core i7-3820QM (2.7GHz)
Quad-Core Mobile Processor
8M L3 Cache, 22nm (22 Nanometer),
DDR3-1600MHz, TDP 45W

Intel® Core i7-3720QM (2.6GHz)
Quad-Core Mobile Processor
6M L3 Cache, 22nm (22 Nanometer),
DDR3-1600MHz, TDP 45W

Intel® Core i7-3610QM (2.3GHz)
Quad-Core Mobile Processor
6M L3 Cache, 22nm (22 Nanometer),
DDR3-1600MHz, TDP 45W

Intel® Core i7-3520M (2.9GHz)
Mobile Processor
4M L3 Cache, 22nm (22 Nanometer),
DDR3-1600MHz, TDP 35W

Intel® Core i5-3360M (2.8GHz)
Mobile Processor
3M L3 Cache, 22nm (22 Nanometer),
DDR3-1600MHz, TDP 35W

Intel® Core i5-3320M (2.6GHz)
Mobile Processor
3M L3 Cache, 22nm (22 Nanometer),
DDR3-1600MHz, TDP 35W

Intel® Core i5-3210M (2.5GHz)
Mobile Processor
3M L3 Cache, 22nm (22 Nanometer),
DDR3-1600MHz, TDP 35W

Intel® Core i7-2760QM (2.4GHz)
Quad-Core Mobile Processor
6M L3 Cache, 32nm (32 Nanometer),
DDR3-1600MHz, TDP 45W

Intel® Core i7-2670QM (2.2GHz)
Quad-Core Mobile Processor
6M L3 Cache, 32nm (32 Nanometer),
DDR3-1333MHz, TDP 45W

Intel® Core i7-2640M (2.8GHz)
Mobile Processor
4M L3 Cache, 32nm (32 Nanometer),
DDR3-1333MHz, TDP 35W

Intel® Core i5-2540M (2.6GHz)
Mobile Processor
3M L3 Cache, 32nm (32 Nanometer),
DDR3-1333MHz, TDP 35W

Intel® Core i5-2520M (2.5GHz)
Mobile Processor
3M L3 Cache, 32nm (32 Nanometer),
DDR3-1333MHz, TDP 35W

Intel® Core i5-2450M (2.5GHz)
Mobile Processor
3M L3 Cache, 32nm (32 Nanometer),
DDR3-1333MHz, TDP 35W

Intel® Core i3-2350M (2.3GHz)
Mobile Processor
3M L3 Cache, 32nm (32 Nanometer),
DDR3-1333MHz, TDP 35W

Core Logic

Spoiler

Mobile Intel® HM77 Express Chipset

Memory

Spoiler

Four Channel DDRIII (DDR3)

*Four 204 Pin SO-DIMM Sockets
Supporting DDRIII (DDR3) 1333/1600
MHz Memory Modules (real operational
frequency depends on the FSB of the
processor)

*Note: Four SO-DIMMs are only supported
by Quad-Core CPUs; Dual-Core CPUs
support two SO-DIMMs maximum
Memory Expandable up to 16GB
Compatible with 2GB or 4GB Modules

Video Adapter Options

Spoiler

Intel® Integrated GPU and NVIDIA®
GeForce Video:

Supports NVIDIA® Optimus
Switchable GPU Technology between
iGPU and dGPU

Intel® HD Graphics 4000 or Intel® HD
Graphics 3000 Integrated GPU
Dynamic Frequency
Intel® Dynamic Video Memory
Technology Supporting Shared Memory
up to 1.7GB
Intel® HD Graphics 4000 Supports
Microsoft DirectX® 11.0
Intel® HD Graphics 3000 Supports
Microsoft DirectX® 10.0

Models A, B & C:
nVIDIA® GeForce GTX 670M PCIe * 16
Video Card
1.5GB GDDR5 Video RAM On Board
Supports Microsoft DirectX® 11.0
NVIDIA PhysX™
GeForce CUDA™ Technology
NVIDIA® Optimus 1.2 Technology

NVIDIA® GeForce GTX 660M PCIe * 16
Video Card
1GB GDDR5 Video RAM
Supports Microsoft DirectX® 11.0
NVIDIA PhysX™
GeForce CUDA™ Technology
NVIDIA® Optimus 2012 Technology

Models A & B:
nVIDIA® GeForce GTX 675M PCIe * 16
Video Card
2GB GDDR5 Video RAM On Board
Supports Microsoft DirectX® 11.0
NVIDIA PhysX™
GeForce CUDA™ Technology
NVIDIA® Optimus 1.2 Technology

Storage

Spoiler

One 12.7 mm Super Multi/Blu-Ray
Combo/Blu-Ray Writer SATA Optical
Device Drive (Factory Option)

One Changeable 2.5" 9.5 mm (h) SATA
(Serial) Hard Disk

Models A & B:
2nd HDD Caddy with SATA Inteface
(Factory Option for Models A & B)

Model C:
Up to Two (Factory Option) Changeable
2.5" 9.5 mm (h) SATA (Serial) Hard Disks
with RAID Level 0/1 Support

One mSATA Solid State Drive (SSD) with
SATA interface (Factory Option)

BIOS

Spoiler

One 48Mb SPI Flash ROM
AMI BIOS

Audio

Spoiler

High Definition Audio
S/PDIF Digital Output
Built-In Microphone
2 Built-In Speakers
1 Built-In Sub Woofer
THX TruStudio Pro
7.1CH Audio output supported by
headphone, microphone, S/PDIF & Line-
In Jack

Keyboard & Pointing Device

Spoiler

Full Size Winkey Keyboard with Numeric
Keypad and W/A/S/D Game Key
Markings

Built-In TouchPad (with Multi Gesture
Functionality)

Interface

Spoiler

One USB 2.0 Port
Three USB 3.0 Ports (Note: One
powered USB3.0 port (AC/DC))
One eSATA Port (SATA/Powered USB
3.0 Combo)
One Mini-IEEE1394a Port
One Display Port 1.1a
One DVI-I (Single Link) Out Port
One 1.4a HDMI-Out (High-Definition
Multimedia Interface) Port (with HDCP)
One Microphone-In Jack
One Headphone/Speaker-Out Jack
One S/PDIF Out Jack
One Line-In Jack
One RJ-45 LAN Jack
One DC-In Jack

Slots

Spoiler

Two Mini-Card Slots:
Slot 1 for WLAN or WLAN & Bluetooth
Combo Half Mini-Card Module with PCIe
and USB Interface

Slot 2 for mSATA SSD Full Size Mini-
Card Module with SATA Interface

Card Reader

Spoiler

Embedded Multi-In-1 Push-Push Card
Reader
- MMC / RSMMC
- SD / Mini SD / SDHC / SDXC
- MS / MS Pro / MS Duo

Note: Some of these cards require PC
adapters that are usually supplied with
the cards.

Communication

Spoiler

Built-In 10/100/1000Mb Base-TX Ethernet LAN

Intel® Centrino Ultimate-N 6300 3*3
(802.11 a/g/n) Half Mini-Card PCIe WLAN
Module (Factory Option)

Intel® Centrino Advanced-N 6235 2*2
(802.11 a/g/n) Half Mini-Card PCIe WLAN +
Bluetooth V4.0+HS Combo Module (Factory
Option)

Intel® Centrino® Wireless-N 2230 2*2
(802.11 b/g/n) Half Mini-Card PCIe WLAN +
Bluetooth V4.0+HS Combo Module (Factory
Option)

(802.11b/g/n) Half Mini-Card PCIe WLAN
+ Bluetooth V3.0+HS Combo Module
(Factory Option)

(802.11b/g/n) Half Mini-Card PCIe WLAN
+ Bluetooth V4.0+HS Combo Module
(Factory Option)

2.0M Pixel FHD PC Video Camera
Module (Factory Option)

Security

Spoiler

Security (Kensington® Type) Lock Slot
BIOS Password

Fingerprint Reader Module (Factory
Option)

Features

Spoiler

Painted Style (Models A & B)

Al-Alloy Plate (Model C)

Power Management

Spoiler

Supports Wake on LAN

Supports Wake on USB

Power

Spoiler

Removable 8 Cell Smart Lithium Ion Battery
Pack 76.96WH

Model A:
Full Range AC/DC Adapter – AC in 100 -
240V, 50 - 60Hz DC Output 19V, 9.47A
( 180 Watts)

Model B:
Full Range AC/DC Adapter – AC in 100 -
240V, 50 - 60Hz DC Output 19V, 6.3A
( 120 Watts)

Model C:
Full Range AC/DC Adapter – AC in 100 -
240V, 50 - 60Hz DC Output 19V, 11.57A
( 220 Watts)

Environmental Spec

Spoiler

Temperature
Operating: 5°C - 35°C
Non-Operating: -20°C - 60°C

Relative Humidity
Operating: 20% - 80%
Non-Operating: 10% - 90%

Physical Dimensions & Weight

Spoiler

Models A & B:
376mm (w) * 256mm (d) * 35 - 43mm (h)
3.1kg with ODD and Battery

Model C:
412mm (w) * 276mm (d) * 41.8 - 45.4mm
(h)
3.9kg with ODD and Battery

Sources Info:

This section will be for updates provided by various sources who have asked to be anonymous:

- The reason there was nothing about Clevo from Cebit was that they had their display set up at a local hotel that was not open to the public. This was due to something about the NDA with Intel.

- Final samples were handed out to distributors and resellers this week.

- P370EM: There will be a successor to the P180HM. It's going to be a 17", supporting Ivy Bridge and dual GPU's, colored similarly to the P150EM, but smaller in size than the P270WM. More info about this model is coming! One source says they are one of the first to be getting this model in their hands. Will update you all when I know more.

- Clevo will be making an Ivy Bridge All-In-One. The source that named this one referred to it as a possible iMac Killer!

- W150ER (and submodels) will be updated to include a second HD slot.

- All models will have:
~ TI firewire
~ Improved Speakers
~ Improved Touch Pad
~ A new monitoring software that supposedly will be "replacing all other you might need". It will cover the sound, graphics, battery, keyboard, etc.



Oh crap.

Geforce GTX with Optimus.



Different dimensions on Model C ...16:10 screen perhaps?



There's also a second mpcie slot for mSATA SSD's



Model B = P151EM? 120W PSU and all.



Model C is the 17"



There's some interesting stuff in there.

- The new Fn + Esc control center seems cool.
- I think the touchpad buttons are not a rocker, but just back to being the way they were with the M860TU. Flush and invisible.

Typo = It's supposed to say Models A & C for the XM CPUs and the GTX 675M.



Model B lacks a backlit keyboard, P151EM will be disappointing if that's what Model B is. The pictures shown have the old style P150, really strange.



Wait, with no mention of other GPU's, might these be the only options that Sager provides?

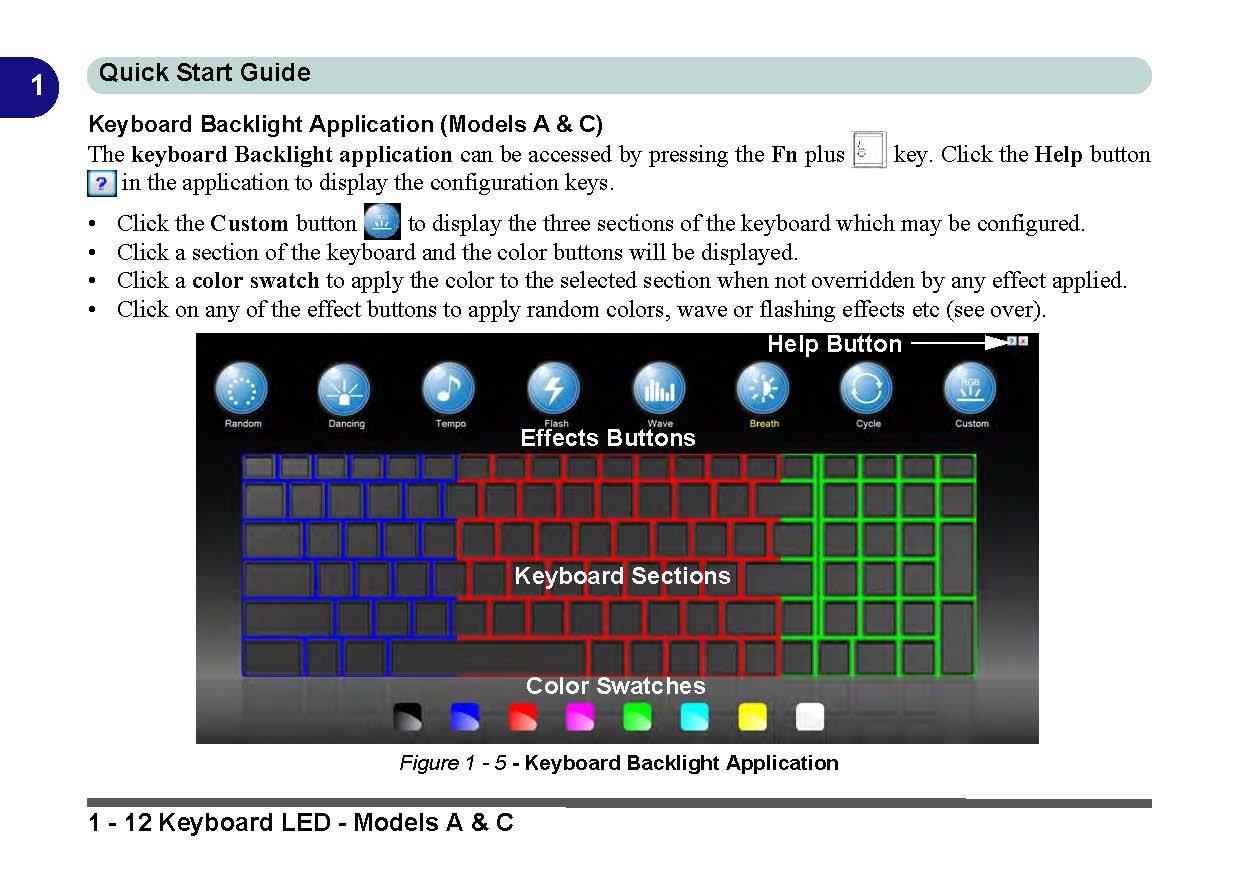

You may recall a few months back I for one announced that the backlit keyboard option would be on SELECT models. Not all models. Sorry.



-



Are the EM Models smaller than the HM Models?



now thats odd....just read through the manual and it says that model C (17 inch with 220W PSU, thus successor to P170HM) would NOT support the XM cpus and only be offered with a 670M instead of a 675M. whereas model B (120W PSU) would be offered with both. major typo going through the whole manual?



in the manual it says that model A and B feature a secondary hard disk module which is interchangeable the optical CD/DVD device. that means they come with caddys? also Model C has room for two hdd in raid.



Well the manual is out now, so I guess I can cover all the major hits:

The P150EM (Old P150HM) is the Model A, will support the full line of CPU's, will have a backlit keyboard, same 180W adapter, will launch with either the 670M (Rebadge 570m) or 675m (Rebadge 580m) (Both are options) there may or may not be a AMD to go with that..

The P151EM is the Model B, yes there is a typo, it will NOT support the full line (No XM's) CPU's, Will NOT have a backlit keyboard. Will launch with the 670m only.

The P170EM is the Model C, its the 17" besides that its the same as the P150EM.

ALL Models will have RAID
The P150/151 will (And always has had) the option for a caddy, but it will still be SATA2 in the optical caddy. The P170 will be SATA3 in both slots.

ALL Models will have mSATA spots, that will be SATA2, and not RAID'able with the other parts of the system.

ALL Models will have displayport on them, and they all should be able to drive 3 monitors (Not Confirmed).

ALL Models will have Optimus.



Ok, this is a longshot but I'm hoping. Since these laptops have iGPUs as well as dGPUs, they can do Optimus. I am wondering however whether the resellers can screw around with the installed software (i don't actually know what optimus requires) and maybe put in an AMD power management option as well (I think it's Power Express?)?

I'd prefer to go with an AMD GPU as they seem to be less $$/performance, but as a student if it would mean sacrificing Optimus technology I would probably have to stick with NVidia.



The AMD version is Switchable Graphics, and it SHOULD support it, but it will require slightly different drivers, and until we get the final shells in, can't confirm it for sure.



Do you know/can you say how much the P150EM will start off at?



Don't have the first quotes back, and we also don't have final dates/pricing from Intel, so nope can't give you final pricing. But we are forcasting that its going to basically be the same pricing as when the last generation launched. Which the prices got a little cheaper over the year.



I haven't known about Sager for long enough to know the prices at the start of the last gen. Was it under $1700?



Is the 3D version of P170EM again going to use a different mobo?



Just like the last generation, its the same basic motherboard, BUT slightly different because it enables the eDP port NOT the LVDS port. So different board? No, different BIOS however.



THX, so the same board enables eDP & LVDS ports, just depending on bios?



Any XTU support for the P150EM?



The P170 was the same way. It had both ports on the board, now I'm not 100% sure but yea just depends on the BIOS.



Take my money already!



Yessir

If we had the parts we would gladly relieve you of your money :yes:



I'm wondering the same thing. I'm trying to decide if the price jump is going to be significantly higher than what the p150hm's have been the last few months. Do refreshes usually cause a large jump in price? It almost seems like everyone is trying to sell whatever stock is left over before the launch and I hope that means the new models won't be too much more expensive.

I wish I would have joined this website sooner and observed the trends. Unfortunately, a year ago my computer was running fine and I didn't think of it, but now it's rapidly going down hill and I'm scrambling.



[VR-Zone] Intel rumoured to reduce pricing on Ivy Bridge

Hopefully this will apply to us as well!



I bought my NP8170 at the start of last gen. The base config (no OS) was 1,389.00, w/ i7-2630QM, 4GB RAM, and GTX 460M.

Upgrades:

+200 for the high gamut LCD
+245 for the 6970M
+120 for the Blu-ray drive
+90 for Windows 7

My total was $2044 + $28 for shipping, and it was knocked down to $2,009.84 shipped because of the fact that I got 3% off for paying cash (back when you could do Paypal echeck).

So even without the screen and BRD, making any GPU upgrade + OS will probably bring you right up to the $1.7k mark.



Thank you for posting that information, it's very helpful to people like us on the fence about waiting or ordering now.



I'd be more than happy with a 7970m + 1080p matte screen (which probably won't be $200 anymore).



Great stuff. I just hope the speaker system got improvement over the previous models.

I tried to configure the p150hm and p151hm a few months back (around Black Friday). If I remember correctly, the p151hm was about 1050+ and p150hm 1250+, and the p170hm was always $100 more the p150hm. So maybe these new models will have similar price range. Who knows.



The P151EM will lack off a backlit keyboard sorry guys. It's a fact



Thanks for the info. Finally some good news.



did i get that correctly? ALL models support RAID? so P151EM / P150EM would be able to make a RAID between a SATA2 HDD in ODD caddy and the regular SATA3 HDD bay? that would be quite neat! adding the XTU support this gen seems to get better by the moment



Is there any possibilities for the P151EM to offer Sandy Bridge in addition to the Ivy Bridge? I actually want the P151HM but it has been phased out in most places. Malibal still offers the P151HM but only with 95% gamut screen which I don't want, because of the price and more importantly the red tint that people have mentioned.

I wouldn't mind waiting for the P151EM, but I will only be in the US for 1 month in April and Ivy Bridge may be delayed till June, so I may not have the chance to buy the computer. If P151EM does come with Sandy Bridge then there may be a higher chance of seeing it in April. The dilemma is killing me. Should I just ignore the red tint problem with the 95% gamut screen and buy it now before it is phased out or wait?



The new series will support SB and IB processors.
If you want a Notebook right now with more screen options, then here you go:

With 560m MYTHLOGIC :: Configure Your System
With 580m http://www.mythlogiccorp.com/configure.php?id=85



new models will still be using the old screens? or will those have upgrades as well?



Thank You Prema. Even if it does support SB, there is not confirmation that it will be offered by Clevo/Sager. I had checked out Mythlogic before I made my post. Mythlogic's price is higher than what was offered at Malibal and Xotic. Also I don't see an option for no branding which is something that I prefer.



You can ask if they offer no branding? Just because its not an listed option doesn't mean thay can't do it.



If we can get the new shells BEFORE Intel releases the IVB processors then we will offer them with Sandy Bridge. All depends on when Clevo finishes the re-tooling and gets going on production.

For no branding, we can do that just ask =) We can do a lot thats not on our configurators, we can't put it all up there or it would be 25 pages lol.



So I basically have to choose between a backlit keyboard and a good keyboard...

Whyyyyyyyyyyyyyyyyy?



Don't forget about the touchpad button(s)



Whats the difference?



the manual said that there actually IS a choice to include the fingerprint reader and thus have the usual two button touchpad as is now the case with the P1xxHM series



Sorry, quoting myself.

Anyway, the 3D version of the P170EM will be a slightly different beast in that it WONT have optimus on it, it will be directly wired like the HM. So it will be a different motherboard totally.



Wow, wonder why they chose to do that.. Able to put a 120hz screen on a non 3D 170EM?



I know I'm looking like a noob with this question, but...

Do these machines include the new nvidia Kepler GPU's? I'm buying a new laptop this year and since I need it to last 4 years at least, I plan on waiting for Ivy Bridge and the new Kepler cards. Are the Kepler cards the 'rebranded' 670M? Why call them rebranded if that's the case?

Jorune



Maybe we don't know yet. But I wouldn't put too much hope in it.



From all our information the 670 and 675 are Fermi NOT Kepler, now you don't see a 680m which could be Kepler, so right now they are rebranded but have an obvious hole in their lineup.
