    P750DM-G GTX 1070 Upgrade Help

    Discussion in 'Sager and Clevo' started by Brad Robinson, Jul 16, 2020.

  1. Brad Robinson

    Brad Robinson Notebook Enthusiast

    Reputations:
    0
    Messages:
    30
    Likes Received:
    2
    Trophy Points:
    16
    Well, no luck tonight, I tried the Fn+D reset with no luck and pulling the CMOS battery also didn’t work. I did pick up another laptop tonight, so it looks like I’ll be working off this one until the Bios chip arrives from Taiwan unless someone else has some suggestions.

    Thanks for confirming on the chip location, Moral Hazard

    Brad Robinson, Jul 23, 2020
    #51
    jc_denton likes this.
  2. moral hazard

    moral hazard Notebook Nobel Laureate

    Reputations:
    2,779
    Messages:
    7,957
    Likes Received:
    87
    Trophy Points:
    216
    Unsure about the P750, but with my P870DM I was able to flash via a SOP8 clip connected to my raspberry Pi (which had the latest version of flashROM). The GPIO pins on the Pi provided the correct power to the bios chip without the need to desolder.

    Same with my P375SM.

    moral hazard, Jul 23, 2020
    #52
    jc_denton and Johnksss like this.
  3. Johnksss

    Johnksss .

    Reputations:
    11,536
    Messages:
    19,464
    Likes Received:
    12,857
    Trophy Points:
    931
    Hummm, that sounds interesting. I have 2 raspberry PI's sitting here now. A 3 and a 4 and they are basically doing nothing. Can you point me to the info for that? Thanks.

    As for mine. I just plug the power cord in to the laptop and flash using my SkyPro 2 or 3 which stores the info on microsd.

    Johnksss, Jul 23, 2020
    #53
    jc_denton likes this.
  4. moral hazard

    moral hazard Notebook Nobel Laureate

    Reputations:
    2,779
    Messages:
    7,957
    Likes Received:
    87
    Trophy Points:
    216
    moral hazard, Jul 23, 2020
    #54
    Papusan, Johnksss and jc_denton like this.
  5. Johnksss

    Johnksss .

    Reputations:
    11,536
    Messages:
    19,464
    Likes Received:
    12,857
    Trophy Points:
    931
    You're not kidding!
    I might have had issues with that. I was flashing about 100 times a day in the pursuit of bios/vbios unlocking.
    Still, I may find time to give it a go. Tinkering is tinkering. :)

    Although his updated tutorial uses the TL866 II Plus, which is what I already have, but rarely use now.

    Thanks for the info @moral hazard .

    Johnksss, Jul 23, 2020
    #55
    Papusan and jc_denton like this.
  6. cafeogu

    cafeogu Notebook Enthusiast

    Reputations:
    0
    Messages:
    43
    Likes Received:
    3
    Trophy Points:
    16
    Hello everyone. I have installed gtx 1070 graphics card in p750. It works for 30 seconds and turns off. There is no information on the video card model in the BIOS. Tried three other bios, without success. Please help.


    Attached Files:

    cafeogu, Feb 22, 2021
    #56
  7. Damin

    Damin Notebook Consultant

    Reputations:
    15
    Messages:
    219
    Likes Received:
    48
    Trophy Points:
    41
    Dose the EC pannic lights flash green on the palmrest ? And are you on the latest bios and EC for your p750zm
    And is it the MSI GPU or the black PCB or green PCB ?

    Damin, Feb 22, 2021
    #57
  8. cafeogu

    cafeogu Notebook Enthusiast

    Reputations:
    0
    Messages:
    43
    Likes Received:
    3
    Trophy Points:
    16
    There is no panic mode, which is very strange. Black board color

    cafeogu, Feb 22, 2021
    #58
  9. cafeogu

    cafeogu Notebook Enthusiast

    Reputations:
    0
    Messages:
    43
    Likes Received:
    3
    Trophy Points:
    16

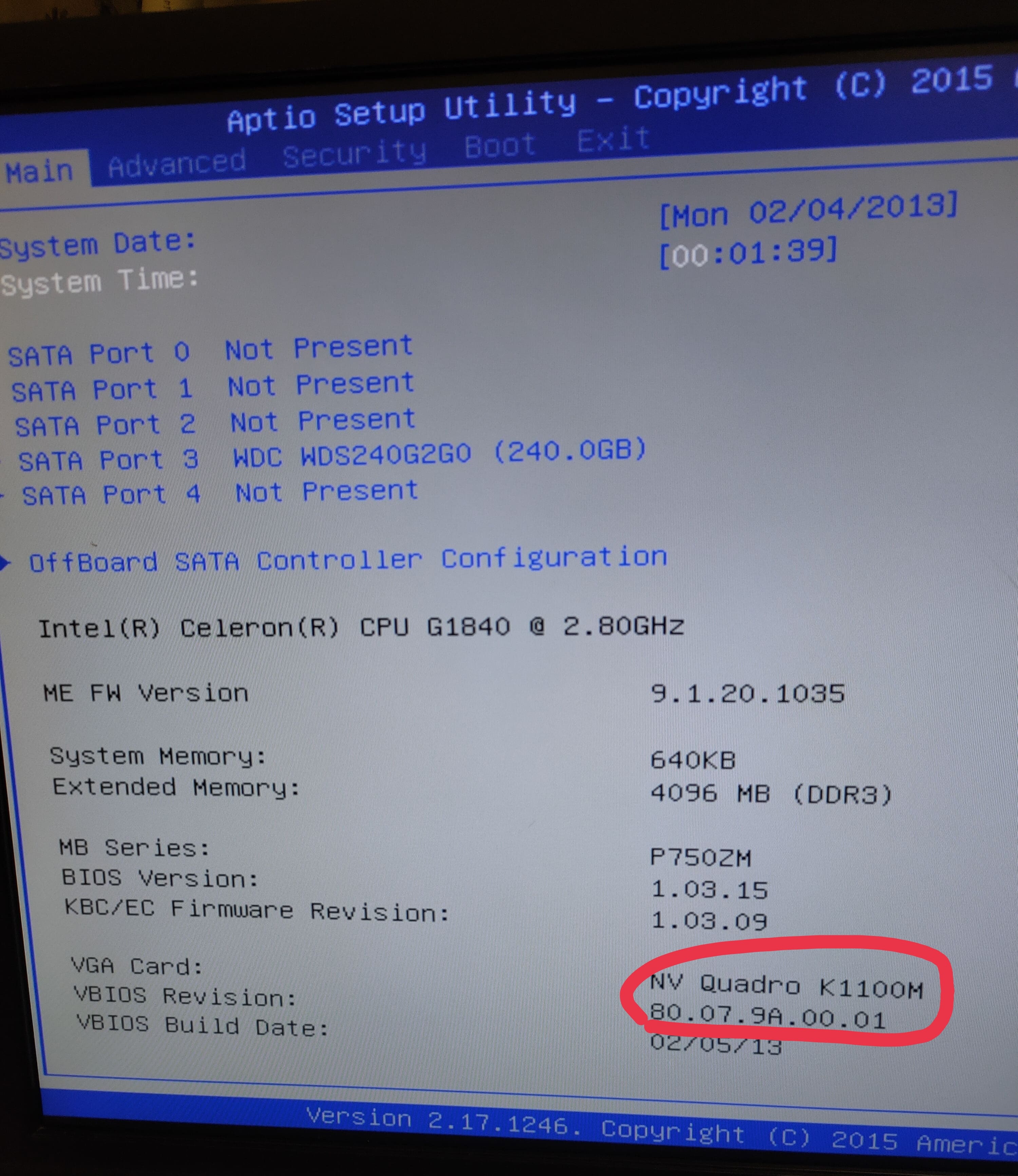

    k1100m is normally seen in the BIOS. But 1070 does not want (((


    Attached Files:

    cafeogu, Feb 22, 2021
    #59
  10. Damin

    Damin Notebook Consultant

    Reputations:
    15
    Messages:
    219
    Likes Received:
    48
    Trophy Points:
    41
    The bios dose not need to display the name this I know for sure.

    Are you on the latest laptop bios and EC ?

    Damin, Feb 22, 2021
    #60
  11. cafeogu

    cafeogu Notebook Enthusiast

    Reputations:
    0
    Messages:
    43
    Likes Received:
    3
    Trophy Points:
    16
    the latest version is installed on the laptop

    cafeogu, Feb 22, 2021
    #61
  12. Reciever

    Reciever D! For Dragon!

    Reputations:
    1,525
    Messages:
    5,350
    Likes Received:
    4,359
    Trophy Points:
    431
    Does the "Dell" variant work on Clevo machines?

    Reciever, Feb 22, 2021
    #62
  13. cafeogu

    cafeogu Notebook Enthusiast

    Reputations:
    0
    Messages:
    43
    Likes Received:
    3
    Trophy Points:
    16
    I installed BIOS from dell quadro p4000, there was a black screen and again shutdown after 30 seconds. Doesn't work at all

    cafeogu, Feb 22, 2021
    #63
  14. Damin

    Damin Notebook Consultant

    Reputations:
    15
    Messages:
    219
    Likes Received:
    48
    Trophy Points:
    41
    Wow that's super brave. Should not be necessary should just be the original vbios and a .inf mod if the card is working . I personally installed the MSI larger gtx 1070 MXM in to my p751zm

    Damin, Feb 22, 2021
    #64
  15. cafeogu

    cafeogu Notebook Enthusiast

    Reputations:
    0
    Messages:
    43
    Likes Received:
    3
    Trophy Points:
    16
    can you give me your bios?

    cafeogu, Feb 22, 2021
    #65
  16. Reciever

    Reciever D! For Dragon!

    Reputations:
    1,525
    Messages:
    5,350
    Likes Received:
    4,359
    Trophy Points:
    431
    If it cant read the temp sensor its going to turn back off

    Reciever, Feb 22, 2021
    #66
  17. cafeogu

    cafeogu Notebook Enthusiast

    Reputations:
    0
    Messages:
    43
    Likes Received:
    3
    Trophy Points:
    16
    If he does not see the temperature, then the panic mode turns on. 22 beeps and blinks, fans should spin as much as possible. At the moment there is no panic, with the panic mode the laptop works for about a minute or more.

    cafeogu, Feb 22, 2021
    #67
  18. Damin

    Damin Notebook Consultant

    Reputations:
    15
    Messages:
    219
    Likes Received:
    48
    Trophy Points:
    41
    I'm not home at the moment but I can find the vbios online

    Is your GPU 1BA1 or 1BE1 ?

    And your laptop is using EDP for display obviously ?

    Damin, Feb 23, 2021
    #68
  19. cafeogu

    cafeogu Notebook Enthusiast

    Reputations:
    0
    Messages:
    43
    Likes Received:
    3
    Trophy Points:
    16
    My display using EDP. GPU unknown. Supper pooper chinese gtx 1070.

    cafeogu, Feb 23, 2021
    #69
  20. Damin

    Damin Notebook Consultant

    Reputations:
    15
    Messages:
    219
    Likes Received:
    48
    Trophy Points:
    41
    Ok EDP is good do we have a original vbios that the GPU arrived with to find out if it's 1ba1 or 1be1 please

    Damin, Feb 23, 2021
    #70
  21. cafeogu

    cafeogu Notebook Enthusiast

    Reputations:
    0
    Messages:
    43
    Likes Received:
    3
    Trophy Points:
    16
    I do not know how to determine the ID of the video card

    cafeogu, Feb 23, 2021
    #71
  22. Damin

    Damin Notebook Consultant

    Reputations:
    15
    Messages:
    219
    Likes Received:
    48
    Trophy Points:
    41
    Ok but you have flashed other vbios on the GPU did you backup the original vbios because that will let us know if your GPU is 1ba1 or 1be1

    Damin, Feb 23, 2021
    #72
  23. cafeogu

    cafeogu Notebook Enthusiast

    Reputations:
    0
    Messages:
    43
    Likes Received:
    3
    Trophy Points:
    16

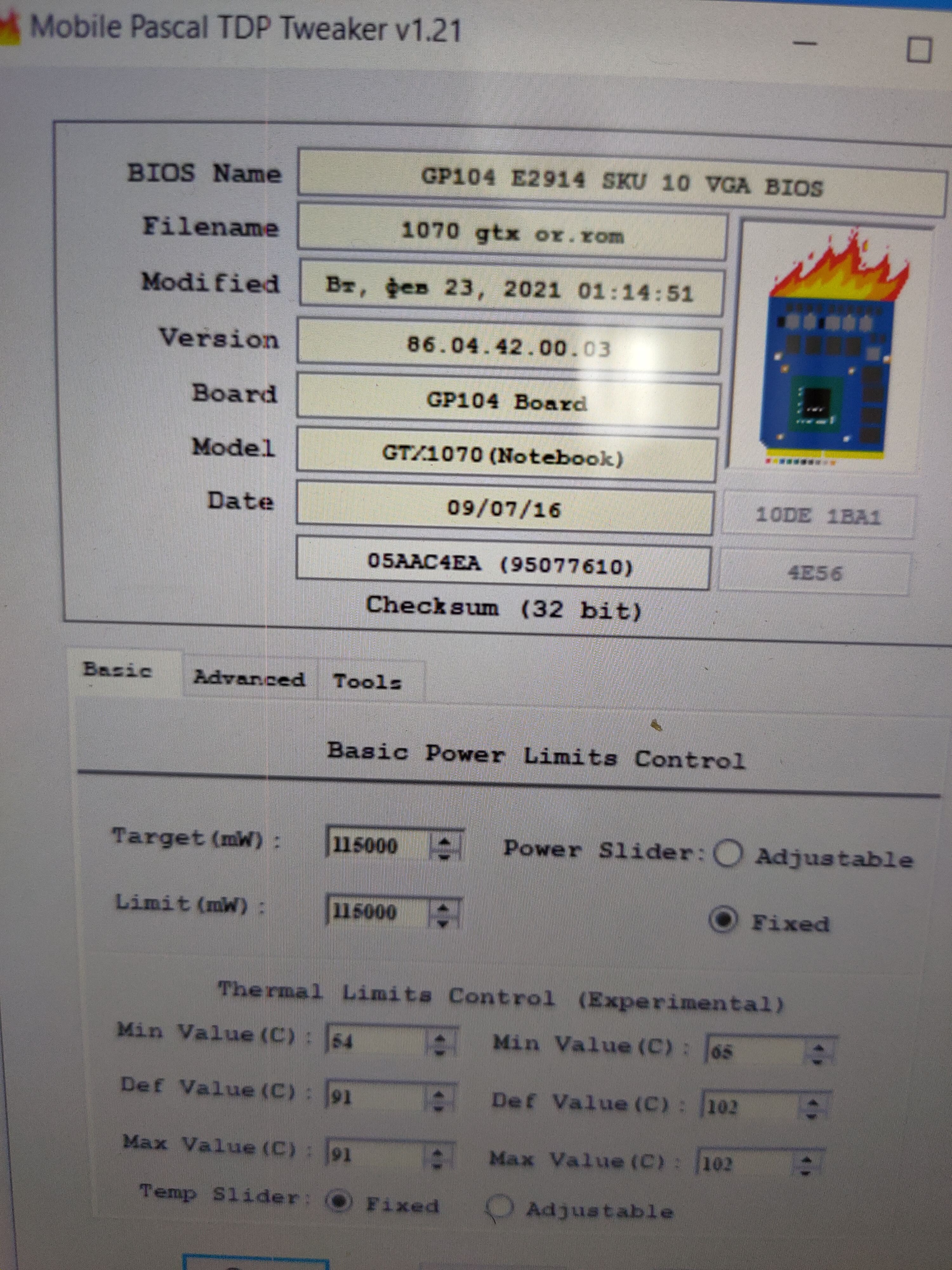

    1BA1 id from original vbios

    cafeogu, Feb 23, 2021
    #73
  24. cafeogu

    cafeogu Notebook Enthusiast

    Reputations:
    0
    Messages:
    43
    Likes Received:
    3
    Trophy Points:
    16

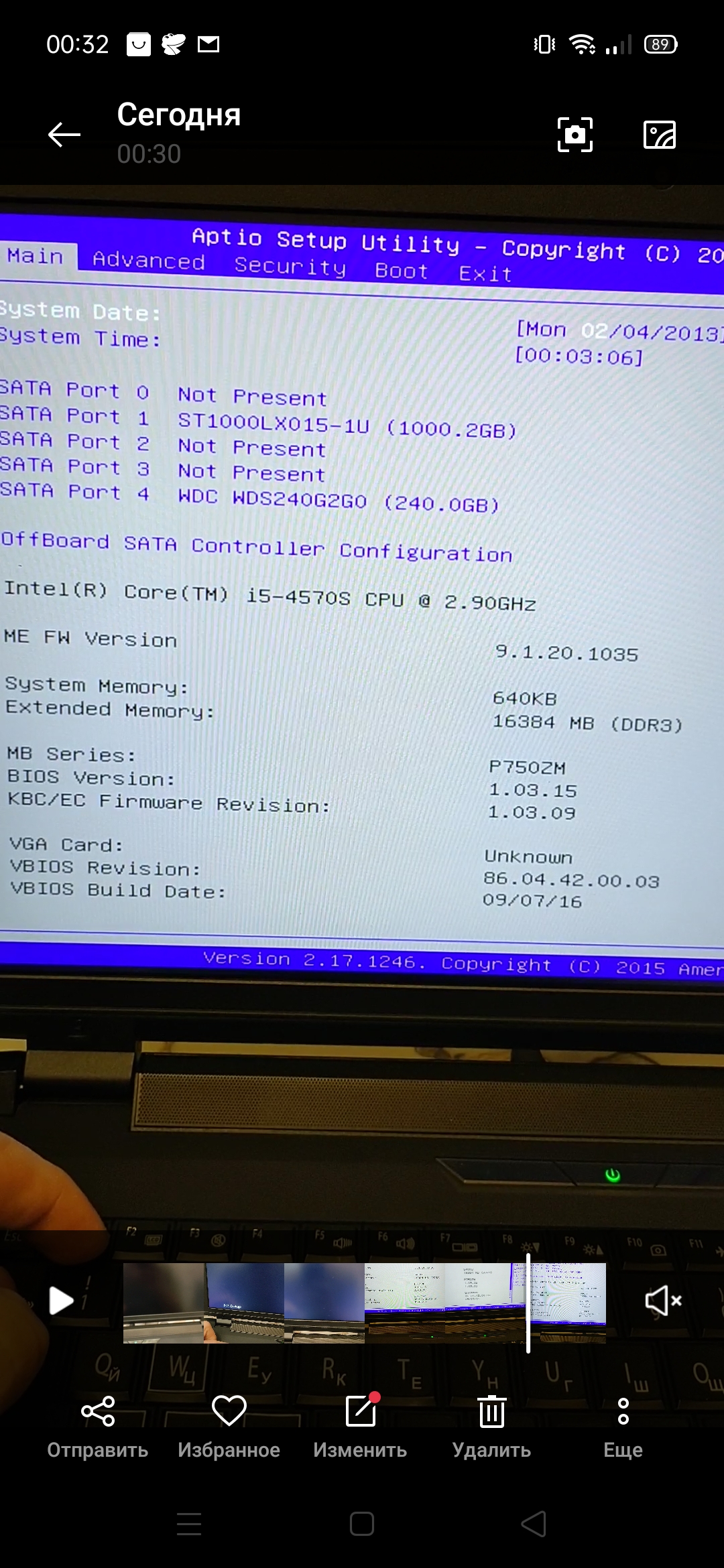

    Screenshot


    Attached Files:

    cafeogu, Feb 23, 2021
    #74
  25. Damin

    Damin Notebook Consultant

    Reputations:
    15
    Messages:
    219
    Likes Received:
    48
    Trophy Points:
    41
    86.04.80.00.5F have you tried that one it's the 1ba1 from the MSI MXM GT range

    Damin, Feb 23, 2021
    #75
  26. cafeogu

    cafeogu Notebook Enthusiast

    Reputations:
    0
    Messages:
    43
    Likes Received:
    3
    Trophy Points:
    16
    Checked this bios. The laptop does not see the video card and turns off after 30 seconds

    cafeogu, Feb 23, 2021
    #76
  27. Damin

    Damin Notebook Consultant

    Reputations:
    15
    Messages:
    219
    Likes Received:
    48
    Trophy Points:
    41
    dose the GPU work in any other system ? have you tried another brand of laptop bios some of them are unlocked ?

    Damin, Feb 23, 2021
    #77
  28. cafeogu

    cafeogu Notebook Enthusiast

    Reputations:
    0
    Messages:
    43
    Likes Received:
    3
    Trophy Points:
    16
    This gtx 1070 works in hp 8740w, but the image is only on the external screen, as the internal lvds interface. The problem is with the p750zm itself, its BIOS refuses to work with the gtx 1070 (((

    cafeogu, Feb 23, 2021
    #78
  29. cafeogu

    cafeogu Notebook Enthusiast

    Reputations:
    0
    Messages:
    43
    Likes Received:
    3
    Trophy Points:
    16
    I am trying uefi boot, but same 30 second after start and system shutdown

    cafeogu, Feb 23, 2021
    #79
  30. cafeogu

    cafeogu Notebook Enthusiast

    Reputations:
    0
    Messages:
    43
    Likes Received:
    3
    Trophy Points:
    16

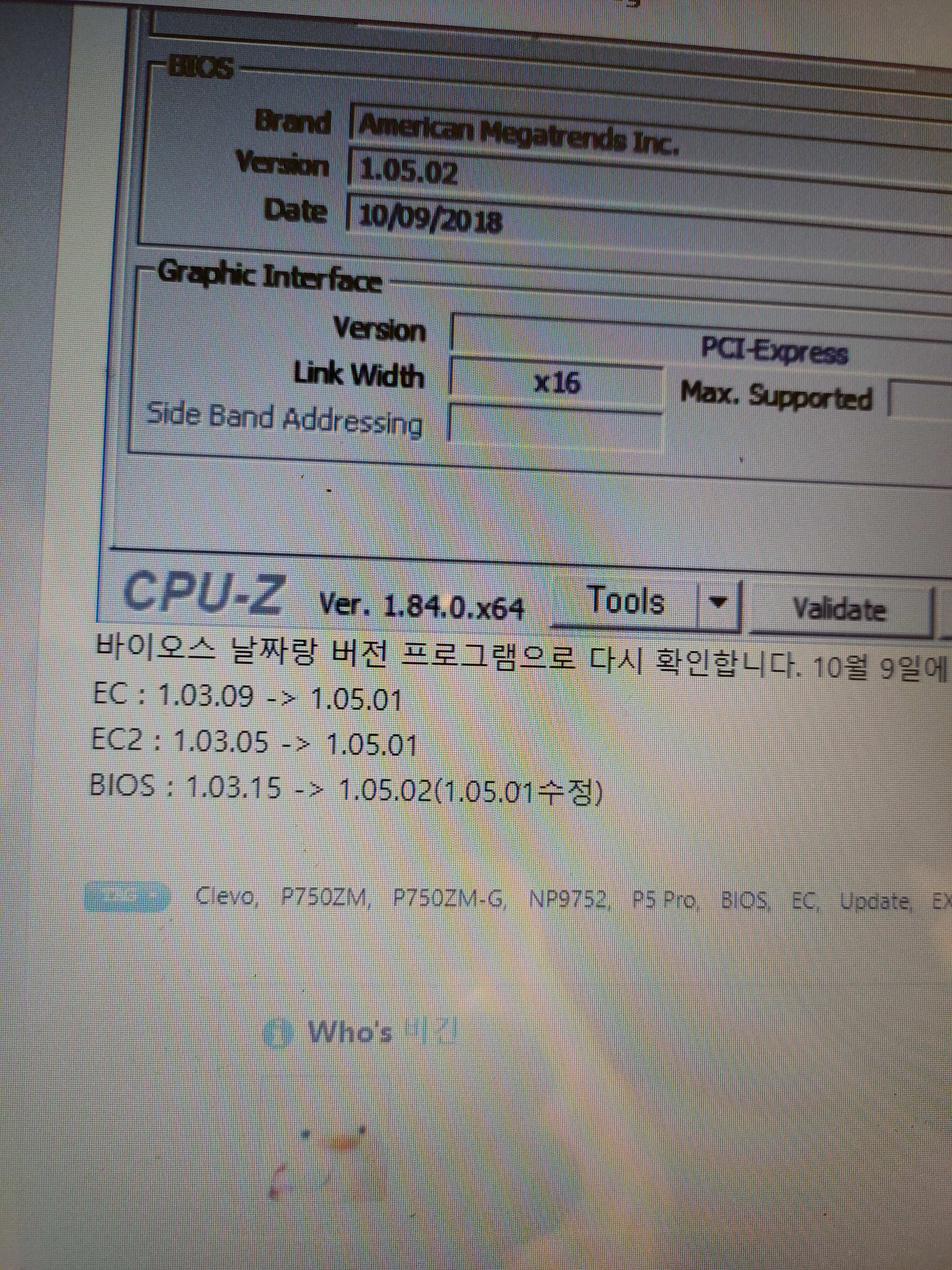

    Here's what I found out. I need BIOS 1.05.01 for Clevo p750zm. Does anyone have it?


    Attached Files:

    cafeogu, Feb 24, 2021
    #80
  31. Damin

    Damin Notebook Consultant

    Reputations:
    15
    Messages:
    219
    Likes Received:
    48
    Trophy Points:
    41
    I will send you a pm but double check it please because of the risk

    Damin, Feb 24, 2021
    #81
  32. Damin

    Damin Notebook Consultant

    Reputations:
    15
    Messages:
    219
    Likes Received:
    48
    Trophy Points:
    41
    And update us

    Damin, Feb 24, 2021
    #82
  33. djogazito

    djogazito Newbie

    Reputations:
    0
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    5
    Hy,i have the same machine and 980m inside with i5 8400 and dsanke moded bios.Could you tell me if 1070 can work in my Laptop?
    I have 330w psu because 230w is just to small.

    Thank you for answers guys.

    Best regards!

    djogazito, Apr 6, 2021
    #83
  34. Damin

    Damin Notebook Consultant

    Reputations:
    15
    Messages:
    219
    Likes Received:
    48
    Trophy Points:
    41
    it will work may need a .inf mod . and only use the MSI GPU i think ..you may need to remove a M.2 connector

    Damin, Apr 6, 2021
    #84
    djogazito likes this.
