    P770ZM-G hard drive form factor question

    Discussion in 'Sager and Clevo' started by flyboynm, Jul 3, 2017.

  1. flyboynm

    flyboynm Notebook Consultant

    Reputations:
    28
    Messages:
    217
    Likes Received:
    70
    Trophy Points:
    41
    What is the thickest hard drive we can put in one of the 2.5 inch SATA bays? Can we put a 15mm drive into one of the bays?

    flyboynm, Jul 3, 2017
    #1
  2. flyboynm

    flyboynm Notebook Consultant

    Reputations:
    28
    Messages:
    217
    Likes Received:
    70
    Trophy Points:
    41
    Up to a 9.5mm height drive. I was hoping for something slightly larger. Oh well. 2.5 inch drives won't get much larger in capacity unless you go all Solid State. I can't afford that right now. :(

    Did any of you see that Seagate has created a 60TB Solid State drive? OUCH to the pocketbook.

    flyboynm, Jul 3, 2017
    #2
    namaiki likes this.
  3. namaiki

    namaiki "basically rocks" Super Moderator

    Reputations:
    3,905
    Messages:
    6,116
    Likes Received:
    89
    Trophy Points:
    216
    What's the largest 9.5mm conventional rotating HDD nowadays? Is it still the 2TB? Are you going to do a small SSD and then another larger drive for storage?

    namaiki, Jul 3, 2017
    #3
  4. 5P4MB0T

    5P4MB0T Notebook Guru

    Reputations:
    24
    Messages:
    62
    Likes Received:
    30
    Trophy Points:
    26
    Yep. Anything above is 15mm atm.

    5P4MB0T, Jul 4, 2017
    #4
  5. Thousandmagister

    Thousandmagister Notebook Consultant

    Reputations:
    10
    Messages:
    102
    Likes Received:
    65
    Trophy Points:
    41
    Depend on your laptop case . If you remove the caddy bay and some other hindrances , perhaps you can fit it in :) .15mm is twice the size of a ssd , use a ruler or sth and you can figure it out on your own
    I personally don't need a caddy bay , I use foam instead ...but I can't say the same to you

    Thousandmagister, Jul 4, 2017
    #5
  6. flyboynm

    flyboynm Notebook Consultant

    Reputations:
    28
    Messages:
    217
    Likes Received:
    70
    Trophy Points:
    41
    The largest 9.5mm drive is 2TB. We are near the maximum we can possibly have in density of that form factor. SSD have been shown by Seagate and Samsung to be over 15TB in size.

    flyboynm, Jul 4, 2017
    #6
  7. saturnotaku

    saturnotaku Notebook Nobel Laureate

    Reputations:
    4,879
    Messages:
    8,926
    Likes Received:
    4,707
    Trophy Points:
    431
    Most notebooks, even desktop replacements, don't have optical drives. As such, caddies are not an option.

    saturnotaku, Jul 4, 2017
    #7
    5P4MB0T likes this.
  8. Thousandmagister

    Thousandmagister Notebook Consultant

    Reputations:
    10
    Messages:
    102
    Likes Received:
    65
    Trophy Points:
    41

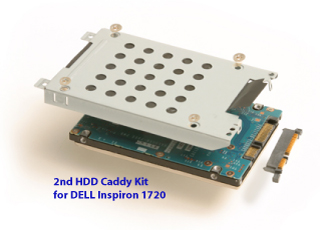

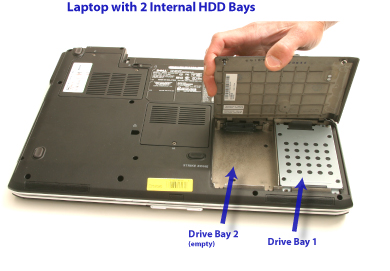

    Not that one . This one
    [​IMG]
    [​IMG]

    Last edited: Jul 4, 2017
    Thousandmagister, Jul 4, 2017
    #8
  9. saturnotaku

    saturnotaku Notebook Nobel Laureate

    Reputations:
    4,879
    Messages:
    8,926
    Likes Received:
    4,707
    Trophy Points:
    431
    That's not possible with most Clevo notebooks. However, the P6XX line might be able to accommodate a thicker drive. You would simply lose access to the second SATA slot in the process.


    Sent from my iPhone using Tapatalk

    saturnotaku, Jul 4, 2017
    #9
  10. Thousandmagister

    Thousandmagister Notebook Consultant

    Reputations:
    10
    Messages:
    102
    Likes Received:
    65
    Trophy Points:
    41
    Both my Clevo W230SS and NEC VersaPro has it , no idea about other clevo laptops though

    Thousandmagister, Jul 4, 2017
    #10
