    P870 LCD EDP 40pin Cable 6-43-P8701-020-1N ???

    Discussion in 'Sager and Clevo' started by eddie76, Jan 9, 2019.

  1. eddie76

    eddie76 Notebook Enthusiast

    Reputations:
    2
    Messages:
    13
    Likes Received:
    8
    Trophy Points:
    6
    Hello. I came across this cable
    6-43-P8701-020-1N
    while gathering info about upgrading the LCD panel. The service manual says the cable part number should be
    6-43-P8701-020-1L but the one I found looks like exactly like this one and it s sold for Clevo P870 notebooks. I'm not able to find any reference to it , anyone can help? Thank you in advance.

    eddie76, Jan 9, 2019
    #1
  2. Rahego

    Rahego Notebook Consultant

    Reputations:
    77
    Messages:
    267
    Likes Received:
    136
    Trophy Points:
    56
    just out of curiosity - what kind of LCD you're planning to get?

    Rahego, Jan 9, 2019
    #2
  3. eddie76

    eddie76 Notebook Enthusiast

    Reputations:
    2
    Messages:
    13
    Likes Received:
    8
    Trophy Points:
    6
    Probably this one
    AUO B173HAN03.1

    eddie76, Jan 9, 2019
    #3
  4. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    The N is a 40 pin eDP IIRC.

    Meaker@Sager, Jan 9, 2019
    #4
  5. eddie76

    eddie76 Notebook Enthusiast

    Reputations:
    2
    Messages:
    13
    Likes Received:
    8
    Trophy Points:
    6

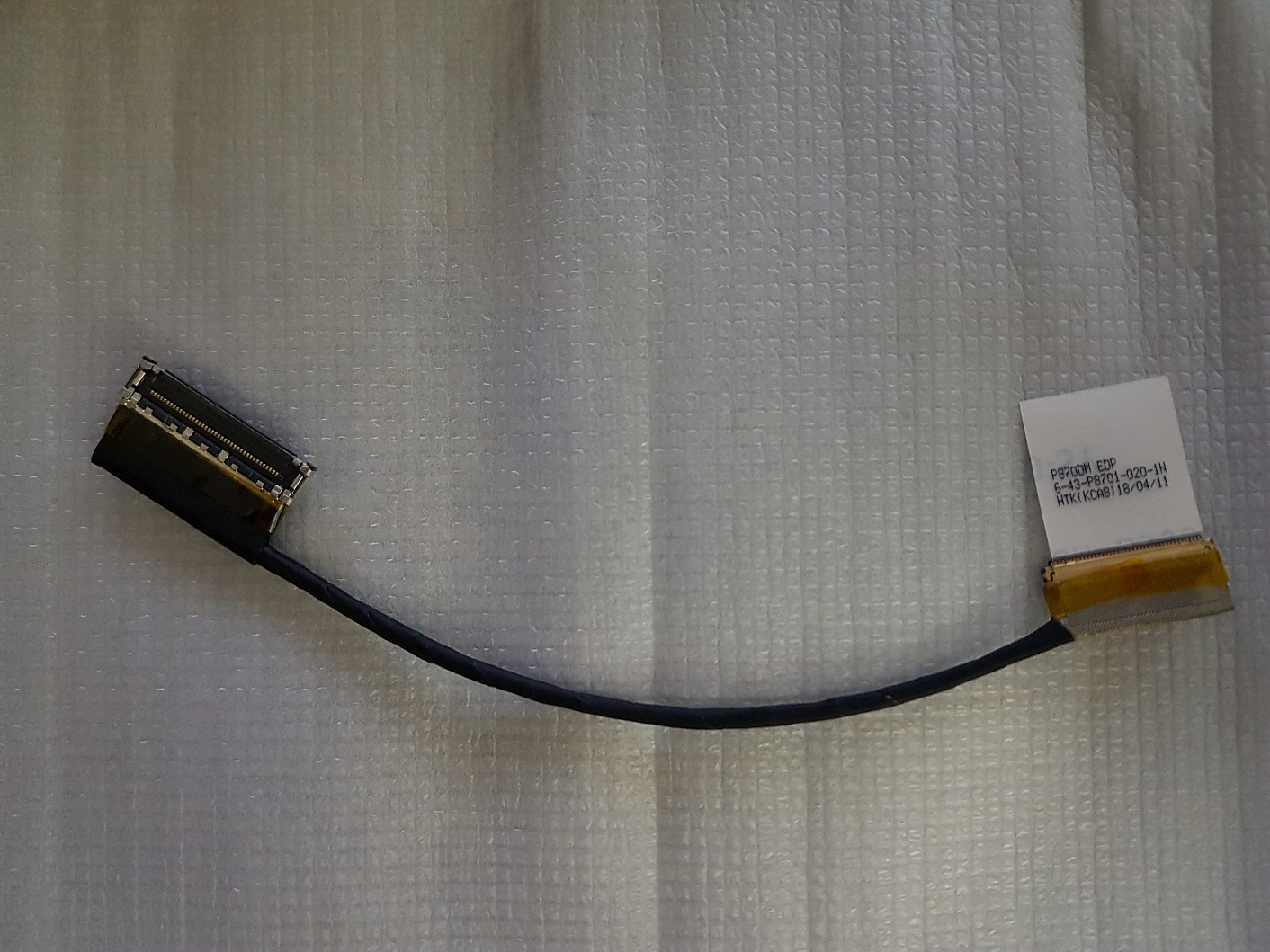

    That s the cable. Do you think it s gonna work?


    Attached Files:

    eddie76, Jan 9, 2019
    #5
  6. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    So long as it's 40 pin on one end for the display it will work with 40 pin displays.

    Meaker@Sager, Jan 9, 2019
    #6
  7. eddie76

    eddie76 Notebook Enthusiast

    Reputations:
    2
    Messages:
    13
    Likes Received:
    8
    Trophy Points:
    6
    Thank you!

    eddie76, Jan 9, 2019
    #7
  8. eddie76

    eddie76 Notebook Enthusiast

    Reputations:
    2
    Messages:
    13
    Likes Received:
    8
    Trophy Points:
    6
    - UPDATE -

    The cable works just fine. I m using it on a P870KM instead of the cable with p/n 6-43-P8701-020-1L shown in the service manual.

    eddie76, Oct 3, 2019
    #8
  9. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    Excellent, enjoy the panel :)

    Meaker@Sager, Oct 3, 2019
