P870km /km1 coffelake support bios are on line now

P870KM PDF(schematic) : https://repo.palkeo.com/clevo-mirror/P87xKMx/P870KM1_SM.zip

P870KM1 PDF(schematic) : https://repo.palkeo.com/clevo-mirror/P87xKMx/P870KM1_SM.zip





01tps://cdn.discordapp.com/attachments/429342223050473474/464701055028953088/48889054.7z (old version)
here is the file and programmer (ch341 flash in require )
=========================================================================
https://cdn.discordapp.com/attachme...316225840087050/P870KM_all_done_beta_ver1.zip

-base on P870KM-G
-under bios core overclocking (over 8core)is unable
-fix Gsync issue
- support
Core i7 ES-QN8J(U0) Coffee Lake-S 1.6GHz 12MB 35W
Core i7 ES-QN8G(U0) Coffee Lake-S 3.2GHz 12MB 95W
Core i7 ES-QN8H(U0) Coffee Lake-S 2.9GHz 12MB 65W
Core i7 i7-8700K(U0) Coffee Lake-S 3.7GHz 12MB 95W
Core i7 i7-8700(U0) Coffee Lake-S 3.2GHz 12MB 65W
Core i7 i7-8700T(U0) Coffee Lake-S 2.4GHz 12MB 35W
Core i7 i7-8086K Coffee Lake-S 4.0GHz 12MB 95W
Core i7 i7-7700K(B0) Kaby Lake 4.2GHz 8MB 91W
Core i7 i7-7700(B0) Kaby Lake 3.6GHz 8MB 65W
Core i7 i7-7700T(B0) Kaby Lake 2.9GHz 8MB 35W
Core i7 i7-6700K(R0) Skylake S 4.0GHz 8MB 91W
Core i7 i7-6700(R0) Skylake S 3.4GHz 8MB 65W
Core i7 i7-6700T(R0) Skylake S 2.8GHz 8MB 35W
Core i5 i5-8600K(U0) Coffee Lake-S 3.6GHz 9MB 95W
Core i5 i5-8600(U0) Coffee Lake-S 3.1GHz 9MB 65W
Core i5 i5-8600T(U0) Coffee Lake-S 2.3GHz 9MB 35W
Core i5 i5-8500(U0) Coffee Lake-S 3GHz 9MB 65W
Core i5 i5-8500T(U0) Coffee Lake-S 2.1GHz 9MB 35W
Core i5 i5-8400(U0) Coffee Lake-S 2.8GHz 9MB 65W
Core i5 i5-8400T(U0) Coffee Lake-S 1.7GHz 9MB 35W
Core i5 i5-7600K(B0) Kaby Lake 3.8GHz 6MB 91W
Core i5 i5-7600(B0) Kaby Lake 3.5GHz 6MB 65W
Core i5 i5-7600T(B0) Kaby Lake 2.8GHz 6MB 35W
Core i5 i5-7500(B0) Kaby Lake 3.4GHz 6MB 65W
Core i5 i5-7500T(B0) Kaby Lake 2.7GHz 6MB 35W
Core i5 i5-7400(B0) Kaby Lake 3.0GHz 6MB 65W
Core i5 i5-7400T(B0) Kaby Lake 2.4GHz 6MB 35W
Core i5 i5-6600K(R0) Skylake S 3.5GHz 6MB 91W
Core i5 i5-6600(R0) Skylake S 3.3GHz 6MB 65W
Core i5 i5-6600T(R0) Skylake S 2.7GHz 6MB 35W
Core i5 i5-6500(R0) Skylake S 3.2GHz 6MB 65W
Core i5 i5-6500T(R0) Skylake S 2.5GHz 6MB 35W
Core i5 i5-6402P (R0) Skylake S 2.8GHz 6MB 65W
Core i5 i5-6400(R0) Skylake S 2.7GHz 6MB 65W
Core i5 i5-6400T(R0) Skylake S 2.2GHz 6MB 35W
Core i3 i3-8350K(B0) Coffee Lake-S 4.0GHz 8MB 91W
Core i3 i3-8300(B0) Coffee Lake-S 3.7GHz 8MB 62W
Core i3 i3-8300T(B0) Coffee Lake-S 3.2GHz 8MB 35W
Core i3 i3-8100(B0) Coffee Lake-S 3.6GHz 6MB 65W
Core i3 i3-8100(U0) Coffee Lake-S 3.6GHz 6MB 65W
Core i3 i3-8100T(B0) Coffee Lake-S 3.1GHz 6MB 35W
Core i3 i3-7350K(S0) Kaby Lake 4.2GHz 4MB 60W
Core i3 i3-7320(S0) Kaby Lake 4.1GHz 4MB 51W
Core i3 i3-7300(S0) Kaby Lake 4.0GHz 4MB 51W
Core i3 i3-7300T(S0) Kaby Lake 3.5GHz 4MB 35W
Core i3 i3-7100(S0) Kaby Lake 3.9GHz 3MB 51W
Core i3 i3-7100T(S0) Kaby Lake 3.4GHz 3MB 35W
Core i3 i3-6320(S0) Skylake S 3.9GHz 4MB 51W
Core i3 i3-6300(S0) Skylake S 3.8GHz 4MB 51W
Core i3 i3-6300T(S0) Skylake S 3.3GHz 4MB 35W
Core i3 i3-6100(S0) Skylake S 3.7GHz 3MB 51W
Core i3 i3-6100T(S0) Skylake S 3.2GHz 3MB 35W
Core i3 i3-6098P (R0) Skylake S 3.6GHz 3MB 54W
Pentium G5600(B0) Coffee Lake-S 3.9GHz 4MB 54W
Pentium G5500(B0) Coffee Lake-S 3.8GHz 4MB 54W
Pentium G5500T(B0) Coffee Lake-S 3.2GHz 4MB 35W
Pentium G5400(U0) Coffee Lake-S 3.7GHz 4MB 58W
Pentium G5400T(U0) Coffee Lake-S 3.1GHz 4MB 35W
Pentium G5400T(B0) Coffee Lake-S 3.1GHz 4MB 35W
Pentium G5400(B0) Coffee Lake-S 3.7GHz 4MB 54W
Celeron G4920(B0) Coffee Lake-S 3.2GHz 2MB 54W
Celeron G4900(B0) Coffee Lake-S 3.1GHz 2MB 54W
Celeron G4900T(B0) Coffee Lake-S 2.9GHz 2MB 35W
Pentium G4600T(S0) Kaby Lake 3.0GHz 3MB 35W
Pentium G4560(B0) Kaby Lake 3.5GHz 3MB 54W
Pentium G4560T(S0) Kaby Lake 2.9GHz 3MB 35W
Pentium G4620(S0) Kaby Lake 3.7GHz 3MB 51W
Pentium G4600(S0) Kaby Lake 3.6GHz 3MB 51W
Pentium G4520(S0) Skylake S 3.6GHz 3MB 47W
Pentium G4500(S0) Skylake S 3.5GHz 3MB 47W
Pentium G4500T(S0) Skylake S 3.0GHz 3MB 35W
Pentium G4400(S0) Skylake S 3.3GHz 3MB 47W
Pentium G4400T(S0) Skylake S 2.9GHz 3MB 35W
Celeron G3950(S0) Kaby Lake 3.0GHz 2MB 51W
Celeron G3930(S0) Kaby Lake 2.9GHz 2MB 51W
Celeron G3930T(S0) Kaby Lake 2.7GHz 2MB 35W
Celeron G3920(S0) Skylake S 2.9GHz 2MB 47W
Celeron G3900(S0) Skylake S 2.8GHz 2MB 47W
Celeron G3900T(S0) Skylake S 2.6GHz 2MB 35W
=========================================================================



The usual disclaimers will apply.



How's 6 core with HT (12 thread) compatibility going on these bioses?



what is your device I have to know cuz different device have different bios



P870DM3

I remember a list from March? April? where all CPUs were working on almost all the LGA1151 Clevos except the 12 threads



IS P870DM3 SAME AS P870DM2??



Yes, same everything except GPUs and heatsink



SO YOU CAN JUST FLASH P870DM2 BIOS ON IT IF YOU HAVE BUG OR SOMETHING ELSE YOU CAN ASK ME



Just don't ask where caps lock is



oh sorry



I flashed the BIOS to my KM1 for testing purposes, I thought it might be fixing my 4x16GB memory issues, until now everything seems good, but no G-Sync? is there is any fix for that? and I still have the same memory problem .
Thanks.



I will make a 870km base (support 16treading) bios for everyone if Intel didn't send killer to me



Then I'll ask God to save you, don't worry, just keep low profile,
You are doing a good job,
Good luck.



Code:

=== Desktop processors ===
Mainstream Desktop, Workstation and basic Server Coffee Lake CPUs are intended to run with [[LGA 1151#Coffee Lake chipsets (300 series)|LGA 1151]] socket motherboards, but they are officially only compatible with 300-series chipsets.<ref>{{cite web|title=8th Gen (S-platform) Intel® Processor Family Datasheet Vol.1|url=https://www.intel.com/content/www/us/en/processors/core/8th-gen-processor-family-s-platform-datasheet-vol-1.html|accessdate=8 October 2017}}</ref>

{| class="wikitable" style="text-align: center;"
|-
! rowspan="3" | Processor<br>branding
! rowspan="3" | Model
! rowspan="3" |[[CPU core|Cores]]
([[Thread (computing)|Threads]])
! rowspan="3" | Base CPU<br>[[clock rate]]
! colspan="6" | [[Intel Turbo Boost|Turbo]] clock rate<ref name=anand12945>{{Cite news|url=https://www.anandtech.com/show/12945/the-intel-core-i7-8086k-review|title=The Intel Core i7-8086K Review|last=Cutress|first=Ian|date=2018-06-11}}</ref> [GHz]
! rowspan="3" | [[Intel HD and Iris Graphics|GPU]]
! rowspan="3" | max [[Graphics processing unit#Integrated graphics|GPU]]<br>clock rate
! rowspan="3" | L3<br>cache
! rowspan="3" | TDP
! rowspan="3" | Memory<br>support
! rowspan="3" | Price<br>(USD)
|-
! colspan="6" |Number of cores used
|-
! 1
! 2
! 3
! 4
! 5
! 6
|-
| rowspan="4" | Core i7
|[https://ark.intel.com/products/148263 8086K]
| rowspan="4" |6 (12)
| 4.0&nbsp;GHz
| 5.0
| rowspan="2" | 4.6
| rowspan="2" | 4.5
| colspan="2" rowspan="2" |4.4
| rowspan="2" | 4.3
| rowspan="19" |[[Intel_HD_and_Iris_Graphics#Kaby_Lake_Refresh_/_Coffee_Lake|UHD 630]]
| rowspan="4" | 1.20&nbsp;GHz
| rowspan="4" | 12&nbsp;MB
| rowspan="2" | 95&nbsp;W
| rowspan="11" |DDR4
2666
| $425
|-
| [https://ark.intel.com/products/126684 8700K]
| 3.7&nbsp;GHz
| 4.7
| $359
|-
| [https://ark.intel.com/products/126686 8700]
| 3.2&nbsp;GHz
| 4.6
| 4.5
| 4.4
| colspan="3" | 4.3
|65&nbsp;W
| rowspan="2" |$303
|-
|[https://ark.intel.com/products/129948 8700T]
|2.4 GHz
| colspan="1" |4.0
|4.0<ref>https://www.anandtech.com/show/12607/intel-expands-8th-gen-core-core-i9-on-mobile-iris-plus-desktop-chipsets-and-vpro/4</ref>
| colspan="2" |3.9
| colspan="2" |3.8
|35 W
|-
| rowspan="7" | Core i5
| [https://ark.intel.com/products/126685 8600K]
| rowspan="7" | 6 (6)
| 3.6&nbsp;GHz
| rowspan="2" | 4.3
| colspan="3" rowspan="2" | 4.2
| colspan="2" rowspan="2" | 4.1
| rowspan="3" | 1.15&nbsp;GHz
| rowspan="7" | 9&nbsp;MB
| 95&nbsp;W
| $257
|-
|[https://ark.intel.com/products/129937 8600]
|3.1 GHz
|65 W
| rowspan="2" |$213
|-
|[https://ark.intel.com/products/129938 8600T]
|2.3 GHz
|3.7
| colspan="3" |3.6
| colspan="2" |3.5
|35 W
|-
|[https://ark.intel.com/products/129939 8500]
|3.0 GHz
|4.1
| colspan="3" |4.0
| colspan="2" |3.9
| rowspan="2" |1.10 GHz
|65 W
| rowspan="2" |$192
|-
|[https://ark.intel.com/products/129941 8500T]
|2.1 GHz
|3.5
|3.4
| colspan="2" |3.3
| colspan="2" |3.2
|35 W
|-
| [https://ark.intel.com/products/126687 8400]
| 2.8&nbsp;GHz
| 4.0
| colspan="3" | 3.9
| colspan="2" | 3.8
| rowspan="2" | 1.05&nbsp;GHz
| 65&nbsp;W
| rowspan="2" | $182
|-
|[https://ark.intel.com/products/129940 8400T]
|1.7 GHz
|3.3
|3.2
| colspan="2" |3.1
| colspan="2" |3.0
|35 W
|-
| rowspan="5" | Core i3
| [https://ark.intel.com/products/126689 8350K]
| rowspan="5" | 4 (4)
| 4.0&nbsp;GHz
| colspan="6" rowspan="13" {{N/A}}
| rowspan="3" | 1.15&nbsp;GHz
| rowspan="3" | 8&nbsp;MB
| 91&nbsp;W
| rowspan="13" | DDR4
2400
|$168
|-
|[https://ark.intel.com/products/129942 8300]
|3.7 GHz
|62 W
| rowspan="2" |$138
|-
|[https://ark.intel.com/products/129943 8300T]
|3.2 GHz
|35 W
|-
| [https://ark.intel.com/products/126688 8100]
| 3.6&nbsp;GHz
| rowspan="5" |1.10&nbsp;GHz
| rowspan="2" |6&nbsp;MB
|65&nbsp;W
| rowspan="2" |$117
|-
|[https://ark.intel.com/products/129944 8100T]
|3.1 GHz
|35 W
|-
| rowspan="5" |Pentium
Gold
|[https://ark.intel.com/products/129945 G5600]
| rowspan="5" |2 (4)
|3.9 GHz
| rowspan="5" |4 MB
| rowspan="2" |54 W
|$86
|-
|[https://ark.intel.com/products/129946 G5500]
|3.8 GHz
| rowspan="2" |$75
|-
|[https://ark.intel.com/products/129947 G5500T]
|3.2 GHz
|35 W
|-
|[https://ark.intel.com/products/129951 G5400]
|3.7 GHz
| rowspan="5" |[[Intel HD and Iris Graphics#Kaby Lake Refresh / Coffee Lake|UHD 610]]
| rowspan="5" |1.05 GHz
|54 W
| rowspan="2" |$64
|-
|[https://ark.intel.com/products/129949 G5400T]
|3.1 GHz
|35 W
|-
| rowspan="3" |Celeron
|[https://ark.intel.com/products/129950 G4920]
| rowspan="3" |2 (2)
|3.2 GHz
| rowspan="3" |2 MB
| rowspan="2" |54W
|$52
|-
|[https://ark.intel.com/products/129487 G4900]
|3.1 GHz
| rowspan="2" |$42
|-
|[https://ark.intel.com/products/129952 G4900T]
|2.9 GHz
|35 W
|}



Flashed, G-Sync confirmed working now, and I can see the model in BIOS information KM-KM1 instead of TM1 in the old version.

Thanks for your kind efforts, I'll try to find any 8700k cpu to test it, now I'm still using the 7700K.
Can you add more unlocked options in this BIOS?
Can you customize the booting logo?

I'll do some testing and update, and if there is any special test could anyone needs me to do I'll be happy to do it.



I can change boot logo



Is there any notable bug or so? If not, then it's gucci



Up to now the last version working fine with me no issues. It has very limited options for OC I can OC the CPU with basics things like undervolting, but still under testing. I'll update if I found any bugs.



How can I flash the EC? is it included with BIOS?



I would recommend not touching the EC unless you have some issues like power throttling out of nowhere etc.



Sometimes it is, sometimes it's not. It's a separate flash in the routine.



No power issues, I thought maybe it will fix the memory problem.



It has nothing to do with that, I've already gone over the only culprits with you.



Sorry but this is simply your board. I know it sucks but that's how it is sadly.



can you tell more detail with your memory problem cuz I repair lot of laptop already I guess I can help you to fix



Thank you for your kindness, you can find all information here:
http://forum.notebookreview.com/thr...ger-boots-if-using-all-4-memory-slots.822769/



Thank you for your kindness, you can find all information here:
http://forum.notebookreview.com/thr...ger-boots-if-using-all-4-memory-slots.822769/
I'm using your new BIOS for the KM1.

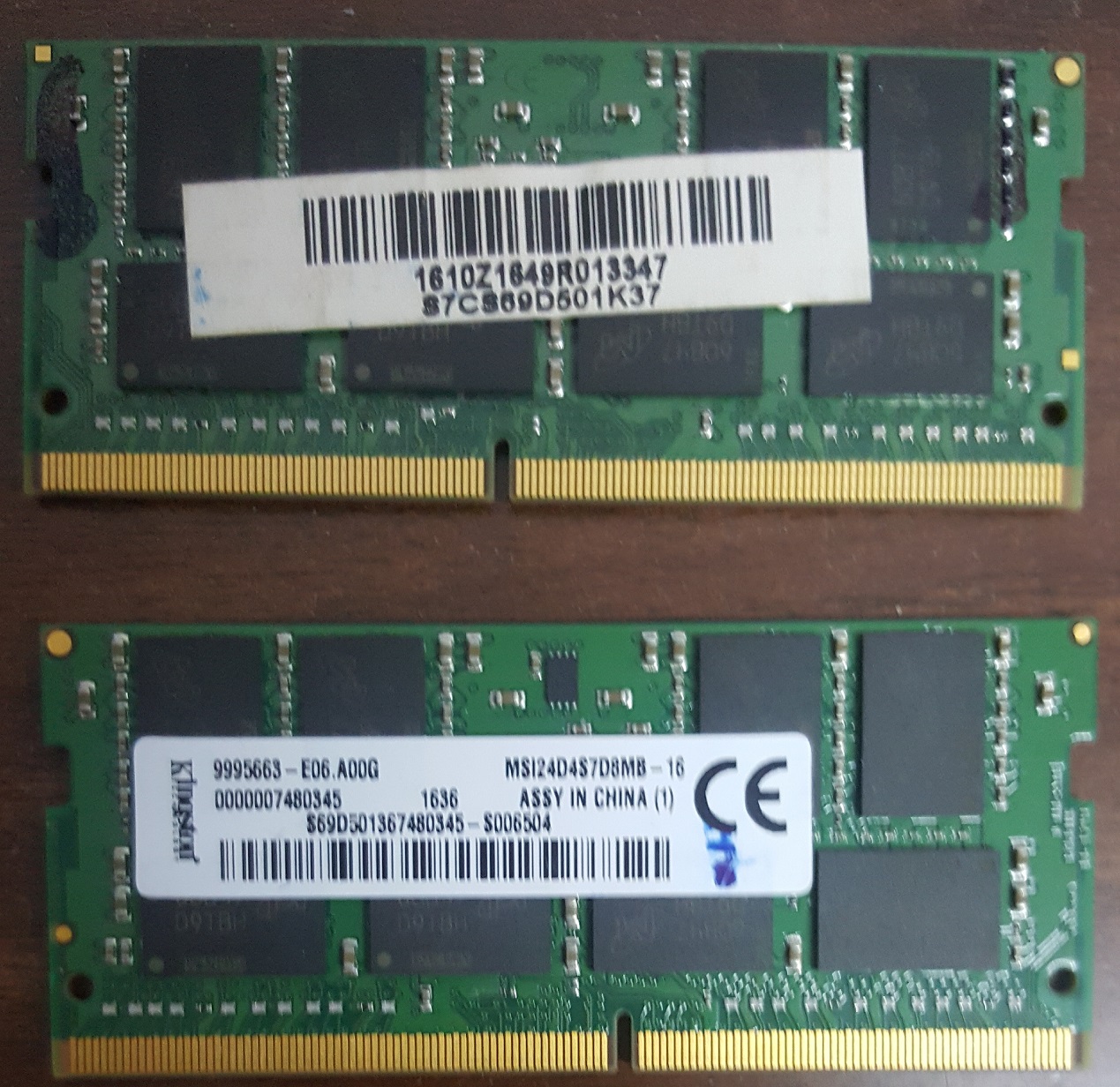

Attached the ram brand and model.



Eng. Meaker can you please explain more about what you mean about "disclaimers". Thanks



BIOS flashing can be risky, 3rd party files can be more so. Have a method ready to recover your machine worst case and take a backup of your original.



Thanks sir, this is what I did exactly. I have the backup but I didn't use it, so I'm not sure if it's working. And I have a programmer for the worst case.
I hope that Sager can provide this kind of BIOS updates/Upgrades officially someday



Without sanction from Intel that is very unlikely.



Sir, I think there are many safe indirect ways and workarounds that can be done far away from $ntel sanction and agreements. And what we have here is one of them.



Yes but you cant officially as a company.



I got the i7 8086K , do I need to mod it? like the attached picture? or something else? or no need?



yes you can use pencil to do short use tape to do isolate



I didn't succeed to short the 2 pins with pencil, so I just isolate the 2 pins and left the other without shorting them.

Issue 1: No matter what you set for the CPU speed in the BIOS, it's only working @4.40 and the cash @4.10. I succeed to run CINEBENCH with reasonable score (1408) as attached, and the temp was good (84c) without any undervolting, with -60 undervolating I can see temp under 80c, all at default settings.

How can I force the CPU speed to run faster?

Is that 2 pins needs shorting is really important? how to do it with an easy way?



Issue 2:
In the device manager only shows 8 threads, in the task manager performance monitor shows 12 threads.



@Meaker@Sager @52571abc
I need some insight, at least I need to know if I stay using the CPU without shorting the 2 pins is there is any risks for the CPU or anything else?
If there is anyway I can short the 2 pins please advise. and why the speed is limited to 4.40Ghz? coz of that 2 pins or something related to the BIOS?
I still have a big jump from the i7 7700K almost 40% increased on CINEBENCH, with undervolting -100 the temps as you see are 70c max.



You don't need shorting 2 pins on cpu if the motherboard already recognised your 8086K cpu and boot normally.

DId you already try to overclock by intel xtu or throttleStop?

If yes and can't, the reply is missing/not converted acpi table from original bios



As you said, do you recommend me to try using the cpu even without the isolated 2 pins?
I didn't try OC by any tools. But inside the BIOS I set all cores to 5.0Ghz.

Issue 3: I found that the BIOS deal with the 6 cores cpu as only 4 cores as the picture shows


And this is the BIOS information:



Now I can get the 5Ghz using ThrottleStop as below, but the temps get the 97c.



The ACPI list fix required lots of Time basically 4 hour per unit
but I will try



With ThrottleStop @4.70Ghz I got big increase in CINEBENCH (1537) and the temps at 80c max. I'm not an expert but I'm trying to tune the cpu as much as I can.



Regarding to the Pins (Isolated/Shorted) do I need that or not? The isolation is easy, but I almost damaged the cpu when I tried to short the 2 pins. Please advise,



can u do something for me


make a video and upload it to YouTube



or u can send me your video I will edit it and upload (but I will say that is you



What exactly you want me to show in this video? I can capture all pictures you need, it's more easier. I can do any test you ask for and provide the results.



No the isolated pins on cpu should be necessary to not burn motherboard.
The shorted pin on cpu is needed only in case the motherboard do not boot with modded bios alone.



Good to know, then I will just keep the isolated pins, thank you for your kind support.



Do you recommend that I flash the old BIOS version, the one shows TM1 in the bios information? I can sacrifices the G.Sync for the CPU stability?
https://cdn.discordapp.com/attachments/429342223050473474/464701055028953088/48889054.7z



Delid the CPU and use liquid metal to help but it is more cores.
