    Probably a stupid question...9800m GT to 260m GTX

    Discussion in 'Sager and Clevo' started by Guernica, Sep 12, 2011.

  1. Guernica

    Guernica Newbie

    Reputations:
    0
    Messages:
    6
    Likes Received:
    0
    Trophy Points:
    5
    I currently have a Sager NP9262 with a (possibly) fried Nvidia 9800m GT inside. After contacting Sager, they recommended upgrading to the 260m GTX.

    I have ordered the card, which looks like this:
    http://i56.tinypic.com/29o0ac2.jpg

    but noticed that it is missing the silver sheets pictured here:
    AnandTech - Gallery - Sager NP9262 - Dissected - 12 Photos

    what are these sheets called and how are they applied? I am assuming they are heat sinks? Do they need to be ordered through Sager or are they available online?

    Sorry if this seems like a really stupid question, I've never done this before.

    Guernica, Sep 12, 2011
    #1
  2. J.P.@XoticPC

    J.P.@XoticPC Company Representative

    Reputations:
    237
    Messages:
    595
    Likes Received:
    0
    Trophy Points:
    30
    Looks like a "heat shield." They show up on the Clevo D901C disassembly guide as well.

    I don't believe they are available online, or at least not that I've seen.

    J.P.@XoticPC, Sep 12, 2011
    #2
  3. Guernica

    Guernica Newbie

    Reputations:
    0
    Messages:
    6
    Likes Received:
    0
    Trophy Points:
    5
    Thanks, any idea if that means I would need them on the new card as well?

    Guernica, Sep 12, 2011
    #3
  4. J.P.@XoticPC

    J.P.@XoticPC Company Representative

    Reputations:
    237
    Messages:
    595
    Likes Received:
    0
    Trophy Points:
    30
    Probably. I would suggest contacting the seller to see if they have any spares left over just in case. :)

    J.P.@XoticPC, Sep 12, 2011
    #4
  5. DGDXGDG

    DGDXGDG Notebook Deity

    Reputations:
    737
    Messages:
    787
    Likes Received:
    6
    Trophy Points:
    31
    that one called "thermal pad"......just search it on ebay will find a lot

    DGDXGDG, Sep 12, 2011
    #5
  6. Larry@LPC-Digital

    Larry@LPC-Digital Company Representative

    Reputations:
    3,952
    Messages:
    3,580
    Likes Received:
    283
    Trophy Points:
    151
    Larry@LPC-Digital, Sep 12, 2011
    #6
  7. Saltius

    Saltius Notebook Evangelist

    Reputations:
    626
    Messages:
    321
    Likes Received:
    3
    Trophy Points:
    31

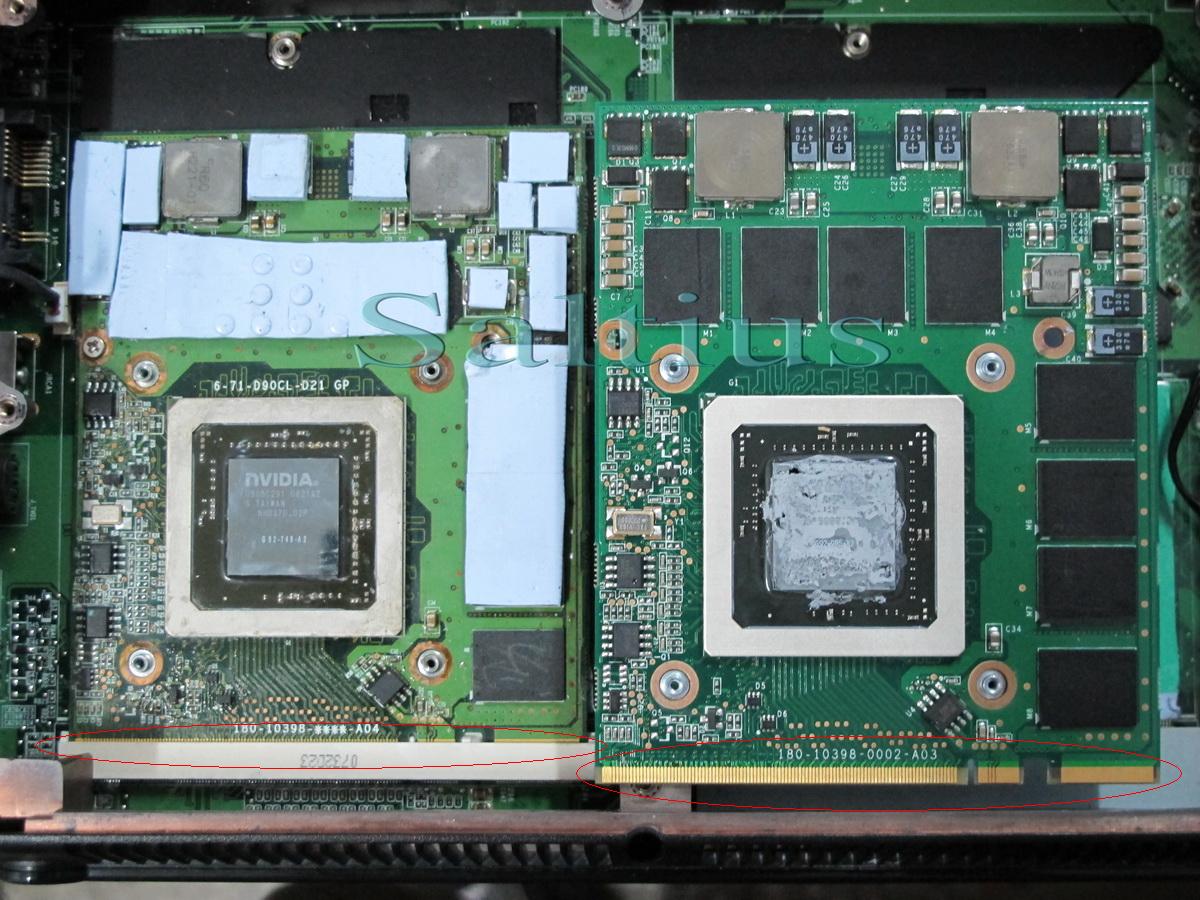

    You need MXM 2.1 version one

    Not MXM 3.0 one as your picture shows.

    Notice the connector of MXM 2.1 III-HE crads.

    [​IMG]

    Besides, I can't believe those guys form sager would be so ignorant that gave you incompatible one. You should contact them again. Maybe wrong pictures they provided.


    Attached Files:

    Saltius, Sep 12, 2011
    #7
  8. J.P.@XoticPC

    J.P.@XoticPC Company Representative

    Reputations:
    237
    Messages:
    595
    Likes Received:
    0
    Trophy Points:
    30
    ^ Very nice catch! I didn't even notice that. Shame on me.

    Funny, I've always called them heat shields :D But I stand corrected, thermal pads are the name. Thanks for the info guys.

    J.P.@XoticPC, Sep 13, 2011
    #8
  9. theriko

    theriko Ronin

    Reputations:
    1,303
    Messages:
    2,923
    Likes Received:
    4
    Trophy Points:
    56
    The silver bits are not thermal pads. They are basically heat shields, but are not necessary. What IS necessary is thermal pads on the RAM chips (as pictured on the top 4 ram chips of the first card in the anandtech photo - blue colour) and thermal paste on the GPU core

    theriko, Sep 13, 2011
    #9
  10. mmarchid

    mmarchid Notebook Evangelist

    Reputations:
    133
    Messages:
    496
    Likes Received:
    0
    Trophy Points:
    30
    You could peel off the heat shield from your fried 9800M GT and try to place it on the 260M GTX. I wouldn't use anything else.

    Sager has given you a 260M GTX card that has not been sold officially with D901C. It was only offered with M570TU/ETU and M860TU/ETU, hence the missing heat shield.

    mmarchid, Sep 14, 2011
    #10
  11. angelice1987

    angelice1987 Newbie

    Reputations:
    0
    Messages:
    9
    Likes Received:
    0
    Trophy Points:
    5
    so then this card plug and play with no bios update or anything else sorry i am looking at a similar replacement and just trying to make sure

    angelice1987, Jul 22, 2013
    #11
  12. MrDJ

    MrDJ Notebook Nobel Laureate

    Reputations:
    2,594
    Messages:
    10,832
    Likes Received:
    363
    Trophy Points:
    501
    when my 9800gt died it was replaced by supplier within 10 minutes and no bios was changed and its still going strong so these two cards are compatible.

    the 260gtx are hard to come by now and are quite pricey if you can find one.
    good luck

    MrDJ, Jul 22, 2013
    #12
  13. angelice1987

    angelice1987 Newbie

    Reputations:
    0
    Messages:
    9
    Likes Received:
    0
    Trophy Points:
    5
    well ive found a few on ebay that are 2.1 that were for alienware platform so im hoping to come buy one of those and since mine is a sager np9262 clevo d901c it should work for me to thanks for your help

    angelice1987, Jul 22, 2013
    #13
  14. MrDJ

    MrDJ Notebook Nobel Laureate

    Reputations:
    2,594
    Messages:
    10,832
    Likes Received:
    363
    Trophy Points:
    501
    caution as ive heard aw/dell cards dont always work on clevo's

    ask one of our experts. send Meaker a pm before you buy.

    MrDJ, Jul 23, 2013
    #14
  15. mattcheau

    mattcheau Notebook Deity

    Reputations:
    1,041
    Messages:
    1,246
    Likes Received:
    74
    Trophy Points:
    66
    ...or jaybee. he loves that question. :D

    Sent from my PI39100 using Board Express

    mattcheau, Jul 23, 2013
    #15
  16. MrDJ

    MrDJ Notebook Nobel Laureate

    Reputations:
    2,594
    Messages:
    10,832
    Likes Received:
    363
    Trophy Points:
    501
    ohh yeh, i forgot jaybee :D

    MrDJ, Jul 23, 2013
    #16
  17. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,906
    Trophy Points:
    931
    They are still not totally immune from the cracking issue though :/

    Meaker@Sager, Jul 23, 2013
    #17
