    Repaste Thermal Grizzly Conductonaut definitely worth it (clevo p650rs-g)

    Discussion in 'Sager and Clevo' started by McAudi, May 16, 2019.

  1. McAudi

    McAudi Notebook Consultant

    Reputations:
    24
    Messages:
    111
    Likes Received:
    44
    Trophy Points:
    41
    since owning my ( SAGER NP8658) clevo p650rs-g i7-6820hk (per-ordered for the release of gtx1070), i haven't re-pasted it lel.
    was so caked on, was like a biscuit. i read a lot of posts about bricked laptops and desktops, but just do your research. I also replaced all my thermal pads (last pic, which isn't mine gives an idea of sizes). some of the measurements are wrong so just measure yourself the mm.
    overall idling and gaming i am down approx 20 °C.

    here are the steps i did:

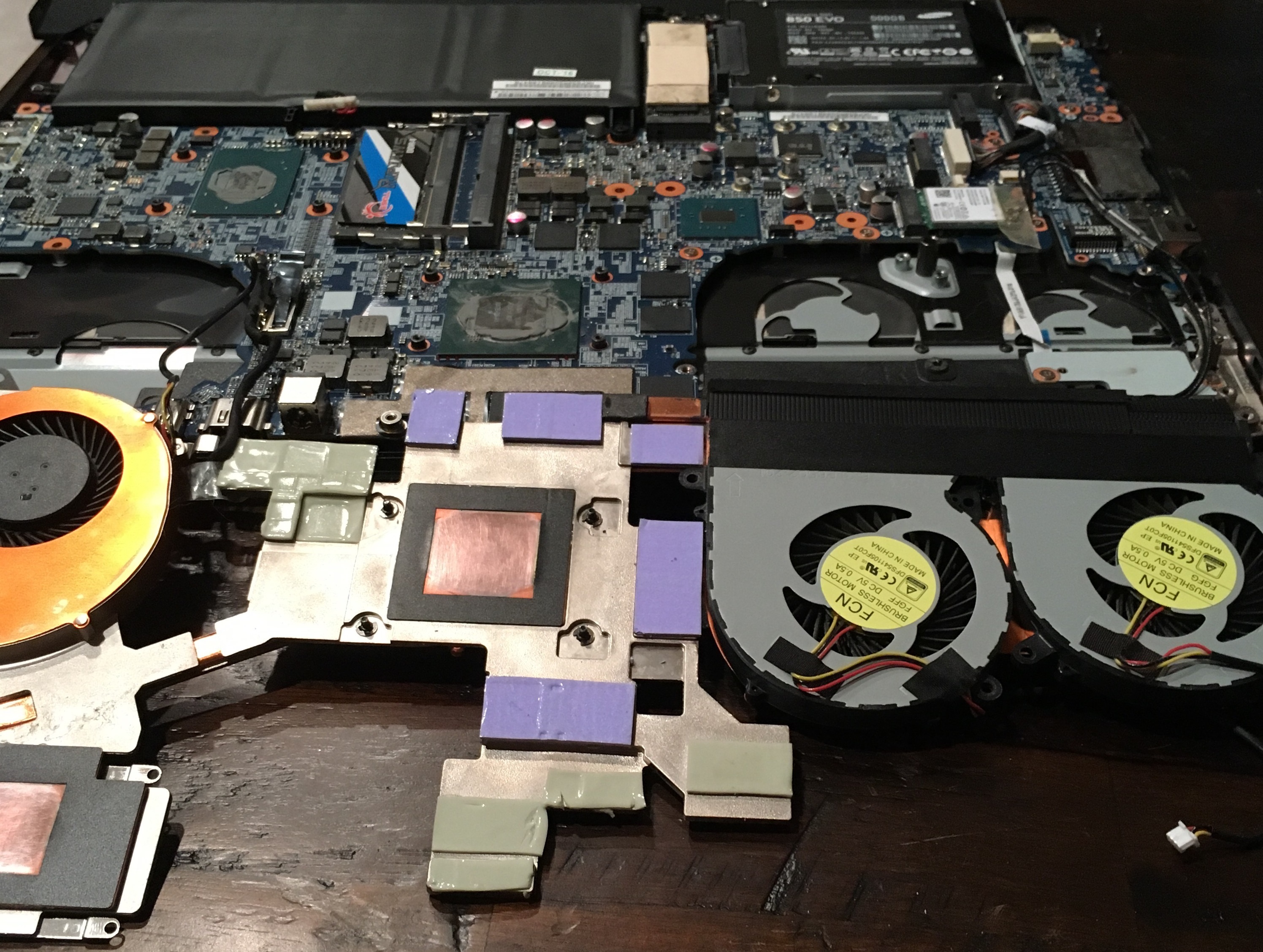

    1) unscrew heat sink in reverse order, remove caked up thermal paste with 99% isopropyl (wax paper, q-tips, paper towels)

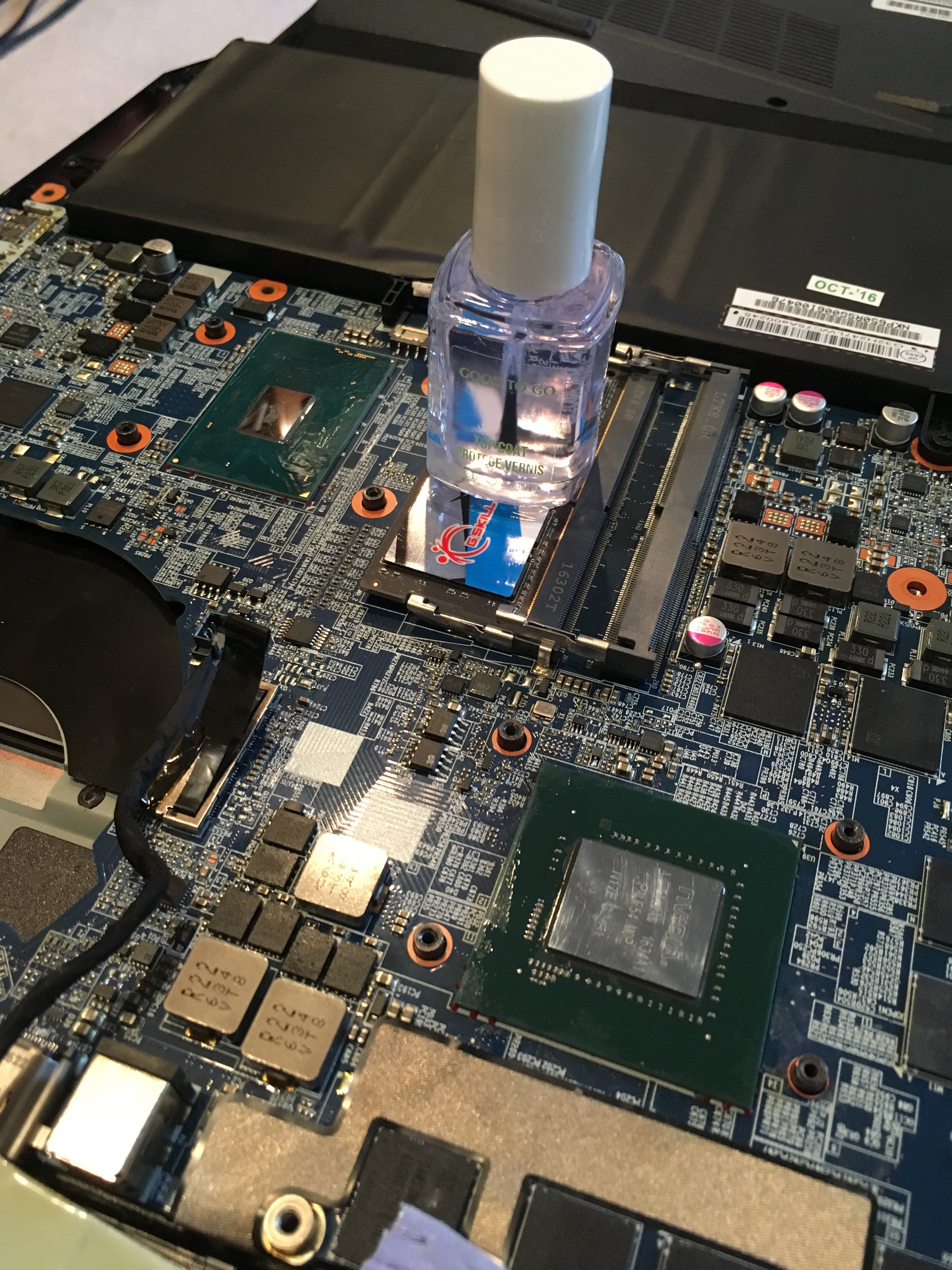

    2) apply 3 coats of clear coat top nail polish (20min dry between coats)

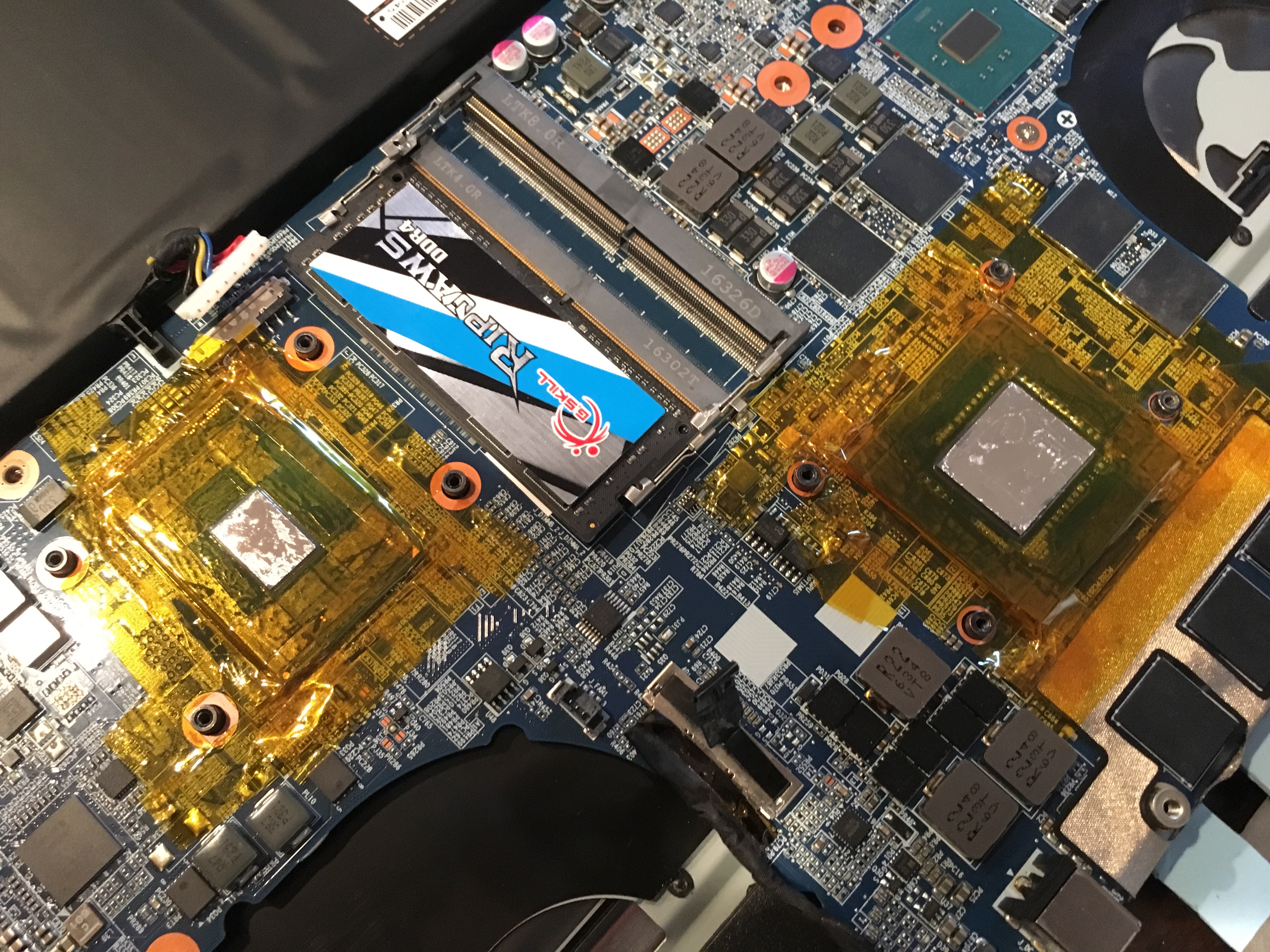

    3) kapton tape the all areas in case of spillage
    4) apply thermal grizzly (test on aluminum foil to see how it comes out), swap it around with the q-tip it comes with to make it a shiny, sheet, liquidy film.
    5) put a but on the copper heat sink also
    6) put screws back on in proper order
    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    Last edited: May 24, 2019
    hmscott, Arrrrbol, Papusan and 4 others like this.
  2. jaybee83

    jaybee83 Biotech-Doc

    Reputations:
    4,125
    Messages:
    11,571
    Likes Received:
    9,151
    Trophy Points:
    931
  3. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    And how good you are at applying LM too, remember it needs a tiny amount. There is a bit too much in those screenshots I think.

    Papusan and Vasudev like this.
  4. McAudi

    McAudi Notebook Consultant

    Reputations:
    24
    Messages:
    111
    Likes Received:
    44
    Trophy Points:
    41
    thx m8!
    i looked into those alread. laptop stays at home, moves around in the house only and will make sure to keep it FLAT
    .

    the "light" + angle in pic make it shine moar. if anything i under put compared to all the youtube vids i watched/threads i read. it's an extremly thin sheet like foil, with no bubbling.
    thx for advice.

    Last edited: May 17, 2019
    joluke and jaybee83 like this.
  5. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    Fair enough, everyone online seems to go ham with it :/

    joluke, McAudi and Papusan like this.
  6. jaug1337

    jaug1337 de_dust2

    Reputations:
    2,135
    Messages:
    4,862
    Likes Received:
    1,031
    Trophy Points:
    231
    The largest TIM review/test on youtube in a long time.

    McAudi likes this.
  7. jclausius

    jclausius Notebook Virtuoso

    Reputations:
    6,160
    Messages:
    3,265
    Likes Received:
    2,573
    Trophy Points:
    231
    Just to clarify, for step 4, you used Thermal Grizzly Conductonaut, correct? Pictures and steps indicate this was the case, but just wanted to point that out to other readers.

    Also, curious if you kept the foil around from the test. Did it disintegrate?


    Last edited: May 17, 2019
    Papusan likes this.
  8. McAudi

    McAudi Notebook Consultant

    Reputations:
    24
    Messages:
    111
    Likes Received:
    44
    Trophy Points:
    41
    i totally understand, and read followup threads days later of bricked cpu's or gpu's.
    i made sure to research intensively, last thing i'd want is a bricked gamin laptop lel
    always owned (sager/clevo) never had a problem.

    jaybee83 likes this.
  9. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    It does run so easily when it gets out, not everyone is as diligent as you have been.

    McAudi likes this.
  10. McAudi

    McAudi Notebook Consultant

    Reputations:
    24
    Messages:
    111
    Likes Received:
    44
    Trophy Points:
    41

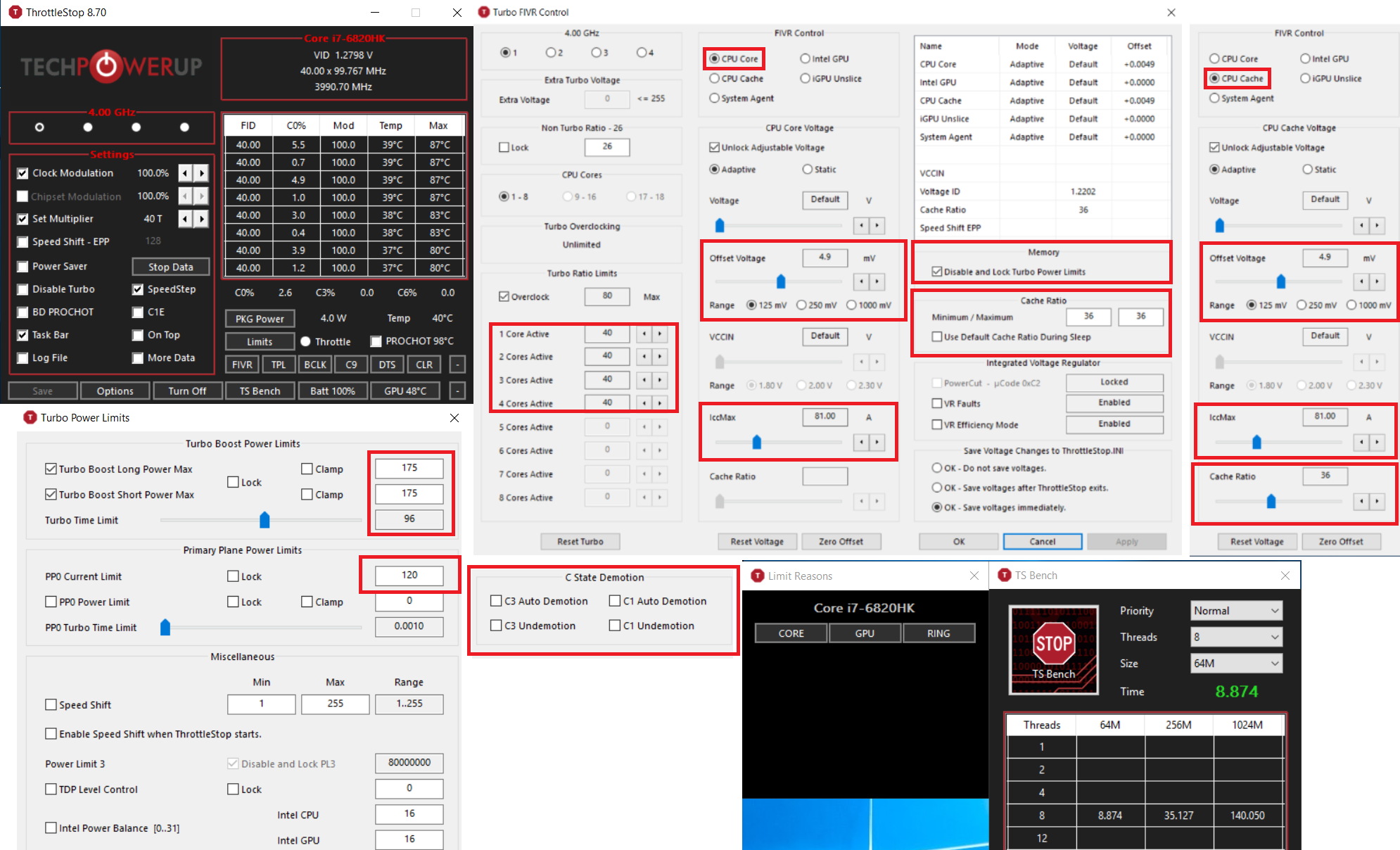

    A little upd8, played around a bit with oc, got it to stable 4.00 and overclocked gpu. max temps in intense gaming situations like high 80's.

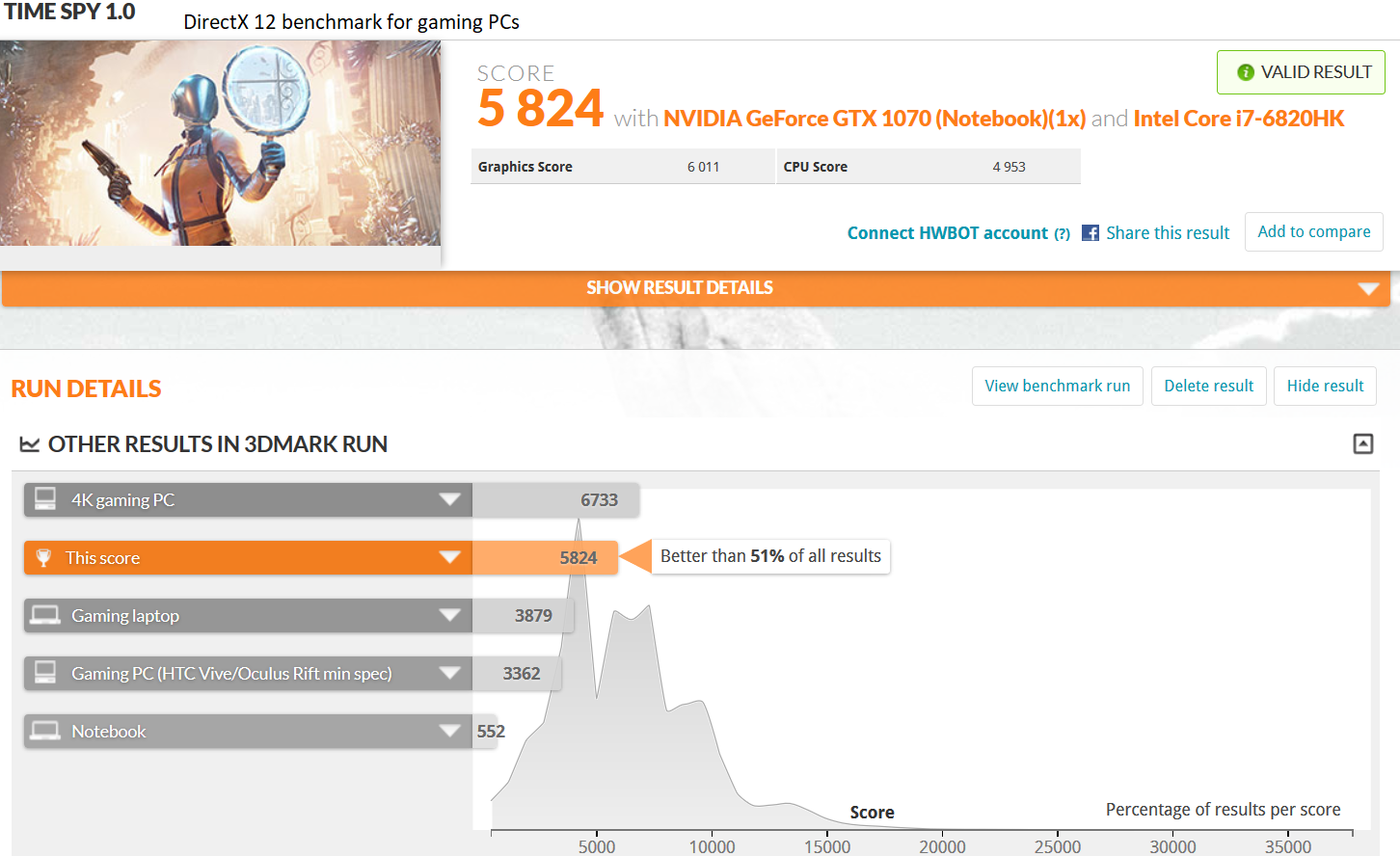

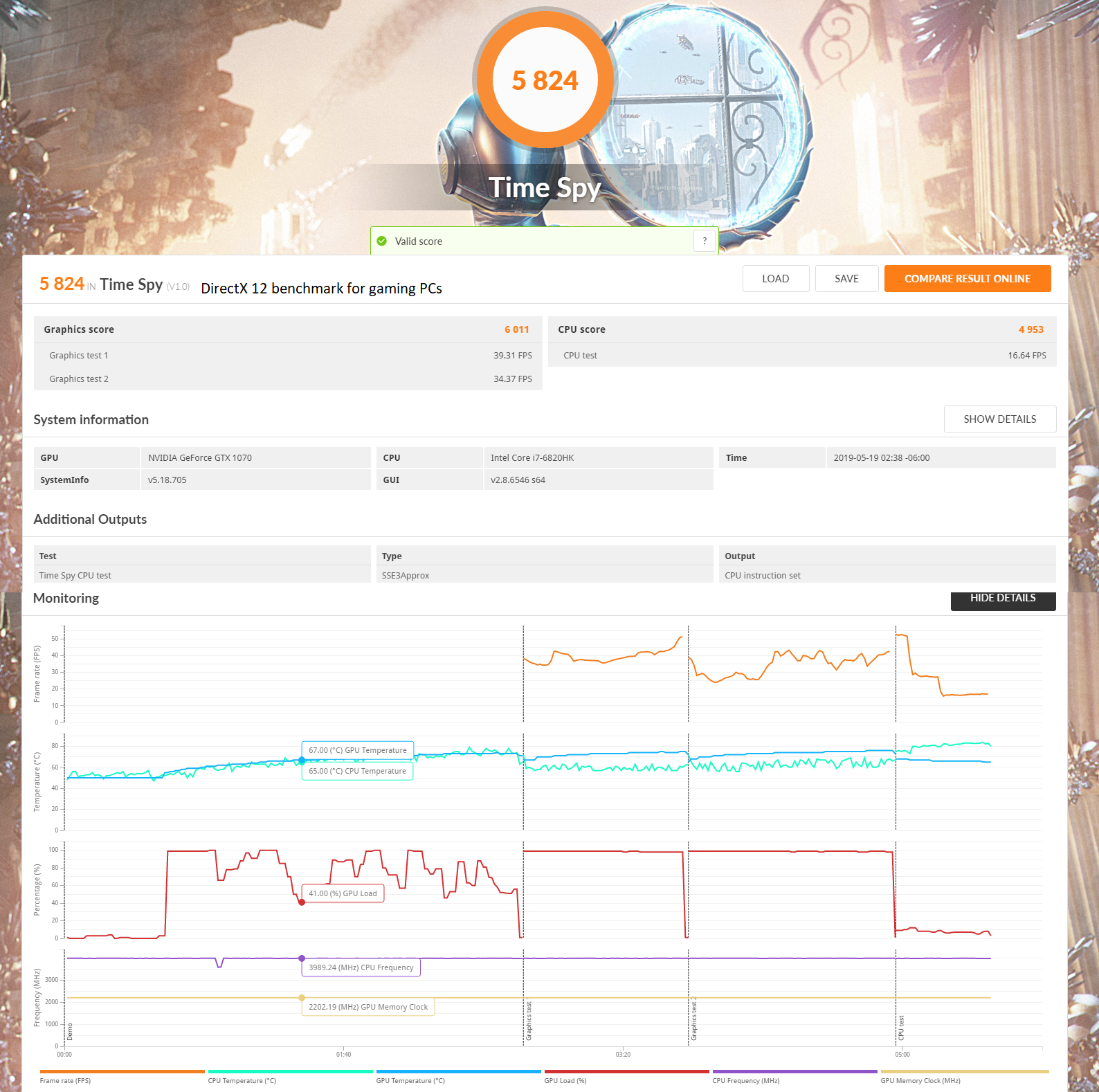

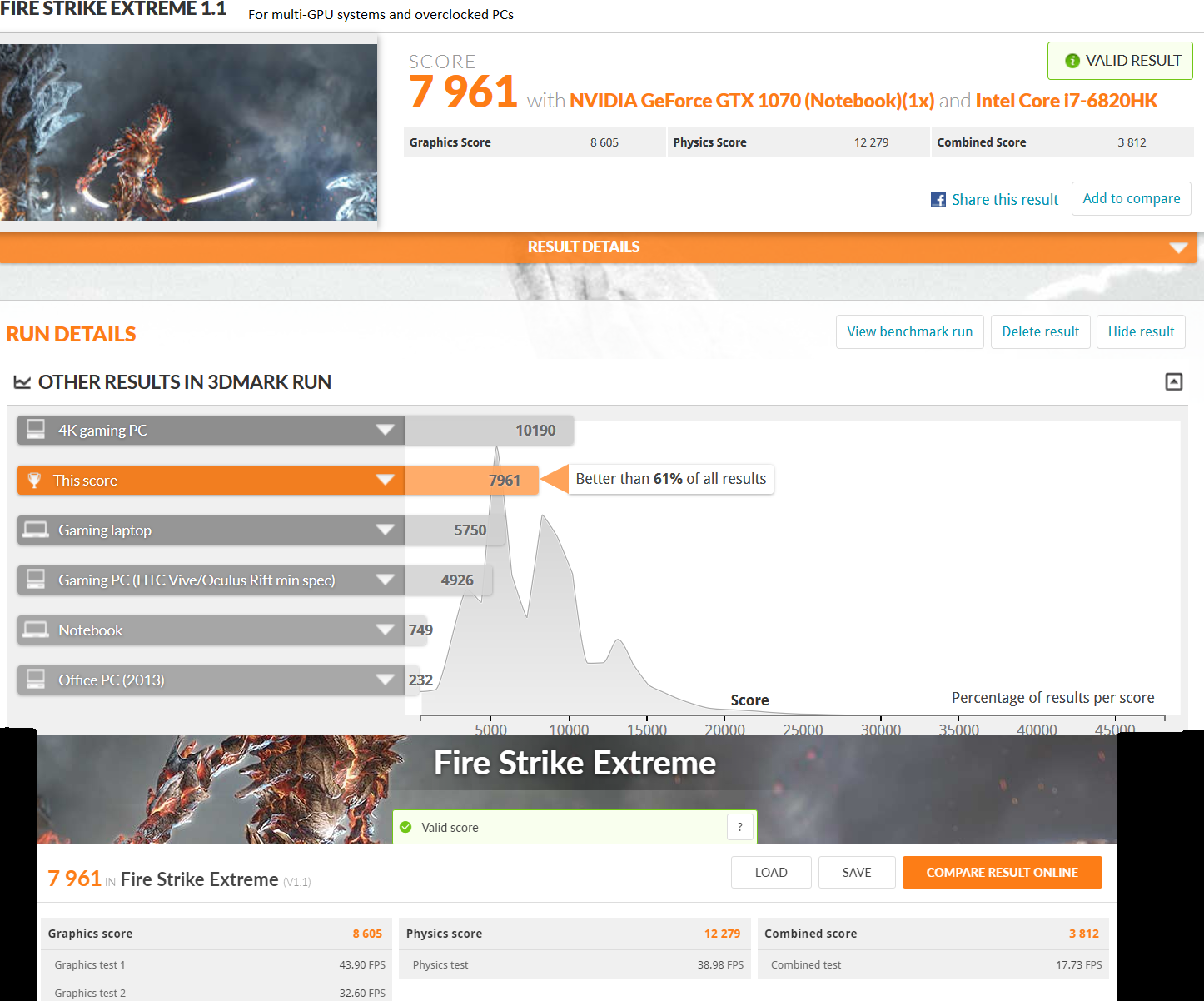

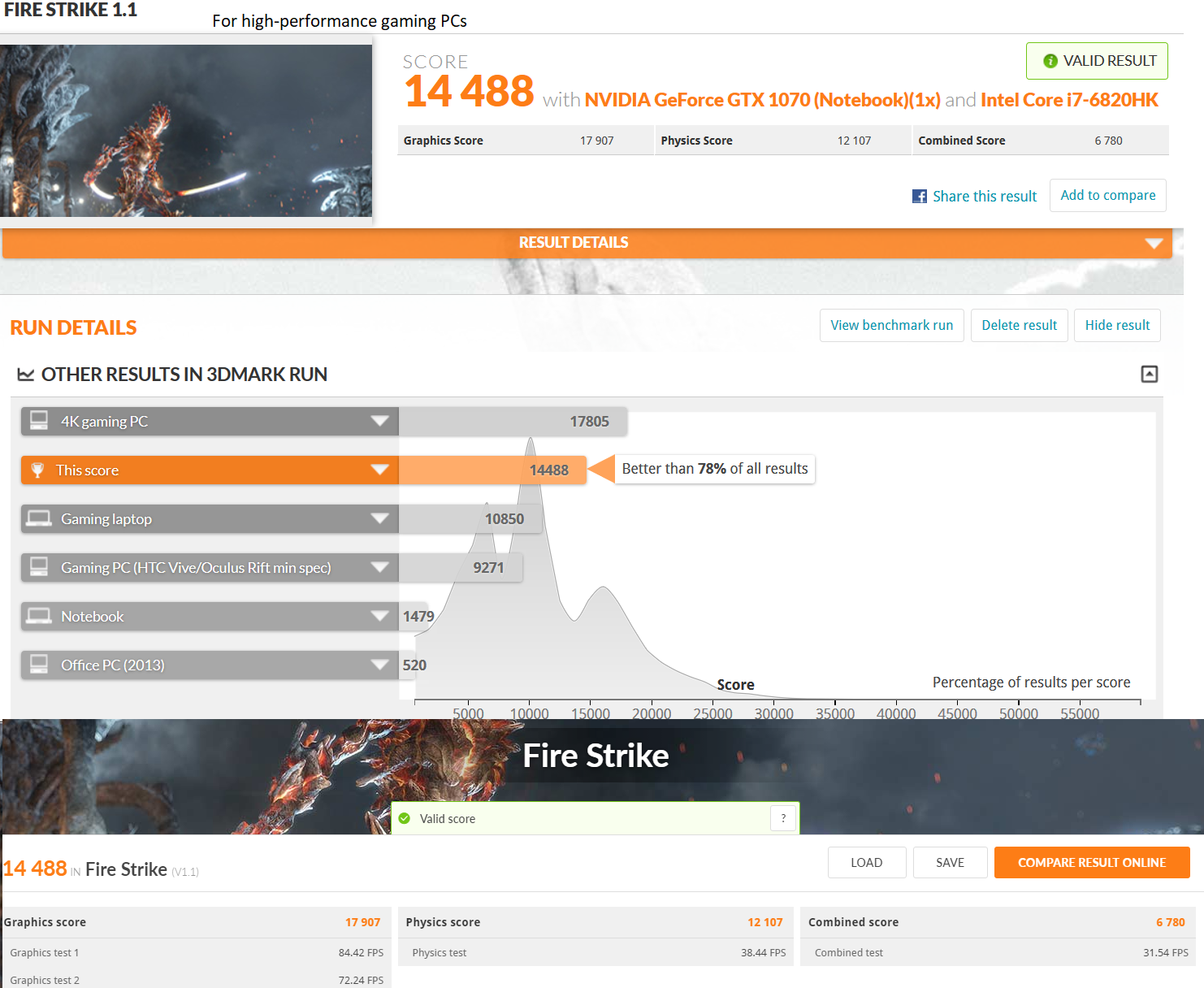

    here is some fun benchmarks. for 2+year old laptop pretty impressed. still able to play every game maxed out.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    joluke likes this.
  11. jaybee83

    jaybee83 Biotech-Doc

    Reputations:
    4,125
    Messages:
    11,571
    Likes Received:
    9,151
    Trophy Points:
    931
    just goes to show how long pascal has already been around and how unsuccessful rtx adoption is :)

    Sent from my Xiaomi Mi Max 2 (Oxygen) using Tapatalk

    joluke likes this.
  12. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    The 970m did not just vaporise either :p

    joluke and jaybee83 like this.
  13. jaybee83

    jaybee83 Biotech-Doc

    Reputations:
    4,125
    Messages:
    11,571
    Likes Received:
    9,151
    Trophy Points:
    931

    FTFY :p

  14. yrekabakery

    yrekabakery Notebook Virtuoso

    Reputations:
    1,470
    Messages:
    3,438
    Likes Received:
    3,688
    Trophy Points:
    331
    Er, about that...

    Arrrrbol likes this.
  15. jaybee83

    jaybee83 Biotech-Doc

    Reputations:
    4,125
    Messages:
    11,571
    Likes Received:
    9,151
    Trophy Points:
    931
    LOL now thats just bad timing :D my 980M is still happily humming along :)

    Arrrrbol likes this.
  16. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    1070, 970 while there changes in power they served basically the same market.

    jaybee83 likes this.
  17. yrekabakery

    yrekabakery Notebook Virtuoso

    Reputations:
    1,470
    Messages:
    3,438
    Likes Received:
    3,688
    Trophy Points:
    331
    1070N replaced 980M
    1060N replaced 970M

  18. jaybee83

    jaybee83 Biotech-Doc

    Reputations:
    4,125
    Messages:
    11,571
    Likes Received:
    9,151
    Trophy Points:
    931
    and 1080N replaced 980N

  19. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    Not really if you read what I said in terms of the market they serve.

  20. yrekabakery

    yrekabakery Notebook Virtuoso

    Reputations:
    1,470
    Messages:
    3,438
    Likes Received:
    3,688
    Trophy Points:
    331
    Not really, 1070N and 970M were neither price nor TDP comparable.

  21. jaybee83

    jaybee83 Biotech-Doc

    Reputations:
    4,125
    Messages:
    11,571
    Likes Received:
    9,151
    Trophy Points:
    931
    you're both right :p

    if nvidia had kept to their "M" designations, the 1080M wouldve been the 980M successor, likely comparable to 1070N performance.

    hmscott likes this.
  22. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    When you factor in the change in the dollar and inflation it is.

  23. yrekabakery

    yrekabakery Notebook Virtuoso

    Reputations:
    1,470
    Messages:
    3,438
    Likes Received:
    3,688
    Trophy Points:
    331
    Nope, 1070N laptops were similar or more expensive than 9 80M laptops, same with 1070N vs. 980M MXM cards. Inflation is not a factor over such a short timespan especially given how 1070N laptops were around 50% more expensive than 970M laptops.

  24. Papusan

    Papusan Jokebook's Sucks! Dont waste your $$$ on Filthy

    Reputations:
    42,727
    Messages:
    29,853
    Likes Received:
    59,684
    Trophy Points:
    931
    The old Mobile graphics (M) is in short exactly the same as Max-Q nowadays. A crippled down graphics card vs. the real deal (N) :)

  25. jaybee83

    jaybee83 Biotech-Doc

    Reputations:
    4,125
    Messages:
    11,571
    Likes Received:
    9,151
    Trophy Points:
    931
    its just a different naming convention :p

    Arrrrbol and Papusan like this.
  26. Arrrrbol

    Arrrrbol Notebook Deity

    Reputations:
    3,235
    Messages:
    707
    Likes Received:
    1,054
    Trophy Points:
    156
    It did give up at 178W to be fair ;)

  27. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    980m not in a like for like chassis during its prime time.

  28. jaybee83

    jaybee83 Biotech-Doc

    Reputations:
    4,125
    Messages:
    11,571
    Likes Received:
    9,151
    Trophy Points:
    931
    damn! did u add mosfets to it?

    Arrrrbol likes this.
  29. Arrrrbol

    Arrrrbol Notebook Deity

    Reputations:
    3,235
    Messages:
    707
    Likes Received:
    1,054
    Trophy Points:
    156
    Nope, didn't anticipate it would go that high since I was just in a game at the time and not benching. I think the settings for it were reset since i changed my refresh rate and V Sync was disabled, so it ran as fast as my CPU would allow. Wasn't even a demanding game either :D

    Papusan likes this.
  30. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    I'd that with a full set of VRMs or on an mxm board?

    jaybee83 likes this.
  31. Arrrrbol

    Arrrrbol Notebook Deity

    Reputations:
    3,235
    Messages:
    707
    Likes Received:
    1,054
    Trophy Points:
    156
    Clevo MXM

  32. yrekabakery

    yrekabakery Notebook Virtuoso

    Reputations:
    1,470
    Messages:
    3,438
    Likes Received:
    3,688
    Trophy Points:
    331
    178W shouldn’t have been possible as the core power FETs were only rated for 120A peak.

    Arrrrbol and jaybee83 like this.
  33. jaybee83

    jaybee83 Biotech-Doc

    Reputations:
    4,125
    Messages:
    11,571
    Likes Received:
    9,151
    Trophy Points:
    931
    yep thats why im so surprised. im getting a black screen once wattage goes above 125-130, the stock mosfets just cant handle any more than that.

    Arrrrbol likes this.
  34. Arrrrbol

    Arrrrbol Notebook Deity

    Reputations:
    3,235
    Messages:
    707
    Likes Received:
    1,054
    Trophy Points:
    156
    That's what it showed in HWInfo before it died, not sure how accurate that is though. Shame I didn't screenshot it.

    Papusan and jaybee83 like this.
  35. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    Over 200w each for me when fully kitted out :)

    jaybee83, Papusan and Arrrrbol like this.
  36. jaybee83

    jaybee83 Biotech-Doc

    Reputations:
    4,125
    Messages:
    11,571
    Likes Received:
    9,151
    Trophy Points:
    931
    sweet :D but didnt expect anything less from u ;)

    Sent from my Xiaomi Mi Max 2 (Oxygen) using Tapatalk

    Arrrrbol likes this.
  37. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    Those last 20-30w were not getting a lot of performance.
