    Sager 8150 Front Panel LED Indicator

    Discussion in 'Sager and Clevo' started by yhchoong, Jan 6, 2012.

  1. yhchoong

    yhchoong Notebook Consultant

    Reputations:
    53
    Messages:
    160
    Likes Received:
    0
    Trophy Points:
    30
    Just got my RMA-ed 8150 back from Sager but the 2 front panel LED lights for battery charging and power don't light up anymore. Anyone knows a quick fix to this? :)

    yhchoong, Jan 6, 2012
    #1
  2. Splintah

    Splintah Notebook Deity

    Reputations:
    278
    Messages:
    1,948
    Likes Received:
    595
    Trophy Points:
    131
    looks like they forgot to plug a wire back in, unfortunately I don't know a quick fix

    Splintah, Jan 6, 2012
    #2
  3. yhchoong

    yhchoong Notebook Consultant

    Reputations:
    53
    Messages:
    160
    Likes Received:
    0
    Trophy Points:
    30
    You totally nailed it :D

    There's a little white plug in the HDD bay that was dangling about in mine. Plugged it back in and lights are back on.

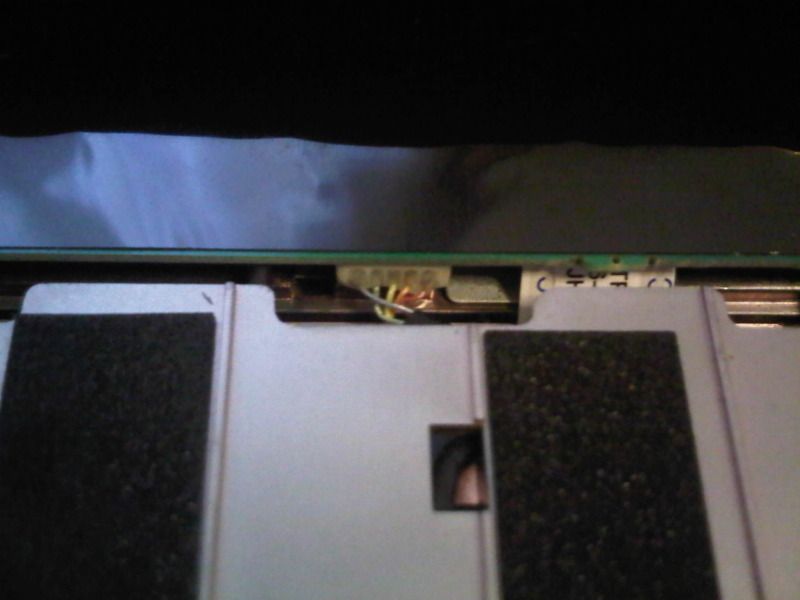

    Here's a photo of it: LED module indicator plug

    The laptop chassis actually looked quite slick without the lights on, which was cool. So for those who dislike the 2 little lights on the front, all you need to do is disconnect the white plug from the socket shown, it's purely a plug-in type, no need to flip any latches.

    yhchoong, Jan 6, 2012
    #3
