Looking to start my shunt modding journey, I have been browsing online (mostly youtube) I can't find a good tutorial that mentions what I'll need and how to get started.
can someone please advice me on this. I want to mess around with a broken board before messing with my mxm gpu
-
@seanwee is your guy
-
Meaker@Sager Company Representative
What do you want to shunt mod?
-

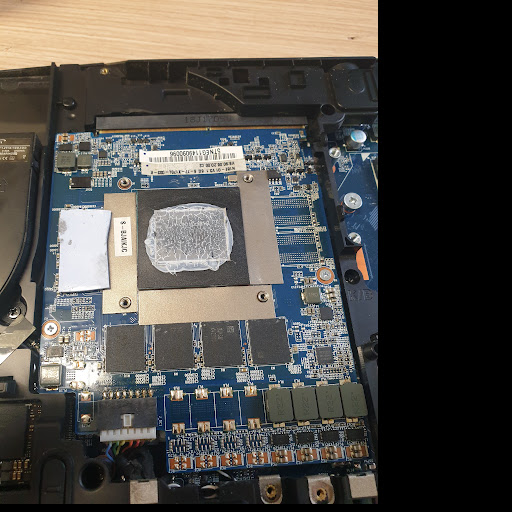

only picture I've got of it for now, taken quite a while ago.

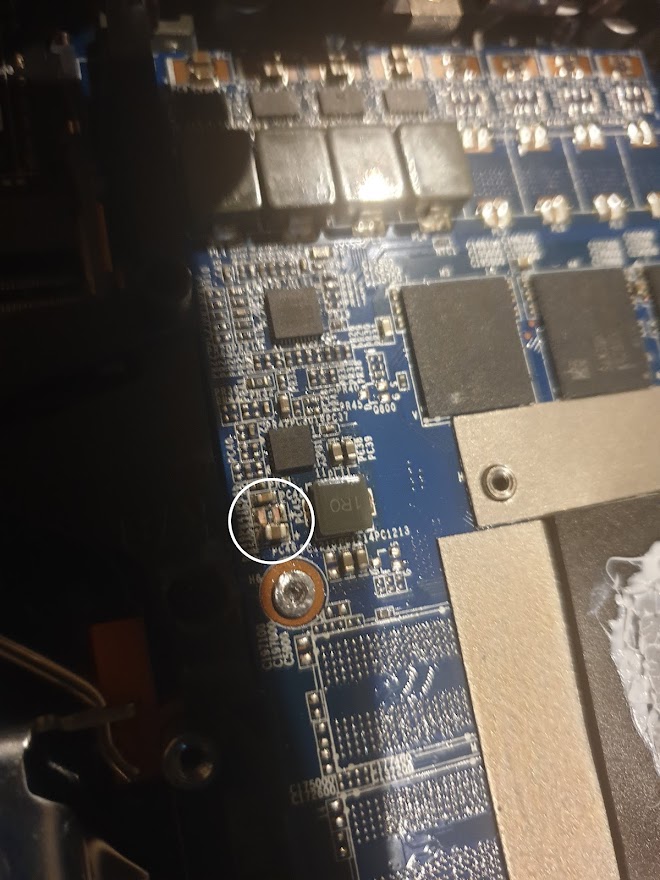

on a side note I knocked 2 components off accidently around 2-3months ago while taking out a damaged screw, should I try to fix it or just ignore it? it has been working perfectly file without any issuesAttached Files:
-
-
Meaker@Sager Company Representative
The shunt resistors are on the back on the corner, you use a small amount of liquid metal (the less the better as it does corrode the solder) to reduce the resistance.
Those seem to be filter caps, you should replace them if you can. -
also what do filter caps do the filter caps? i have no idea how to go about finding a replacement or replacing it. OEM said they don't have the PCB map/layout -
The Lm can shift and short out components potentially killing the whole laptop.
joluke likes this. -
btw what are you running your rtx 2080 max q at? -
-
-
Nvidia gpus operate on a set voltage/frequency curve. Overclocking/undervolting the gpu raises the curve so the gpu clock will be higher at a given voltage. -
its I really want to shunt mod or rather I find it hard to give up on it at this pointLast edited: Jan 20, 2022 -
-
1. Shutdown due to thermal/current limits being hit or exceeded
2. Blow up
2D clocks only happens if you do a direct connection bypassing the shunt resistors. -
Meaker@Sager Company Representative
The way I put it on leaves a skin of liquid metal on the card, it does not move even if you shake the card about -
I can't really have this laptop blowing up on me really disappointed -
Meaker@Sager Company Representative
They all use the same chips, it's the number of phases and draw draw of the actual chip itself. The 30xx series is a little better provisioned than the 20xx series for draw of core vs number of phases.
-
I'm assuming there is a baseline for the actual chip but offsetting that relies on the quality of the chip. if they're all using the same chip then each chip should support 150w?
what do you mean by the number of phases? -
Meaker@Sager Company Representative
The 2060, 2070 and 2080 could all have the same basic design of phase but have different numbers of them, say 3 for the 2060, 5 for the 2070 and 7 for the 2080. Due to the margin left in the design they could all end up having the same amount of headroom.
But the exact choice of chip and headroom to design in is down to the manufacturer and you would use that and the knowledge of the power target to make any adjustments.
Each chip will have an optimal point of power delivery and a max point and it's finding the range between these that's safe that's the goal of power modding.seanwee likes this. -
Meaker@Sager Company Representative
So for instance I have 8 phases on the board, a couple will be used for vmem and then the rest are used for different parts of the core, so 6 phases. I want to say have a total power draw of 175W, 25W of that will go to the memory and the two phases so put that aside.
150W/6 = 25A per phase at full pelt assuming a 1v core voltage (this is an assumption, look at your clock/frequency curve to get a better figure). I can expect looking at the data sheet I can calculate the heat output of that to be about 3.5W per chip. With a large heatsink with the aid of watercooling I can cope with that level of heat and should be able to keep it in spec.

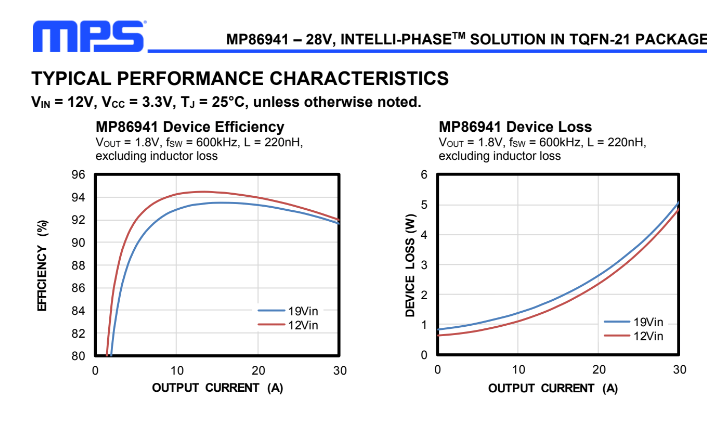

That's the chip that every 20xx and 30xx series uses, notice the exponential increase in heat as the output current goes up (the input voltage is 19v).
This is also an output of 1.8V, our chips are more like 1V so these numbers are on the optimistic side a bit.Last edited: Jan 20, 2022IamTechknow, Swiza2468, seanwee and 1 other person like this. -
How would I find out this information on my board out of curiousityLast edited: Jan 20, 2022 -
Meaker@Sager Company Representative
I have high clocked GDDR6 and more chips, your mem is probably closer to 15w on a single phase.
You need to look at your TDP, a memory power calculator, the number of phases and the graph above and estimate your cooling. Of all of them the 2060 does have the least headroom from what I remember and these cards do aggressively turbo so just take care. -

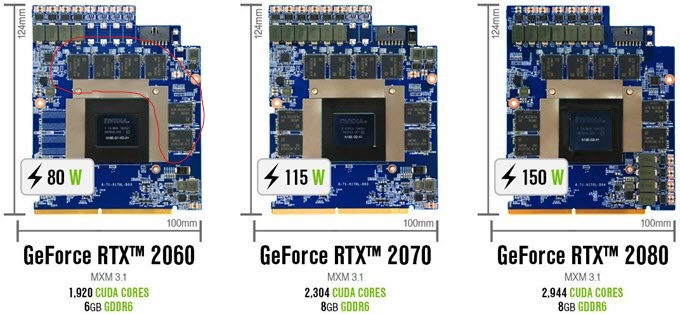

are these my vrms? refer to attached picture, tried to identify them online but people only refer to the phases on desktop modules so I'm coming up blank. guessed those simply because of the thermal pad placement. does that mean I have 6 phases? there's also 6 of that greyish coloured modules. I think the grey ones are the VRMs
I don't really understand the memory power calculation stuff, nothing came up online other than calculating power consumption for PC parts
don't think cooling will be in issue in this DTR laptop p775tm-g
I am still a bit confused about this phases stuff
Attached Files:
Last edited: Jan 20, 2022 -
-
Meaker@Sager Company Representative
You are 4 + 1, the 2060 and 2070 have the mem phases top right, 2060 uses one and the 2070 uses two.
As I said the 20xx and 30xx use the same VRMs.
So the 2080 uses 11 and I think two of those are vram (might be 3 due to the different memory type). Say it is 3 and it's hungry stuff so it eats 40w.
We take that out and we have 8 30 amp VRMs (a phase is a VRM, an inductor and some capacitors at a minimum) the VRMs are the chip that gets hot. So we know as a max that 30*8 = 240w so a peak of say 280w but that's assuming sufficient cooling for the 5w per VRM which is a LOT. A safe max would be more like 180w + 40w ram so a total of 220w say or roughly 22 amps per phase for air. Which is a nice uplift over stock.seanwee likes this. -
-
so with referce to the graph before, the more you push a phase to its max tdp the higher the temps, only way to negate this is adding more phases?
-
Meaker@Sager Company Representative
And yes the only way is to either change chip or change the number of phases. Or one of the other conditions like input voltage.
Clevo are somewhat limited by feeding 19v into the card and stepping it down from there, where as most VRMs expect 12V (as that's the desktop standard) but it saves having to step the 19v down to 12v in between.seanwee likes this. -
The vrm current rating represents the peak current draw it can handle, sustained current draw is lower by around 5-10A depending on the vrm’s cooling
I shunt modded mine as such because I know I can carefully monitor the power draw and I set a limit in msi afterburner rather than letting it run free.
the only way you could potentially increase your card’s current handling capability would be to solder more vrms onto the empty vrm pads on the pcb but that would be near impossible to do without an smd soldering station. And you’ll need to find a source for the vrm mosfets and inductors. -
Meaker@Sager Company Representative
You also need to tell the controller to activate more phases so there is a citcuit there you modify.
Not as simple as the 980M that had 4 phases that could then run with 2 VRMs per phase instead of 1. That you just got them soldered on like I did and it would take a beating at that point and just carry on.seanwee likes this. -
Thanks for taking your time explaining it to me @Meaker@Sager @seanwee I understand what seanwee meant when he didn't recommend shunting the 2060.
soldering on new vrms are definitely too extreme for me guess my shunting adventure ends here, I learned a lot though.
btw random question - is it better to leave CPU on adaptive or fixed power when undervolting -
-
Meaker@Sager Company Representative
Fixed is for high end overclocking, if you want a quiet idle you want adaptive.
-
-
thanks will do, need those temps down
