    Solved - Nvidia GTX 1080M repair: SMD resistors power ratings needed (CLEVO P775TM1-G)

    Discussion in 'Sager and Clevo' started by VBenkovskyy, Mar 27, 2020.

  1. VBenkovskyy

    VBenkovskyy Newbie

    Reputations:
    0
    Messages:
    5
    Likes Received:
    3
    Trophy Points:
    6

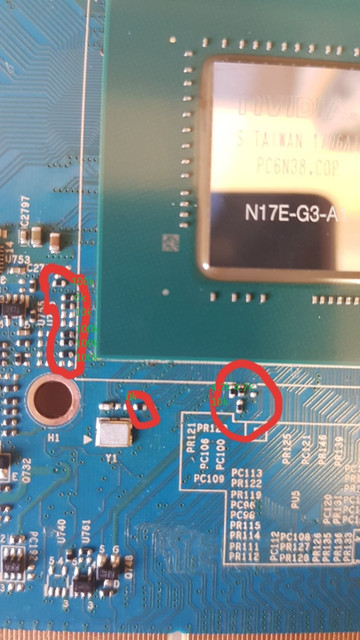

    Hello, dear friends! Yesterday my colleague replaced Nvidia GPU and repositioned some SMDs. Can someone help me and make some measurements, cause they are different. Variety from 0 to 100kOm.
    Thanks in advance!!!

    [​IMG]
    I need measurements of these one:
    [​IMG]

    VBenkovskyy, Mar 27, 2020
    #1
  2. VBenkovskyy

    VBenkovskyy Newbie

    Reputations:
    0
    Messages:
    5
    Likes Received:
    3
    Trophy Points:
    6
    Maybe someone has scheme or knows where to find it?

    VBenkovskyy, Mar 28, 2020
    #2
  3. senso

    senso Notebook Deity

    Reputations:
    565
    Messages:
    1,645
    Likes Received:
    789
    Trophy Points:
    131
    Trying to trick the card into thinking that its a Quadro?
    Measuring in place can/might induce in error.

    senso, Mar 29, 2020
    #3
  4. VBenkovskyy

    VBenkovskyy Newbie

    Reputations:
    0
    Messages:
    5
    Likes Received:
    3
    Trophy Points:
    6
    No, just by mistake blown away some SMDs

    VBenkovskyy, Mar 29, 2020
    #4
  5. Ryan Russ

    Ryan Russ Notebook Consultant

    Reputations:
    34
    Messages:
    152
    Likes Received:
    65
    Trophy Points:
    41
    hold up- BRB.
    [​IMG]
    from top to bottom
    100k
    0k
    10k
    100k
    100k
    100k
    0k
    4.7k
    4.7k
    10k

    Last edited: Mar 29, 2020
    Ryan Russ, Mar 29, 2020
    #5
    Khenglish, Meaker@Sager, t456 and 4 others like this.
  6. VBenkovskyy

    VBenkovskyy Newbie

    Reputations:
    0
    Messages:
    5
    Likes Received:
    3
    Trophy Points:
    6
    Thank you so much, bro!!!!

    VBenkovskyy, Mar 29, 2020
    #6
  7. VBenkovskyy

    VBenkovskyy Newbie

    Reputations:
    0
    Messages:
    5
    Likes Received:
    3
    Trophy Points:
    6
    [​IMG]
    Thank you again!

    VBenkovskyy, Apr 12, 2020
    #7
    Ryan Russ, jc_denton and moral hazard like this.
  8. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    Congratulations :)
