    Standard TV out on 9262?

    Discussion in 'Sager and Clevo' started by Pimpaholic, May 8, 2008.

  1. Pimpaholic

    Pimpaholic Notebook Consultant

    Reputations:
    83
    Messages:
    258
    Likes Received:
    0
    Trophy Points:
    30
    Ok, I've tried and tried and I can't output my signal to my tv!! I've even gotten to the point on consulting the user manual, ugh. Someone PLEASE help me here. Thx.

    P.S. I'm doin S-video.

    Pimpaholic, May 8, 2008
    #1
  2. psycroptik

    psycroptik Notebook Consultant

    Reputations:
    117
    Messages:
    246
    Likes Received:
    0
    Trophy Points:
    30
    fn+F7 should force the output to the external screen.

    psycroptik, May 8, 2008
    #2
  3. Gophn

    Gophn NBR Resident Assistant

    Reputations:
    4,843
    Messages:
    15,707
    Likes Received:
    3
    Trophy Points:
    456
    if you are using S-Video,

    Go to Nvidia Control Panel > Set up Multiple Displays
    - then make sure your TV and your notebook is connected properly.
    - choose to output to your TV
    - choose your viewing option (Dual View, Horiz/Vert Span, etc...)


    Note: S-Video is quite low resolution (480i), so do not expect much from your TV's display.... DVI/HDMI is for the best quality (up to 1080p).

    Gophn, May 8, 2008
    #3
  4. Pimpaholic

    Pimpaholic Notebook Consultant

    Reputations:
    83
    Messages:
    258
    Likes Received:
    0
    Trophy Points:
    30
    I've done all that, but no go. I'm also unable to make a custom resolution of 640 by 480.

    Thx

    Pimpaholic, May 9, 2008
    #4
  5. Deodot

    Deodot Notebook Consultant

    Reputations:
    29
    Messages:
    215
    Likes Received:
    0
    Trophy Points:
    30
    I had the same problem, it turned out to be the TV. But if that is ok then..

    ..be sure to use the right S-video connection. You should USE THE ONE ON THE SIDE, not the back.(!)

    That is S-video OUT It's really strange but on the sager homepage they have mixed up the out and in. At xoticpc too.. Good luck

    Deodot, May 9, 2008
    #5
  6. The_Observer

    The_Observer 9262 is the best:)

    Reputations:
    385
    Messages:
    2,662
    Likes Received:
    0
    Trophy Points:
    55
    I tried it once too without success.I thought the TV was bad.

    The_Observer, May 9, 2008
    #6
  7. eleron911

    eleron911 HighSpeedFreak

    Reputations:
    3,886
    Messages:
    11,104
    Likes Received:
    7
    Trophy Points:
    456

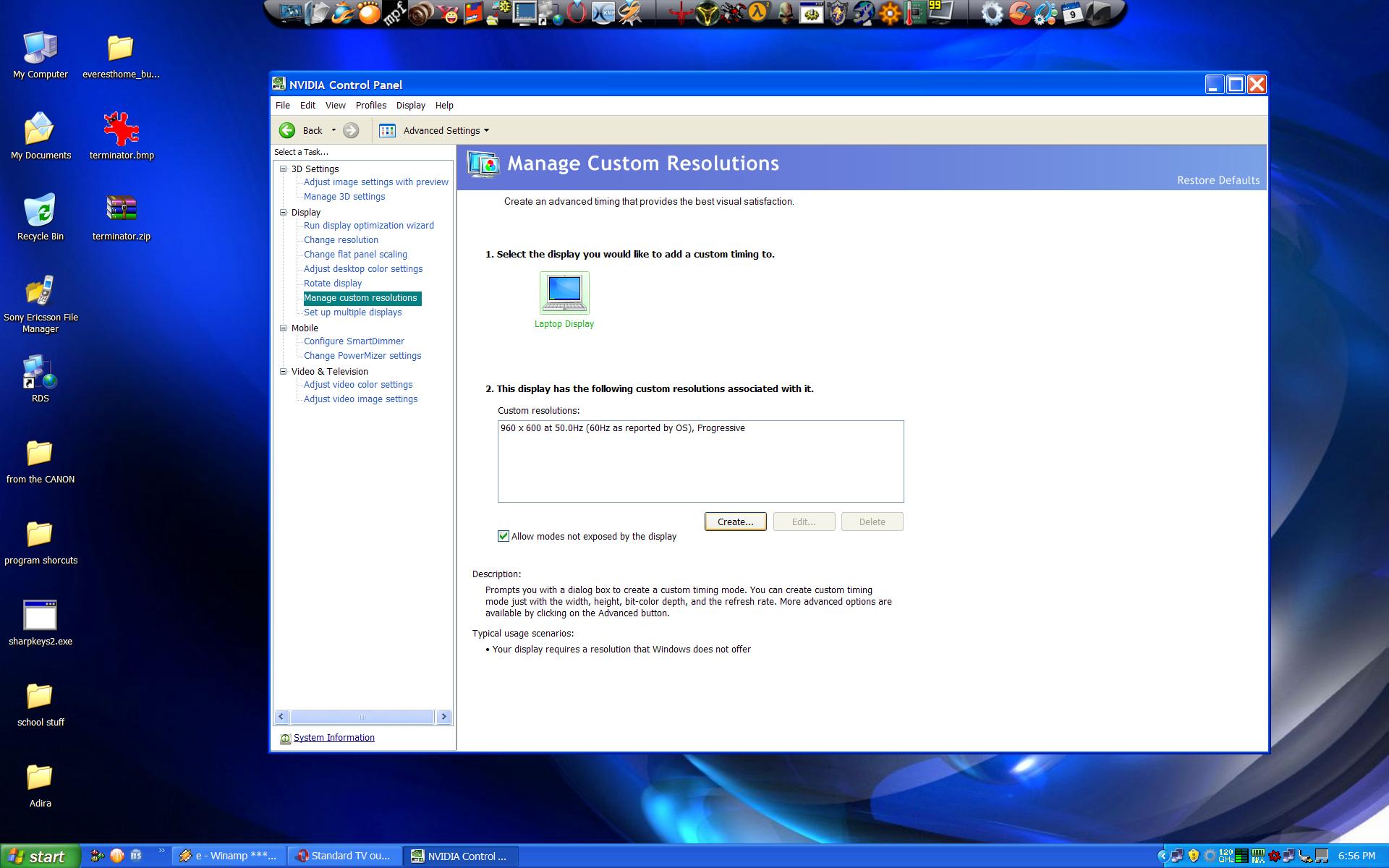

    To make a custom resolution,you need to go into Nvidia Control Panel, and there is an option called Manage Custom Resolutions.


    Attached Files:

    eleron911, May 9, 2008
    #7
  8. Pimpaholic

    Pimpaholic Notebook Consultant

    Reputations:
    83
    Messages:
    258
    Likes Received:
    0
    Trophy Points:
    30
    I did this. When I clicked ok ok it said "you need to test first", then I tested and it said was unable to display it or w/e. Thats what I mean by unable.

    And I tried it on the one on the side, but I only have a 4 pin s-video cord, not a 7 pin. And I even tried that but it still didn't work.

    Thx

    Pimpaholic, May 9, 2008
    #8
  9. eleron911

    eleron911 HighSpeedFreak

    Reputations:
    3,886
    Messages:
    11,104
    Likes Received:
    7
    Trophy Points:
    456
    You need a 7 pin, at least that`s how it works for me.
    It`s about 5$, if I`m not mistaken.

    eleron911, May 9, 2008
    #9
  10. Gophn

    Gophn NBR Resident Assistant

    Reputations:
    4,843
    Messages:
    15,707
    Likes Received:
    3
    Trophy Points:
    456
    remember there are two S-Video ports.

    The back one is for S-Video IN

    The side one is for S-Video OUT

    Gophn, May 9, 2008
    #10
  11. eleron911

    eleron911 HighSpeedFreak

    Reputations:
    3,886
    Messages:
    11,104
    Likes Received:
    7
    Trophy Points:
    456
    The one with OUT is the 7 pin one.

    eleron911, May 9, 2008
    #11
  12. Pimpaholic

    Pimpaholic Notebook Consultant

    Reputations:
    83
    Messages:
    258
    Likes Received:
    0
    Trophy Points:
    30
    Alright thx. Ill go ahead and try it out. If it doesn't work, oh well. I'll just add it onto the pile. Close this thread, rep all around.

    Pimpaholic, May 9, 2008
    #12
  13. eleron911

    eleron911 HighSpeedFreak

    Reputations:
    3,886
    Messages:
    11,104
    Likes Received:
    7
    Trophy Points:
    456
    It will work , trust me.
    The only way it won`t work is if your S-Video port is broken,and I don`t see that happenning.
    I use the S-Video when watching movies on my HDTV, since gaming on it gives me headaches. But full screen movies on a 40 some inch HDTV makes it sweet.
    And I port the sound with RCA cables .

    eleron911, May 9, 2008
    #13
  14. Pimpaholic

    Pimpaholic Notebook Consultant

    Reputations:
    83
    Messages:
    258
    Likes Received:
    0
    Trophy Points:
    30
    Thx it's working. My dumb ass was using the wrong port. Thx and sry for the inconveniance.

    Pimpaholic, May 9, 2008
    #14
