TJMAX in BIOS ?

Hi, I want to change my TJMAX settings but im noob in it and don't want to mess something up.
I have unlocked BIOS and those are available options :

default tcc 2
tjmax 105 tcc 2
tjmax 100 tcc 2
tjmax 90 tcc 2
tjmax 85 tcc 2

I don't realy know what is it all bout
Could some one clear things for me ?

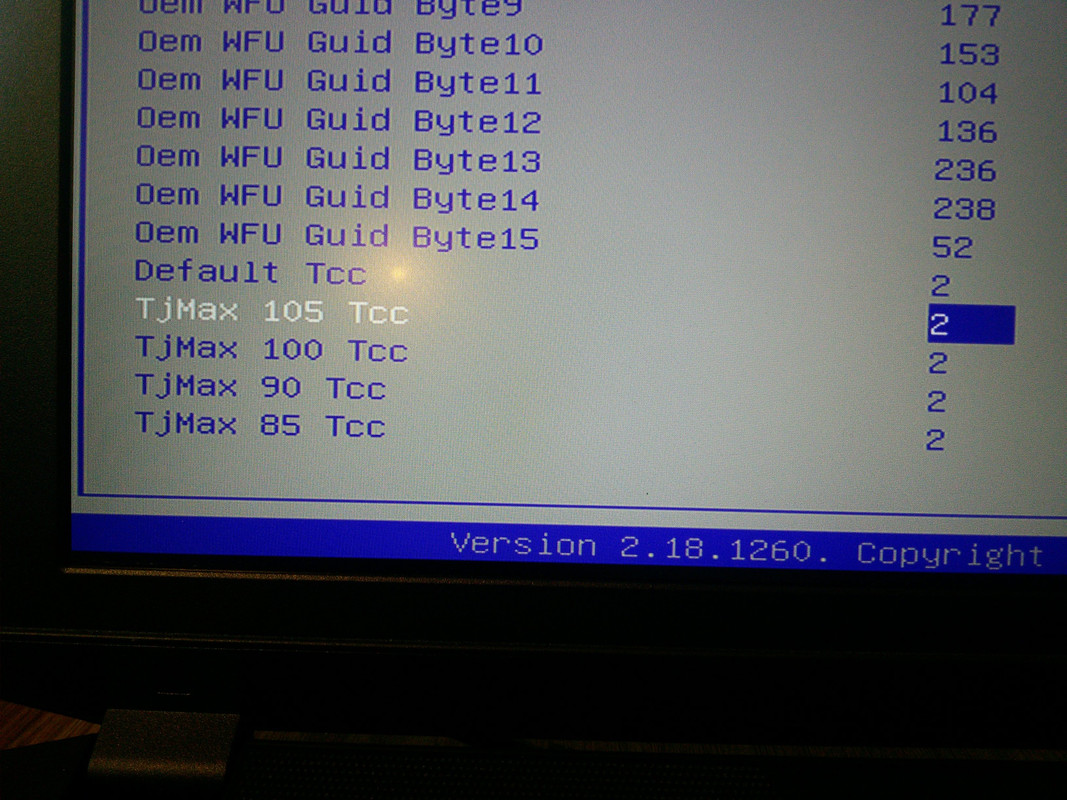

BIOS Photo
https://i.postimg.cc/W4m6XwDN/IMG-20191110-080844.jpg



hmm....would help to know your machine model and CPU...



Why ? It's only setting tjmax, i want to it a bit lower then it is right now.
At this moment temp can get as high as 100 *C and i want it around 90, that's it.
I changed paste , no difference in temp.
And please i don't write that it's ok for cpu to have 100 *C.
Medion Erazer x7849 = Clevo P670
Intel i7 6700HQ



ah, now i understand ur issue better

in your case i would recommend undervolting instead of changing the TjMax. the former will give u lower temps at identical performance (potentially even more performance, since u seem to be throttling now), the latter will further decrease performance due to a lower set throttle point...

try -50 mV on Vcore, that should do the trick without hampering with stability

Sent from my Xiaomi Mi Max 2 (Oxygen) using Tapatalk



I have done it already . It does lower the temps but sometimes i get freeze frames that's why i thought about Tj Max



TJmax being higher let's you turbo higher for longer when at the thermal limit by raising that limit. It's going to hurt stability allowing it to get hotter rather than help usually.



Sorry but what does it have to do with what i want ? I want to lower my Tjmax not the other way around....
Tis it realy so hard ? No one knows ?



freeze frames meaning lags or system freeze? if the latter then ur undervolt is unstable. if the former then ur system is bottlenecked somewhere performance wise.

Sent from my Xiaomi Mi Max 2 (Oxygen) using Tapatalk



Ok guys, i can see that i won't be getting any help from this forum.
Thread Closed



Not with an attitude like that. You are someone who has an issue asking the wrong question and people are trying to get to the source of the issue but you are being difficult and focusing on the wrong issue.

Tjmax is a universal system setting and is not unique to laptops so the basics are covered by a google search.

It's not a lever you pull to impact stuttering.



I only get stuttering when i undervolt ...
I'm not looking for a help with diagnostics, i only want to know how should i set my Tj Max to get a result that i want. Nothing more nothing less.

I appreciate that people try to help me, but i only need an answer to my question, suggestions that has nothing to do with my question aren't needed.



Tjmax is not going to help stuttering when undervolting.

What undervolting method are you using? How much have you undervolted?



You don't even understand what im writting...

I know now how to change my Tjmax.

values are in DTS. I had it set to 2 witch means 98*. Now i have it at 10 = 90*.

Easy. Problem Solved

Bye



right.... and did this actually fix your issue or are you just pretending now?



Yeah, your CPU now throttles at lower temperatures, this would not impact stuttering.
