    Tell me where the cpu is located in the 5710 0r 5720 please.

    Discussion in 'Sager and Clevo' started by hairydangler, Jun 13, 2006.

  1. hairydangler

    hairydangler Notebook Enthusiast

    Reputations:
    0
    Messages:
    17
    Likes Received:
    0
    Trophy Points:
    5
    Ive got a Sager 5710 and Ive built desktops but this is my first time digging into a laptop. Ive had the back cover off and Im still not sure what Im looking at. I found the GPU, RAM, and HD but cant seem to be sure where the CPU is located. Im about to upgrade my RAM, GPU, and CPU so please help.

    hairydangler, Jun 13, 2006
    #1
  2. Justin@XoticPC

    Justin@XoticPC Company Representative

    Reputations:
    4,191
    Messages:
    3,307
    Likes Received:
    0
    Trophy Points:
    105
    If you open the large panel on the back you will see a copper heatsink. There is most likely four screws holding it on and should be right at the corner of the laptop. Underneath the heatsink is where you will find the CPU.

    Hope this helps. :D

    Justin@XoticPC, Jun 13, 2006
    #2
  3. Charles P. Jefferies

    Charles P. Jefferies Lead Moderator Super Moderator

    Reputations:
    22,339
    Messages:
    36,639
    Likes Received:
    5,087
    Trophy Points:
    931
    Indeed, it's right where the vent is - taking off that panel will reveal the heatsink - remove the screws and it is right there. It is close to the GPU.

    Charles P. Jefferies, Jun 13, 2006
    #3
  4. hairydangler

    hairydangler Notebook Enthusiast

    Reputations:
    0
    Messages:
    17
    Likes Received:
    0
    Trophy Points:
    5
    OK I think I understand where you guys are pointing me. Let me open it again and take another look. I want to be ready when all my components get here.

    hairydangler, Jun 13, 2006
    #4
  5. hairydangler

    hairydangler Notebook Enthusiast

    Reputations:
    0
    Messages:
    17
    Likes Received:
    0
    Trophy Points:
    5
    Yeah if I got this right then its right to the left of the GPU. Theres a tiny sticker I missed before that says to remove the cpu heatsink before removing the gpu heatsink. Also I should have seen the brass piping. The gpu has one brass pipline(or whatever theyre called) and the cpu has two.

    hairydangler, Jun 13, 2006
    #5
  6. Elminst

    Elminst Some Network Guy

    Reputations:
    224
    Messages:
    827
    Likes Received:
    3
    Trophy Points:
    31

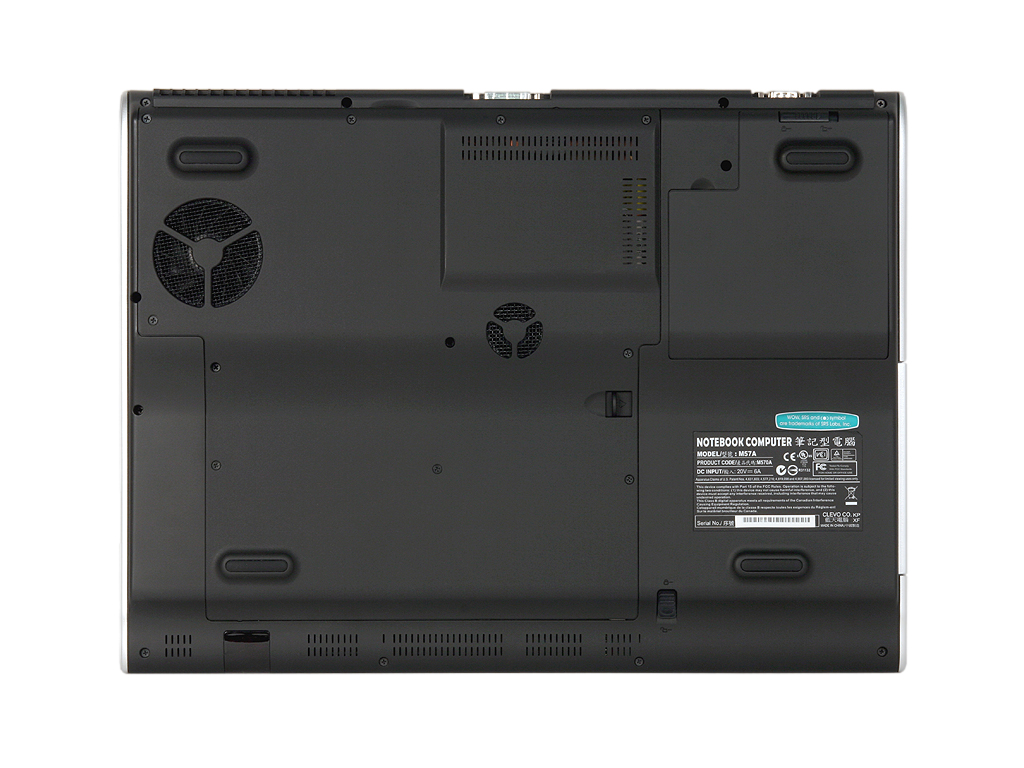

    Upper left corner close to the main vent.
    (image ganked from ISTNC.com)


    Attached Files:

    Elminst, Jun 13, 2006
    #6
  7. hairydangler

    hairydangler Notebook Enthusiast

    Reputations:
    0
    Messages:
    17
    Likes Received:
    0
    Trophy Points:
    5
    Thanks guys.

    hairydangler, Jun 13, 2006
