    Temperature problem -> M860TU ACPI

    Discussion in 'Sager and Clevo' started by Sal3m, Oct 24, 2009.

  1. Sal3m

    Sal3m Newbie

    Reputations:
    0
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    5
    1.) My english is not so good so please dont bother me for it.
    Hi everybody,
    I have a problem with my M860TU.
    It has a P8800 C2D
    GTX260
    4Gb RAM
    320Gb @ 7200rpm.

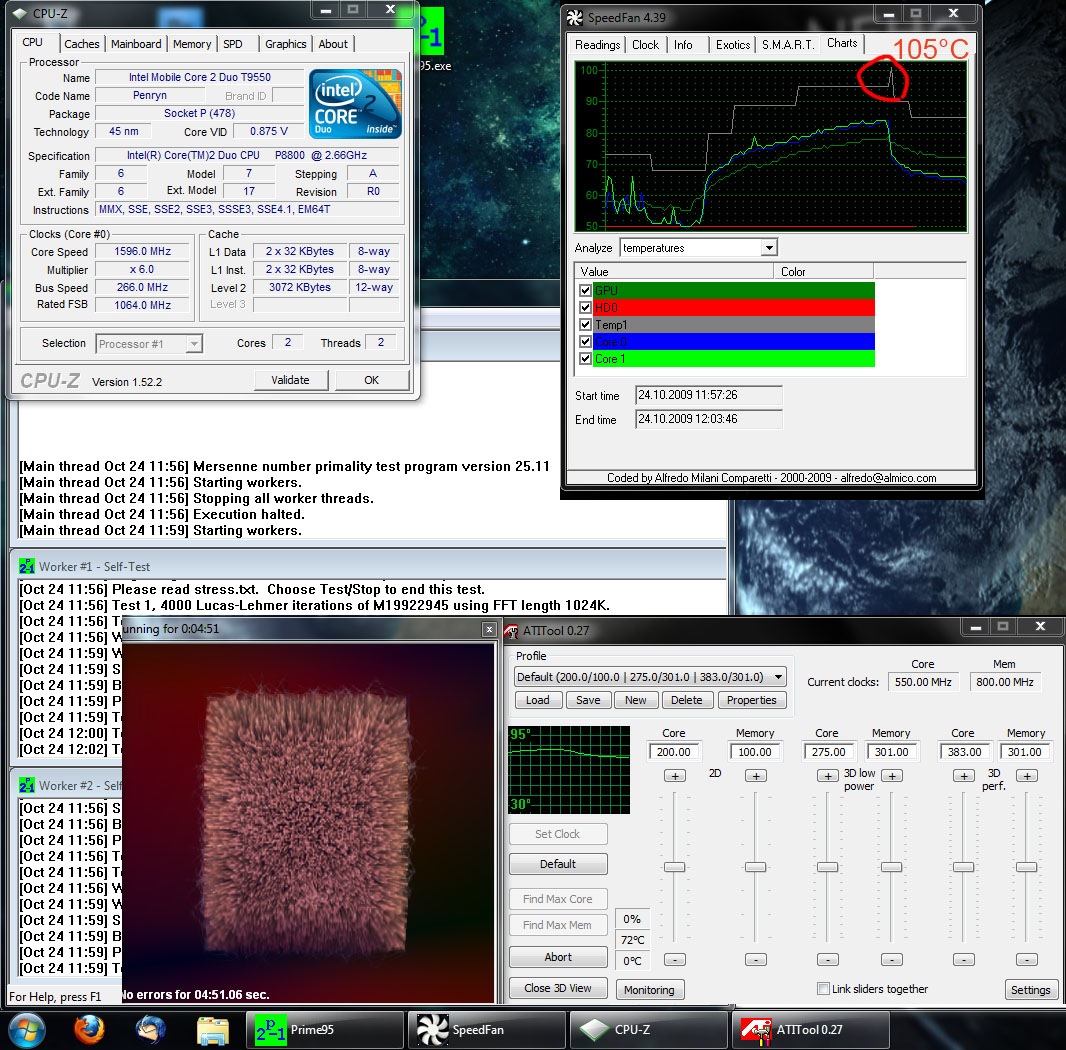

    With Windows 7 the temperature of the ACPI sensor raises to 105°C then the CPU downlocks to 1500 Mhz. I read in another thread that 105°C is far to much for the ACPI. I dont know what to do, I already changed the old thermalpaste to Arctic Silver 5 but it still happens.
    Under XP i can controll the high temperature by using RMCLOCK (temperature raising stops around 87°C.
    Is it possible that the CPU has some sort of malufunction ?


    Attached Files:

    • win7.jpg
      File size:
      376.8 KB
      Views:
      151
    Sal3m, Oct 24, 2009
    #1
  2. moral hazard

    moral hazard Notebook Nobel Laureate

    Reputations:
    2,779
    Messages:
    7,957
    Likes Received:
    87
    Trophy Points:
    216
    moral hazard, Oct 24, 2009
    #2
  3. Sal3m

    Sal3m Newbie

    Reputations:
    0
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    5
    Will it damage the system if the temp. goes higher then 110°C ?
    Are the CPU Temps OK around 80°C or is it to high ? (idle 45°C)

    Sal3m, Oct 24, 2009
    #3
  4. moral hazard

    moral hazard Notebook Nobel Laureate

    Reputations:
    2,779
    Messages:
    7,957
    Likes Received:
    87
    Trophy Points:
    216
    follow this guide to drop your temps:
    http://forum.notebookreview.com/showthread.php?t=235824

    Then only thing the dsdt mod should do is stop CPU throttling.

    The notebook should still shut down if it gets to hot so it shouldn't cause any damage.

    The undervolting guide could fix your problem, but if it doesn't, I can help you do the dsdt mod.

    moral hazard, Oct 24, 2009
    #4
  5. Sal3m

    Sal3m Newbie

    Reputations:
    0
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    5
    Thanks ... i tryed RMCLOCK with win7 2 month ago but i didn't saw the x64 drivers. Now it seems to work fine. Stable without downclocking.
    Thanks moral_hazard.

    PS: I still think the temps are 2 high ... :)

    Sal3m, Oct 24, 2009
    #5
  6. moral hazard

    moral hazard Notebook Nobel Laureate

    Reputations:
    2,779
    Messages:
    7,957
    Likes Received:
    87
    Trophy Points:
    216
    So what are your temps after RMclock?

    moral hazard, Oct 24, 2009
    #6
  7. Sal3m

    Sal3m Newbie

    Reputations:
    0
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    5
    before:
    ACPI: 105°C
    CPU: 85°C
    after RMCLOCK
    ACPI: 86°C
    CPU: 66°C

    20°C down !
    I'am still running some benchmarks with GPU under heavy load ... will post them later.

    Sal3m, Oct 24, 2009
    #7
  8. Sal3m

    Sal3m Newbie

    Reputations:
    0
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    5

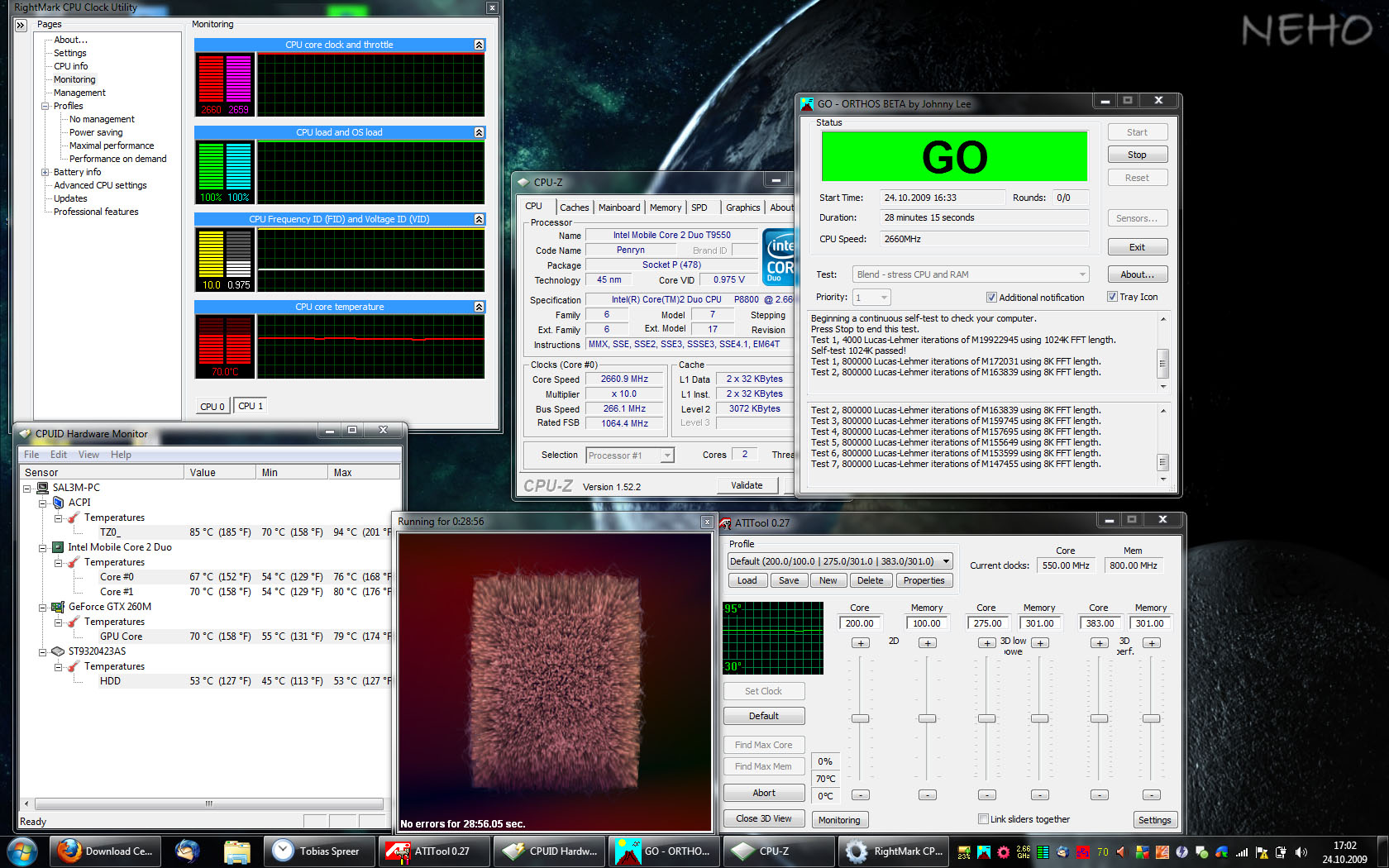

    Final Results:

    30min stress testing - AtiTrayTool + ORTHOS

    CPU: 80-85°C -> 67-70°C
    ACPI: 105°C ->85°C
    GPU: 70°C -> 70°C :)


    Attached Files:

    Sal3m, Oct 24, 2009
    #8
  9. devilcm3

    devilcm3 Notebook Deity

    Reputations:
    273
    Messages:
    722
    Likes Received:
    0
    Trophy Points:
    30
    try to apply new thermal paste? or check if the CPU heatsink is not tighten properly...

    my q9000 idles at same temps as yours around 45C
    usually core2duos should idle around 35....(my old P8700 around 25c)

    devilcm3, Oct 24, 2009
    #9
