    Thermal pads and baking / New GPU

    Discussion in 'Sager and Clevo' started by G01kur_Kisel, Nov 23, 2011.

  1. G01kur_Kisel

    G01kur_Kisel Notebook Guru

    Reputations:
    0
    Messages:
    63
    Likes Received:
    0
    Trophy Points:
    15

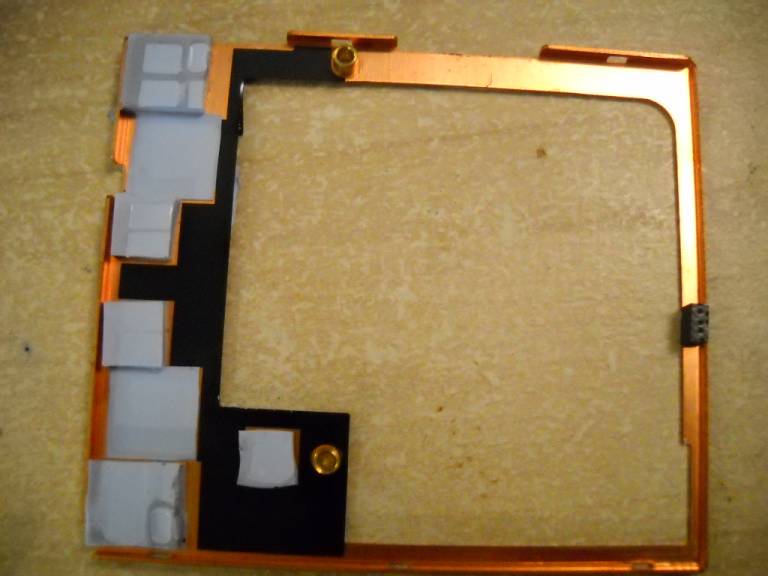

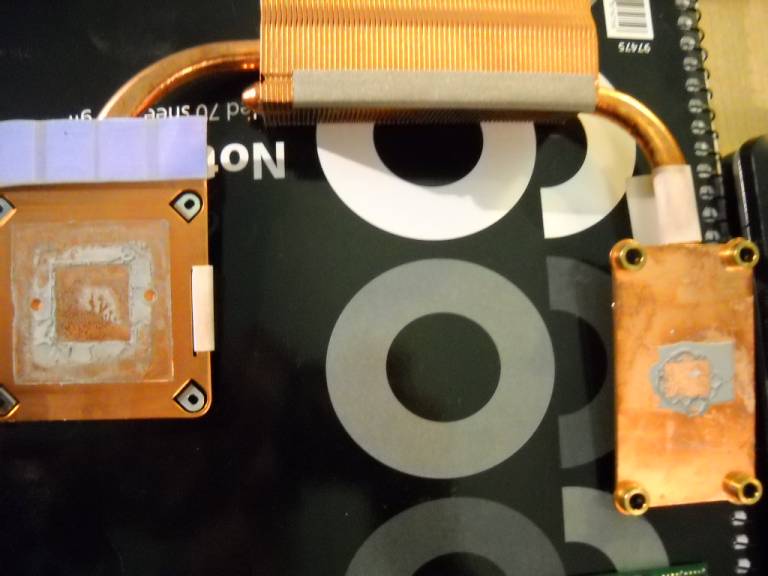

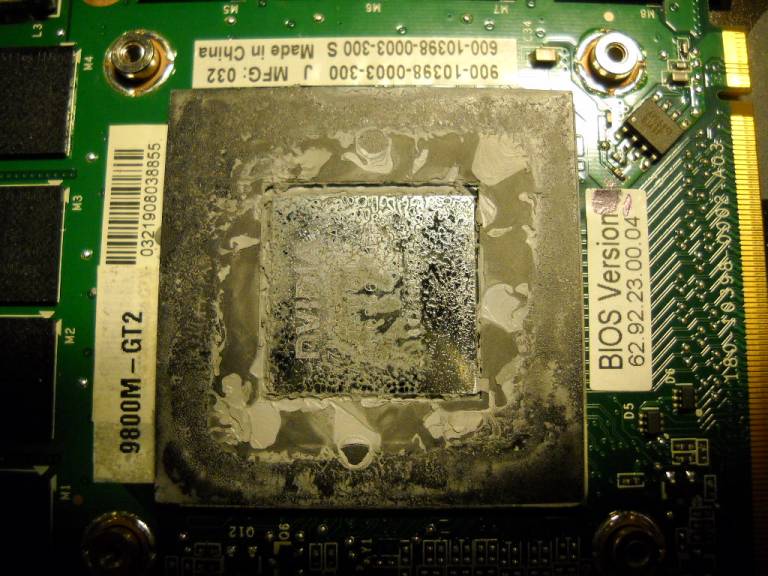

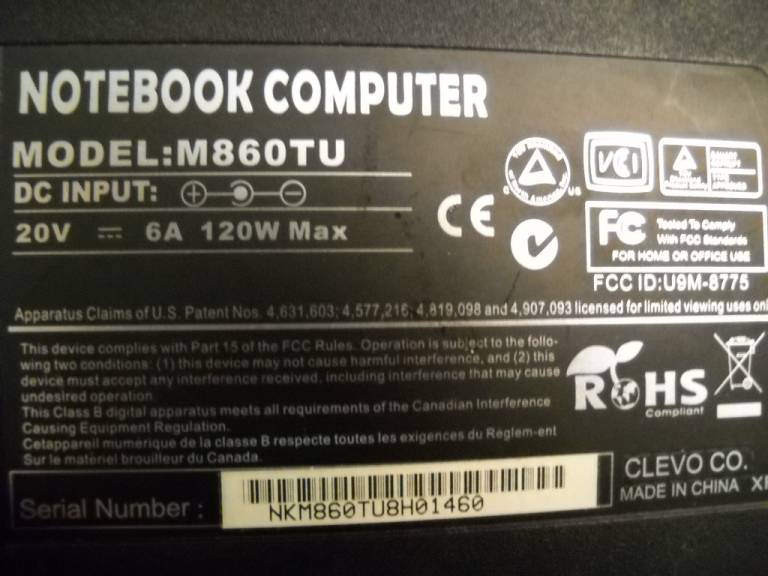

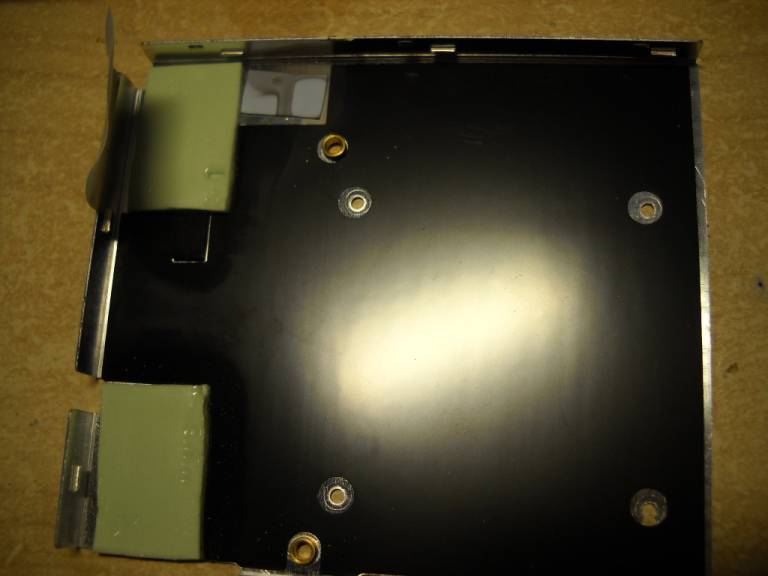

    Hello guys, I wanted to start a new thread for this one. My M860TU graphics card recently died (9800M GT) and Im going try to bake it, Ive disassembled everything and found these strange pads. On the warning labels it says that the pads are not re-useable and I have to replace them if I want to switch Gpu. ( see pictures ) So Im wondering where to I get these thermal pads and are they really necessary?


    If the baking fails Im going have to buy a new GPU and from my previous post
    http://forum.notebookreview.com/sager-clevo/626162-huge-problems-m860tu-2.html

    I got the version information (thanks MrDJ)

    NVIDIA GeForce 8800M GTX
    512MB GDDR3 Video RAM On Board
    Supports PCI-Express * 16
    MS DirectX® 10.0 compatible
    MXM Type-II
    Supports HDC

    So looking for a new GPU , if im not going to buy the 260 GTX cause they are pretty pricey. What specs do I need to look for on the new video card that would match the information on my laptop? Is it MXM type-II or something else/more.

    If purchasing a used card from ebay , isnt there a big risk that this card will be at the end of its lifespan or perhaps even has been baked before? just as a side note to where to buy from?


    Attached Files:

    • 1.jpg
      File size:
      68 KB
      Views:
      699
    • 2.jpg
      File size:
      77.7 KB
      Views:
      1,037
    • 3.jpg
      File size:
      119.2 KB
      Views:
      121
    • 4.jpg
      File size:
      92.5 KB
      Views:
      105
    • 5.jpg
      File size:
      79 KB
      Views:
      132

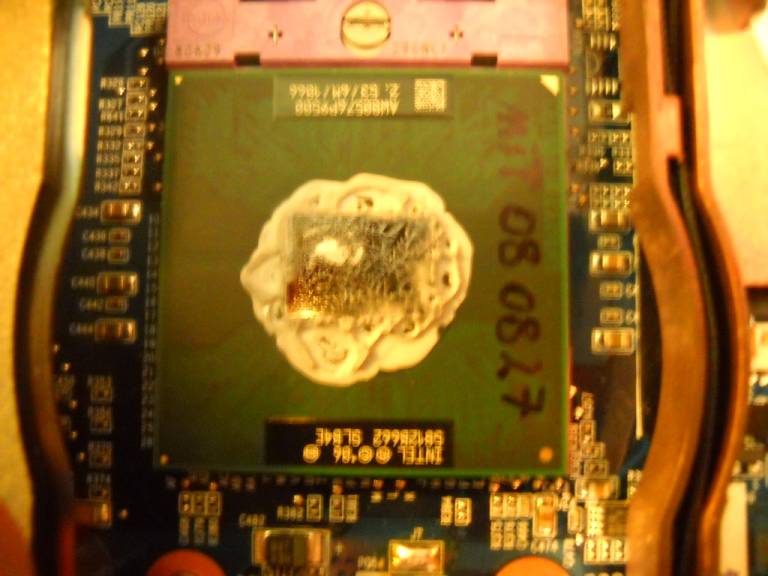

    • cpu.jpg
      File size:
      88.3 KB
      Views:
      141
    G01kur_Kisel, Nov 23, 2011
    #1
  2. G01kur_Kisel

    G01kur_Kisel Notebook Guru

    Reputations:
    0
    Messages:
    63
    Likes Received:
    0
    Trophy Points:
    15
    Ok, baking seems to be succesful so far^^
    anyone got a good thermal check program to see temparatures with?
    thanks

    G01kur_Kisel, Nov 23, 2011
    #2
  3. Anthony@MALIBAL

    Anthony@MALIBAL Company Representative

    Reputations:
    616
    Messages:
    2,771
    Likes Received:
    3
    Trophy Points:
    56
    Anthony@MALIBAL, Nov 23, 2011
    #3
