    Trust me, if you have stock thermal paste change it! (34C difference) P150EM/7970M

    Discussion in 'Sager and Clevo' started by Feddygaimez, Aug 17, 2012.

  1. Feddygaimez

    Feddygaimez Notebook Enthusiast

    Reputations:
    0
    Messages:
    27
    Likes Received:
    0
    Trophy Points:
    5
    Feddygaimez, Aug 17, 2012
    #1
  2. jaug1337

    jaug1337 de_dust2

    Reputations:
    2,135
    Messages:
    4,862
    Likes Received:
    1,031
    Trophy Points:
    231
    Wow that is amazing lol :D nice dude

    jaug1337, Aug 17, 2012
    #2
  3. Prostar Computer

    Prostar Computer Company Representative

    Reputations:
    1,257
    Messages:
    7,426
    Likes Received:
    1,016
    Trophy Points:
    331
    Thank you for the update. Did you try IC thermal Compound?

    Prostar Computer, Aug 17, 2012
    #3
  4. Coors

    Coors Notebook Geek

    Reputations:
    13
    Messages:
    79
    Likes Received:
    0
    Trophy Points:
    15
    Thats a pretty bad TIM application. If they had used less from the factory your temps wouldn't have seen such a drastic change. I have the stock TIM still but temps are decent. I have a gtx680 on the way though so i'll replace the cpu and gpu with some Shin-Etsu G751 I have laying around. I don't expect to see much better results but may as well do it since i'm cracking it open anyways.

    Coors, Aug 17, 2012
    #4
  5. Feddygaimez

    Feddygaimez Notebook Enthusiast

    Reputations:
    0
    Messages:
    27
    Likes Received:
    0
    Trophy Points:
    5
    No, i ordered Arctic M4 Extreme, but i guess it was only CPU. (thought it was both)

    My CPU Idles at ~27, which is pretty damn good. (3820QM)

    Guessing it was just a stock thermal pad. It was amazing feeling to remove it, since it was utter .

    Very happy with the result though.

    Feddygaimez, Aug 18, 2012
    #5
  6. hackness

    hackness Notebook Virtuoso

    Reputations:
    1,237
    Messages:
    2,367
    Likes Received:
    427
    Trophy Points:
    101
    You live at somewhere cold? Because most of us are having a CPU idle temp of 40C~50C across 3610QM/3720QM/3740QM/3820QM/3840QM :p

    hackness, Aug 18, 2012
    #6
  7. arcticjoe

    arcticjoe Notebook Deity

    Reputations:
    66
    Messages:
    877
    Likes Received:
    67
    Trophy Points:
    41
    yeah 27c seems a little too low, even with fans at full blast you should struggle getting 27c on idle.

    arcticjoe, Aug 18, 2012
    #7
  8. HebronCL

    HebronCL Notebook Consultant

    Reputations:
    0
    Messages:
    112
    Likes Received:
    3
    Trophy Points:
    31
    Any advice on putting the thermal paste? So I dont spoil it :)

    HebronCL, Aug 18, 2012
    #8
  9. Tmets

    Tmets De-evolving to Amoeba

    Reputations:
    550
    Messages:
    4,679
    Likes Received:
    423
    Trophy Points:
    151
    Tmets, Aug 18, 2012
    #9
    dmanti likes this.
  10. Feddygaimez

    Feddygaimez Notebook Enthusiast

    Reputations:
    0
    Messages:
    27
    Likes Received:
    0
    Trophy Points:
    5

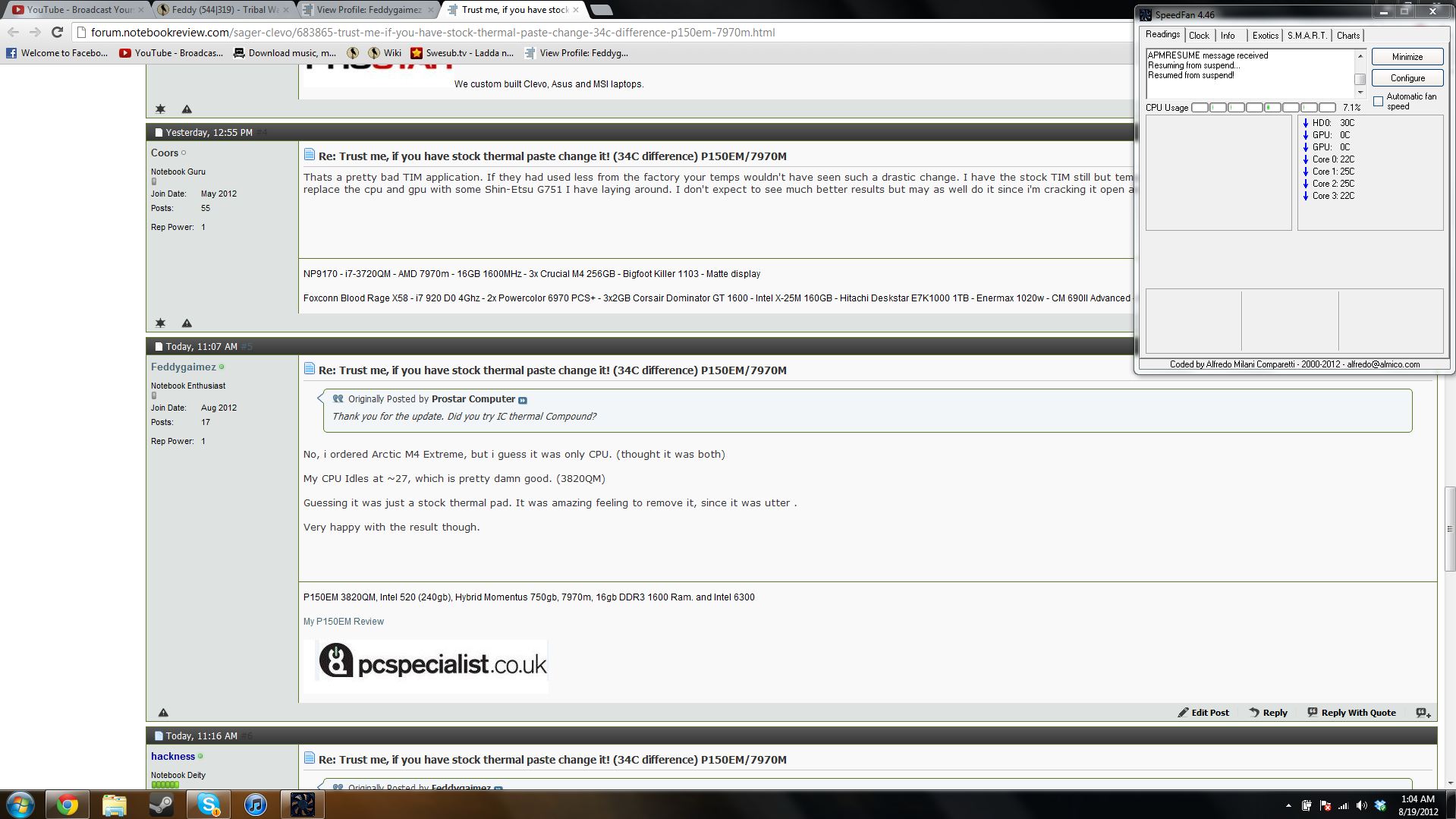

    Honestly no not really. I live in Holland, and right now its summer. It hit 31-33C. Tomorrow 34... Just took a screen shot IDLE at 25C~C Not sure why its so cold, but i like it :)


    Attached Files:

    • here.JPG
      File size:
      263.9 KB
      Views:
      368
    Feddygaimez, Aug 18, 2012
    #10
  11. Tmets

    Tmets De-evolving to Amoeba

    Reputations:
    550
    Messages:
    4,679
    Likes Received:
    423
    Trophy Points:
    151
    I can't see how it could be cooler than the ambient temperature. The cooling system can't do that. I suspect there may be something odd about your temperature monitoring. Have you tried any other programs?

    Tmets, Aug 18, 2012
    #11
  12. Feddygaimez

    Feddygaimez Notebook Enthusiast

    Reputations:
    0
    Messages:
    27
    Likes Received:
    0
    Trophy Points:
    5
    Honestly its super simple.

    Remove back cover :) (4 screws i believe)

    Then remove the 4 screws for the GPU.

    You can determine which one is which by looking at the MOBO.

    GPU is a chip, and CPU is embedded in the MOBO.

    After that remove the 4 GPU screws

    (The radiator isnt attached to anything)

    Also i used a flat-headed screw driver to carefully remove the heatsink.

    Cleaned it off, first using paper.. Used acetone to clean up everything

    WHEN USING ACETONE BE CAREFUL! IT WILL RUIN YOUR COMPUTER IF YOU DONT KNOW HOW TO USE IT!


    Apply a small drop of thermal paste on the GPU.

    Apply heatsink

    And MAGIC!




    Wrote this down using my head.. If i forgot something then tell me :)

    Feddygaimez, Aug 18, 2012
    #12
  13. Feddygaimez

    Feddygaimez Notebook Enthusiast

    Reputations:
    0
    Messages:
    27
    Likes Received:
    0
    Trophy Points:
    5
    Give me a program and i will try it :)

    Feddygaimez, Aug 18, 2012
    #13
  14. Tmets

    Tmets De-evolving to Amoeba

    Reputations:
    550
    Messages:
    4,679
    Likes Received:
    423
    Trophy Points:
    151
    Try CPUID HWmonitor. I'v found that to be pretty good.

    Tmets, Aug 18, 2012
    #14
  15. Feddygaimez

    Feddygaimez Notebook Enthusiast

    Reputations:
    0
    Messages:
    27
    Likes Received:
    0
    Trophy Points:
    5
    How tragic... IDLE 40C~

    Strange, since i know the GPU Temp is correct.. (Checked)

    Feddygaimez, Aug 18, 2012
    #15
  16. Tmets

    Tmets De-evolving to Amoeba

    Reputations:
    550
    Messages:
    4,679
    Likes Received:
    423
    Trophy Points:
    151
    Seems strange it would have read the temps wrong. 40-45 would be normal though.

    Tmets, Aug 18, 2012
    #16
  17. hackness

    hackness Notebook Virtuoso

    Reputations:
    1,237
    Messages:
    2,367
    Likes Received:
    427
    Trophy Points:
    101
    CPU is not embedded by the way, it's a chip that's removable like the whole GPU card, however the GPU chip is embedded onto the GPU board.

    And yes it seems like the temp monitoring with Speedfan is off, 40C sounds about correct.

    It's best if you use multiple programs to monitor: HWINFO64/GPU-Z/MSI-Afterburner, this way you don't get fault reports easily.

    hackness, Aug 18, 2012
    #17
  18. amirfoox

    amirfoox Notebook Evangelist

    Reputations:
    260
    Messages:
    626
    Likes Received:
    13
    Trophy Points:
    31
    Please don't take it the wrong way, but we're becoming way too obsessed with temperatures. In my opinion, if everything is OK and doesn't reach dangerous temps, then there's no point to keep messing with it.

    Remember, that laptop should serve us, not the other way around :)

    amirfoox, Aug 19, 2012
    #18
  19. sgogeta4

    sgogeta4 Notebook Nobel Laureate

    Reputations:
    2,389
    Messages:
    10,552
    Likes Received:
    7
    Trophy Points:
    456
    Some programs have a different Tmax programmed in and hence give a temperature that's offset by 10-20 deg C lower than it actually is.

    sgogeta4, Aug 19, 2012
    #19
  20. MrDJ

    MrDJ Notebook Nobel Laureate

    Reputations:
    2,594
    Messages:
    10,832
    Likes Received:
    363
    Trophy Points:
    501
    loads of monitoring programs in my signature below for everyone else to try.

    MrDJ, Aug 19, 2012
    #20
  21. core²

    core² Notebook Consultant

    Reputations:
    6
    Messages:
    115
    Likes Received:
    0
    Trophy Points:
    30
    actually... is the 50°C the intel gpu (hd4000 is shown in your infos)? can't quite believe the 7970m stays below 50°C under load only due to a repaste job ... (that would mean a 40°C difference for me...)

    core², Aug 19, 2012
    #21
  22. Feddygaimez

    Feddygaimez Notebook Enthusiast

    Reputations:
    0
    Messages:
    27
    Likes Received:
    0
    Trophy Points:
    5
    Awhh Hackness :) i know, i was just trying to explain the best way possible :) Sorry, should have put more effort in explaining. I was almost 100% sure i was going to get critic for that explanation haha...

    Feddygaimez, Aug 19, 2012
    #22
  23. Feddygaimez

    Feddygaimez Notebook Enthusiast

    Reputations:
    0
    Messages:
    27
    Likes Received:
    0
    Trophy Points:
    5
    Wait here a second..


    FIRST: I enjoy playing around with computers its my only hobby.

    SECONDLY: If i can improve performance, and enjoy doing it at the same time, why not?

    And if there is room for improvement, then why the hell not? :)

    Feddygaimez, Aug 19, 2012
    #23
  24. Feddygaimez

    Feddygaimez Notebook Enthusiast

    Reputations:
    0
    Messages:
    27
    Likes Received:
    0
    Trophy Points:
    5
    Nope its defiantly the 7970m

    HD4000 Would be burning running Rage, also if i remember right Rage.exe is automatically added in the drivers :)

    Feddygaimez, Aug 19, 2012
    #24
  25. amirfoox

    amirfoox Notebook Evangelist

    Reputations:
    260
    Messages:
    626
    Likes Received:
    13
    Trophy Points:
    31
    With the temps you're getting, I don't think it's needed at that point, but if you like doing that, then of course who am I to judge? Ignore me and have fun, whatever makes you happy, man :D

    amirfoox, Aug 19, 2012
    #25
  26. katsas

    katsas Notebook Enthusiast

    Reputations:
    0
    Messages:
    10
    Likes Received:
    0
    Trophy Points:
    5
    well i changed the paste at my w170hrm and i didnt get any difrence cpu is getting FRY at 98 stable while in game

    katsas, Aug 19, 2012
    #26
  27. Feddygaimez

    Feddygaimez Notebook Enthusiast

    Reputations:
    0
    Messages:
    27
    Likes Received:
    0
    Trophy Points:
    5
    Make sure you do it correctly, and use good thermal paste.

    Feddygaimez, Aug 28, 2012
    #27
  28. hackness

    hackness Notebook Virtuoso

    Reputations:
    1,237
    Messages:
    2,367
    Likes Received:
    427
    Trophy Points:
    101

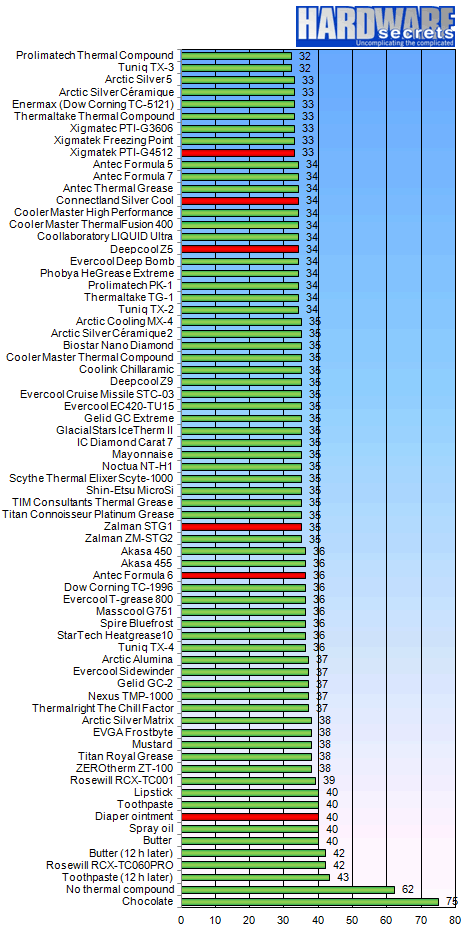

    Make sure you use something better than Mayonnaise :)

    [​IMG]

    Originally posted by Mite_jan here.

    hackness, Aug 28, 2012
    #28
  29. Zymphad

    Zymphad Zymphad

    Reputations:
    2,321
    Messages:
    4,165
    Likes Received:
    355
    Trophy Points:
    151
    Originally posted by hardware secrets and can be found easily through google and frozencpu.com often references their reviews.

    Awesome thread though. I almost thought I was on the History or Discovery channel about the paranormal or unsolved mysteries.

    Zymphad, Aug 28, 2012
    #29
  30. hackness

    hackness Notebook Virtuoso

    Reputations:
    1,237
    Messages:
    2,367
    Likes Received:
    427
    Trophy Points:
    101
    The reason I said originally posted by mite_jan was because I linked that picture from his online albums :D.

    hackness, Aug 28, 2012
