    can 170em oc mem to 2133?

    Discussion in 'Sager and Clevo' started by littlecx, Apr 4, 2014.

  1. littlecx

    littlecx Notebook Deity

    Reputations:
    24
    Messages:
    783
    Likes Received:
    20
    Trophy Points:
    31
    i am using samsung 1600 and now running at 1866. just want to know if anyone tried oc to 2133 without changing the timing?

    littlecx, Apr 4, 2014
    #1
  2. littlecx

    littlecx Notebook Deity

    Reputations:
    24
    Messages:
    783
    Likes Received:
    20
    Trophy Points:
    31

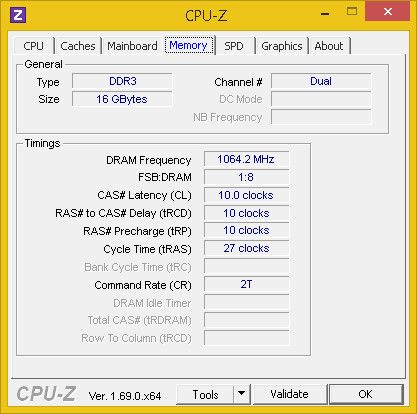

    ok i am running 2133 now
    [​IMG]

    littlecx, Apr 4, 2014
    #2
  3. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    Impressive yours managed to, often they don't. Not too much to be gained though, tight timing 1866mhz is more likely to be stable and offer all the performance.

    Meaker@Sager, Apr 4, 2014
    #3
  4. littlecx

    littlecx Notebook Deity

    Reputations:
    24
    Messages:
    783
    Likes Received:
    20
    Trophy Points:
    31
    littlecx, Apr 4, 2014
    #4
  5. littlecx

    littlecx Notebook Deity

    Reputations:
    24
    Messages:
    783
    Likes Received:
    20
    Trophy Points:
    31

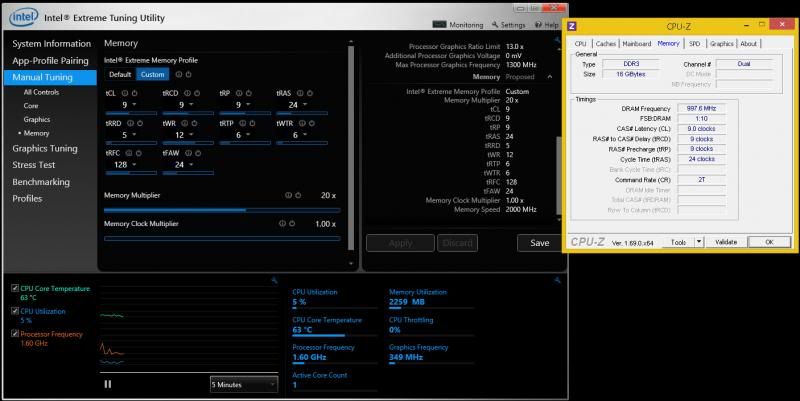

    more aggressive timing
    [​IMG]

    littlecx, Apr 5, 2014
    #5
  6. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    Haswell does like more band with than ivy yes.

    Meaker@Sager, Apr 5, 2014
    #6
  7. hexum23

    hexum23 Notebook Evangelist

    Reputations:
    75
    Messages:
    307
    Likes Received:
    141
    Trophy Points:
    56
    How do I go about doing this for the 16gb of ram (not sure of brand name) in my p170em? Intel extreme tuning utility?

    Sounds like 1866mhz is what I'd go for as I don't want unstable. I've never adjusted ram before, and from this post, sounds like I can go about this a couple different ways?

    Sorry if this is thread hijacking.

    hexum23, Apr 6, 2014
    #7
  8. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    Trial and error the timings basically. Follow any ram tuning guide.

    Meaker@Sager, Apr 6, 2014
    #8
  9. littlecx

    littlecx Notebook Deity

    Reputations:
    24
    Messages:
    783
    Likes Received:
    20
    Trophy Points:
    31

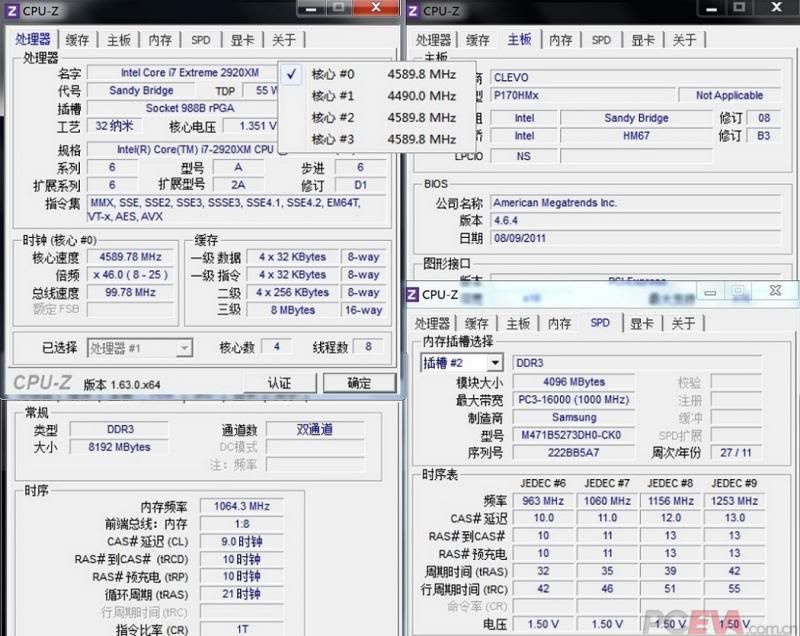

    2133 is too hot now i am running like this
    [​IMG]

    littlecx, Apr 6, 2014
    #9
  10. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    The ram was getting hot?

    Meaker@Sager, Apr 6, 2014
    #10
  11. n=1

    n=1 YEAH SCIENCE!

    Reputations:
    2,544
    Messages:
    4,346
    Likes Received:
    2,600
    Trophy Points:
    231
    System too unstable?

    n=1, Apr 6, 2014
    #11
  12. littlecx

    littlecx Notebook Deity

    Reputations:
    24
    Messages:
    783
    Likes Received:
    20
    Trophy Points:
    31
    blue screen after an hr.

    littlecx, Apr 6, 2014
    #12
  13. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    It won't be heat then, it will simply not be stable at that speed. It's likely the IMC rather than the modules.

    Meaker@Sager, Apr 6, 2014
    #13
  14. littlecx

    littlecx Notebook Deity

    Reputations:
    24
    Messages:
    783
    Likes Received:
    20
    Trophy Points:
    31
    I heard changing slots can help but too lazy to do this. Still testing with memtest now.

    littlecx, Apr 6, 2014
    #14
  15. littlecx

    littlecx Notebook Deity

    Reputations:
    24
    Messages:
    783
    Likes Received:
    20
    Trophy Points:
    31
    It became unstable at 2133 after failed to boot at 2400. Regret.

    littlecx, Apr 6, 2014
    #15
  16. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    If its unstable at 2133mhz now it always was. It was just a matter of time.

    Meaker@Sager, Apr 6, 2014
    #16
  17. littlecx

    littlecx Notebook Deity

    Reputations:
    24
    Messages:
    783
    Likes Received:
    20
    Trophy Points:
    31
    Have to stop at CL9. CL8 failed memtest.

    littlecx, Apr 6, 2014
    #17
  18. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    That's pretty normal to be fair. CL8 is very tight.

    Meaker@Sager, Apr 6, 2014
    #18
  19. n=1

    n=1 YEAH SCIENCE!

    Reputations:
    2,544
    Messages:
    4,346
    Likes Received:
    2,600
    Trophy Points:
    231
    I find stability to be a sliding scale, really depends on how much you need/want of it. If I'm benchmarking, then as long as the system is stable enough to pull through the duration of said benchmark I'm happy. The most I'd do is run XTU stress test for 5 minutes and if the system passes I move on. For daily use I run stock settings, and for gaming I only use a mild OC which I know to be stable from past experience.

    ...wait why am I rambling again?

    Back on topic: even with the magical set of GSkill ram that was a good silicon lottery win, I still can't do 1866 at CL8. The most it'll do is 1866 CL9. It'll run 2133 CL10 and 2400 CL11 though, so really can't complain.

    n=1, Apr 7, 2014
    #19
  20. littlecx

    littlecx Notebook Deity

    Reputations:
    24
    Messages:
    783
    Likes Received:
    20
    Trophy Points:
    31
    this is my final setting. can pass memtest

    littlecx, Apr 7, 2014
    #20
  21. littlecx

    littlecx Notebook Deity

    Reputations:
    24
    Messages:
    783
    Likes Received:
    20
    Trophy Points:
    31
    another update
    now running at 2000 CL9! passed memtest no blue screen rock solid! i think 2000 CL9 is not much slower than 2133 CL10. happy now
    [​IMG]

    littlecx, Apr 7, 2014
    #21
  22. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    What speed can you hit at a 1t command rate?

    Meaker@Sager, Apr 7, 2014
    #22
  23. littlecx

    littlecx Notebook Deity

    Reputations:
    24
    Messages:
    783
    Likes Received:
    20
    Trophy Points:
    31
    where to set?

    littlecx, Apr 7, 2014
    #23
  24. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    If there are no bios options then you can't actually.

    Not bad none the less.

    Meaker@Sager, Apr 8, 2014
    #24
  25. n=1

    n=1 YEAH SCIENCE!

    Reputations:
    2,544
    Messages:
    4,346
    Likes Received:
    2,600
    Trophy Points:
    231
    ^so if there are no options in BIOS then what sets the command rate? Curious because it defaults to 1T on mine, whereas it seems to be 2T on this guy's P170EM.

    n=1, Apr 8, 2014
    #25
  26. littlecx

    littlecx Notebook Deity

    Reputations:
    24
    Messages:
    783
    Likes Received:
    20
    Trophy Points:
    31
    what I know only prema mod can choose either 1T or 2T BIOS before you flash. cannot change after flash

    littlecx, Apr 8, 2014
    #26
  27. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    2 sticks = 1t
    4 sticks = 2t

    Meaker@Sager, Apr 8, 2014
    #27
  28. n=1

    n=1 YEAH SCIENCE!

    Reputations:
    2,544
    Messages:
    4,346
    Likes Received:
    2,600
    Trophy Points:
    231
    Right, missed the part where his was 4x4GB and mine 2x8GB.

    n=1, Apr 8, 2014
    #28
  29. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    It's a common auto setting as it covers most if not all cases quite well.

    Meaker@Sager, Apr 8, 2014
    #29
