    easiest way to remove dvdrw plate?

    Discussion in 'Sager and Clevo' started by camar0rs, Oct 26, 2011.

  1. camar0rs

    camar0rs Notebook Guru

    Reputations:
    0
    Messages:
    58
    Likes Received:
    6
    Trophy Points:
    16
    i got the panasonic UJ-240 drive from ebay and obviously need to change the front bezel

    easiest way to remove without breaking?

    camar0rs, Oct 26, 2011
    #1
  2. Justin@XoticPC

    Justin@XoticPC Company Representative

    Reputations:
    4,191
    Messages:
    3,307
    Likes Received:
    0
    Trophy Points:
    105
    Gently push the tabs (that hold the face plate) on each side of the tray down and outward. (Towards how the tray ejects)

    Justin@XoticPC, Oct 26, 2011
    #2
  3. mubay

    mubay Notebook Consultant

    Reputations:
    93
    Messages:
    142
    Likes Received:
    0
    Trophy Points:
    30

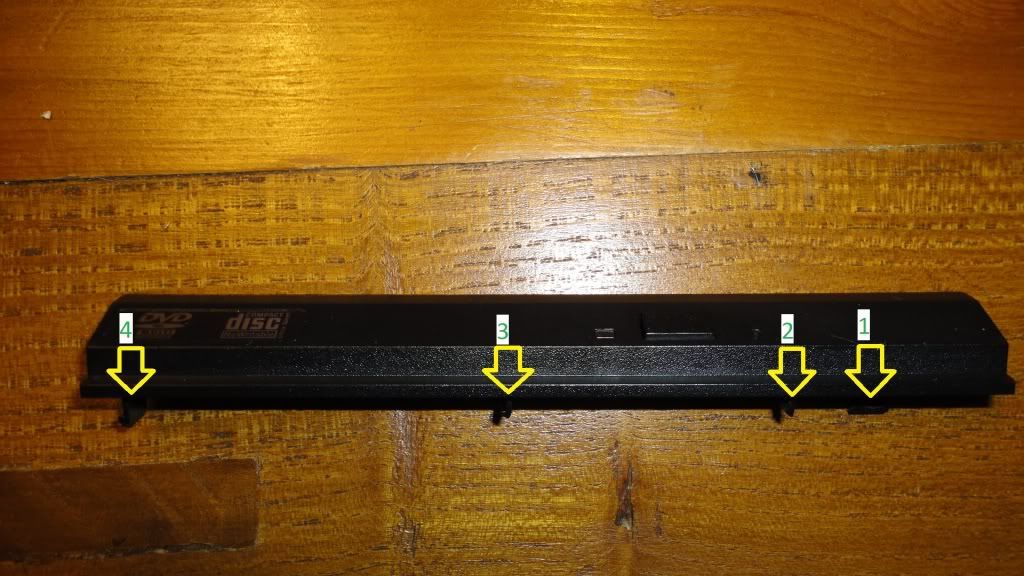

    Here, I took a picture when I removed mine:

    [​IMG]

    Do it on that order and you should be fine ;)

    mubay, Oct 26, 2011
    #3
  4. J.P.@XoticPC

    J.P.@XoticPC Company Representative

    Reputations:
    237
    Messages:
    595
    Likes Received:
    0
    Trophy Points:
    30
    J.P.@XoticPC, Oct 26, 2011
    #4
