    i7 5700 HQ issues?

    Discussion in 'Sager and Clevo' started by DHKany, Oct 2, 2015.

  1. DHKany

    DHKany Newbie

    Reputations:
    0
    Messages:
    7
    Likes Received:
    0
    Trophy Points:
    5
    Recently bought an NP8652 and it's been working wonderfully, but I've been running into MACHINE_CHECK_EXCEPTION blue screens everytime I try to play a Source Engine game. MSI has released a bios update that supposedly fixed this, and I was wondering if anyone else with this issue on a Sager has found a solution.

  2. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    Have you checked for a bios update from your reseller? Do any other games have this issue?

  3. DHKany

    DHKany Newbie

    Reputations:
    0
    Messages:
    7
    Likes Received:
    0
    Trophy Points:
    5
    I have emailed Sager yesterday and they said that my bios is up to date, xotic is saying the same thing. None of my other games have this issue, and they're all a lot more demanding than Dota 2. BF3 on ultra settings runs perfectly fine the occasional quarter second stutter that all but disappears when I put some settings down to high, Bioshock Infinite and MGSV run on maxed settings fine as well. I can play all of the above for several hours with no issues but Source games run for maybe 10-60 minutes before crashing to BSOD.

  4. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    I would strip back the graphics drivers and try the latest intel set (on the intel website) followed by the latest GPU drivers after that.

  5. Prema

    Prema Your Freedom, Your Choice

    Reputations:
    9,368
    Messages:
    6,297
    Likes Received:
    16,485
    Trophy Points:
    681

    Latest BIOS for your system is 1.05.06, latest EC 1.05.02...with that info go and ask them again. ;)

    i_pk_pjers_i and Bullrun like this.
  6. Support.1@XOTIC PC

    Support.1@XOTIC PC Company Representative

    Reputations:
    203
    Messages:
    4,355
    Likes Received:
    1,099
    Trophy Points:
    231
    It seems to mostly be on Steam games like CS GO and Dota 2 that people have been reporting (mostly on MSI threads), or also office that is having the same issue possibly. Since there aren't a lot of broadwell models from Clevo out there right now, it probably just isn't as well documented as MSI's issue was, because of that fact. What version of BIOS / EC does yours say you have?

  7. gooface

    gooface Notebook Evangelist

    Reputations:
    224
    Messages:
    543
    Likes Received:
    136
    Trophy Points:
    56
    This only fixable via a BIOS update, happens in Office 2016 as well. My buddy has a MSI laptop with a broadwell chip in it too, before the bios update they released this week it would BSOD the moment he opened up office 2016, after the update there are no more BSOD's Sager/Clevo need to fix their stuff, MSI did it.

    i_pk_pjers_i, TomJGX and Prema like this.
  8. XMG

    XMG Company Representative

    Reputations:
    749
    Messages:
    1,755
    Likes Received:
    2,200
    Trophy Points:
    181
    I completely understand the logic here, that Clevo (Sager isn't Clevo) need to sort this out. However, this fix needs to be led by Intel and we have been talking to them about it since last week when the problem was first reported.

    Only a couple of Clevo customers took the Broadwell models (including us), so there is a very low number of people experiencing issues as reported in this thread. Sager will have advised that the BIOS is up to date because that's true - Clevo do not have a fix yet but that's because Intel need to sort it out first i.e. they need to explain the fix to Clevo that Clevo then will impliment in an update.

    Intel are aware that they need to do this, because we have been in contact with our tech reps since last week and so the wheels are in motion :)

  9. DHKany

    DHKany Newbie

    Reputations:
    0
    Messages:
    7
    Likes Received:
    0
    Trophy Points:
    5
    Any update on the progress of the fix?

  10. XMG

    XMG Company Representative

    Reputations:
    749
    Messages:
    1,755
    Likes Received:
    2,200
    Trophy Points:
    181
    Not yet unfortunately. The fix will come in the form of a BIOS update which needs to come from Clevo, but this in turn needs to be driven by Intel as it's their CPU. We are pushing for a fix like I am sure everyone else is who sold the 5700HQ model is.

  11. Prema

    Prema Your Freedom, Your Choice

    Reputations:
    9,368
    Messages:
    6,297
    Likes Received:
    16,485
    Trophy Points:
    681
    Last edited: Oct 11, 2015
  12. Bullrun

    Bullrun Notebook Deity

    Reputations:
    545
    Messages:
    1,171
    Likes Received:
    494
    Trophy Points:
    101
  13. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    That would mean he may not be as free to do the mods ;)

  14. Bullrun

    Bullrun Notebook Deity

    Reputations:
    545
    Messages:
    1,171
    Likes Received:
    494
    Trophy Points:
    101
    So, a contractor for both turns out to be the best for us. Nice thinking, Meaker. :)

  15. XMG

    XMG Company Representative

    Reputations:
    749
    Messages:
    1,755
    Likes Received:
    2,200
    Trophy Points:
    181
    A fair point in a way, but the problem is not Clevo but Intel.

    i_pk_pjers_i likes this.
  16. Bullrun

    Bullrun Notebook Deity

    Reputations:
    545
    Messages:
    1,171
    Likes Received:
    494
    Trophy Points:
    101
    I wasn't blaming. He's the BIOS GUY! :)

    i_pk_pjers_i, TomJGX and Prema like this.
  17. Ethrem

    Ethrem Notebook Prophet

    Reputations:
    1,404
    Messages:
    6,706
    Likes Received:
    4,735
    Trophy Points:
    431
    If Prema can't fix it, nobody can lol.

  18. htrieu93

    htrieu93 Newbie

    Reputations:
    0
    Messages:
    2
    Likes Received:
    7
    Trophy Points:
    6
    Hi Prema, I have the same problem with my Clevo and I happened to stumble onto this post. I was trying to extract the .rar file to my laptop but it requires a password. I didn't see it on your webiste so I was wondering if you could privately message me (or you could post it here if you don't mind) with the password. I only have one question: As the problem is related to the laptop's CPU, why is there a difference between the two versions you have (2 different GPUs)? As soon as I can extract and test out the update I will let you know the result asap :) Thank you so much for posting this fix as it's been stopping me from playing my favorite game for a long time :) (if this could really fix it!)

    EDIT: After a further look into your website I have found the password! However, I am still puzzled as to how to really run the file. Could you please (if you don't mind) send me the instructions for the particular version of the 970M? (in particular, the following two lines:
    - Create an MS-DOS USB flash-drive (To do so we recommend the Software'Rufus').
    - Add all files without folder directly to the root of the flash-drive.
    Did you mean I need to add all the files in the extracted folder to the flash-drive? What about the "root" of the flash-drive?
    I'm sorry as I'm writing this at 4am so I can't really do more research on this. Once I can have more time I promise to look further into your instructions. Once again, thank you very much!

    Last edited: Oct 14, 2015
  19. Prema

    Prema Your Freedom, Your Choice

    Reputations:
    9,368
    Messages:
    6,297
    Likes Received:
    16,485
    Trophy Points:
    681

    1. There are two Mod versions because Clevo uses different BIOS' for each model depending on its GPU.

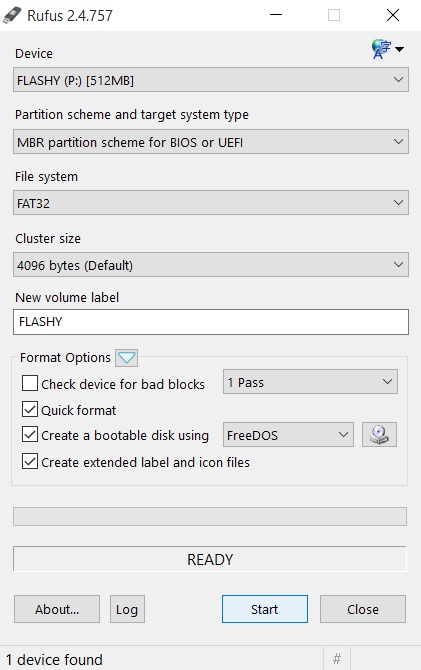

    2:
    [​IMG]
    3. Copy all the files directly to the flash-drive (root means not into any folder).

  20. htrieu93

    htrieu93 Newbie

    Reputations:
    0
    Messages:
    2
    Likes Received:
    7
    Trophy Points:
    6
    Hi Prema, I've installed your mod and played my first game of Dota 2 in a month. Glad to see there was no more BSOD appearing during games. Thank you so very much! :)

    Ethrem, TomJGX, Meaker@Sager and 4 others like this.
  21. Laine Leavelle

    Laine Leavelle Notebook Enthusiast

    Reputations:
    0
    Messages:
    12
    Likes Received:
    8
    Trophy Points:
    6
    I'm having an issue applying this bios update/fix. I followed your instructions provided, and when I attempt to boot from the flash drive nothing comes up and it defaults to my 2nd boot device. Any ideas?

    (used rufus, put files in root folder of USB)

  22. Prema

    Prema Your Freedom, Your Choice

    Reputations:
    9,368
    Messages:
    6,297
    Likes Received:
    16,485
    Trophy Points:
    681
    You need to disable UEFI/Win8 mode in BIOS, otherwise it can't boot from USB.

  23. Laine Leavelle

    Laine Leavelle Notebook Enthusiast

    Reputations:
    0
    Messages:
    12
    Likes Received:
    8
    Trophy Points:
    6
    You da real MVP. Thanks man, worked like a charm.

    TomJGX, Bullrun and Prema like this.
  24. Prema

    Prema Your Freedom, Your Choice

    Reputations:
    9,368
    Messages:
    6,297
    Likes Received:
    16,485
    Trophy Points:
    681
    ENJOY! :)

  25. TomJGX

    TomJGX I HATE BGA!

    Reputations:
    1,456
    Messages:
    8,707
    Likes Received:
    3,315
    Trophy Points:
    431
    @Prema is the BIOS god :p

    i_pk_pjers_i and Laine Leavelle like this.
  26. Bullrun

    Bullrun Notebook Deity

    Reputations:
    545
    Messages:
    1,171
    Likes Received:
    494
    Trophy Points:
    101
  27. TomJGX

    TomJGX I HATE BGA!

    Reputations:
    1,456
    Messages:
    8,707
    Likes Received:
    3,315
    Trophy Points:
    431
    Bullrun likes this.
  28. Prema

    Prema Your Freedom, Your Choice

    Reputations:
    9,368
    Messages:
    6,297
    Likes Received:
    16,485
    Trophy Points:
    681
    Well, the one who doesn't fight, can't be beaten. ;)
    Just here to help...

    Last edited: Oct 16, 2015
    TomJGX, Bullrun and i_pk_pjers_i like this.
  29. Laine Leavelle

    Laine Leavelle Notebook Enthusiast

    Reputations:
    0
    Messages:
    12
    Likes Received:
    8
    Trophy Points:
    6
    I've run into a slight problem, My webcam is no longer showing up in the device list and on the sager website I don't see a specific driver for camera functions. Any ideas?

  30. Prema

    Prema Your Freedom, Your Choice

    Reputations:
    9,368
    Messages:
    6,297
    Likes Received:
    16,485
    Trophy Points:
    681
    FN + 10 ;)

    TomJGX, Bullrun and i_pk_pjers_i like this.
  31. Laine Leavelle

    Laine Leavelle Notebook Enthusiast

    Reputations:
    0
    Messages:
    12
    Likes Received:
    8
    Trophy Points:
    6
    I feel like an idiot. Thanks again lmao.

  32. Bullrun

    Bullrun Notebook Deity

    Reputations:
    545
    Messages:
    1,171
    Likes Received:
    494
    Trophy Points:
    101
    You can also look in Control Center and toggle it there.

    i_pk_pjers_i and Laine Leavelle like this.
  33. Bullrun

    Bullrun Notebook Deity

    Reputations:
    545
    Messages:
    1,171
    Likes Received:
    494
    Trophy Points:
    101
    Prema's the best for sure! But in the context of that thread "Hi, you called the BIOS GUY?!" was hilarious. So, I'll keep calling him BIOS GUY! :biglaugh:

    Edit: I did it again, double post :oops:

  34. bryneb

    bryneb Notebook Consultant

    Reputations:
    9
    Messages:
    256
    Likes Received:
    44
    Trophy Points:
    41
    Does this bios just fix the bsod or does it have all the extra features as well?

  35. Prema

    Prema Your Freedom, Your Choice

    Reputations:
    9,368
    Messages:
    6,297
    Likes Received:
    16,485
    Trophy Points:
    681
    For now it's just a CPU hot-fix...to busy with P870DM-G atm...

  36. Laine Leavelle

    Laine Leavelle Notebook Enthusiast

    Reputations:
    0
    Messages:
    12
    Likes Received:
    8
    Trophy Points:
    6
    What "extra" features would we be missing out of curiosity? I'd much rather not have BSOD over features tbh.

    i_pk_pjers_i likes this.
  37. Prema

    Prema Your Freedom, Your Choice

    Reputations:
    9,368
    Messages:
    6,297
    Likes Received:
    16,485
    Trophy Points:
    681
    He was asking for a full featured Prema Mod.
    Nothing is missing compared to your old stock BIOS.

    Last edited: Oct 17, 2015
    i_pk_pjers_i likes this.
  38. Laine Leavelle

    Laine Leavelle Notebook Enthusiast

    Reputations:
    0
    Messages:
    12
    Likes Received:
    8
    Trophy Points:
    6
    Gotcha Gotcha. If you can't tell I'm new to the laptop gaming market and all its intricacies :confused:

    i_pk_pjers_i likes this.
  39. bryneb

    bryneb Notebook Consultant

    Reputations:
    9
    Messages:
    256
    Likes Received:
    44
    Trophy Points:
    41
    Thanks for the info, was originally going to get the p650se but the vendor upgraded without asking me

    Are there any plans for a full modded bios?

    Last edited: Oct 17, 2015
  40. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    Well you made a good choice of entry ;)

  41. i_pk_pjers_i

    i_pk_pjers_i Even the ppl who never frown eventually break down

    Reputations:
    205
    Messages:
    1,033
    Likes Received:
    598
    Trophy Points:
    131
    Yep, what a great start. It took me a while before I discovered Clevo.

  42. Realnoize

    Realnoize Newbie

    Reputations:
    0
    Messages:
    8
    Likes Received:
    3
    Trophy Points:
    6
    Anyone aware if this issue as now been "officially" fixed by manufacturers and/or CLEVO? I bought an Eurocom M5 Pro recently (which is a P650SE) with a 970M and and was freely bumped up to an i7-5700HQ from an i7-4720HQ. Can't complain about anything except that after installing Office 2016 this weekend, I got that same issue everyone else is having here. I contacted Eurocom support over the weekend and still no answer from them (although it's only Monday morning now, didn't expect them to answer me right away over the weekend). I would prefer waiting for an "official" BIOS fix from them.

    But in the event that this issue lingers for too long without an official fix, can I use Prema's BIOS safely? Is there something I can deactivate in the BIOS in the meantime that would make it work until an official fix is available, or is this pretty much the only way to fix this issue? It's not overly dramatic for me right now as I use my PC mostly for entertainment purposes and sometimes for work (and everything's seems to work ok except Office 2016), so if we know a fix is in the works from "official" channels, then I can probably wait for it. But... do we actually know if such a fix is currently in the works? It is pretty incredible that a guy like Prema can fix this up so quickly while "official" channels don't seem to have a fix yet.

    Is Prema's fix working for all models of P650SE? I know I need the right one depending on the GPU - 970M or 980M, but is there anything that makes some models different than others or pretty much all P650SE use the same innards, boards and BIOS, regardless of brand?

    Sorry if this sounds like a noob question, but this is my first gaming laptop, bought as a replacement for my aging (5+ years) desktop. I used to build my desktop systems myself, and I wanted a laptop closer to that desktop builder mentality, and I then discovered these CLEVO-based laptops and Eurocom really had the best deals for me, considering that I live in Canada and their Canadian prices were very good compared to the competition. Anyway, just wanted to know if this Prema BIOS fix was safe for me to use, if support from Eurocom don't have anything for me right now...

  43. XMG

    XMG Company Representative

    Reputations:
    749
    Messages:
    1,755
    Likes Received:
    2,200
    Trophy Points:
    181
    @Realnoize - I was sure that I posted an update about this in the thread but this was indeed resolved a while ago.Can't speak for different Prema versions but stock BIOS 1.05.04 has reportedly fixed the issue.

  44. Realnoize

    Realnoize Newbie

    Reputations:
    0
    Messages:
    8
    Likes Received:
    3
    Trophy Points:
    6
    Thanks XMG. So I guess I'll wait for an answer from Eurocom support then. Because if other sellers of CLEVO-based laptops have a BIOS upgrade available, I guess Eurocom probably will too. I got Stellar service from them pre-sale and when purchasing. Let's just see if that stellar experience carries over to after-sale service....

    I bought my Eurocom M5-Pro this mid-october, and Eurocom gave me a free upgrade to the 5700HQ from the 4720HQ I bought. It was assembled to my specs on October 19, so maybe at that time, Eurocom didn't have the latest BIOS update on their boards...

    Anyway, I guess I'll know more about this over the next couple of days. Eurocom don't make BIOS updates available on their website. And maybe I don't look at the right place, but using the Speccy software to identify components and BIOS information on my laptop, it is mentionned that my BIOS version is 5.0.11, dated 2015-08-28. So I guess this was before the issue started popping up and so it would be ovious that my BIOS would need an update.

  45. XMG

    XMG Company Representative

    Reputations:
    749
    Messages:
    1,755
    Likes Received:
    2,200
    Trophy Points:
    181
    @Realnoize - best place to confirm the BIOS version is on the first page of the BIOS itself - it will be something like 1.05.04 or ending .03 or .05. Anything over .04 should work ok and solve the issue :)

  46. Realnoize

    Realnoize Newbie

    Reputations:
    0
    Messages:
    8
    Likes Received:
    3
    Trophy Points:
    6
    Thanks XMG. I'll do that when I get home tonight. I'm pretty sure I'm not on a recent BIOS version though, as I have the exact same issues others mentionned in this thread. Anyway, I'll check it out. Again, thanks a lot for the info. Seems like the Speccy software I used to get my info about my firmware wasn't very reliable (although I'm still curious about where it got that 5.0.11 number).

    And sorry if this looks like a noob question (I'm new to this CLEVO-based universe), but do you know what is the difference between the P650SE and P650SE-A? I looked at Prema's website and one model is listed as the P6XXSE, and the other one P6XXSE-A. And my laptop serial contains the string "P650SEA"... Do you know if that means anything in particular or not? I think it has to do with the board using a broadwell CPU, whereas the regular P6XXSE uses a Haswell CPU. Am I right? Again, thanks for your answers. Very much appreciated.

  47. TomJGX

    TomJGX I HATE BGA!

    Reputations:
    1,456
    Messages:
    8,707
    Likes Received:
    3,315
    Trophy Points:
    431
    SA uses broadwell CPU's like the 5700HQ I believe...

  48. Realnoize

    Realnoize Newbie

    Reputations:
    0
    Messages:
    8
    Likes Received:
    3
    Trophy Points:
    6
    @XMG

    Just had a look into my BIOS... I'm on 1.05.04... with EC on 1.05.02. You said that anything over .04 would be probably fine, so if I'm still on .04, it probably means that's why I get this bug. And from my BIOS screen, I see that my MB series is listed as "P65xSE-A". So it must probably mean that the "-A" is relevant to the Broadwell CPU version, as I thought earlier. This must not be new to anyone here, but like I said, I'm a noob to the CLEVO-based laptop world. lol!
    Just tested Outlook 2016 again. Seems to work right up until I start deleting messages. Then, after deleting 2 or 3 messages, it hangs there for about 20 seconds, completely frozen, and then it BSOD. MACHINE_CHECK_EXCEPTION. Every time. Can play Source-based games fine though (tried Dota 2 for about 8 minutes, no BSOD. Dear Esther for about 10 minutes, no BSOD). But Outlook generate a BSOD everytime I start deleting mails from the inbox.

    I got an answer from an Eurocom support tech, asking me those same questions, so I sent him a pic of my BIOS screen along with version # for both BIOS and EC... I'll see what comes out of this...

    Again, thanks for the all the info and replies. It's appreciated.

    Last edited: Nov 30, 2015
  49. Realnoize

    Realnoize Newbie

    Reputations:
    0
    Messages:
    8
    Likes Received:
    3
    Trophy Points:
    6
    I've been in contact with a tech at Eurocom, and he makes me go through the usual things, windows repair, doing a chkdsk, and so on... I sent him the bios version I'm on (1.05.04), but he doesn't seem to be aware there's a new bios (if there's one - is 1.05.04 the latest one???).... I'm kind of bummed out a bit, especially since I initially ordered a 4270HQ, and it is Eurocom who gave me a free "upgrade" to the 5700HQ. Now I wish I got what I initially ordered.

    If it can easily be fixed by a BIOS update, this would be fine with me. I already reinstalled Win10 and reinstalled Office 2016 with nothing else just to be sure there's no conflict with other installed apps or drivers... And... same thing. BSODs all over the place whenever I start using Office 2016 apps. This is ridiculous. I can't live with this. I hope they send me a BIOS update that fixes this. Otherwise, what are my options?

  50. i_pk_pjers_i

    i_pk_pjers_i Even the ppl who never frown eventually break down

    Reputations:
    205
    Messages:
    1,033
    Likes Received:
    598
    Trophy Points:
    131
    Look into Prema's BIOS mod, I'm pretty sure he has had it fixed for a very long time: http://www.premamod.com

    He is literally one of the 3 reasons why I buy only buy Clevo laptops.

    1) Prema's BIOS and vBIOS mods are amazing and unlock so many features and give me full control over my hardware.
    2) Clevo laptops generally make it really easy to upgrade and replace pretty much any component, which means I can repaste them easily or upgrade or swap out parts, etc.
    3) Clevo laptops are a really barebones OEM experience with no bloating, no scary backdoor or certification firmware controversies and/or issues.

 Next page →
