    is my 3940xm+7970m the fastest?

    Discussion in 'Sager and Clevo' started by littlecx, Aug 30, 2015.

  1. littlecx

    littlecx Notebook Deity

    Reputations:
    24
    Messages:
    783
    Likes Received:
    20
    Trophy Points:
    31
    1440946960174.jpg Screenshot_2015-08-30-23-03-48.png

    littlecx, Aug 30, 2015
    #1
  2. littlecx

    littlecx Notebook Deity

    Reputations:
    24
    Messages:
    783
    Likes Received:
    20
    Trophy Points:
    31
    Just saw someone got 5992 with 3920xm

    littlecx, Aug 30, 2015
    #2
    TomJGX likes this.
  3. littlecx

    littlecx Notebook Deity

    Reputations:
    24
    Messages:
    783
    Likes Received:
    20
    Trophy Points:
    31
    ok i got 5995. highest now with stock voltage 7970m.
    [​IMG]

    littlecx, Aug 31, 2015
    #3
    TomJGX likes this.
  4. TomJGX

    TomJGX I HATE BGA!

    Reputations:
    1,456
    Messages:
    8,707
    Likes Received:
    3,315
    Trophy Points:
    431
    Try increasing voltage but you are really near the limit of the card IMO... Not a bad firestrike graphics score though.. About 1500 points from the stock 970M..

    Sent from my LG-H811 using Tapatalk

    TomJGX, Sep 1, 2015
    #4
  5. Ethrem

    Ethrem Notebook Prophet

    Reputations:
    1,404
    Messages:
    6,706
    Likes Received:
    4,735
    Trophy Points:
    431
    I'd be careful trying to push those cards... They are prone to failure as it is.

    Ethrem, Sep 1, 2015
    #5
  6. littlecx

    littlecx Notebook Deity

    Reputations:
    24
    Messages:
    783
    Likes Received:
    20
    Trophy Points:
    31
    I found others overvolt the desktop 7870 to 1.3v. Can I do that to 7970m?

    littlecx, Sep 2, 2015
    #6
  7. i_pk_pjers_i

    i_pk_pjers_i Even the ppl who never frown eventually break down

    Reputations:
    205
    Messages:
    1,033
    Likes Received:
    598
    Trophy Points:
    131
    I would not suggest overvolting a laptop GPU, that's just asking for failure. Unless you have a resolution higher than 1080p or want to drive a refresh rate higher than 60 Hz, you likely won't need overclocking THAT extreme.

    i_pk_pjers_i, Sep 3, 2015
    #7
  8. littlecx

    littlecx Notebook Deity

    Reputations:
    24
    Messages:
    783
    Likes Received:
    20
    Trophy Points:
    31

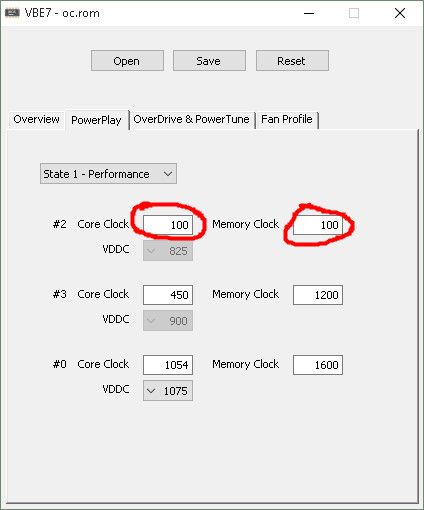

    other than overclock. i also underclock both gpu and mem to the lowest possible speed in standby mode. original gpu clock is 300 and mem is 150. now both 100. anything below 100 is not allowed.
    [​IMG]

    Last edited: Sep 3, 2015
    littlecx, Sep 3, 2015
    #8
  9. littlecx

    littlecx Notebook Deity

    Reputations:
    24
    Messages:
    783
    Likes Received:
    20
    Trophy Points:
    31

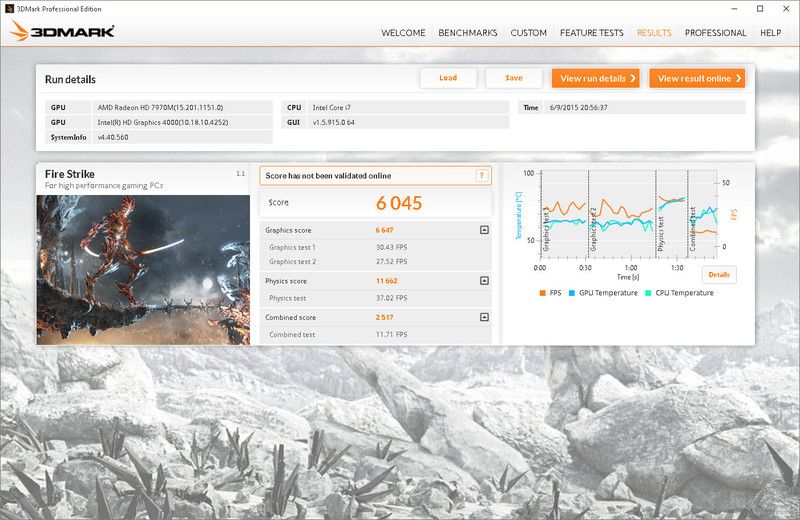

    finally break 6k
    [​IMG]

    littlecx, Sep 6, 2015
    #9
    TomJGX likes this.
  10. littlecx

    littlecx Notebook Deity

    Reputations:
    24
    Messages:
    783
    Likes Received:
    20
    Trophy Points:
    31
    littlecx, Sep 6, 2015
    #10
    Prema and TomJGX like this.
  11. TomJGX

    TomJGX I HATE BGA!

    Reputations:
    1,456
    Messages:
    8,707
    Likes Received:
    3,315
    Trophy Points:
    431
    Great Job! However I wouldn't run games at those clocks for too long or you'll burn out the GPU lol.. You really have a golden sample...

    TomJGX, Sep 6, 2015
    #11
  12. littlecx

    littlecx Notebook Deity

    Reputations:
    24
    Messages:
    783
    Likes Received:
    20
    Trophy Points:
    31
    this is mainly constributed by 3940xm. actually i did run firestrike at even higher gpu core 1065 successfully but that speed crash in 3dmark11 so i treat that speed is invalid.
    i spent sometime tuning the 3940xm and one thing i found is interesting: upping the bclk will get adverse effects.
    i have tried:
    99.76 (default)*44=4389.44
    102*43=4386
    for 102 bclk, there is only 3.44Mhz slower in cpu clock but ram is much higher. however i got more than 100 firestrike marks lower than 99.76. so i dont know for what reasons upping bclk is not a good choice and it even slow the whole system.

    littlecx, Sep 7, 2015
    #12
  13. SegaDE

    SegaDE Notebook Guru

    Reputations:
    53
    Messages:
    74
    Likes Received:
    6
    Trophy Points:
    16
    SegaDE, Sep 8, 2015
    #13
  14. littlecx

    littlecx Notebook Deity

    Reputations:
    24
    Messages:
    783
    Likes Received:
    20
    Trophy Points:
    31
    I made this at stock voltage. Although I saw the highest core at stock voltage is 1100 from another person

    littlecx, Sep 8, 2015
    #14
  15. SegaDE

    SegaDE Notebook Guru

    Reputations:
    53
    Messages:
    74
    Likes Received:
    6
    Trophy Points:
    16
    On Stock voltage i can Hit 1055-1060 MHz on core, just like u. This scores i Made After overvoltig to 1.1v and overclocking the core to 1115-1120 MHz.
    But its not for everyday use, the gpu getting to hot. For everyday use I undervolted it and Run 900mhz @ 0.975v and its cooler than Stock [email protected]

    SegaDE, Sep 9, 2015
    #15
  16. littlecx

    littlecx Notebook Deity

    Reputations:
    24
    Messages:
    783
    Likes Received:
    20
    Trophy Points:
    31

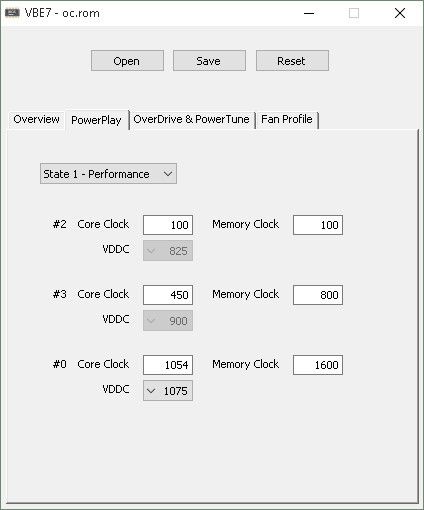

    i dont understand the voltage shown in vbios editor is 1.075, but in gpu-z is 1.05?
    [​IMG]

    littlecx, Sep 9, 2015
    #16
  17. TomJGX

    TomJGX I HATE BGA!

    Reputations:
    1,456
    Messages:
    8,707
    Likes Received:
    3,315
    Trophy Points:
    431
    Yeah I noticed this before myself too... It happens like this..

    TomJGX, Sep 9, 2015
    #17
  18. littlecx

    littlecx Notebook Deity

    Reputations:
    24
    Messages:
    783
    Likes Received:
    20
    Trophy Points:
    31
    that means either 1.05 or 1.1 if flash?

    littlecx, Sep 9, 2015
    #18
  19. TomJGX

    TomJGX I HATE BGA!

    Reputations:
    1,456
    Messages:
    8,707
    Likes Received:
    3,315
    Trophy Points:
    431
    No, if VBios has 1.1V, the card will actually use 1.075V when running... So 1.075V in BIOS is 1.05.. Basically 0.025V less...

    Sent from my LG-H811 using Tapatalk

    TomJGX, Sep 10, 2015
    #19
    littlecx and jaybee83 like this.
