    m860tu problem

    Discussion in 'Sager and Clevo' started by doublek19, Sep 18, 2010.

  1. doublek19

    doublek19 Notebook Enthusiast

    Reputations:
    0
    Messages:
    20
    Likes Received:
    0
    Trophy Points:
    5

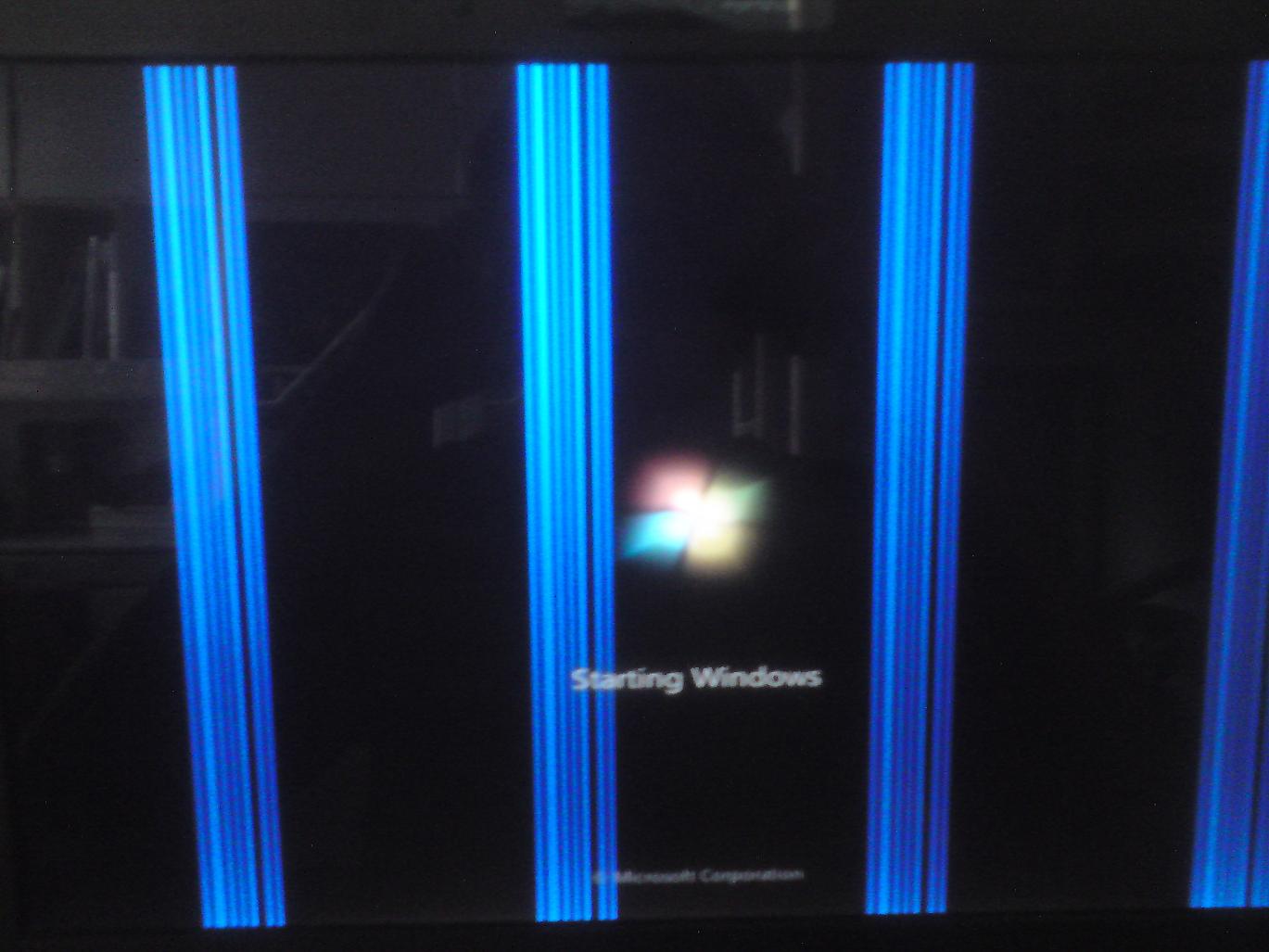

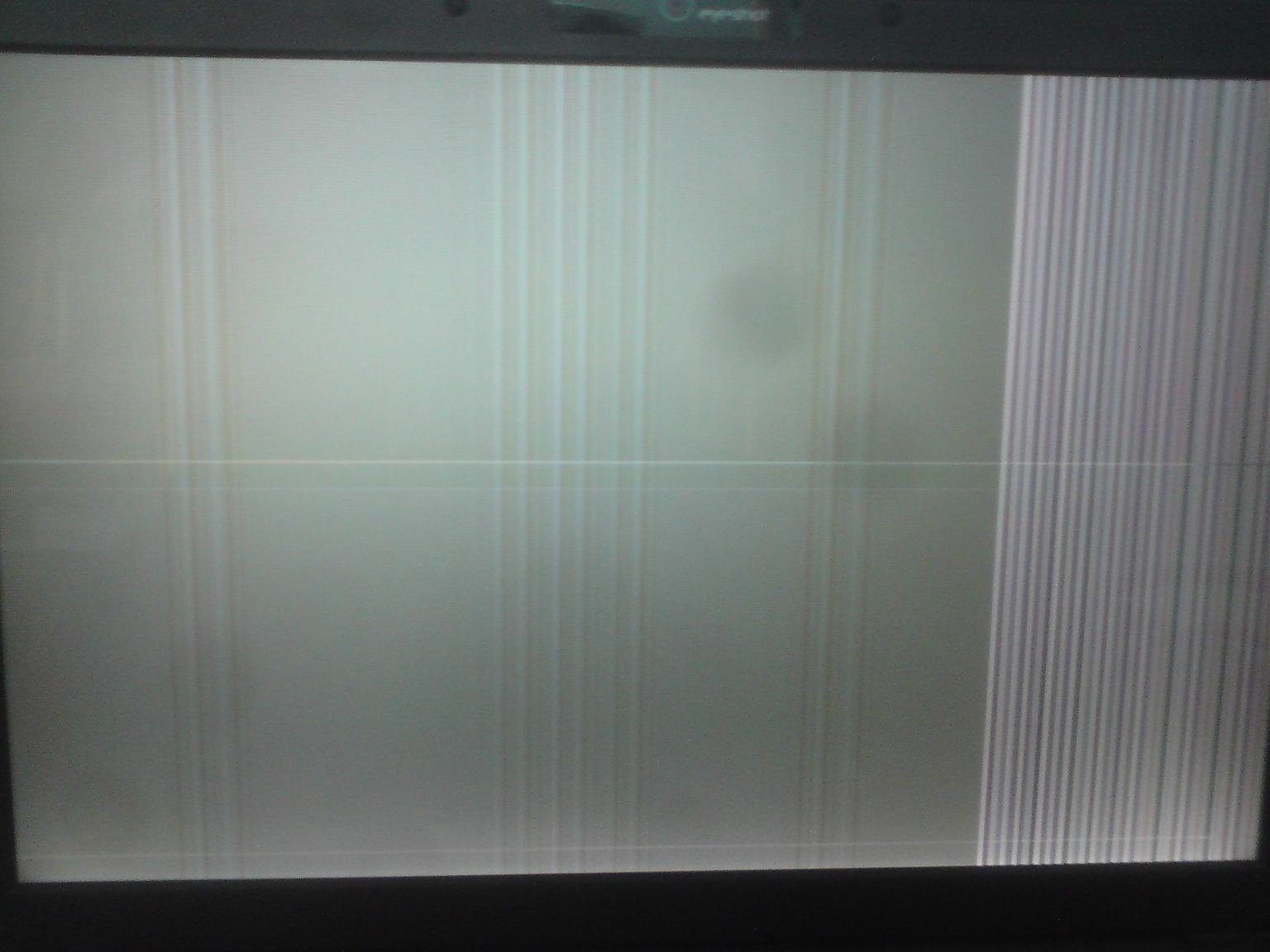

    Hi guys. I have a problem with my m860tu(9800m gt) bought 2 years ago. The screen started to act up like attached images 3 months ago. So i thought it was the 9800mgt problem and replaced it with fx3700m gpu now the start up screen(sager) is green and my desktop has double images and color distortion with temps up to 100C I had to shut it (fx3700m driver installed). Help! Do i need a bios flash or is my laptop busted?


    Attached Files:

    doublek19, Sep 18, 2010
    #1
  2. NovaH

    NovaH Company Representative

    Reputations:
    111
    Messages:
    414
    Likes Received:
    2
    Trophy Points:
    31
    When debugging issues with the image on a laptop the first thing to check would be to attach an external monitor. If the problem appears on the external monitor then the problem is very likely the video card. If the image on the external monitor is clean then the issue is likely either the LCD panel or the cable from the LCD panel to the motherboard.
    As for the 100C temperature, did you apply fresh thermal paste when installing the new card?

    Good luck!

    NovaH, Sep 18, 2010
    #2
  3. doublek19

    doublek19 Notebook Enthusiast

    Reputations:
    0
    Messages:
    20
    Likes Received:
    0
    Trophy Points:
    5
    It works perfectly on eternal screen but i dont believe my lcd is busted...my current bios is 00.18...i installed a fx3700m from hp8730w...not sure what bios version..

    doublek19, Sep 18, 2010
    #3
  4. pkhetan

    pkhetan CopyLEFT ↄ⃝

    Reputations:
    563
    Messages:
    743
    Likes Received:
    0
    Trophy Points:
    30
    Where did you get the .18 BIOS for your M860TU motherboard ?

    pkhetan, Sep 18, 2010
    #4
  5. NovaH

    NovaH Company Representative

    Reputations:
    111
    Messages:
    414
    Likes Received:
    2
    Trophy Points:
    31
    Did it work fine with the 9800m on an external screen? Maybe you can put it back in.

    If it works perfectly on an external screen you need to try to figure out if the probelm is the cable from the panel to the motherboard or the panel itself. It is very hard to diagnose this type of problem without a spare LCD panel or cable.

    If you GENTLY squeeze the top center of the screen does the image change? This is usually where the cable connects. If so, the cable MAY be loose or MAY need to be replaced.

    NovaH, Sep 18, 2010
    #5
  6. niffcreature

    niffcreature ex computer dyke

    Reputations:
    1,748
    Messages:
    4,094
    Likes Received:
    28
    Trophy Points:
    116
    would a screen cable really cause those types of results?

    I'm going to try unplugging my screen cable while my laptop is running just to see...

    you should put the 9800 gt back, we've been talking through email and i think the 3700m might have a 3600m bios but im really not sure...

    niffcreature, Sep 21, 2010
    #6
