    p150em + 675mx, unsure of thermal pad thickness / location

    Discussion in 'Sager and Clevo' started by RanCorX2, Jul 22, 2017.

  1. RanCorX2

    RanCorX2 Notebook Evangelist

    Reputations:
    45
    Messages:
    385
    Likes Received:
    19
    Trophy Points:
    31
    does anyone know what thickness pads i need to apply to my card and where they need to go?

    don't think i got it right atm as 3d crashes with artifacts after a few seconds.
    been a while since i had one these 15.6 clevos, so can't remember what to use.

    RanCorX2, Jul 22, 2017
    #1
  2. t6nn_k

    t6nn_k Notebook Consultant

    Reputations:
    11
    Messages:
    268
    Likes Received:
    59
    Trophy Points:
    41

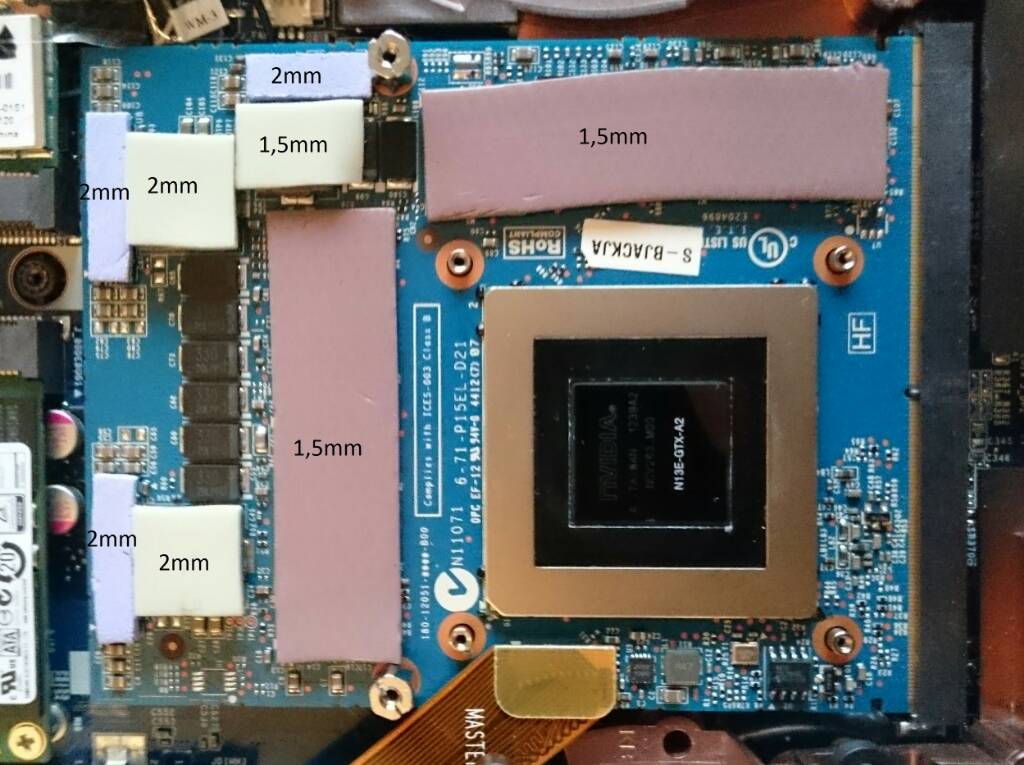

    That is what I measured on my 680m. I also put thermal pads on top of those 6+2 black thingys
    [​IMG]

    Last edited: Jul 22, 2017
    t6nn_k, Jul 22, 2017
    #2
    Dr. AMK likes this.
  3. RanCorX2

    RanCorX2 Notebook Evangelist

    Reputations:
    45
    Messages:
    385
    Likes Received:
    19
    Trophy Points:
    31
    could you post a higher resolution image please? can barely see the text.

    RanCorX2, Jul 22, 2017
    #3
  4. t6nn_k

    t6nn_k Notebook Consultant

    Reputations:
    11
    Messages:
    268
    Likes Received:
    59
    Trophy Points:
    41
    [​IMG]

    t6nn_k, Jul 22, 2017
    #4
    RanCorX2 likes this.
  5. RanCorX2

    RanCorX2 Notebook Evangelist

    Reputations:
    45
    Messages:
    385
    Likes Received:
    19
    Trophy Points:
    31
    thanks man, will go find some new pads now.

    RanCorX2, Jul 22, 2017
    #5
  6. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    No need to go crazy on them, also softer pads are easier to work with.

    Meaker@Sager, Jul 22, 2017
