    sager/clevo PSU Question

    Discussion in 'Sager and Clevo' started by thegh0sts, Jan 30, 2015.

  1. thegh0sts

    thegh0sts Notebook Nobel Laureate

    Reputations:
    949
    Messages:
    7,700
    Likes Received:
    2,819
    Trophy Points:
    331
    I'm thinking of getting the sager NP8268 special / clevo P150SM-A SPECIAL from reflex notebooks Canada to replace the alienware 17 I have and I noticed that it comes with a 180w PSU. Can anyone confirm if sager / clevo 230w or 330w PSUs are compatible with the aforementioned laptop?

  2. jaybee83

    jaybee83 Biotech-Doc

    Reputations:
    4,125
    Messages:
    11,571
    Likes Received:
    9,151
    Trophy Points:
    931
    nope, they aint compatible without modding or an adapter cable, unfortunately...

  3. thegh0sts

    thegh0sts Notebook Nobel Laureate

    Reputations:
    949
    Messages:
    7,700
    Likes Received:
    2,819
    Trophy Points:
    331
    Bummer cos I don't think 180w is enough for a 980M

  4. jaybee83

    jaybee83 Biotech-Doc

    Reputations:
    4,125
    Messages:
    11,571
    Likes Received:
    9,151
    Trophy Points:
    931
    it definitely is, unless u plan to oc both the cpu & gpu and unless u run prime95 and furmark side by side ;)

  5. Support.3@XOTIC PC

    Support.3@XOTIC PC Company Representative

    Reputations:
    1,268
    Messages:
    7,186
    Likes Received:
    1,002
    Trophy Points:
    331
    I don't recall any times where there were issues with the 180w not being large enough for the NP8268. You should have no problems, they are engineered very carefully to make sure all parts are going to work with whats included. If a problems is discovered later they adjust accordingly. Since this model has been available for months and there haven't been any changes I think its pretty safe to say you're not going to need a larger PSU under normal usage.

  6. TomJGX

    TomJGX I HATE BGA!

    Reputations:
    1,456
    Messages:
    8,707
    Likes Received:
    3,315
    Trophy Points:
    431
    Yo ghosts why not get the P770ZM? That will be much better :)... As for the P150SM-A, I believe that the dell 240W PSU can be used once you use a cable adapter/connector to connect it..

  7. thegh0sts

    thegh0sts Notebook Nobel Laureate

    Reputations:
    949
    Messages:
    7,700
    Likes Received:
    2,819
    Trophy Points:
    331
    The visual aesthetics are important and this model looks fine.

  8. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    If you are confident in your own skills you can remove the cable from the dell 240W brick and put your own cable in it to give it a professional look. The issue is your skill and knowledge level to do it and the safety ratings are obviously broken.

  9. thegh0sts

    thegh0sts Notebook Nobel Laureate

    Reputations:
    949
    Messages:
    7,700
    Likes Received:
    2,819
    Trophy Points:
    331
    Is it a mod or something that's bought off the shelf?

    EDIT: so the only reason it doesn't work is because the plugs (at the PC end) don't fit?

    Last edited: Jan 30, 2015
  10. thegh0sts

    thegh0sts Notebook Nobel Laureate

    Reputations:
    949
    Messages:
    7,700
    Likes Received:
    2,819
    Trophy Points:
    331

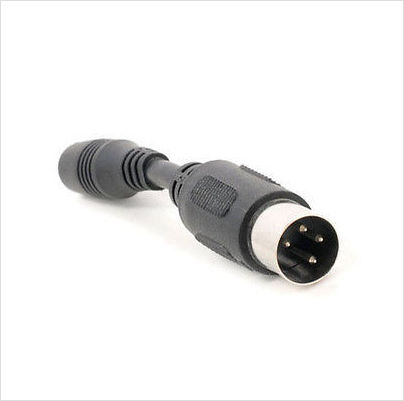

    so i would need something like this?

    [​IMG]

  11. jaybee83

    jaybee83 Biotech-Doc

    Reputations:
    4,125
    Messages:
    11,571
    Likes Received:
    9,151
    Trophy Points:
    931
    check the P65x owner´s lounge, that series has identical power connectors to your machine and i linked a post in the OP describing which cable adapter is necessary to connect the Dell 240W PSU :)

  12. thegh0sts

    thegh0sts Notebook Nobel Laureate

    Reputations:
    949
    Messages:
    7,700
    Likes Received:
    2,819
    Trophy Points:
    331
    so the sager takes 19v though the dell PSU is 19.5v - does the extra voltage harm the laptop?

    this is what reflex notebook have listed:


    Last edited: Jan 31, 2015
  13. jaybee83

    jaybee83 Biotech-Doc

    Reputations:
    4,125
    Messages:
    11,571
    Likes Received:
    9,151
    Trophy Points:
    931
    i wouldnt think so... ive used that dell psu with my previous P150HM machine before, and it had the same stock 180W psu that the P65x series has. worked totally fine for years before the gpu/display cable/mobo crapped out on me :D that was unrelated to the PSU though ;)

  14. thegh0sts

    thegh0sts Notebook Nobel Laureate

    Reputations:
    949
    Messages:
    7,700
    Likes Received:
    2,819
    Trophy Points:
    331
    so really i just need to buy the adapter and the PSU? doesn't sound too bad at all provided i can sell off the alienware 17!

  15. jaybee83

    jaybee83 Biotech-Doc

    Reputations:
    4,125
    Messages:
    11,571
    Likes Received:
    9,151
    Trophy Points:
    931
    yupyup pretty much :)
