    where to place pads?

    Discussion in 'Sager and Clevo' started by Grump, May 21, 2018.

  1. Grump

    Grump Notebook Consultant

    Reputations:
    0
    Messages:
    261
    Likes Received:
    4
    Trophy Points:
    31
    this is what I see when I take off the heatsinks from the cpu and video card for a p170sm-a. I have no idea if pads have fallen off or not but is there any place that I should put additional thermal pads on?

    Grump, May 21, 2018
    #1
  2. aIex

    aIex Notebook Consultant

    Reputations:
    14
    Messages:
    184
    Likes Received:
    27
    Trophy Points:
    41
    I think you wanted to paste picture here. Pads should be deformed. You can match the deformation with motherboard.

    aIex, May 21, 2018
    #2
  3. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    Pads mate to the voltage regulator chips as the most important part. They can also mate to the inductors and capacitors.

    Meaker@Sager, May 21, 2018
    #3
  4. Grump

    Grump Notebook Consultant

    Reputations:
    0
    Messages:
    261
    Likes Received:
    4
    Trophy Points:
    31

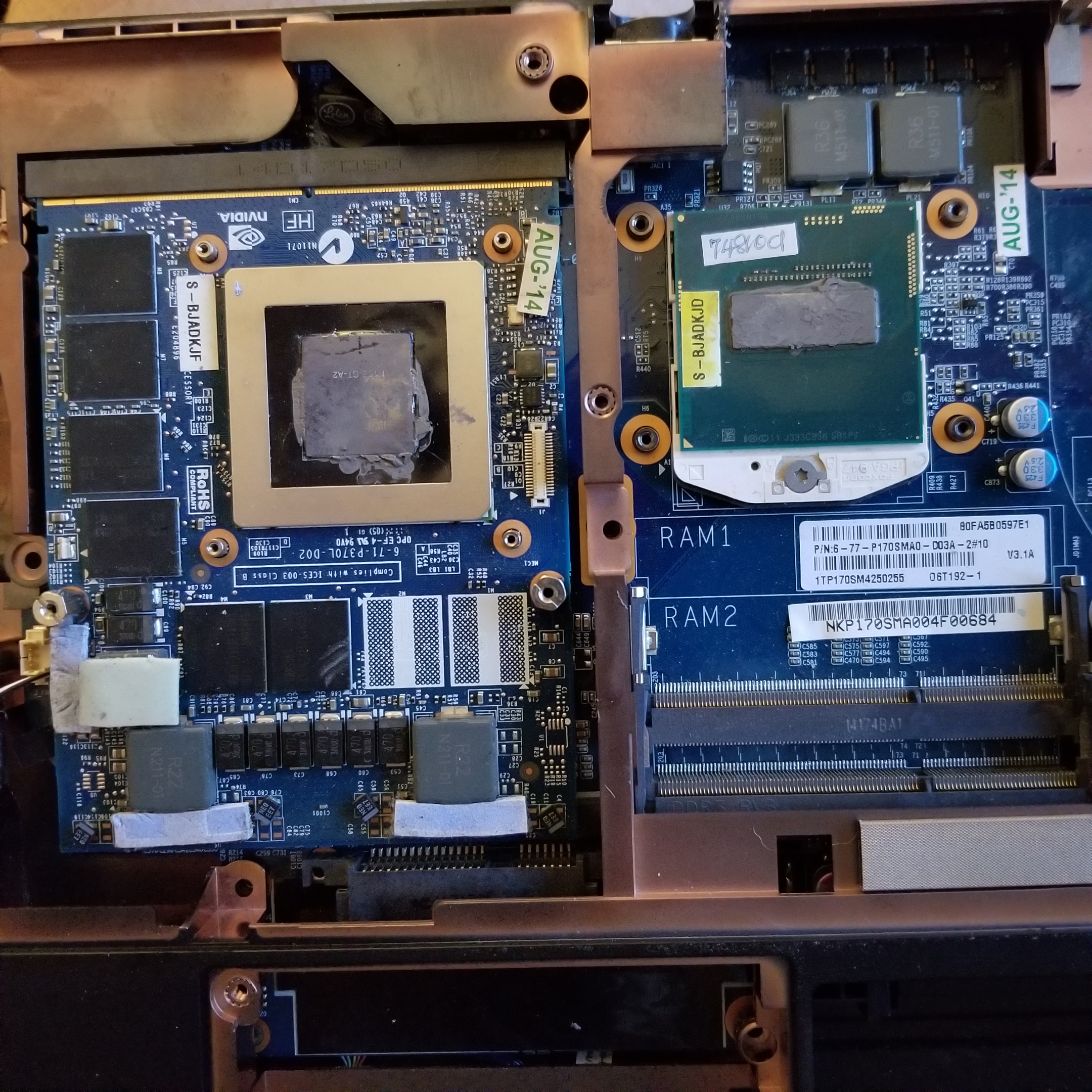

    Sorry here is the image

    [​IMG]

    Grump, May 22, 2018
    #4
  5. Prostar Computer

    Prostar Computer Company Representative

    Reputations:
    1,257
    Messages:
    7,426
    Likes Received:
    1,016
    Trophy Points:
    331
    IIRC, the arrangement should look like the attached image.


    Attached Files:

    Prostar Computer, May 22, 2018
    #5
  6. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    Are any still stuck to the heatsink? The yellow rectangles are correct yes.

    Meaker@Sager, May 22, 2018
    #6
