*** Official Clevo P775DM2/3(-G)/P75xDM2(-G) (Sager NP9152/NP9172) WINGMAN 2.0/BATMAN 3.0 Lounge ***

P775DM2 chassis is same size as the older P775DM1, they add some new features like ess dac audio and gaming keyboard which are good for marketing, but then they cut costs where there is less market focus to keep profit margins juicy, they just had to gimp the damn cooling of P775DM2.

Also notice that besides less heat pipes, in the P775DM2 the heat pipes don't run all the way to the end of the copper fin array, but they do in the P775DM1, double cooling downgrade for the P775DM2...

Kaby lake is no excuse, 1080 is no cool card, running side by side with a desktop cpu with a shared heat sink, you need to bring your cooling A-Game or go home. I would buy this notebook if it had kept the previous models cooling, but clevo has shown it's true colors with the cooling gimp, will not buy.

Now there is no clevo model that fit's my requirements, you missed out on my money clevo.

Pics:

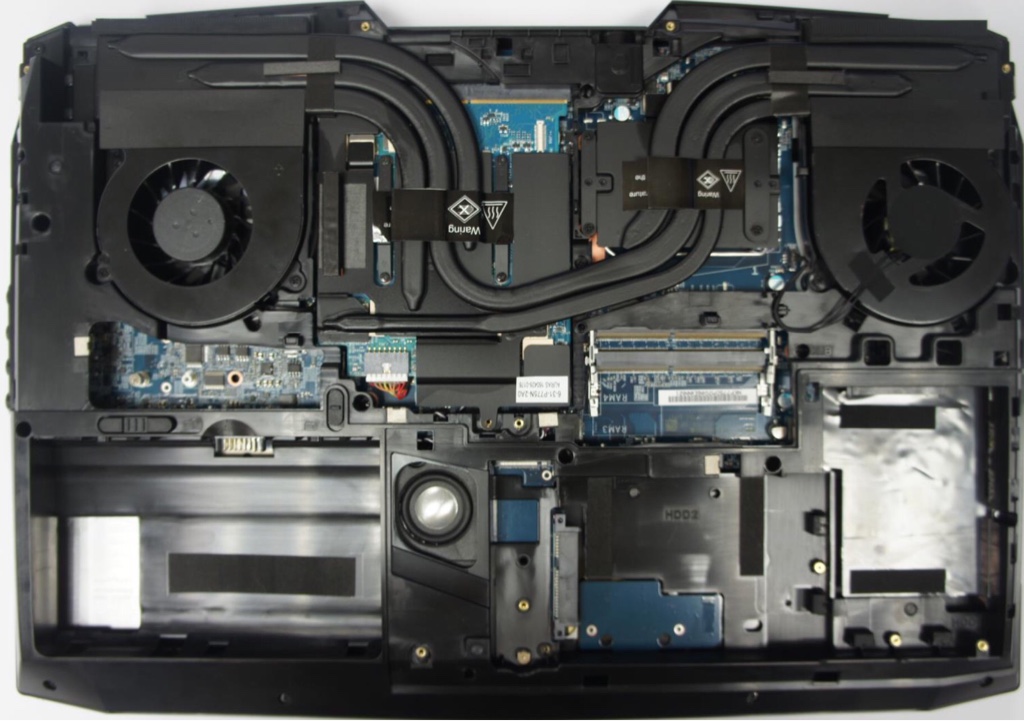

Spoiler: current model P775DM2

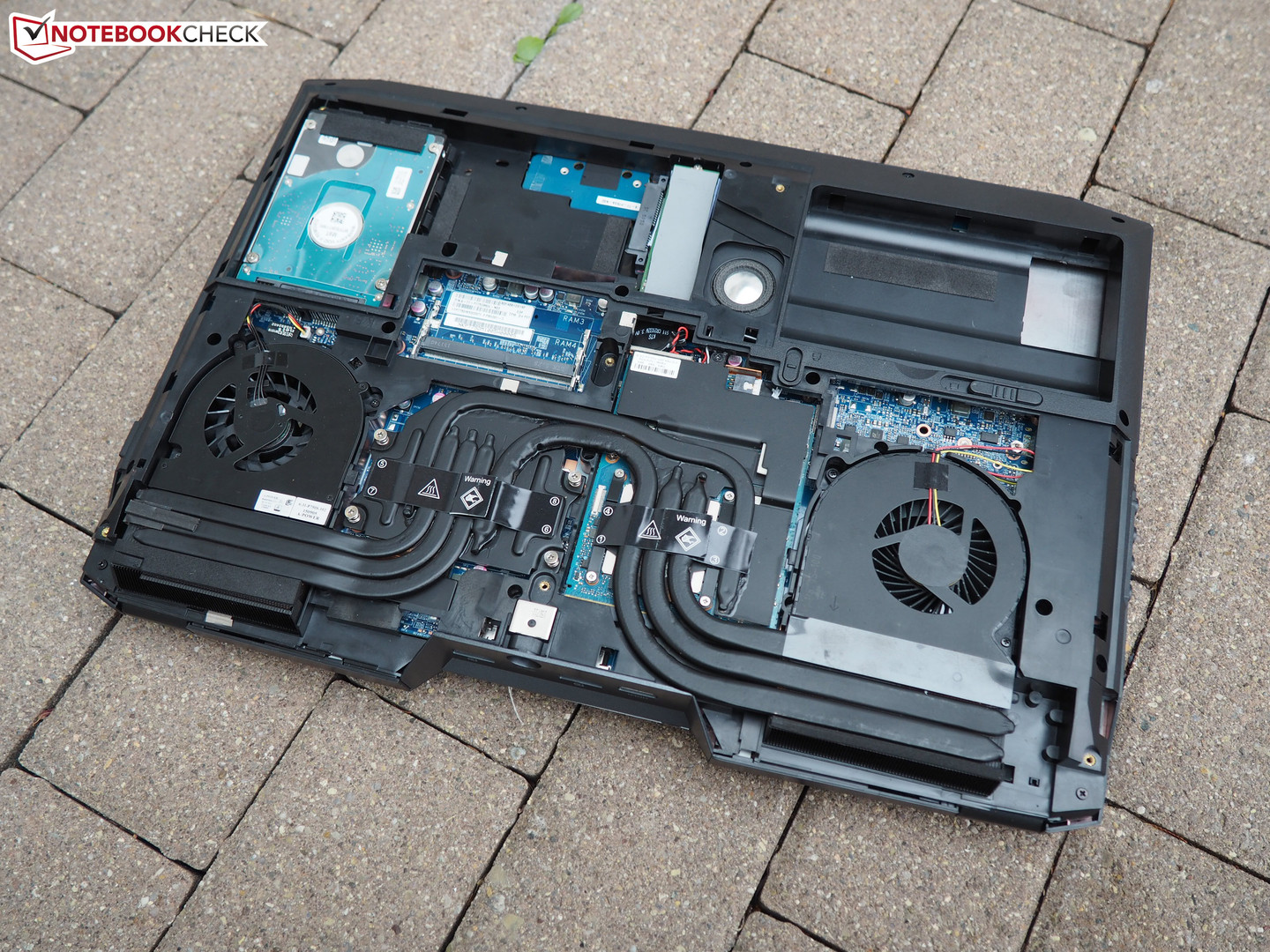

Spoiler: previous model P775DM1



If this ↓↓↓ is correct. Will Kaby Lake aka 7700K have higher TDP and higher boost clock than Skylake. In theory... A need for better cooling and not less
http://techfrag.com/2016/08/22/intel-kaby-lake/



Okay, First I compared the 770ZM's right chassis and I could find that space more for this version but the 775DM1 also looks similar to the DM2, That was 15" vs 17" there so at first glance It seemed to be reduction.
Next is yeah 12v and thick blades vs the thin blades of the old ones, Idk but the old fan seems bigger to me..

Here are the snaps that I had used to compare -
770ZM 775DM1 775DM2_pascalone 775DM2_pascaltwo

100% agree, I didn't expect this at all, that's why high temps I suppose...man wth, First they blew the MXM and now expect us to have this gimped HS, I was even considering this beast when prices come down, But NOPE, I'm not giving even a penny to Clevo, I mean they raked all those profits with 3.0b Maxwell & non 3.0b for 2 gens - 77xZM with Haswell and then the DM Skylake upgrade & the 870DM, now left all of them EOL to have this for us Claps !!



Your CPU Voltage is damn high.
My 6700k runs 4.2GHz (x42) at 1.22V.

Try to set x42 Multpler in XTU (+200MHz OC)
and lower voltage to -150uV. If it won't be able, go for -140uV or -130uV.

XTU Stress test 10 minutes -> 84*c (OC Fan Profile) // I have messed up last repaste on CPU, waiting for IC Diamond 7 ordered in komputronik.
In your case, cool GPU also should help cool CPU under load.

+0.1V is about 10-15*c CPU temp. Seriously, Clevo BIOS is giving WAY too much voltage to skylake cpus.



can anyone clarify the fact regarding thunderbolt ports for 750dm2-g, is it a thunderbolt gen 2 port or thunderbolt gen 3 port ?

also i had a few questions for 750dm/750dm2 owners how practical is it to lug around a 4 kg laptop in your backpack ?



Pertaining to the 1080p 120hz monitor, the conversation was to the effect that;
I asked to secure it for purchase upon release for the then listed upgrade price (as they had it listed as coming soon) of around AUD$270, and Metabox confirmed that this would be fine plus a small labour charge (AUD$70 was mentioned for labour). I responded that I would hold him (Emmanuel) to this, and he confirmed that if this were not the RRP, that he would fix it from his end to keep his word.



Did they say anything about GSync? If you swap your GSync certified 60 hz screen to a 120 hz GSync certified screen, will GSync work GSync only works with the purchased screen and the swapping needs some additional work in the service?



Hey guys i have a p775dm3 with a 1080 and a 6700k. I ran some benchmarks and was extremely disappointed with the temps on the cpu and gpu. Was getting 97c on cpu and 89c on gpu. I elevated the laptop about an inch and it cooled down some. But then i repasted with coollaboratory luquid ultra and it really cooled things down. 76c max on the 1080 in witcher 3 cranked up. The cpu still runs hot as hell but i am undervolting and trying to get it to not clock down. I ran a firestrike and i will try to post a picture of the performance



My P775DM3 should have shipped yesterday but Xotic be lagging D:< What sucks is I'm going on a business trip tuesday and wont be back till Friday so I'll miss delivery and have to wait



According to Gentech http://www.gentechpc.com/Sager-NP9152-Clevo-P750DM2-G-nVidia-GTX-1060-6GB-p/sager-np9152.htm it has Thunderbolt 3.

And the largest laptop I've owned is an Alienware M18x R1 and it really came down to the kind of backpack you use.



Wht do u mean by that ?



Does anyone have a link to the drivers for this system?



Do you have an optical driver? If yes use thr driver DVD included. With my P775DM1-G the drivers on the disc were newer than on the download website. And amongst all SoundBlaster drivers only the one on the disc worked fine for me.



Nice to hear your story, keep us updated!
Just to clarify, you put CLU on the GPUs? Or just the CPU? (I was under the impression that you should for some reason not use CLU on GPUS, maybe someone can comment on it?)



This makes me cry when thinking that my 860m GPU never goes above 72C in real usage, and max 80C in benchmarks, but then again, there is no comparison between what a 860m and a 1080 can do.

In another order of thoughts, getting 97C on CPU is not only very high, but also risky. I tend to run 100C on CPU constantly on my Acer laptop, but I guessed that mobile CPUs were made to withstand higher temperatures



So the P6xx's apparently have muxing that allows switching between dGPU and Optimus.

Can the P7xx series be switched to integrated GPU in BIOS? I understand there's no Optimus, but I'm wondering if the iGPU (alone) can still be utilized if desired. I am thinking of the times I would like to have a little more battery power..

Thanks



There is no Intel GPU support on these models. It's NVIDIA full time.



Ah, now I understand. Thanks.



After my repaste with gelid extreme the temps are almost as good as P751DM levels. Almost 14000 in firestrike and only 64C on GPU



Very nice, though gaming temperatures can be quite different of course



I put CLU on both the cpu and gpu. The gpu stays 76c or under the cpu maxes out around 86c but that is very temporary. It's only during very heavy loads. I've also undervolted by -100mv but have yet to test it. Im pretty sure the temps will be more reasonable. Ive used CLU on several gpus and have never had a problem. The fn+1 fan boost keeps everything very cool but is literally the loudest fan setting ive ever heard on a laptop.



I am. Still thinking about it. It'll be a culture shock coming from a Blade (love the weight), but I'd like something a little quieter and I want to see what this G-Sync thing is all about.



I'll also be getting a P750DM2, I just wish it could come with a 1080


Sent from my iPhone using Tapatalk



I did specify G-sync, so that should be included in this scenario/



Could someone with a P775DM3 with a 6700k and 1080 please weigh their laptop and tell me the actual weight you get?

Sent from my SM-G935F using Tapatalk



IIRC it should be

3.9Kg, Including Barebone, VGA card and 82WH Battery (with FHD panel)
• 4.3Kg, Including Barebone, VGA card and 82WH Battery (with QFHD panel)

And i think 1 kg for power adapter



Thanks!

Sent from my SM-G935F using Tapatalk



I can't install XTU
I keeps giving my this message: "verify that you have sufficient privileges".
I tried running as Administrator and still nothing.



Thanks Isaac!

Could someone please take a picture for me of the main page of the factory bios? I am interested in the bios, ec and vbios version numbers.
Also, can you set multiplier for the k CPU and XMP profile for the ram in the factory bios or we still need master Prema's custom bios for basic stuff like this?



I reinstalled windows and it worked.
Will report on the results.



Omg what a difference!
So I undervolted by -150mV

and these are the results:
Before: http://imgur.com/a/8m1yN
After undervolt -150mV: http://imgur.com/a/eO0Hz

Thanks so much for the tip knight_nhl!



Awesome, those temps are absolutely reasonable!
How about your GPU temps when gaming (i.e. games that put the card at full load, like Witcher 3)? Do they stay below ~85°C?



Ill let you know after a session of Overwatch tonight.



How loud do the fans get while gaming?

Sent from my SM-G935F using Tapatalk



UV FTW!



This is a short (20min) Overwatch session: http://imgur.com/a/lJCKe
The temps seem fine, but the performance is absolutely stunning.
Omg how beautiful this game is on my Asus PG279Q now.
I'm starting to love this laptop!!!

Oh, and the fan noise is bearable. Totally acceptable to me considering the performance!
And the difference in fan noise (in OC mode) is noticeable before the undervolt, and after!



be sure to update your signature with the complete set of specs of your new beast



I've got Clevo P775GM3 on order awaiting delivery of 4k screens. Still trying to sell my current Clevo P751ZM before the new one arrives. Bit worried seeing the changes in the cooling after having this laptop a year it's never throttled or overheated ever so I'm hoping the new ones aren't suffering those issues



Did anyone receive an Octane III from PCSpecialist yer? They claim it is based on p775dm3-G, however the shown pictures are from the P775Dm1-G and you can also buy it with GTX980.
Is it really using the new DM3 motherboard or they are modding the old DM1 and install it with GTX1080?



This is from an hour session of Overwatch: http://imgur.com/a/ZmEWF

I did run into 2 problems though:

1. Just before my hour of Overwatch, I launched the game, and while still in the main screen of the game the laptop restarted. No BSOD, just a restart. Could this indicate that the undervolt was a little to much? Should a try a lower one like -130mV?
2. Sometimes my secondary monitor (Asus ROG PG279Q) gets some artifacts (kinda like vertical lines) in Windows. Never in games, only in Windows. What could be causing this? The miniDP (from laptop) to DP (to monitor) cable seems to be of good quality (HAMA brand).

Would appreciate some input. Thanks.



that's where I've ordered mine from I noticed it also has options for 980. From the look of their pictures its a different chassis to the octane II which i currently have



Looked on pcs and their octane III is definitely the same chassis as the pictures of this persons new P775dm3 not sure if it's using the old mobo but they did say the 1080 is only available in the dm3 so I'm guessing it has to be the new motherboard?



Yea but the new mobo has different DP ports.
The old one has full DP ports like on the pictures, the new had mini DP ports.



Mini DP and DP are exactly the same. The former is just a smaller version with the exact same pin outs.



except it's harder to buy a good miniDP-DP cable which is crucial for 1440p 165hz gsync gaming



Eh, its the same cable. There isnt anything different in a DP to DP or a Mini DP to DP (male/female) cable.
Im running 144hz just fine on a $9 Mini DP to DP cable, and have even done the same using a Mini DP to DP female adapter ($3) and then hooked that to a normal DP to DP cable.

The pin outs are exactly the same, the mini DP standard is just a miniaturized version of the port.

Unlike DVI-I Dual Link adapters these dont need any active/passive shenanigans.



Is the 120 hz panel available for 750dm2?



So they aren't new motherboards? Wasn't there a comment earlier in the thread saying the cooling setup had changed? Was the previous mobo the same setup? I know my clevo has more heatpipes than the pictures shown previously.

Can anyone clear this up?



After looking the pictures again from PCS you are correct the Ports are not the same as on the pictures people have posted of their new machines. Slightly worrying as I don't want an older motherboard in such an expensive machine.



Someone posted on the PCS forums saying the following after they had received their Octane III:

Rampant stuttering, 60Hz refresh, false advertisement on the store page (Wrong forms of input and photos)

So perhaps it is the correct motherboard and the pictures are incorrect? ('i think the guy was upset about no 120Hz screen and had overclocked his previous screen so dont take the stuttering as gospel)
