    *** Official Clevo P870KM1/P870KM1-G/Sager NP9876 Owner's Lounge! - Phoenix 3.0 ***

    Discussion in 'Sager/Clevo Reviews & Owners' Lounges' started by Spartan@HIDevolution, Jan 5, 2017.

  1. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,189
    Likes Received:
    17,900
    Trophy Points:
    931
    They are in a place that wont impact anything too :)

    Meaker@Sager, Jul 11, 2017
    #1851
    Papusan and Ground_Zro like this.
  2. Papusan

    Papusan Jokebook's Sucks! Dont waste your $$$ on Filthy

    Reputations:
    42,710
    Messages:
    29,843
    Likes Received:
    59,629
    Trophy Points:
    931
    See lapping of my Bitspower IHS Maybe yoo have the Kaby version.

    Papusan, Jul 11, 2017
    #1852
    Donald@Paladin44 likes this.
  3. Ground_Zro

    Ground_Zro Notebook Consultant

    Reputations:
    58
    Messages:
    141
    Likes Received:
    109
    Trophy Points:
    56
    Hmmm I'm rather new to all this, I need to read up on how to properly do lapping

    Sent from my XT1585 using Tapatalk

    Ground_Zro, Jul 11, 2017
    #1853
    Papusan likes this.
  4. Ground_Zro

    Ground_Zro Notebook Consultant

    Reputations:
    58
    Messages:
    141
    Likes Received:
    109
    Trophy Points:
    56
    Did you also lap the bottom of the IHS, to get a better/flatter surface for the CPU? By better I mean removing the silver coating. If so how did you do that?

    Sent from my XT1585 using Tapatalk

    Ground_Zro, Jul 12, 2017
    #1854
  5. Jon Webb

    Jon Webb Notebook Evangelist

    Reputations:
    148
    Messages:
    315
    Likes Received:
    455
    Trophy Points:
    76
    I have both a Skylake and Kabylake IHS and neither one had those holes. I think @Meaker@Sager is right. It's probably easier to manufacture or something like that. Everything else looks right.

    Jon Webb, Jul 12, 2017
    #1855
  6. Papusan

    Papusan Jokebook's Sucks! Dont waste your $$$ on Filthy

    Reputations:
    42,710
    Messages:
    29,843
    Likes Received:
    59,629
    Trophy Points:
    931
    No need for this.

    Papusan, Jul 12, 2017
    #1856
    Donald@Paladin44 likes this.
  7. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,189
    Likes Received:
    17,900
    Trophy Points:
    931
    Plus you could hurt the contact/crush the core by changing the levels on the CPU contact side.

    Meaker@Sager, Jul 13, 2017
    #1857
    Papusan and Donald@Paladin44 like this.
  8. Papusan

    Papusan Jokebook's Sucks! Dont waste your $$$ on Filthy

    Reputations:
    42,710
    Messages:
    29,843
    Likes Received:
    59,629
    Trophy Points:
    931
    Is already thight enough against cpu die, if you skip the glue.

    Papusan, Jul 13, 2017
    #1858
    Stress Tech and Donald@Paladin44 like this.
  9. Ground_Zro

    Ground_Zro Notebook Consultant

    Reputations:
    58
    Messages:
    141
    Likes Received:
    109
    Trophy Points:
    56
    What would you recommend, glue or no glue?

    Sent from my XT1585 using Tapatalk

    Ground_Zro, Jul 13, 2017
    #1859
  10. Papusan

    Papusan Jokebook's Sucks! Dont waste your $$$ on Filthy

    Reputations:
    42,710
    Messages:
    29,843
    Likes Received:
    59,629
    Trophy Points:
    931
    I don't use glue. I like it best this way. But it's up to yoo.

    Papusan, Jul 13, 2017
    #1860
    Donald@Paladin44 likes this.
  11. Ground_Zro

    Ground_Zro Notebook Consultant

    Reputations:
    58
    Messages:
    141
    Likes Received:
    109
    Trophy Points:
    56
    So you haven't had any issues not using glue? I would assume with this IHS it's probably a snug fit since it's thicker then the stock IHS

    Sent from my XT1585 using Tapatalk

    Ground_Zro, Jul 13, 2017
    #1861
  12. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,189
    Likes Received:
    17,900
    Trophy Points:
    931
    If you can get away with no glue then it's fine but it does make installation tricky.

    Meaker@Sager, Jul 13, 2017
    #1862
    Papusan likes this.
  13. Ground_Zro

    Ground_Zro Notebook Consultant

    Reputations:
    58
    Messages:
    141
    Likes Received:
    109
    Trophy Points:
    56
    Yeah I could see that lol

    Sent from my XT1585 using Tapatalk

    Ground_Zro, Jul 13, 2017
    #1863
  14. Papusan

    Papusan Jokebook's Sucks! Dont waste your $$$ on Filthy

    Reputations:
    42,710
    Messages:
    29,843
    Likes Received:
    59,629
    Trophy Points:
    931
    Bitspower or the orginal lid, doesn't matter. I don't use glue. Just be careful when you fastening the clamp.

    Papusan, Jul 13, 2017
    #1864
  15. Ground_Zro

    Ground_Zro Notebook Consultant

    Reputations:
    58
    Messages:
    141
    Likes Received:
    109
    Trophy Points:
    56
    So I'm currently lapping the bitspower IHS, how can you tell if it's flat and even though? I taped the sand paper to the glass and i applied little to no pressure to the IHS, just moving it back and forth 10 time then rotating it and so on. I've done 200 grit and started on 400, then I'll do 800, and lastly 1200. But I want to ensure that it is even before moving on [​IMG]

    Sent from my XT1585 using Tapatalk

    Ground_Zro, Jul 13, 2017
    #1865
  16. Papusan

    Papusan Jokebook's Sucks! Dont waste your $$$ on Filthy

    Reputations:
    42,710
    Messages:
    29,843
    Likes Received:
    59,629
    Trophy Points:
    931
    No point in abuse your IHS with 200, 400 or 1000 grit sand paper. You only eat off the copper. And the IHS flatness can be uneven. 1500, then 2000 grits is enough. And not moving it back and forth. See my post regarding lapping. There you can see the flatness progress!!

    Papusan, Jul 13, 2017
    #1866
    hmscott and Donald@Paladin44 like this.
  17. Ground_Zro

    Ground_Zro Notebook Consultant

    Reputations:
    58
    Messages:
    141
    Likes Received:
    109
    Trophy Points:
    56
    So I saw your post and it was exactly what mine looked like while I was sanding. What motion would you recommend then everything I read was back and forth motion.

    Sent from my XT1585 using Tapatalk

    Ground_Zro, Jul 13, 2017
    #1867
  18. Papusan

    Papusan Jokebook's Sucks! Dont waste your $$$ on Filthy

    Reputations:
    42,710
    Messages:
    29,843
    Likes Received:
    59,629
    Trophy Points:
    931
    Circles and or figure eights from left to right and opposite... For each 8 round, turn the lid 1/4 and continue. You can use waterproof pen on the lid. So that yoo can see that yo hone correct for flatness. Flat is not the same as lopsided. Once you've made a mistake, everything will be wrong. Especially if yoo use very coarse sandpaper (200 grit) in the beginning.

    Papusan, Jul 13, 2017
    #1868
    hmscott, Donald@Paladin44 and TBoneSan like this.
  19. Ground_Zro

    Ground_Zro Notebook Consultant

    Reputations:
    58
    Messages:
    141
    Likes Received:
    109
    Trophy Points:
    56
    Ah ok. Thanks for the info. I did with the pen, everything was coming off evenly with the exception of the very corners. The center, sides everything was coming off evenly but the corners. I can see how that could make it lopsided

    Sent from my XT1585 using Tapatalk

    Ground_Zro, Jul 13, 2017
    #1869
    hmscott, Donald@Paladin44 and Papusan like this.
  20. mobiousblack

    mobiousblack Notebook Deity

    Reputations:
    387
    Messages:
    760
    Likes Received:
    93
    Trophy Points:
    41
    Anyone recommend a good roller bag to fit this beast? Gonna travel this august for around a month and need something to keep this bad boy safe during the trip.

    mobiousblack, Jul 14, 2017
    #1870
  21. Ground_Zro

    Ground_Zro Notebook Consultant

    Reputations:
    58
    Messages:
    141
    Likes Received:
    109
    Trophy Points:
    56
    So lapping and installation of the IHS complete with no issues. But I do have a question, since I have owned this laptop I have not successfully completed a single stress test on 3dmark. I always end up getting 95-96% instead of the required 97% required to "pass". I am not hitting thermal throttling or anything like that max temps in the CPU is roughly 70 with the GPUs hitting a Max of 80 degrees. I have done everything from stock clocks to adjust the clocks volts etc up and down with no luck.

    Sent from my XT1585 using Tapatalk

    Ground_Zro, Jul 14, 2017
    #1871
  22. Stress Tech

    Stress Tech Notebook Evangelist

    Reputations:
    245
    Messages:
    363
    Likes Received:
    418
    Trophy Points:
    76
    I don't know about a roller bags just yet. But I have been looking at backpacks, and I think the Everki EKP120 Titan Checkpoint Notebook backpack is definitely on my buy list

    Stress Tech, Jul 14, 2017
    #1872
    Donald@Paladin44 likes this.
  23. mobiousblack

    mobiousblack Notebook Deity

    Reputations:
    387
    Messages:
    760
    Likes Received:
    93
    Trophy Points:
    41
    I usually go with backpacks but I'm carrying my camera gear on this trip with me and I have a backpack for that. I'll search around if I find anything good I'll let you guys know.

    mobiousblack, Jul 14, 2017
    #1873
    dm477, Donald@Paladin44 and Stress Tech like this.
  24. dm477

    dm477 Notebook Evangelist

    Reputations:
    56
    Messages:
    343
    Likes Received:
    220
    Trophy Points:
    56

    I have got t his bag from Samsonite, and it accommodates a Billingham insert (w/ D810, 24mm 1.8g, 58mm 1.4g, and 85mm 1.8g) in the rear pocket, KM1 and its two (240W) power bricks, an iPad Air 2, Kindle, and a mouse and pad. My wallet, passport, and other bits and bobs go in the front zipper.

    The other configuration that I have found to be quite useful involves carrying few days' worth of clothing in the rear pocket if I carry my camera gear in the Hadley Pro. I just attach Hadley Pro to the telescopic arm of the Samsonite. It makes for a nice compact kit and stays in place and you never have to check in anything as everything is well within's airlines' cabin baggage policy (at least for European variety anyway)

    dm477, Jul 16, 2017
    #1874
    Stress Tech likes this.
  25. mobiousblack

    mobiousblack Notebook Deity

    Reputations:
    387
    Messages:
    760
    Likes Received:
    93
    Trophy Points:
    41
    That bag looks perfect and the local Samsonite store has it in Stock. Thanks for the recommendation!

    mobiousblack, Jul 16, 2017
    #1875
    dm477 likes this.
  26. Mobius 1

    Mobius 1 Notebook Nobel Laureate

    Reputations:
    3,447
    Messages:
    9,069
    Likes Received:
    6,376
    Trophy Points:
    681
    Try FN F1 to hit max speed on the fans.

    You should also attempt to lock the GPU down to 0.95v or lower.

    Maybe even take a second look at the paste / lapping job on the GPU side.

    Mobius 1, Jul 17, 2017
    #1876
    Georgel likes this.
  27. Ground_Zro

    Ground_Zro Notebook Consultant

    Reputations:
    58
    Messages:
    141
    Likes Received:
    109
    Trophy Points:
    56
    I do run the tests with the fans maxed, I will see about lowering the voltage. As far as the paste and lapping, the paste looked good, nice and even and not too thick, but the temps are not the issue I don't believe, they are not getting hot enough to throttle at all. I will recheck the paste and then see how low I can get the voltage. Thanks

    Sent from my XT1585 using Tapatalk

    Ground_Zro, Jul 17, 2017
    #1877
    hmscott likes this.
  28. Mobius 1

    Mobius 1 Notebook Nobel Laureate

    Reputations:
    3,447
    Messages:
    9,069
    Likes Received:
    6,376
    Trophy Points:
    681

    Did you check the thermal pads too?

    Mobius 1, Jul 17, 2017
    #1878
  29. Ground_Zro

    Ground_Zro Notebook Consultant

    Reputations:
    58
    Messages:
    141
    Likes Received:
    109
    Trophy Points:
    56
    Yeah I checked them to a picture on here of the recommended size and location. I'm missing one or two but the rest look good. I ordered more pads too

    Sent from my XT1585 using Tapatalk

    Ground_Zro, Jul 17, 2017
    #1879
  30. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,189
    Likes Received:
    17,900
    Trophy Points:
    931
    Where are the pads missing?

    Meaker@Sager, Jul 17, 2017
    #1880
  31. Mobius 1

    Mobius 1 Notebook Nobel Laureate

    Reputations:
    3,447
    Messages:
    9,069
    Likes Received:
    6,376
    Trophy Points:
    681
    Missing pad is not good, the component could have a much shorter lifespan if you don't cover them.

    Mobius 1, Jul 17, 2017
    #1881
  32. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,189
    Likes Received:
    17,900
    Trophy Points:
    931
    If it's over the VRM then that could cause shutdowns at low core temps as the VRMs over heat.

    Meaker@Sager, Jul 17, 2017
    #1882
  33. Ground_Zro

    Ground_Zro Notebook Consultant

    Reputations:
    58
    Messages:
    141
    Likes Received:
    109
    Trophy Points:
    56

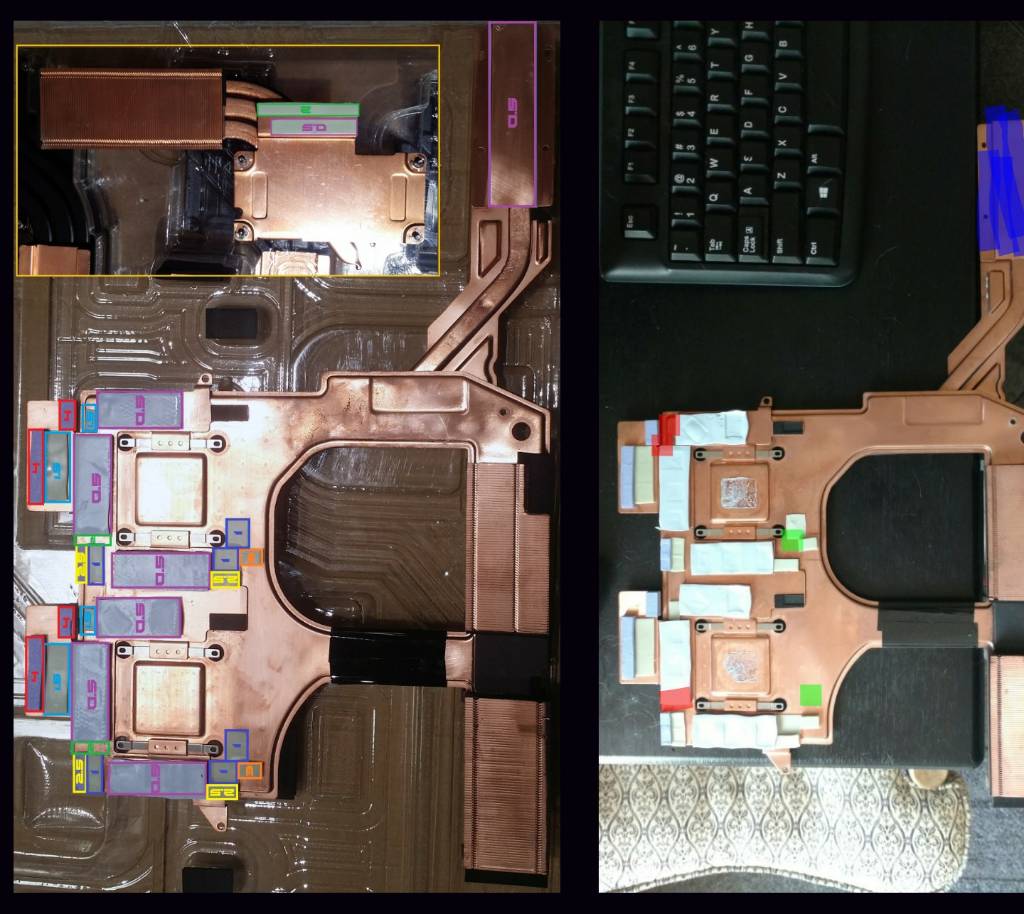

    The blue color I have added, green is there just on the card, and red was missing. I have ordered new pads. In the stress test for 3dmark it doesn't shut down, no blue screens or errors. My frame rate just doesn't stay with in the 3dmarks required area, my fps fluctuate too much [​IMG]

    Sent from my XT1585 using Tapatalk

    Ground_Zro, Jul 17, 2017
    #1883
  34. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,189
    Likes Received:
    17,900
    Trophy Points:
    931
    Were any left on the card in your pic?

    Meaker@Sager, Jul 17, 2017
    #1884
  35. Ground_Zro

    Ground_Zro Notebook Consultant

    Reputations:
    58
    Messages:
    141
    Likes Received:
    109
    Trophy Points:
    56
    Yeah the ones I colored green were on the card

    Sent from my XT1585 using Tapatalk

    Ground_Zro, Jul 17, 2017
    #1885
  36. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,189
    Likes Received:
    17,900
    Trophy Points:
    931
    Have you tried running with each card in the primary slot without the other and run the same stress test?

    Meaker@Sager, Jul 17, 2017
    #1886
    Donald@Paladin44 likes this.
  37. Ground_Zro

    Ground_Zro Notebook Consultant

    Reputations:
    58
    Messages:
    141
    Likes Received:
    109
    Trophy Points:
    56
    Do you mean remove one at a time and run the test? No I didn't even think about that, that would give me an idea if one card is performing better or worse... I'll give that a shot

    Sent from my XT1585 using Tapatalk

    Ground_Zro, Jul 17, 2017
    #1887
  38. Mobius 1

    Mobius 1 Notebook Nobel Laureate

    Reputations:
    3,447
    Messages:
    9,069
    Likes Received:
    6,376
    Trophy Points:
    681
    Your heatsink paste spread looks like it has bad contact with the die(s).

    Mobius 1, Jul 17, 2017
    #1888
  39. Ground_Zro

    Ground_Zro Notebook Consultant

    Reputations:
    58
    Messages:
    141
    Likes Received:
    109
    Trophy Points:
    56
    This was old, this was first time I opened her, unfortunately I didn't take any new pictures after I lapped the IHS besides the IHS

    Sent from my XT1585 using Tapatalk

    Ground_Zro, Jul 17, 2017
    #1889
  40. Ground_Zro

    Ground_Zro Notebook Consultant

    Reputations:
    58
    Messages:
    141
    Likes Received:
    109
    Trophy Points:
    56
    When I opened her to replace the pads, I'll check how the new thermal paste looks, if it's still bad what would you recommend? I have some copper shims of various thickness but I do not know what else could be done on that part

    Sent from my XT1585 using Tapatalk

    Ground_Zro, Jul 17, 2017
    #1890
  41. Mobius 1

    Mobius 1 Notebook Nobel Laureate

    Reputations:
    3,447
    Messages:
    9,069
    Likes Received:
    6,376
    Trophy Points:
    681

    Try mount with no thermal pads and see what happen?

    Mobius 1, Jul 17, 2017
    #1891
  42. Ground_Zro

    Ground_Zro Notebook Consultant

    Reputations:
    58
    Messages:
    141
    Likes Received:
    109
    Trophy Points:
    56
    Are you thinking the pads are too high, making a bad connection between the die and the heatsink? I mean I can look at it but I'm not sure what I can actually figure out from that test.

    Sent from my XT1585 using Tapatalk

    Ground_Zro, Jul 17, 2017
    #1892
  43. Ground_Zro

    Ground_Zro Notebook Consultant

    Reputations:
    58
    Messages:
    141
    Likes Received:
    109
    Trophy Points:
    56
    Ok so I ran the test again, 3d mark fire strike ultra 4k stress test. 95.8% (need 97% to be considered a pass) I was at stock clocks for CPU and GPUs and at the end of the test I was at CPU 63C GPUs 83C and 82C. I turned off SLI and passed first try all stock clocks CPU 62C GPUs 65C and 59C. So with SLI on I can not pass but off I pass fine, I guess it is the heat even though my GPUs are not thermal throttling?

    Sent from my XT1585 using Tapatalk

    Ground_Zro, Jul 17, 2017
    #1893
  44. Mobius 1

    Mobius 1 Notebook Nobel Laureate

    Reputations:
    3,447
    Messages:
    9,069
    Likes Received:
    6,376
    Trophy Points:
    681
    What I think might be happening that you continually fail the stress test, is because of pascal's temperature scaling. So the card might work fine but in the long run 3dmark considers the drop in performance to be too much.

    Have you removed the plastic baffle blocking airflow to the middle fan from the bottom cover? Use a cooling pad and/or elevate the back of your laptop? What is your ambient temperature?

    Mobius 1, Jul 18, 2017
    #1894
  45. Ground_Zro

    Ground_Zro Notebook Consultant

    Reputations:
    58
    Messages:
    141
    Likes Received:
    109
    Trophy Points:
    56
    Yeah I am thinking the same thing, I have not removed the bottom plastic piece yet (does that make a big difference, I know more air more cooling but is it a decent improvement?), I have the back elevated and I always use a cooling pad. The ambient is 72F I think that's around 22C.

    One more thing, are those temperatures pretty normal. Single GPU low 60's C under load and in SLI GPUs low 80's C under load?

    Sent from my XT1585 using Tapatalk

    Ground_Zro, Jul 18, 2017
    #1895
  46. Mobius 1

    Mobius 1 Notebook Nobel Laureate

    Reputations:
    3,447
    Messages:
    9,069
    Likes Received:
    6,376
    Trophy Points:
    681

    Single GPU 60c is fine, with two cards the heat output is almost 2x (480w limit total system power consumption).

    You should definitely open up the bottom plastic piece. Also consider putting tape between the fan and the fins, so you create a seal. Just a small strip of tape on top is enough to test.



    Credit to @Ted@HIDevolution and @Phoenix

    Skip to 5:00, you don't necessarily have to remove that much material, but just enough so that the middle fan is unobstructed.


    Mobius 1, Jul 18, 2017
    #1896
    Papusan and Spartan@HIDevolution like this.
  47. Ground_Zro

    Ground_Zro Notebook Consultant

    Reputations:
    58
    Messages:
    141
    Likes Received:
    109
    Trophy Points:
    56
    Oh wow that was extremely easy and there is a ton of hidden vents, that will definitely help. As far as the fans go, I'm not sure where the tape should go for sure though? I really appreciate all the help !

    Sent from my XT1585 using Tapatalk

    Ground_Zro, Jul 18, 2017
    #1897
  48. Mobius 1

    Mobius 1 Notebook Nobel Laureate

    Reputations:
    3,447
    Messages:
    9,069
    Likes Received:
    6,376
    Trophy Points:
    681
    Tape should cover the gap between fan and fins.

    fan -> gap -> fins

    Mobius 1, Jul 18, 2017
    #1898
    Stress Tech likes this.
  49. Ground_Zro

    Ground_Zro Notebook Consultant

    Reputations:
    58
    Messages:
    141
    Likes Received:
    109
    Trophy Points:
    56
    So where the red lines are? [​IMG]

    Sent from my XT1585 using Tapatalk

    Ground_Zro, Jul 18, 2017
    #1899
  50. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,189
    Likes Received:
    17,900
    Trophy Points:
    931
    Note it does have small rubber bumpers to do that job.

    Meaker@Sager, Jul 18, 2017
    #1900
← Previous pageNext page →
