Official Clevo W650KL / W650KJ1 / W650KK1 Owner's Lounge

Clevo W650KL / W650KJ1 / W650KK1





Clevo w650kl with LGA 1151 cpus and a mx150
Clevo w650kj1 with LGA 1151 cpus and a gtx1050
Clevo w650kk1 with LGA 1151 cpus and a gtx1050ti


Reviews
https://www.522it.com/review/201703/11982.html
https://m.sohu.com/n/482596766/?wscrid=95360_5
https://kknews.cc/digital/oym8qzo.html
http://www.ingame.de/reviews/test-nexoc-g-522-notebook/

VideoReviews
















w650kk1 is 2.57kg/5.51lbs and it could have a 49wh or a 62wh battery


Display Panel
It has 15" fhd ips


Keyboard



Cooling System




Test
by Billy2789 ( 15 minutes passed, i5-7500, no OC, no under-volt)



by Tanzmeister ( i7-7700k delided with CLU 4.4ghz -100mv, original TIM film used that came with the heatsink. 5minutes XTU stress test)


some test for a 6700k configuration
https://www.facebook.com/media/set/?set=a.823161977860348.1073741858.184539865055899&type=3

Resellers

nexoc-store.de
https://www.nexoc-store.de/notebook...tb-hdd-geforce-gtx-1050-ti-4gb-fhd-ngt?c=3547
https://www.nexoc-store.de/notebook...tx-1050-ti-4gb-fhd-ngt-wide-view-angel?c=3547
https://www.nexoc-store.de/notebook...tb-hdd-geforce-gtx-1050-ti-4gb-fhd-ngt?c=3547

amazon.de
https://www.amazon.de/Nexoc-1365512...TF8&qid=1490645706&sr=8-1&keywords=nexoc+g522
https://www.amazon.de/Nexoc-1365472...TF8&qid=1490645706&sr=8-2&keywords=nexoc+g522
https://www.amazon.de/Nexoc-1365471...TF8&qid=1490645706&sr=8-3&keywords=nexoc+g522
https://www.amazon.de/Nexoc-1365461...TF8&qid=1490645706&sr=8-4&keywords=nexoc+g522

ceg hardcore custom
https://www.ceg-hardcorecustom.com/product/clevo-w650kk1-7th-lga1151-ddr4-nvidia-gtx-1050ti

notebookguru.de
https://www.notebookguru.de/de/Notebooks/Guru-ICE-K-Extreme-15-6-Zoll.html

dubaro.de
https://www.dubaro.de/Gaming-Notebooks/Gaming-Notebook-W650KK1::3229.html

shscomputer
https://www.shscomputer.be/fr/compu...kk1-156-full-hd-i7-7700-gf-gtx1050ti-4gb.html

newegg
https://www.newegg.com/Product/Product.aspx?Item=9SIA8S15K14291

eluktronics
http://www.eluktronics.com/w650kk1



@D2 Ultima any ideas?



Look like it has only 1 fan on the left . These kind of "desktop replacement laptops" must be thick or at least , for the sake of god , add 2 fans please , clevo?
I bet $20 it will run hot as hell , like any typical (1 fan) multi-media notebook



only 1 fan? are you sure? there is a fan also in the top photo?

Immagine by sicily428 posted Mar 12, 2017 at 8:53 AM



The only desktop replacement laptop that is worth buying is the XMG U507 (Desktop CPU + GTX 1060)
It's very thick and heavy though (7.5 pounds ~ 3.4kgs)



w650kk1 is not mainly for gaming. it is only 2.5kgs anf it has a battery of 49wh
this is not a desktop replacement imho



Then why not just buy sth that has long battery life like Dell XPS 15 (Quad Core i5 7300HQ + GTX 1050ti + 56W battery).
http://www.notebookcheck.net/Dell-XPS-15-2017-9560-7300HQ-Full-HD-Notebook-Review.195668.0.html
It passed all stress tests (except the extreme scenario test) , the CPU can run at 3.1GHz without any slowdown
Desktop replacement laptop requires a beefy cooling ...



i think that this clevo w650kk1 with an i7-7700t (35w tdp) or i7-7700 (65w tdp) could be better than xps with i7-7700hq (45w tdp) for fem/cfd use and 1050ti is faster than 1050.
i don't think that 94°C are great temps as in the stress test of xps.
do you know some tests of w650kk1? reviews?
http://processors.specout.com/compare/1955-2016/Intel-Core-i7-7700T-vs-Intel-Core-i7-7700HQ
http://cpu.userbenchmark.com/Compare/Intel-Core-i7-7700HQ-vs-Intel-Core-i7-7700/m211019vs3887



the only problem for me is that there is not a tb3 port for egpu solutions and gpu is only a 1050ti and not a quadro
i could use autocad/inventor/3dstudio without problems but solidworks or catia could have a loss of speed

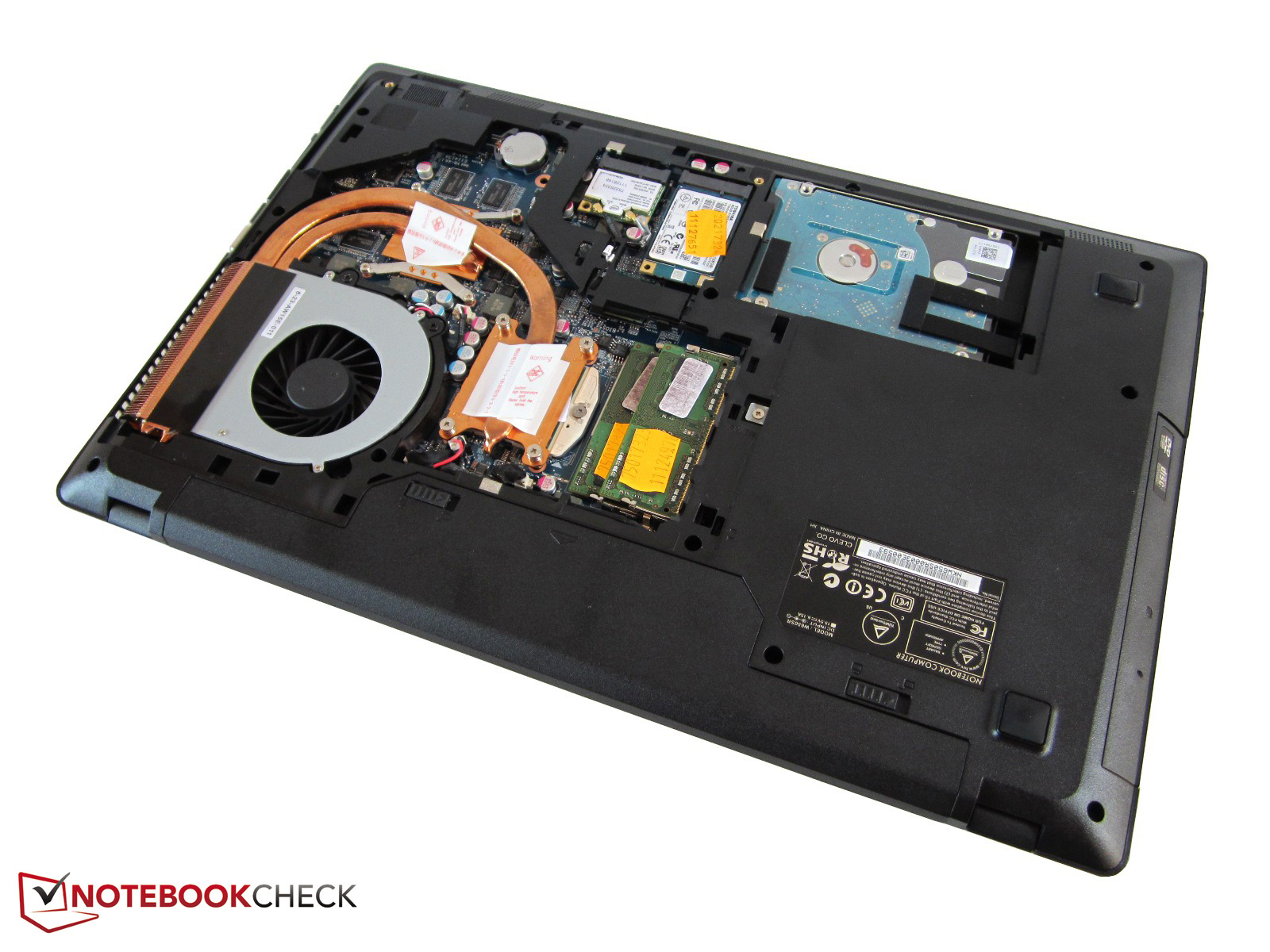

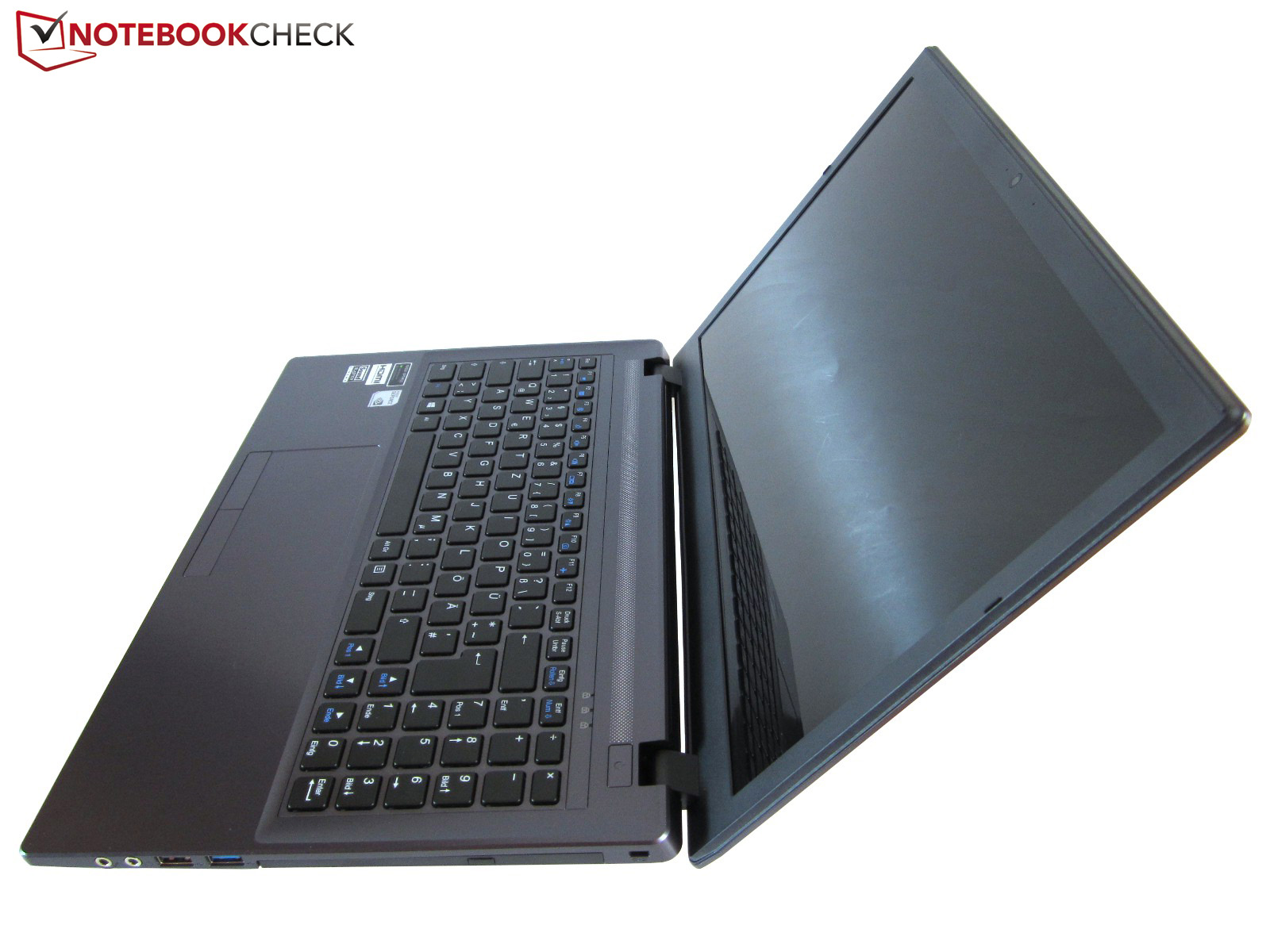

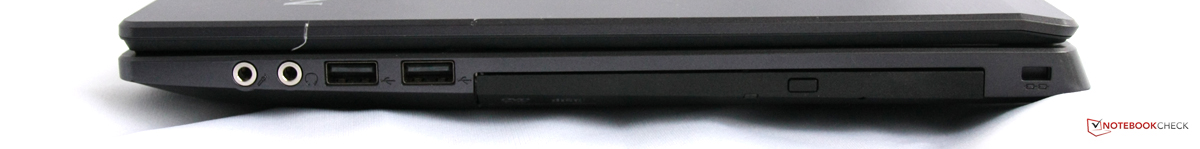

i just find this old review of Clevo-W650SR with i7-4700mq, gt750m and optical drive


http://www.notebookcheck.net/Review-One-K56-3F-Clevo-W650SR-Notebook.96272.0.html


in nowadays w650kk1 there is not optical drive.


edit

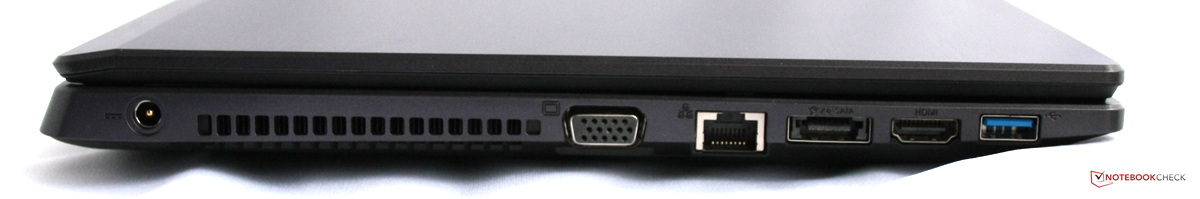

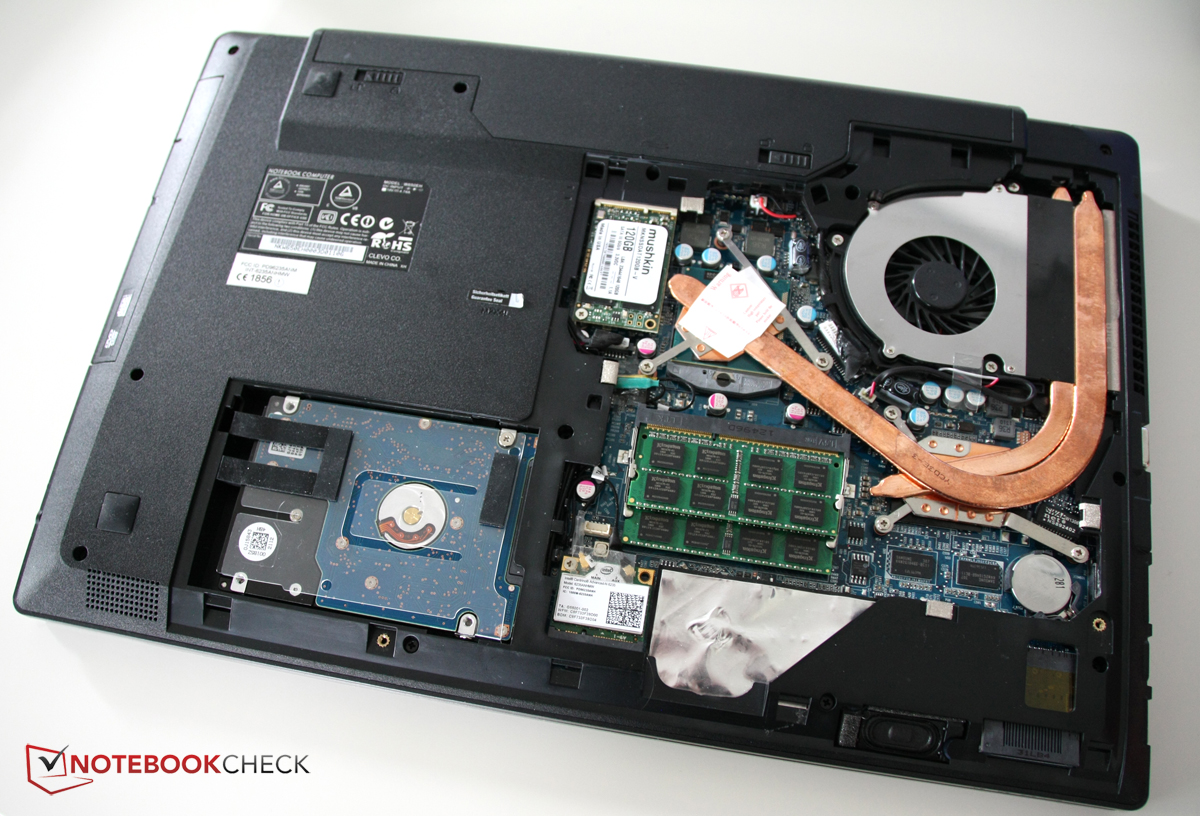

https://www.notebookcheck.net/Review-Nexoc-M512-Clevo-W650EH-Notebook.93332.0.html



This is the cooling system (a picture I once found in a chinese forum, also posted here). But there is no information how it really performs.

https://s24.postimg.org/anomp673p/bba4cdbf6c81800a17d0964bb83533fa838b47bd.jpg



wow! Thanks


so 2 heat pipes for cpu and 1 heatpipe for gpu



The lower one with 2 heat pipes is CPU. It's a socketed CPU which can be changed by will.



yes sorry. i find it now



now i need benchmark and temperatures



They are designed more for the lower power desktop CPUs but should perform decently well with those.



what is the exact sager model for this w650kk1? do you think that temps could exceed 90 degrees Celsius in stress test?



here a review
http://www.ingame.de/reviews/test-nexoc-g-522-notebook/

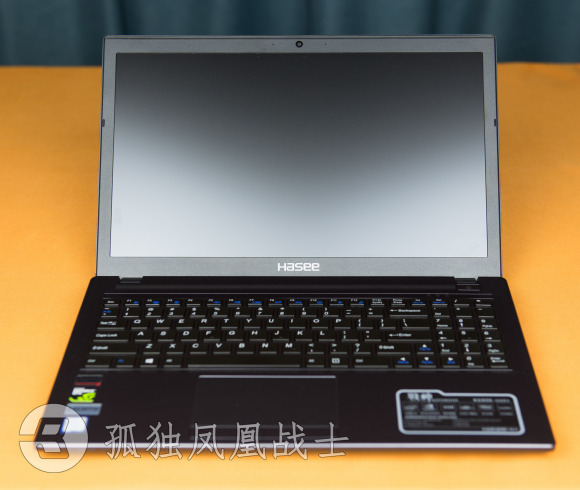

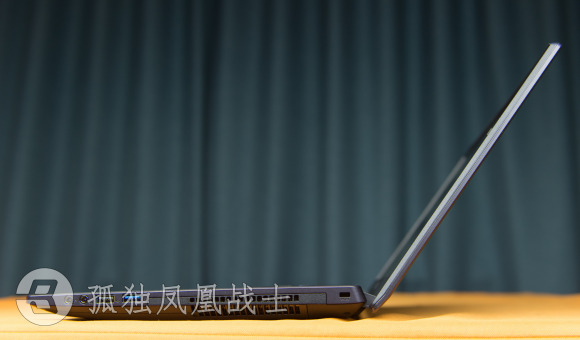

HASEE K680E-G6D1

https://m.sohu.com/n/482596766/?wscrid=95360_5





here a chinese review of k680e-g6d1 (w650kk1) i5-7400+gtx1050ti
https://www.522it.com/tuwenpingce/2017-03-17/11982.html
with goole traslate
https://translate.google.it/translate?hl=it&sl=auto&tl=en&u=https://www.522it.com/tuwenpingce/2017-03-17/11982.html






















Radiation4

Tomb Rider

Titan Fall2



do you know this panel auo b156han06.0-1?



Ceg hardcore custom sells a version of w650kk1 with 30% more battery life (62wh).
https://www.ceg-hardcorecustom.com/...tel-desktop-kaby-lake-ddr4-nvidia-gtx-1050-ti
do you know the weight? Battery life in wifi surfing?



here another chinese review
https://kknews.cc/digital/oym8qzo.html



Another seller:
https://www.kiebel.de/pc-systeme/kc...-hellfire-7-15-6-1050ti-39-6cm-bild.html#null
What's interesting, they offer i7-7700k.

ADDED:
Yet another:
https://www.shscomputer.be/configure.php?machine=5043&option=0&type=laptop



It may be slightly OT, but I just noticed that the latter offers also (as the only European seller that I found) W650KJ1. The difference from W650KK1 is GPU - 1050 instead of 1050Ti. And in price, €50 less.



Take care, not all come with a pair of M.2 NVMe, some have just 2 SATA ones.



do you know the weight of version with 62.16wh battery?



No.



BTW, I see also W651KK1 and W651KJ1 on the Clevo site. I can't find anything on how are they different from W650 (Clevo description shows them the same) and I can't find any seller either.



i did the same question for p651/p650. in that case there are only aesthetic differences like rubberized alluminium/alluminium.

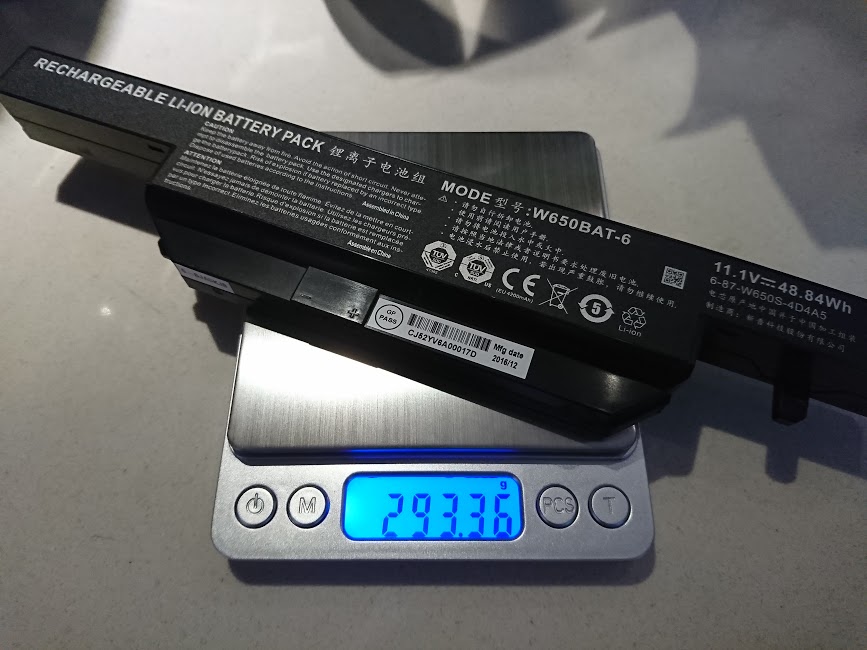

The larger battery (w650bat-6) is reported to weigh 357g:
http://www.lovebattery.net/product_detail.asp?id=8331
The smaller one (n650bat-6) - I can't find. But you're one step closer



this is the smaller



You may also refer to my post (just check the pics)
http://www.hkepc.com/forum/viewthread.php?fid=84&tid=2367508&extra=page=1

I've one on-hand until saturday.



what's the weight of this laptop without battery?



Not even on the W650KK1 Clevo put a foot on the battery (as opposed to the N850HK1)... no one shall defend that stupid design decision on the N850 anymore...



now looking for a scale to weigh it...

I lived with my P170EM for 5 years and never found that a problem tbh.
leave the battery inserted as standby power and you've got an ultra reliable workstation laptop



Could you also test this w650kk1 with aida64?



Unfortunately I dont have a scale capable of ~2kg measurment

Will do aida in a minute



downloaded aida, what would you like to know?



I don't see the images.
When I looked up the page source and pasted the urls in the browser, it redirected me to a google login page. Can you upload the pics to the forum?



Could you make a stress test with aida64? I would like to know temps.



uploaded to forum

15 minutes passed, nothing special
i5-7500, no OC, no under-volt



Thanks!



In case some didn't check my other post:

Panel is AUO B156HAN06.0, 6bit 72% DCI P3, AHVA, "matte"


CPU cooling covered by 10mm + 8mm heatpipe, GPU covered by single 10mm heatpipe


Stock thermal paste is rubbish, replaced with GC Extreme


Idle temp, both fan operate near silent



Two more images:

Stress test using Intel XTU and MSi Kombustor, different temp readings with xtu & ts5


Unigine Heaven loop, GPU OCed ~1835MHz



Could you do some CPU burn tests too? How is loudness in such case?



I have done 2 already? with XTU & aida 64, what exact software are you looking at?

The fan never runs into 100% unless Fn+1, noise is comparably lower than my P170EM(especially CPU side), GPU fan might be around the same tho



My bad, have been sleepy and missed it. Thanks!
It works much better than I'd expect.



No problem
It works out really well, I bought it for $6500 HKD only ~$810USD

included:
Intel i5-7500
NV GTX1050Ti 4GB
Corsair Vengeance D4-2400 8GB
AUO AHVA screen
Lite-On 128GB m.2 SATA SSD < better than nothing
Intel Wireless AC 7265

if Clevo ever produce a 17" W670KK (+4K screen)
or one with AMD am4 socket
or one with USB-C / TB3

all those would be game changer, atleast in my dream



What were the ambient temps?
Assuming 22 °C and actual power consumption of 65W, the temperature rise is 0.8 °C/W.
A 91W CPU in this chassis, with the same thermal paste as yours (I wonder which is it), would peak at 95 °C. Assuming that the fans don't ramp up further, which would reduce the temps below that.

With a delid, liquid metal and undervolt, this chassis should handle 7700k easily. And that would be amazing bang for the buck (and for the size too).



I've read some boards block undervolting. Could you try on this one?
