Samsung Q310 - Temperatures

thanks, what about the graphics card? Is there a way of making the fans always on,(ntune cant control them) as its when the fans speed up, it gets noisy and thats the reason why i cant use in lectures



Lol, yeah I did put my face next to the vents just to seem what happened, and its very warm. I have pretty much no sense of temperature in my hands, thats why ma face was there.



all eye candy is off and graphics are in performance mode, but still no luck. i think it heats up slightly slower.
how long will it take the 9200m gs card to burn out operating at 65-70C



I've attached my Q310 (the 2.4ghz 320 GB HDD version) temperatures taken using HWMonitor 1.11.

I have no idea if my temps are good or bad though. Anyone able to shed some light on that?



Hi.

Are these idle or 100% cpu temperatures.

Regards

John.



they are with internet use with utorrent on in the background with the laptop set on a bed. Not ideal settings I know but it's how I was using mine now.



Hi.

The Cpu and Gpu are a little high for that usage, your not blocking the vents on the bottom are you.

Regards

John.



it's entirely possible. I didn't even notice that there were any until just now. The surface they are on isn't exactly the best.

I guess I'll try it again after I shut down and the laptop cools down and i keep it on a flat surface for a while.



Hi.

Use a tea tray under the notebook.

Regards

John.



im starting to get the feeling that its most q310's that are hot. Does your fan keep speeding up wizard of oz? as mine has to speed up about every 1 minute 20 seconds.

ps i like the new pic tinderbox



Here's my temperatures.
It contains the initial temps on start up, then on 30mins and finally 1 hour, idle on the samsung optimized battery settings with all stock settings nothing changed at all.



It look like 35 cpu 49 gpu , i will take the 30min one, as whatever you have the notebook on will start to heat up and affect the readings.

regards

John.



just tried using it on my lap, and the way they have positioned the grills underneath you have to put the laptop on one leg nearly and it now feels like its going to sleep, but i get the same temps as when i put it on a wooden board



Hi.

why they dont put the air intake on the side, instead of the bottom, it would not get blocked then, air in one side and out the other.

It must be possible.

Regards

John.



is that what it is like on the q210?



I did not say it was like that on the Q210, but all notebooks should be like that!

Regards

John.



I always wondered why they couldn't have slits in the keyboard, or in the space between the keyboard and screen. Surely this part of the laptop will never get blocked.



Vents on the front, so the HDD gets a bit of cooling airflow is one option. Ventilated keyboards make it easier for spilt drinks to get to the electronics.

John



didn't say you did lol, just wondered. Do ssd's get hot? If they dont the one vent on either side would probably enought wouldn't it?

My temps goto 62C last night at idle and the fans didn't come on for ages, and then writing a letter in wordpad the temps went to 65C, and then really basic web browsing and a few seconds later thetemps rise to 70C and the fans come in very often

edit:
just got my new q310 and the temps goto 59 where the old one got to 62 so no difference really, the only difference is the fans are a bit more quiet



is this a general conclusion??that the samsung q310 overheats??



That depends on your definition of overheating. Temperatures of up to 75C are not overheating but are warmer than some people would like. At the same time, people like no fan noise. The only way out of this dilemma is to avoid dedicated GPUs.

John



I dont have a problem with this really..just dont want a repetition of my last hp/nvidia problem..

thanks



according to the cooling central thread on this forum the gpu danger zone is about 90C but the main problem that i had was i couldn't stand the noise of the fans, even my replacement does my head in sometimes as for no reason the temperatures go up when browsing simple websites, and then the fans have to come in.

Again im starting to think its the p8600 processor that causes the higher temps as the q210's have the p8400 processor and they are fine.



Hi.

Have you been doing the firmware upgrades?

I have upgraded my Q210 ,3 times 06,07,08 , what they do is another thing!!

Regards

John.



Samsung Update Plus has not yet brought any BIOS updates to my attention
Do I have to go to the Samsung website to get them?



Hi.

Yes you have to go to the Samsung website, what 08 changes i do not know!

http://www.samsung.com/uk/support/download/supportDown.do?group=itbusiness&type=notebookcomputers&subtype=qseries&model_nm=NP-Q210&disp_nm=Q210%20&language=&cate_type=all&dType=D&mType=FM&vType=R&prd_ia_cd=05010500

Regards

John.



ok, Im going in!



Just managed to get some time to post some temps of my Q310.

It does get a bit on the hot side from time to time but I think I am just going to have to live with it. I was watching a DVD the other day and the air coming out from the fan was pretty hot.

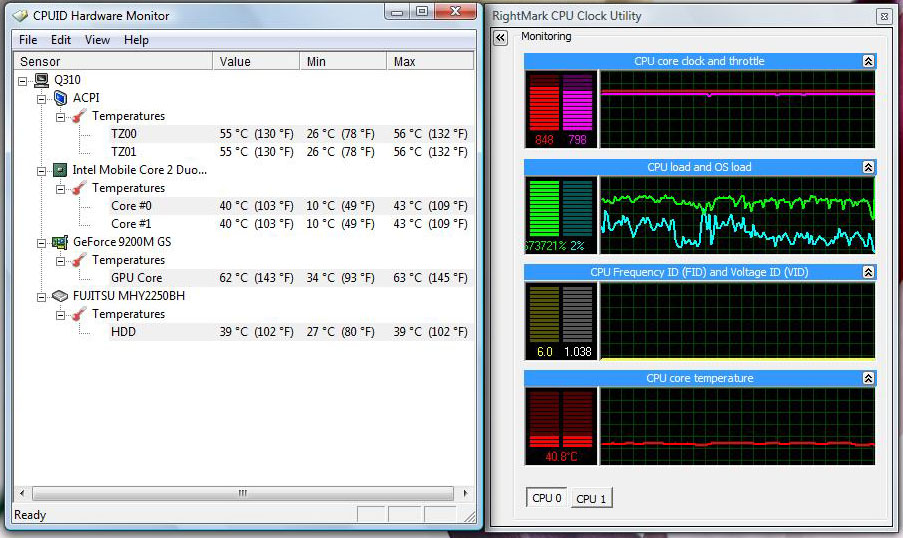

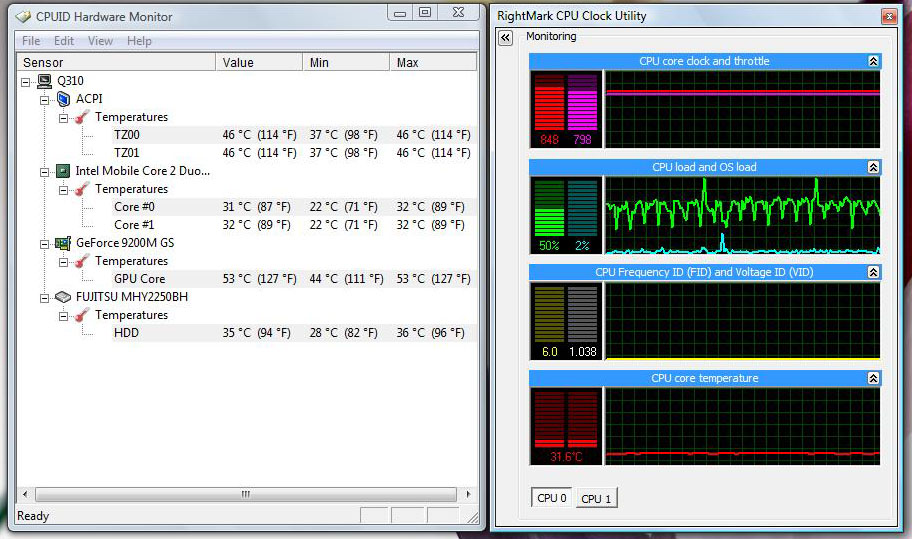

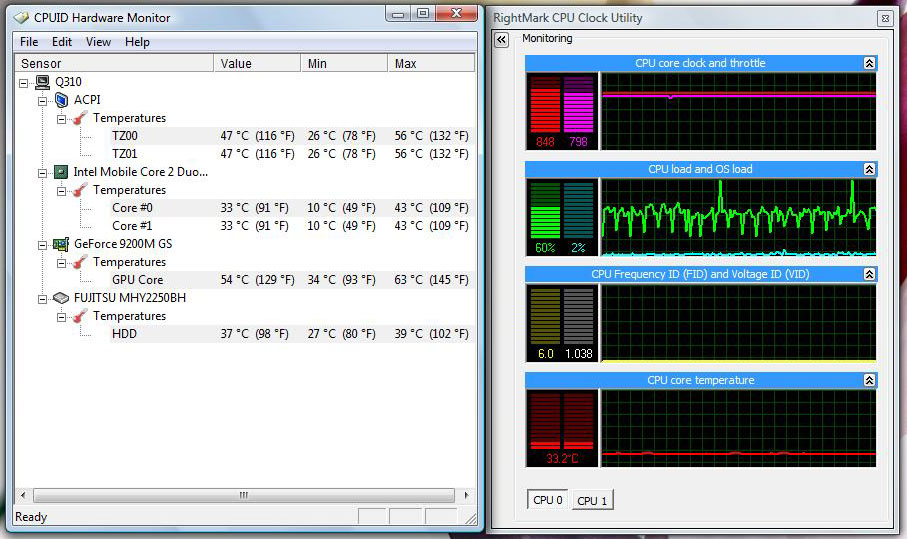

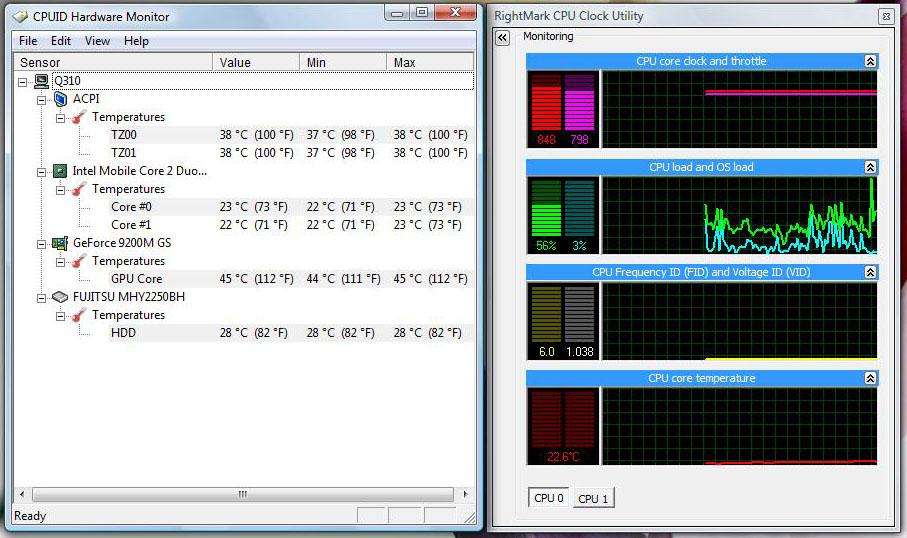

I've attached screenshots of temps at startup, after 30 minutes idling (I just moved the touchpad every now and then to keep the display on), web browsing for 30 minutes, and then another 30 minutes idling.



I really regret trying to update my BIOS.
Heres what I did:
Download the latest version,
Run it,
Reboot...
Then it wouldn't start Vista, it would show the little loading bar for a second then flick to a blue screen for a split second. I tried several time in normal mode and safe mode, then I let Samsung replace all the essential Windows files with hopes that would fix it, but nothing. Had to reinstall from scratch

After this palaver there was still a couple of positives, screen flicker has gone and its a lot tidier now.

But I'm never ever, ever doing a BIOS upgrade again... ever



Hi.

I had a problem with a BSOD on boot-up after flashing the BIOS 07

It turned out to be a problem with AHCI in the bios being on Auto , it needed to be tuned to enable for Vista or Disable for Xp , it`s something to do with the SATA mode.

I don't quit understand it , but have a look at the thread below

thanks to Andy who knows a lot about AHCI

http://forum.notebookreview.com/showthread.php?t=313214

Regards

John.



Hi.

You got a 62c gpu temp from just browsing the net, I get 43-47c on my Q210 , how hot does your gpu get when running a game??

I would love to know why the Q310 gpu runs so hot!!

Regards

John.



****, I recall reading that thread as well :[
Makes sense though, thanks for this, it will help in the future +1



Hi.

Did you notice some BIOS downloads are marked Vista and some Xp/Vista , thats where the problem lies with the AHCI setting , the Auto setting gets the selection wrong and causes an BSOD.

Regards

John.



I'd love to know too!

I'll try to get some temps after running a game for a while.



Orca, have you undervolted? I assume you have but just making sure



SNAP!!!!

lol, what model q310 have you got, my gpu rises when doing basic internet browsing as well and the fans are on and off all the time.



I've got the P8400 model. I wonder if it is something to do with how well the heatsink is attached to the GPU.

Basic web browsing should not put a lot of strain on the video card. It's ridiculous!



I haven't tried undervolting yet but might give it a go. What needs to be undervolted. The CPU, GPU or both?



Hi.

RMclock the program used to undervolt the CPU does not fully support the P8400 as it requires an 8.5x multiplier for max performance and RMclock only supports 8.0x so you will only get 2-2.1ghz not the full 2.26ghz

Also undervolting cannot decrease idle temps and it can actually cause them to increase as the RMclock will use some cpu power!

Rergards

John.



I wonder, because the CPU and GPU kinda share a heatsink, if it would be beneficial to underclock and undervolt the CPU to get more of an OC out of the GPU?

I shall test this theory sometime tomorrow or the next day.



Heat isn't always the limiting factor when overclocking..

When I was trying it out my core would max out at 65C or so with 750mhz core, however 770MHz core would give artifacts.. these temperatures are lower than what some people are reporting their idle temps to be!



ATM I can OC to 720MHz with no artifacts and the max temp ever was only 64C.
I suppose its just the chips that just cant handle such high frequencies.

In my case the CPU rarely gets hot enough to make much of a difference unfortunately.


@Tinder: On RMclock its showing the clock speed as 2260MHz. Is it really running at ~2100MHz?



Hi.

Try running CPU-Z at the same time and you will see the true clock speed! , unless you have enabled option on RMclock that i did not!

Regards

John.

PS. I have had my 9200m running at 750/950 without any visual problems.



RMclock can't handle the half multipliers on CPU speed so if you are running RMClock then 2100 is the limit. You would need a stopwatch to see the difference in performance.

John



Well then your a lucky *******
I brought a cooler but it isn't really helping to increase OC, just keeps it cooler.

Are you actually playing on those settings and has anyone hit the 3k boundary on 3Dmark06?



I hit 2900 with 750/950.

Will aim for 3000 soon. =D



Hi.

My 3dmark06 score is the same as pillowshot, at 750/950

But i will not be using this setting often, as you dont know how hot the memory chips are getting as they dont have a sensor.

I use 750/850 if i need a little more power in a game!

Regards

John.



Is there any kind of software, which can control fan's speed? I also don't like my Q310's temp. Maybe any software can correct fan's preferences...



KIP, what kind of temperatures are you getting with your Q310?



orca1
During surfing Internet - about 48-53 degrees CPU and 53 GPU. However, I think it's rather high. There are no any options in BIOS unfortunately
