    Hi read that both of you read something of the service manual for the series 9, I confirmed in one post that series9user ordered the cd, I broke myself buying the series 3 for 388.77, yeah me poor. now the series 3 and 9 have a open port in common in the series 3 you can see it if you open the memory compartment (fuzzy teardown pics, still waiting for my series 3 just bought it sunday on eBay) on the series 9 I saw it in clearer teardown pictures, but my question is if the samsung service manual references this port, cause I'm wondering if it is a stripped down mpcie port or something else, because if you combine the 3.3V and ground lines and leave out the simcard and all the reserved crap you might be able to get away with 10 pins as far as I look at the standard. it also could be a dual usb port but that should be 8 or 9 wires, there are also endless other possibilities all of which could peak my interest.
    can either of you get me some info on this because it would be greatly appreciated
    Thanks in advance
    terramir

    terramir, Nov 8, 2011
    #1
  2. brian5

    brian5 Notebook Evangelist

    Reputations:
    277
    Messages:
    628
    Likes Received:
    0
    Trophy Points:
    30
    @terramir

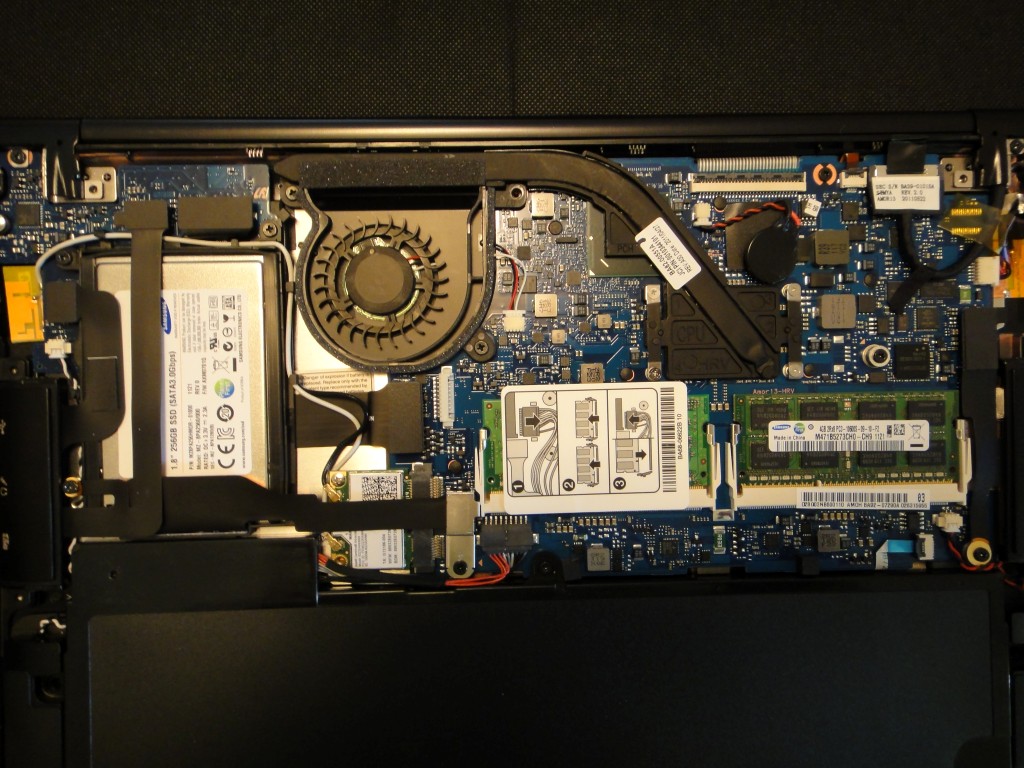

    Sorry, I can't tell what port you are asking about. There are other better pictures out there but this is one that I took of my A05. Can you tell where this port is?

    EDIT: Are you talking about the white connector below the fan in the attached picture? I would suspect this is for connecting a "debug card cable".


    Attached Files:

    brian5, Nov 8, 2011
    #2
  3. brian5

    brian5 Notebook Evangelist

    Reputations:
    277
    Messages:
    628
    Likes Received:
    0
    Trophy Points:
    30
    Actually, I think you may be talking about "the 10 pin connector below the PCMCIA slot" that the System Diagnostics Card which connects to. That's Samsung's wording; I didn't know there was a "PCMCIA slot".

    brian5, Nov 8, 2011
    #3
  4. terramir

    terramir Newbie

    Reputations:
    0
    Messages:
    9
    Likes Received:
    0
    Trophy Points:
    5

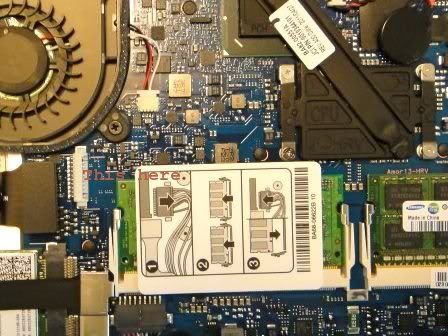

    it's the port by the "T" in this here writing a whitish port see the image below I cropped and edited your image to get the message across
    [​IMG]

    terramir, Nov 8, 2011
    #4
  5. brian5

    brian5 Notebook Evangelist

    Reputations:
    277
    Messages:
    628
    Likes Received:
    0
    Trophy Points:
    30
    @terramir

    You haven't attached any pictures but I think I've given you all that I know.

    brian5, Nov 8, 2011
    #5
  6. terramir

    terramir Newbie

    Reputations:
    0
    Messages:
    9
    Likes Received:
    0
    Trophy Points:
    5
    now debug card cable now the question is what is the debug card cable based on hmmm pci-e or something else :s

    terramir, Nov 8, 2011
    #6
  7. terramir

    terramir Newbie

    Reputations:
    0
    Messages:
    9
    Likes Received:
    0
    Trophy Points:
    5
    okies looked into it it's a replacement for the isa bus and you can't use it for anything. but a diagnostic card :(
    oh well that's life but at least the usb connector to the webcam looks fairly standard on the 3 series so I should be able to do a hub mod without soldering on the motherboard :p

    terramir, Nov 8, 2011
