    Buy new Keyboard and install myself?

    Discussion in 'Toshiba' started by Orlando Guy, Nov 26, 2008.

  1. Orlando Guy

    Orlando Guy Notebook Consultant

    Reputations:
    13
    Messages:
    119
    Likes Received:
    0
    Trophy Points:
    30
    I have a Satellite A205. The M button on the keyboard does not work. I called the laptop place near my house and they said it would take days to even get to it and would be at least 100 dollars..lol. So I was wondering better options for getting a new keyboard replacement fast and inexpensively.

  2. Meatball.[oni]

    Meatball.[oni] Notebook Enthusiast

    Reputations:
    15
    Messages:
    17
    Likes Received:
    0
    Trophy Points:
    5
    Which laptop model is it? (It should be on a label on the bottom, mine is "PSPA3C-SD402E"). If you could let me know, I can point you directly to the part you need.

  3. ahl395

    ahl395 Ahlball

    Reputations:
    3,867
    Messages:
    8,218
    Likes Received:
    72
    Trophy Points:
    216

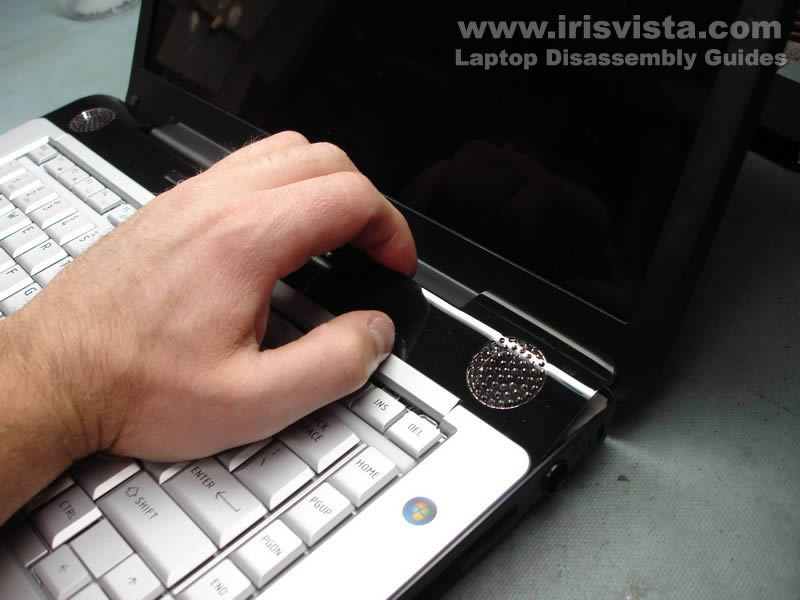

    STEP 1

    [​IMG]


    Start removing the keyboard bezel with your fingers.



    STEP 2

    [​IMG]


    Lift up and remove the keyboard bezel.

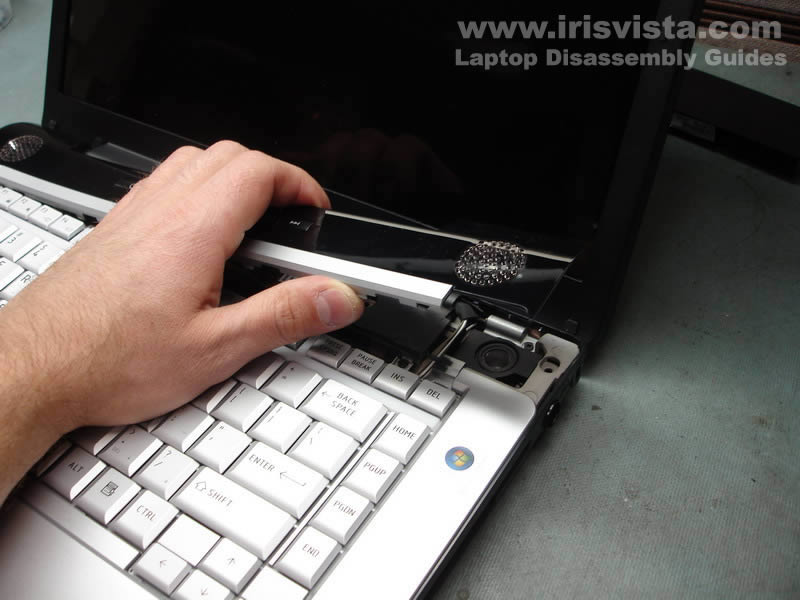

    STEP 3

    [​IMG]

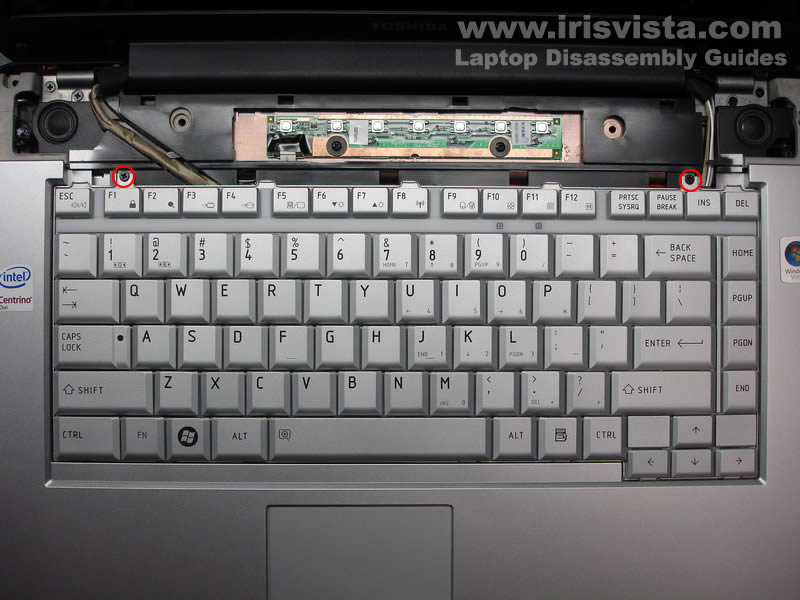

    Remove two screws securing the keyboard.



    STEP 4

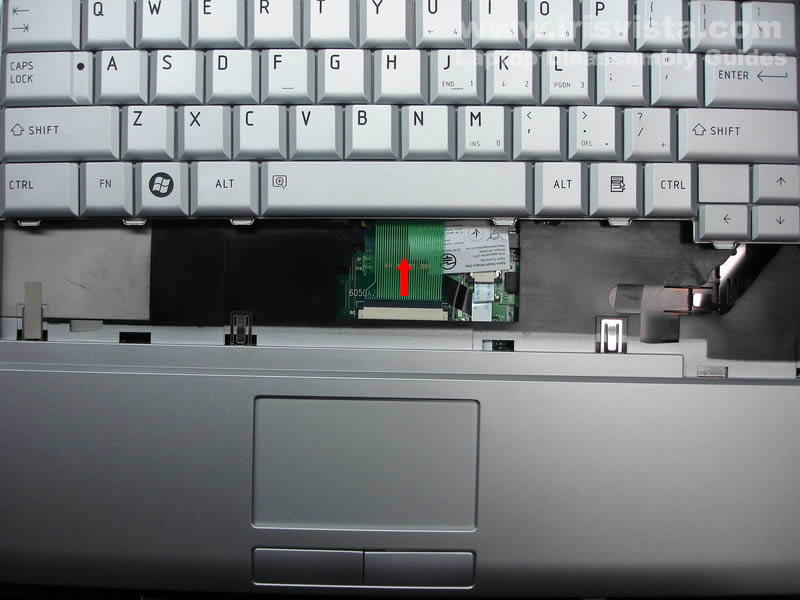

    [​IMG]


    Lift up the keyboard and disconnect it from the motherboard.

  4. Orlando Guy

    Orlando Guy Notebook Consultant

    Reputations:
    13
    Messages:
    119
    Likes Received:
    0
    Trophy Points:
    30
    its

    PSAF3U-0PD00V

    zeroes not O's...thanks :D

  5. ahl395

    ahl395 Ahlball

    Reputations:
    3,867
    Messages:
    8,218
    Likes Received:
    72
    Trophy Points:
    216
    Use what i posted anyway. ;)

  6. Orlando Guy

    Orlando Guy Notebook Consultant

    Reputations:
    13
    Messages:
    119
    Likes Received:
    0
    Trophy Points:
    30
    Really? it's that easy? ...thanks!

    Do you guys recommend any skins for the keyboard so this does not happen again?

  7. ahl395

    ahl395 Ahlball

    Reputations:
    3,867
    Messages:
    8,218
    Likes Received:
    72
    Trophy Points:
    216
    yep, it shouldnt be a problem. ;)

  8. Orlando Guy

    Orlando Guy Notebook Consultant

    Reputations:
    13
    Messages:
    119
    Likes Received:
    0
    Trophy Points:
    30
    Do I need too unscrew anything before prying off the bezel?

  9. Jernkar

    Jernkar Notebook Consultant

    Reputations:
    13
    Messages:
    212
    Likes Received:
    0
    Trophy Points:
    30
    Nope, It should come off just like in the pictures. Sometimes it works better to fold the lid all the way over so it's almost flat.
    E bay is a good place to find keyboards, I think they run about $20 for most Toshibas.

  10. Orlando Guy

    Orlando Guy Notebook Consultant

    Reputations:
    13
    Messages:
    119
    Likes Received:
    0
    Trophy Points:
    30
    i got my keyboard off ebay..but my model is a little different..it did not come off with my fingers.I would have broke it. I had to unscrew 8 screws to get it off. My A250 has horizontal speaker covers and not the circular ones in that pic.
