    Toshiba M70 Speaker Wiring

    Discussion in 'Toshiba' started by SashaCryotank, Jul 3, 2008.

  1. SashaCryotank

    SashaCryotank Newbie

    Reputations:
    0
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    5
    **UPDATE***
    Think i may of got it, Im going to atempt to make this work i only have two chances since i got a second set that will work
    **UPDATE**





    Hey every one after months of putting it off i've finally decided to finish my modding project on my Toshiba laptop, Ive upgraded my CPU and added a new Screen aswell as keyboard, Case, CD Drive,Fans, and even my touch pad, And Since i lost sound about 6months ago, from most likely my sound controller biting the dust during a lan ive been using a great little external SoundCard which has served me well.


    What i want to do know is Use my laptops Internal Speakers via the External Card (Creative Xmod) Basicly by taking the interal wires and modding a 3.5 jack onto the ends but i have run into a problem. Each speaker has 2 wires, I know this is gonna be power and then Audio but im not sure which ones which

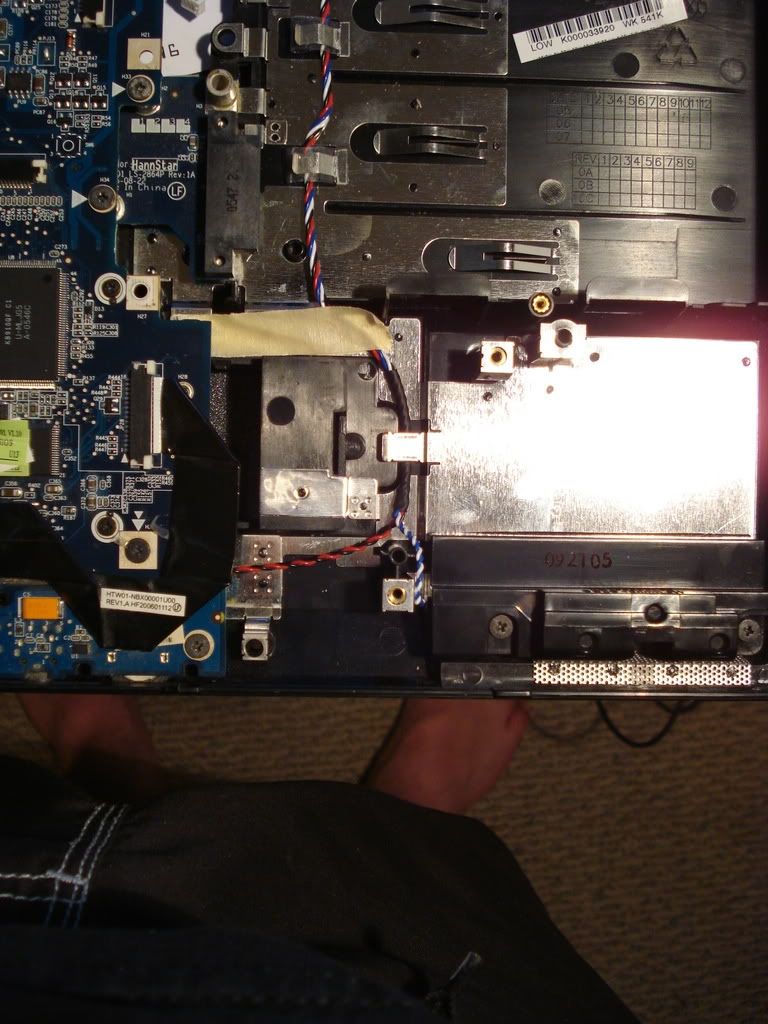

    My left speaker has a Red and Black wire, My Right speaker has a Blue and White.

    Heres a picture
    [​IMG]


    Ive even gone as far as calling toshiba asking for the actual Schematics but they wont give em to me.


    If any one can shed some light on this please help since i really don't like lugging speakers around with me that require me to plug em it.

    SashaCryotank, Jul 3, 2008
